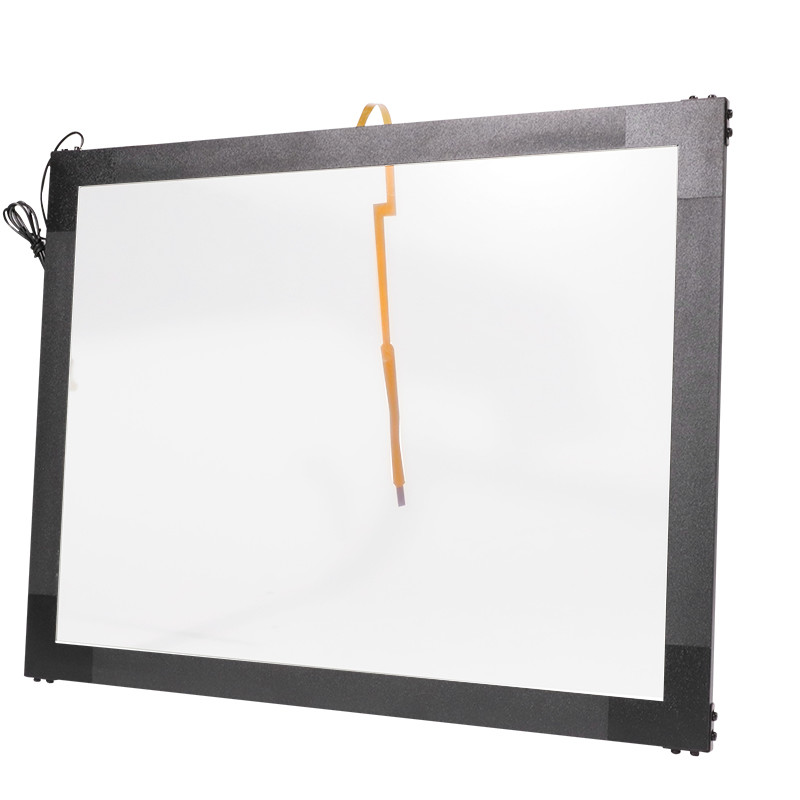

15.1 Inch LCD Touch Screen Panel 1 Touch Points With USB RS232 Interfaces

LCD Touch Panel 15.1 Inch With USB RS232 4:3 Ratio

LCD Touch Panel Main Features

• High transparency, high strength, high light transmittance

•  The surface is scratch-resistant glass surface, and it can work normally if there are scratches

• Touch without drift, automatic correction, and precise operation

• long service life

• Fast response time, high accuracy, no touch drift phenomenon

• The controller has optional USB and RS232 interfaces, which can adapt to harsh environments

• Z-axis pressure recognition, only sensitive to strong touch, preventing misoperation

• Passed CE, FCC, RoHS certification, stable and reliable performance

• install easily, fast and smooth writing, giving you the touch experience you want









  SAW Touch Screen Specifications

  Size	15.1 inch

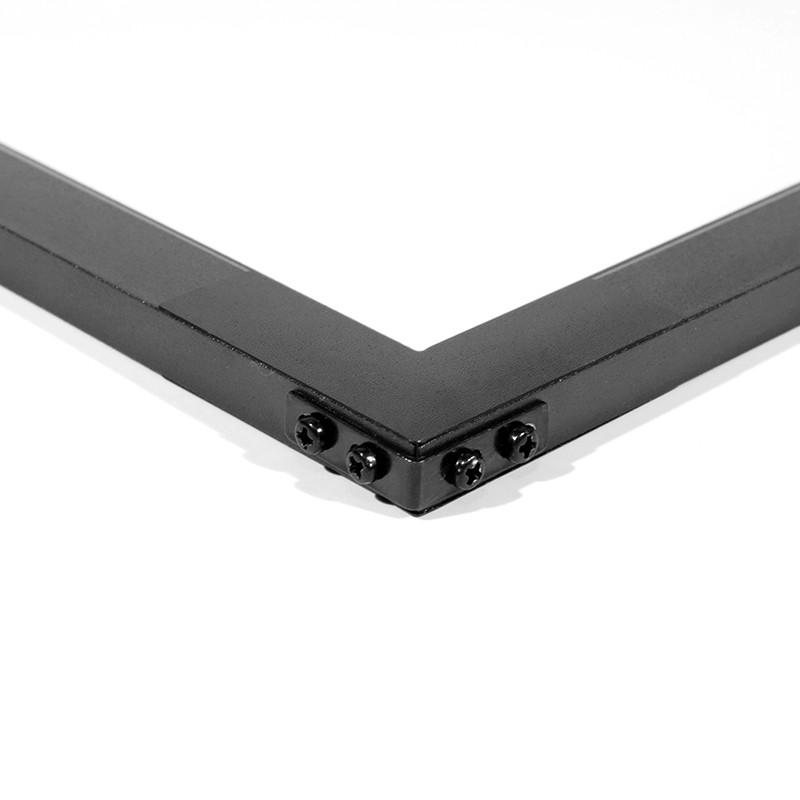

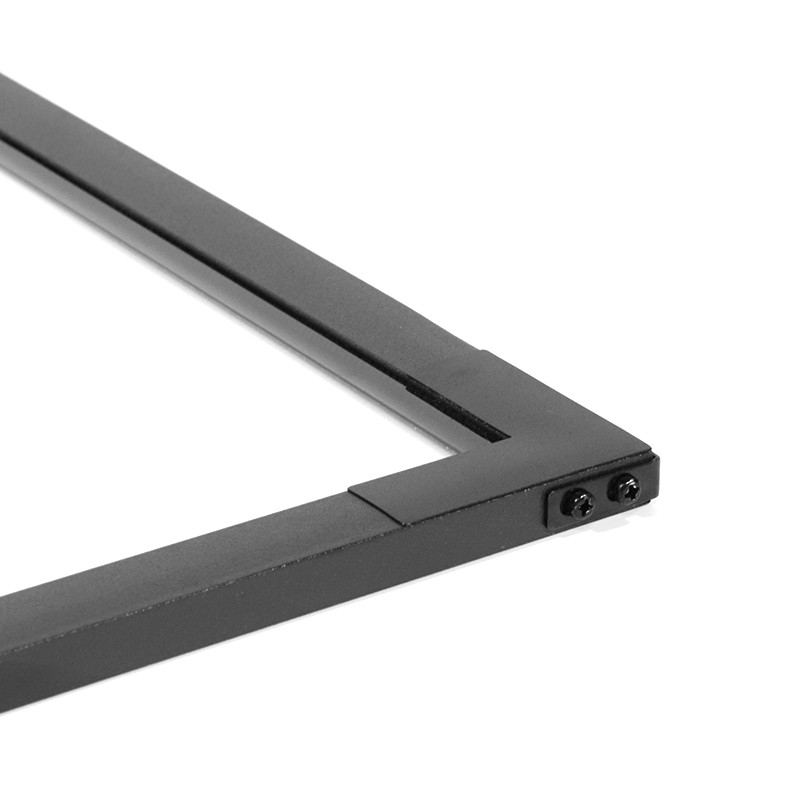

  Housing	Aluminum
  Outside Dimensions	350±1.5mm(L)×274±1.5mm(W)×8.7±0.5mm(H)
  Active Area	306±1mm(L)×230±1mm(W)
  Aspect Ratio	4:3
  Touch Activation Force	No minimum touch pressure   required
  Number of touch points	1 touch points
  Response Time	≤32ms
  Light Transmission	100% without glass
  Operate System Support	Windows®7,Windows®8,Vista,XP,Mac® OS,Linux,Android
  Temperature	operating：-20oC ~ 70o   C
  	storage：-40oC   ~ 85oC
  Humidity	operating：10% ~ 90%
  	storage： 10% ~ 90%
  Certifications	FCC ,   CE, RoHS
  Operating Environment	Indoor   and outdoor
  Applicative Screen	LED、LCD、PDP etc.










  Applications

  KeeTouch products are widely used in industries as following:

• Automatic system: intelligent self-service terminal, intelligent retail terminal, etc.

• Business Organizations: supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.

• Financial Organizations: Banks, negotiable securities, funds, insurance companies, pawnshops;

• Non-profit Organizations: Telecommunications, post offices, hospital, schools.

• Entertainments:Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course.

• Public Places: subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums,convention centers, ticket agencies, HR market, lottery centers.

FAQ

1. Are you a manufacturer?

Yes, KeeTouch is a professional LCD Touch Panel manufacturer founded in 2006, located in Shenzhen, China.

2. What’s your MOQ for the LCD Touch Panel ?

Our minimum order quantity is 1pc only.

3. What is your warranty period for the LCD Touch Panel ?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).

4. Can you produce the LCD Touch Panel according to the customer's requirements?

Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.

5. What is your payment method?

We can accept T/T, Western Union, Paypal, Credit card  and Alipay. ( L/C can be negotiable. )

6. What is your delivery time of LCD Touch Panel ?

3-5 work days for inventory orders, 7-15 business days for bulk production.
