Aluminum Housing SAW Touch Screen 18.5 Inch Dust Proof Anti Vandal For ATM
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 18.5 Inch | Touch Activation Force | No Minimum Touch Pressure Required |
|---|---|---|---|
| Operating | -20℃~ 70℃ | Applicative Screen | LED、LCD、PDP Etc. |
| Outside Dimensions | 461±1.5mm(L)×281±1.5mm(W)×8.8±0.5mm(H) | Active Area | 412±1mm(L)×232±1mm(W) |
| Housing | Aluminum | Product Name | SAW Touch Screen |
| High Light | Aluminum SAW Touch Screen,SAW Touch Screen Dust Proof,Anti Vandal touch screen saw | ||
Product Description

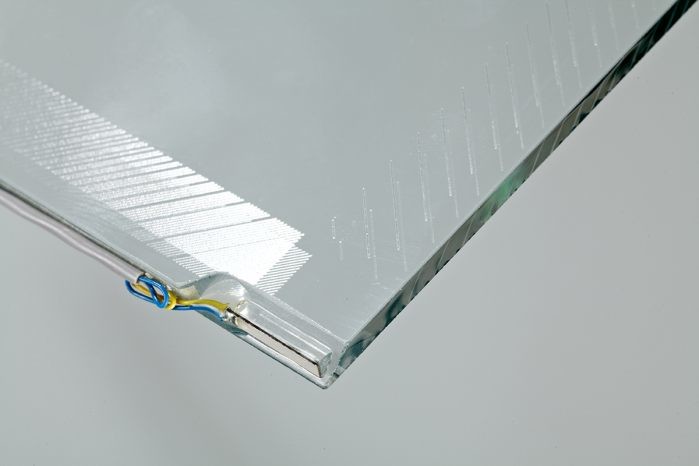

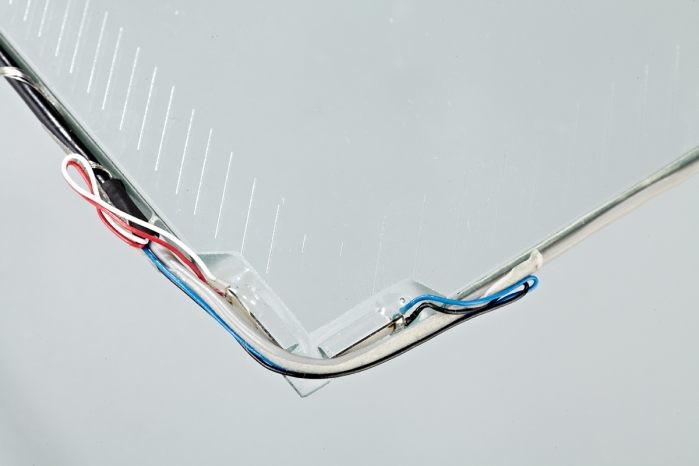

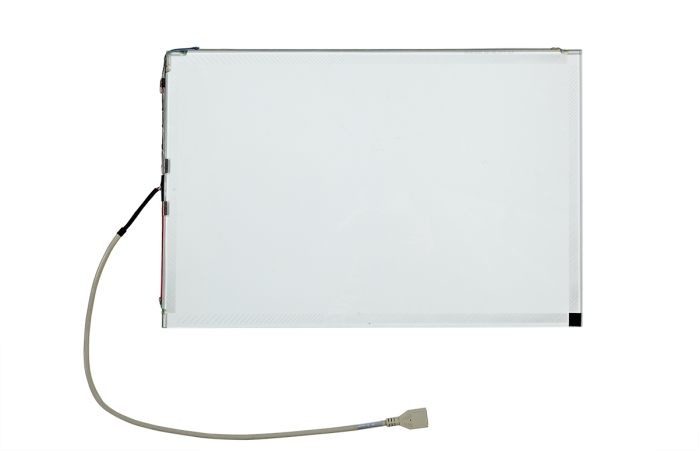

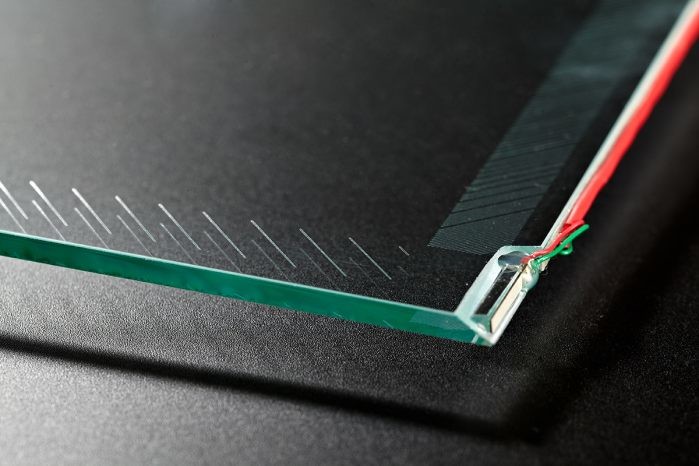

18.5 Inch SAW Touch Screen 16:9 Aspect Ratio For ATM
SAW Touch Screen Main Features
SAW touch screen, accurate touch, quick response
Anti-vandal and dust proof functions
High light transmission with high image clarity
Activated by finger, gloved hand, leather or soft stylus
USB and RS232 interfaces, support Windows7, Windows8, Vista, XP, Mac, Linux, Android
Other sizes can be offered (7"- 43")
SAW Touch Screen Specifications
Size | 18.5 inch |
Housing | Aluminum |
Outside Dimensions | 461±1.5mm(L)×281±1.5mm(W)×8.8±0.5mm(H) |
Active Area | 412±1mm(L)×232±1mm(W) |
Aspect Ratio | 16:9 |
Touch Activation Force | No minimum touch pressure required |
Number of touch points | 1 touch points |
Response Time | ≤32ms |
Light Transmission | 100% without glass |
Operate System Support | Windows®7,Windows®8,Vista,XP,Mac® OS,Linux,Android |
Temperature | operating：-20oC ~ 70o C |
storage：-40oC ~ 85oC | |
Humidity | operating：10% ~ 90% |
storage： 10% ~ 90% | |
Certifications | FCC , CE, RoHS |
Operating Environment | Indoor and outdoor |
Applicative Screen | LED、LCD、PDP etc. |
Applications
KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
FAQ
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer for over 18+years, located in Shenzhen, China.
2. What’s your MOQ for the SAW touch screen?
Our minimum order quantity is 1pc only.
3. What is your warranty period for the SAW touch screen?
Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
4. Can you produce the SAW touch screen according to the customer's requirements?
Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.
5. What is your payment method?
We can accept T/T, Western Union, Paypal,Credit card and Alipay. ( L/C can be negotiable. )
6. What is your delivery time for the SAW touch screen?
3-5 work days for inventory orders, 7-15 business days for bulk production.
