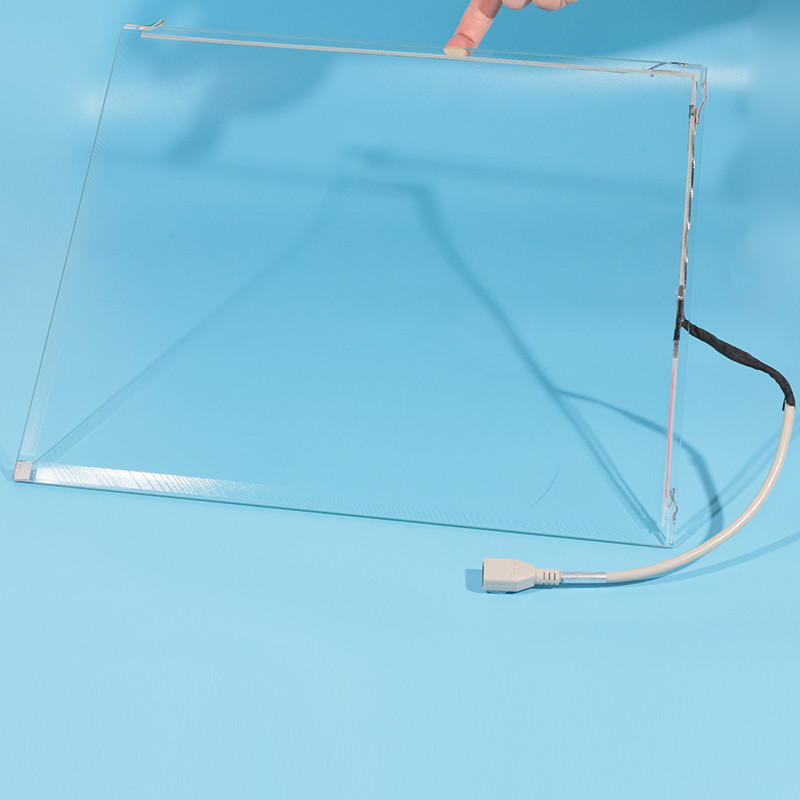

Aluminum Housing SAW Touch Panel, Acoustic Wave Touch Screen 19 Inch For ATM Machine
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 19 Inch | Response Time | ≤10ms |
|---|---|---|---|
| Connector | USB & RS232 | Humidity | 40℃@90%RH, Non-condensing |
| Operating | -20℃ To +60℃ | Applicative Screen | LED、LCD、PDP Etc |
| Controller | KCA-URO1L-R2G | Housing | Aluminum |
| High Light | Aluminum SAW Touch Panel,Acoustic Wave SAW Touch Panel,Acoustic Wave Touch Screen 19 Inch | ||
Product Description
19 Inch SAW Touch Panel Optical Glass Surface For ATM Gaming Machine
SAW Touch Panel Main Features
The touch screen part of the surface acoustic wave touch screen can be a flat, spherical or cylindrical glass plate installed in front of the CRT, LED, LCD or plasma display screen.

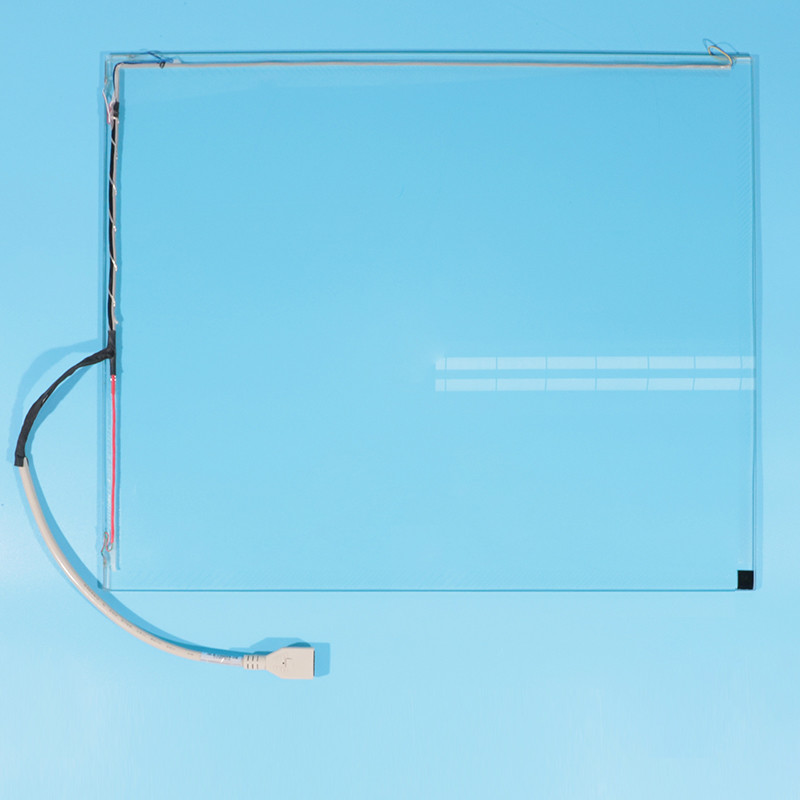

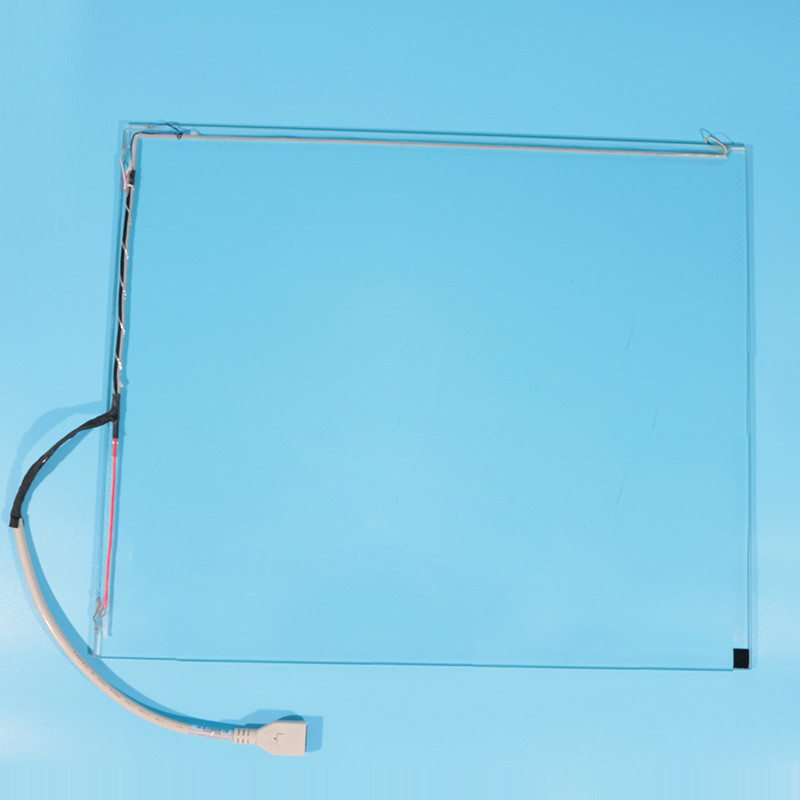

The upper left corner and the lower right corner of the glass screen are respectively fixed with vertical and horizontal ultrasonic transmitting transducers, and the upper right corner is fixed with two corresponding ultrasonic receiving transducers.

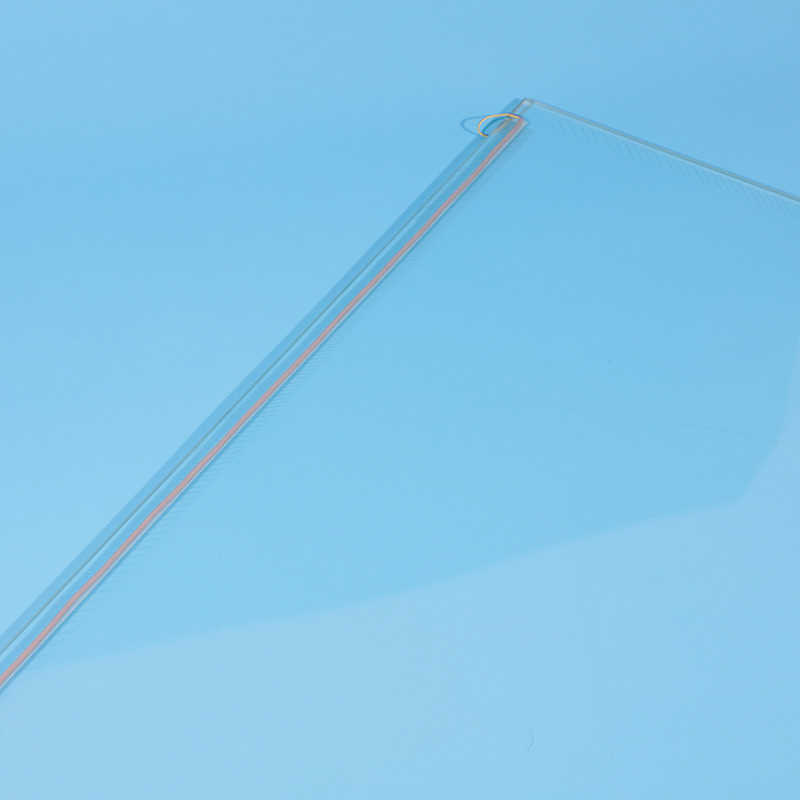

The four peripheries of the glass screen are engraved with very precise reflective stripes at 45° angles from sparse to dense.
This Saw Touch Panel is Optical glass surface, Mohs' hardness rating is 7, High definition and good light transmittance. Highly durable with good scratch resistance
SAW Touch Panel Specifications
Size | 19 Inch |
Touch Medium | Finger, gloved hand, rubber soft pen etc. |
Touch Activation Force | ＜80g |
Controller | |
Controller Interface | USB & RS232 |
Response Time | ≤10ms |
Transmission | 90% |
Temperature | Operation Temp:-20℃ to +60℃ Storage Temp:-40℃ to +70℃ |
Humidity | 40℃@90%RH,non-condensing |
Operation Altitude | 3000m |
Electrostatic Protection | Per EN 61000-4-2, 1995 : (8 kV air / 4 kV contact discharges). |
Agency Approval | FCC, CE, UL, RoHS |
Our Advantages:
1. KeeTouch is a hi-tech company with over 18+ manufacturing experience in the touch products include Touch Screen LCD and Touch Monitors.
2. Timely delivery,just 3-15 days can offered after customers payment seen in our accout.
3. Have our own R&D team,about 45 trained R & D engineers,customized service offered
4. All products we provide have approved by CCC, UL, ETL, FCC, CE,CB,BIS, RoHS.
Applications
KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
FAQ
1. Are you the factory or the trading company for SAW Touch Panel?
KeeTouch is a professional touch product manufacturer for over 18+ years, located in Shenzhen, China.
2. What’s your MOQ for the Saw Touch Panel ?
Our minimum order quantity is 1pc only.
3. What is your warranty period for the Saw Touch Panel ?
Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
4. What is your payment method?
We can accept T/T, Western Union, Paypal, Credit card and Alipay. ( L/C can be negotiable. )
5. What is your delivery time for the SAW Touch Panel ?
3-5 work days for inventory orders, 7-15 business days for bulk production.
6. Do you have stock of Saw Touch Panel ?
yes, we have 1000 UNITS of various size and model for normal model per month.
