Vandal Proof SAW Touch Screen 12.1 Inch with USB RS232 Interface
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Saw LCD Panel | Controller | KCA-URO1L-R2G |
|---|---|---|---|
| Response Time | 10ms | Size | 12.1 Inch |
| Resolution | 4096*4096, Z-axis 256 | Touch Medium | Finger, Gloved Hand, Rubber Soft Pen Etc. |
| Controller Interface | USB & RS232 | Transmission | 90% |
| High Light | Vandal Proof acoustic wave touch screen,RS232 acoustic wave touch screen,USB surface wave touch screen | ||
Product Description

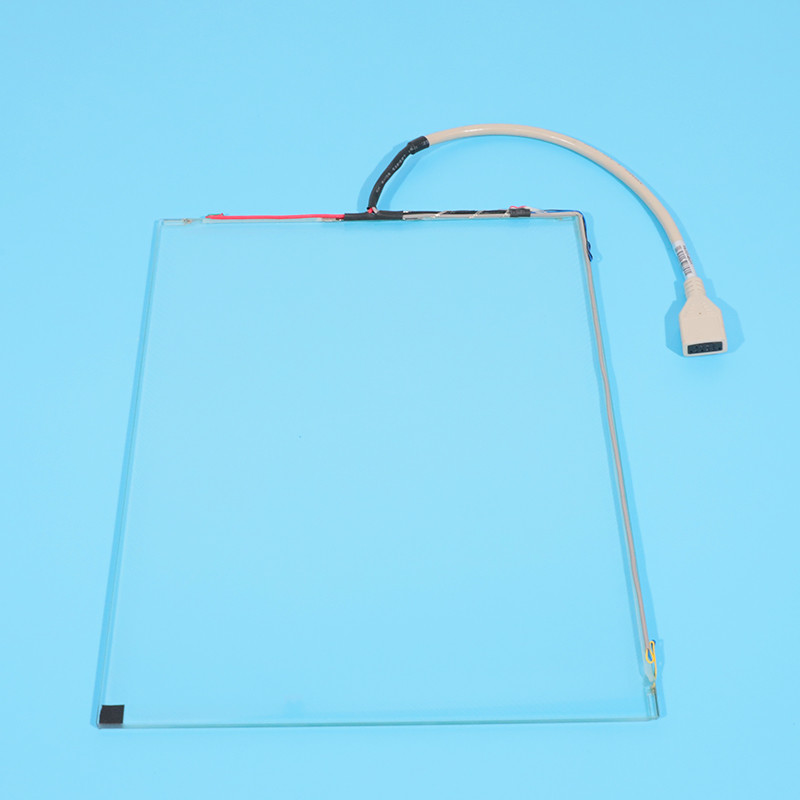

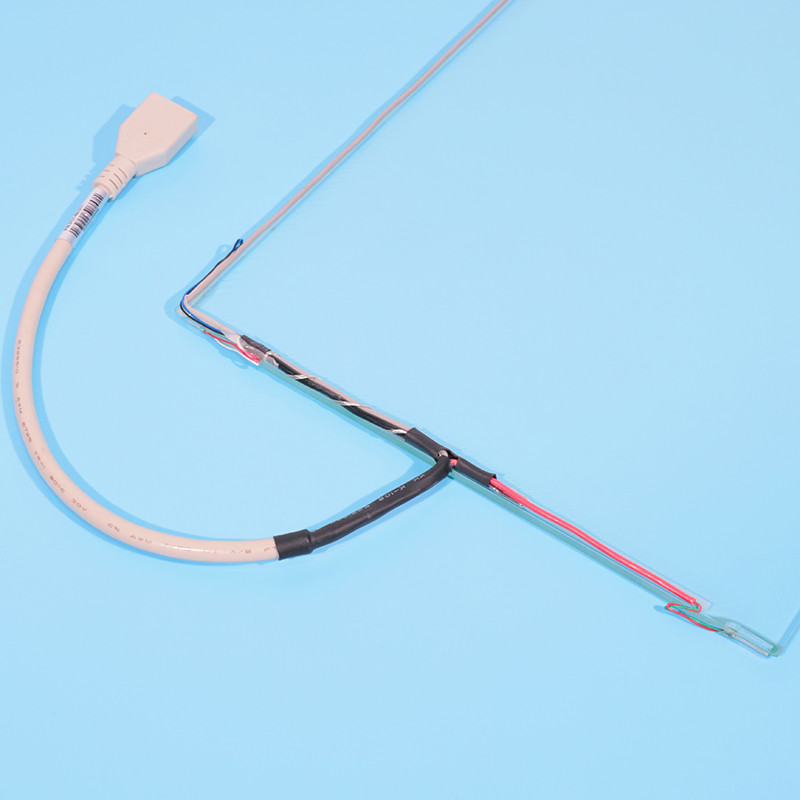

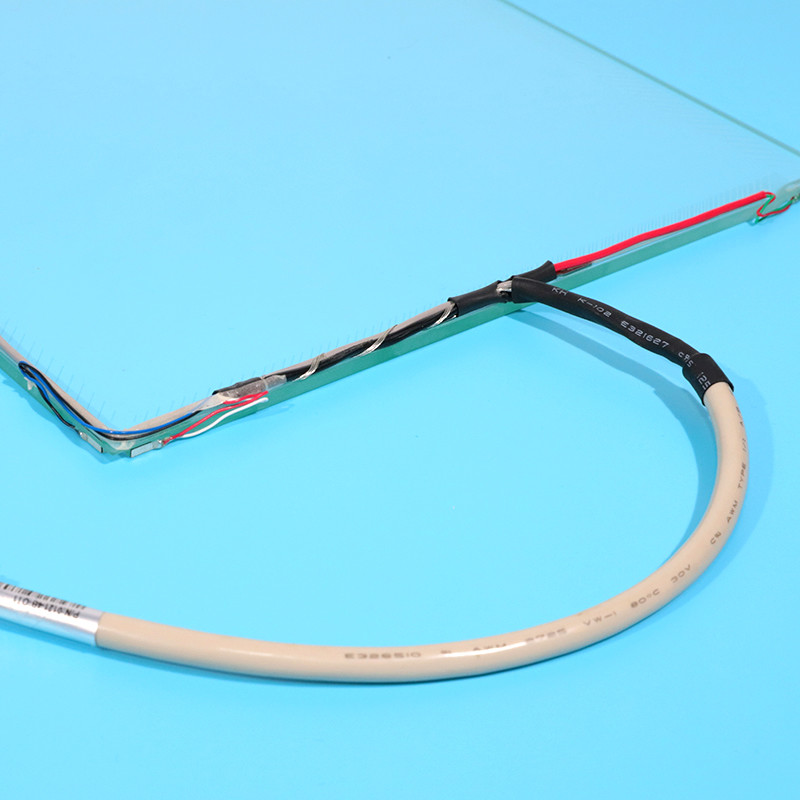

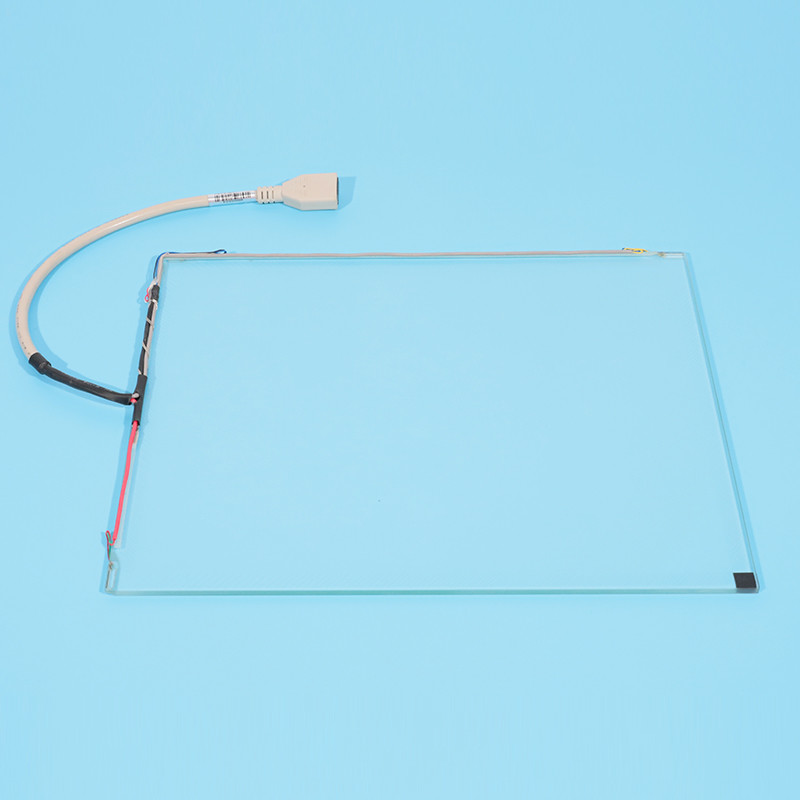

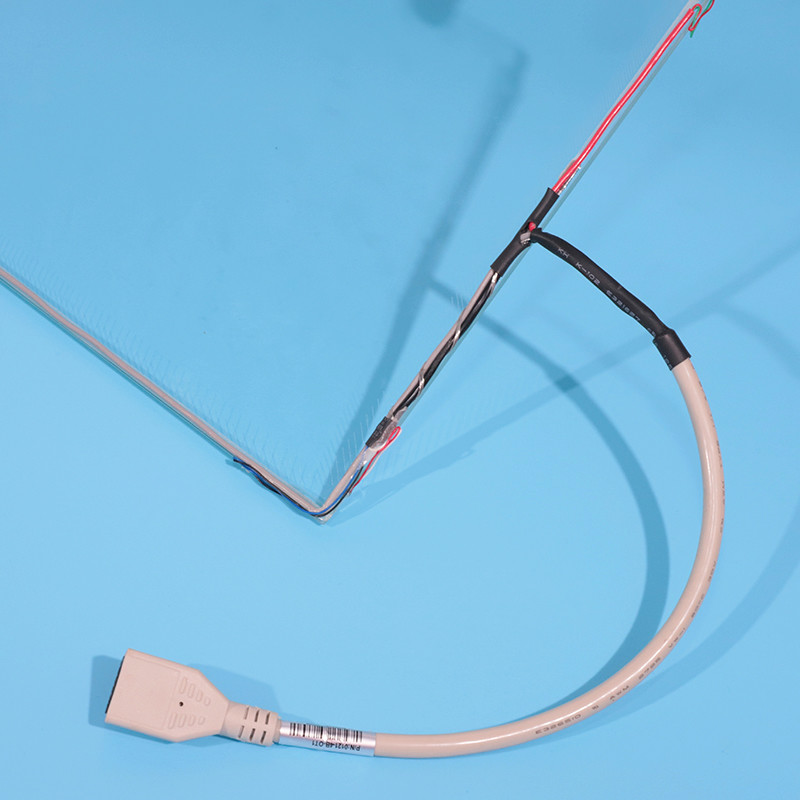

Vandal Proof Touch Panel Glass 12.1 Inch High Light Transmission For Self-Service
Touch Panel Glass Main Features
High transparency, high strength, high light transmittance.
The surface is a scratch-resistant glass surface, which can work normally if there are scratches.
High density touch point distribution.
Touch-free drift, automatic correction, and precise operation.
With patented dust-proof technology, the acoustic wave screen is no longer afraid of dust and is maintenance-free.
Can be touched with finger, soft pen.
can be customized according to customer needs.
Touch Panel Glass Specifications
Sizes | 12.1 Inch |
Touch Medium | Finger, gloved hand, rubber soft pen etc. |
Resolution | 4096*4096, Z-axis 256 |
Touch Activation Force | ＜80g |
Controller | KCA-URO1L-R2G |
Controller Interface | USB & RS232 |
Response Time | ≤10ms |
Transmission | 90% |
Temperature | Operation Temp:-20℃ to +60℃ Storage Temp:-40℃ to +70℃ |
Humidity | 40℃@90%RH,non-condensing |
Operation Altitude | 3000m |
Electrostatic Protection | Per EN 61000-4-2, 1995 : (8 kV air / 4 kV contact discharges). |
Agency | FCC,CE,UL,RoHS |
Surface Durability | Optical glass surface, Mohs' hardness rating : 7. |
Life Performance | More than 50 million touches in one location. (Tested by a stylus similar as finger). |

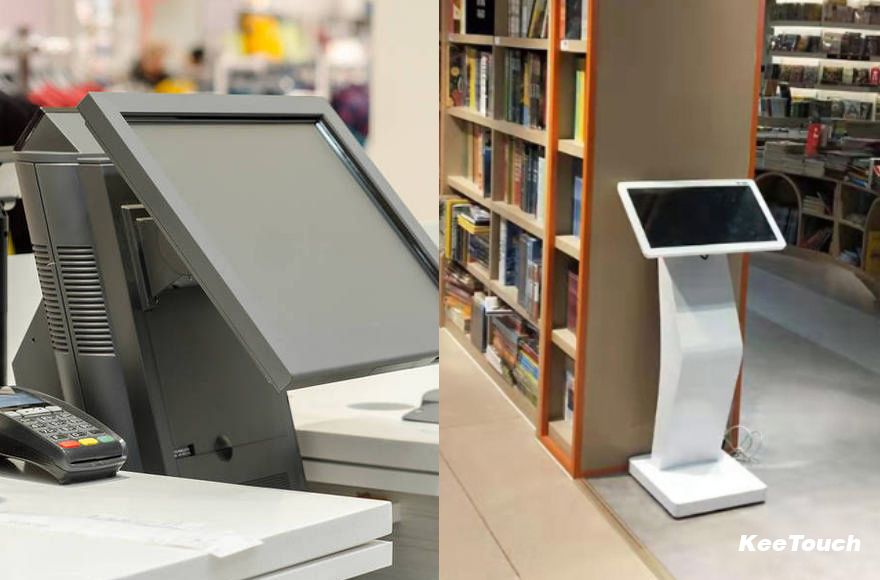

Applications
KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
FAQ
1. Are you a manufacturer for I Touch Panel Glass ?
Yes, KeeTouch is a professional touch product manufacturer for over 18+ years, located in Shenzhen, China.
2. What's your MOQ for Touch Panel Glass?
Our minimum order quantity is 1pc only.
3. What is your warranty period for Infrared Touch Panel Glass ?
Our regular warranty is 12 month for all the products, with 2-3 years Warranty (optional).
4. Can you produce the Touch Panel Glass according to the customer's requirement?
Sure, with 40+ Professional R & D engineers, OEM and ODM are offered.
5. What is your payment method?
We can accept T/T, Western Union, Paypal, Credit card and Alipay. ( L/C can be negotiable. )
6. What is your delivery time for Touch Panel Glass?
3-5 work days for inventory order, 7-15 business days for bulk production.
Our Advantage:
1) KeeTouch has passed the quality management standards ISO 9001 and environmental management ISO 14001.
2) KeeTouch was awarded the high and new technology enterprise of china and recognized by the Chinese government in 2012.
3) We have 40+ Professional R & D engineers to meet your requirements and offer professional assistance to you .
4) We have branch office in Germany, Russia, Brazil and India. Provide localization services and quick
after sales service
