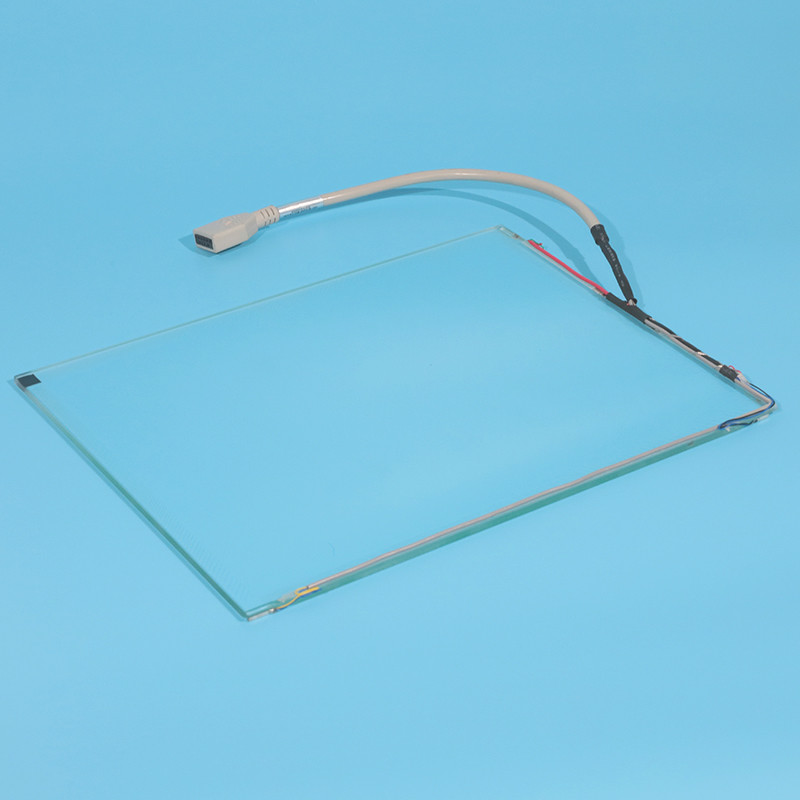

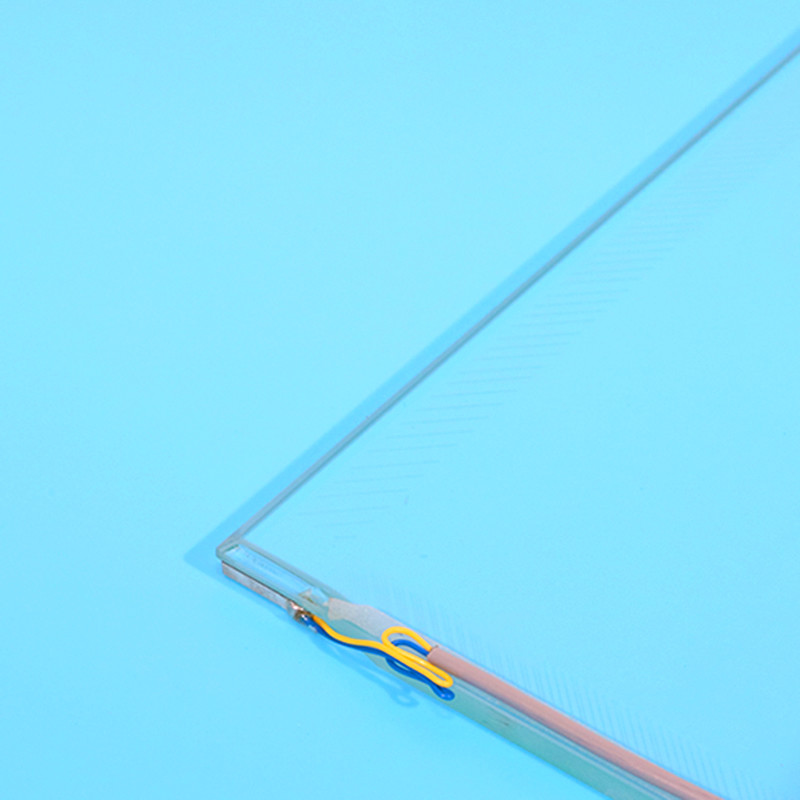

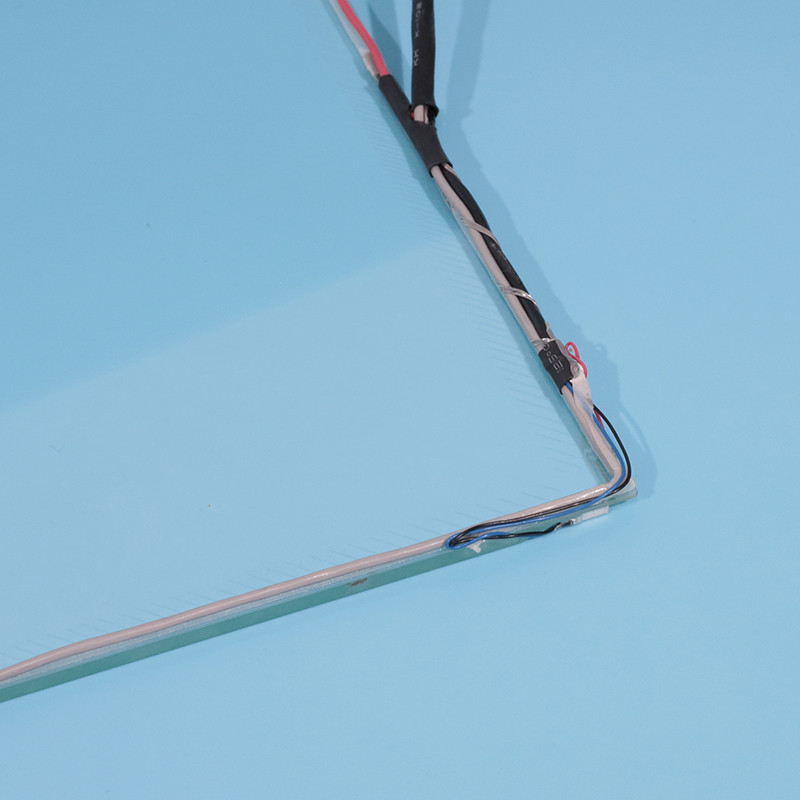

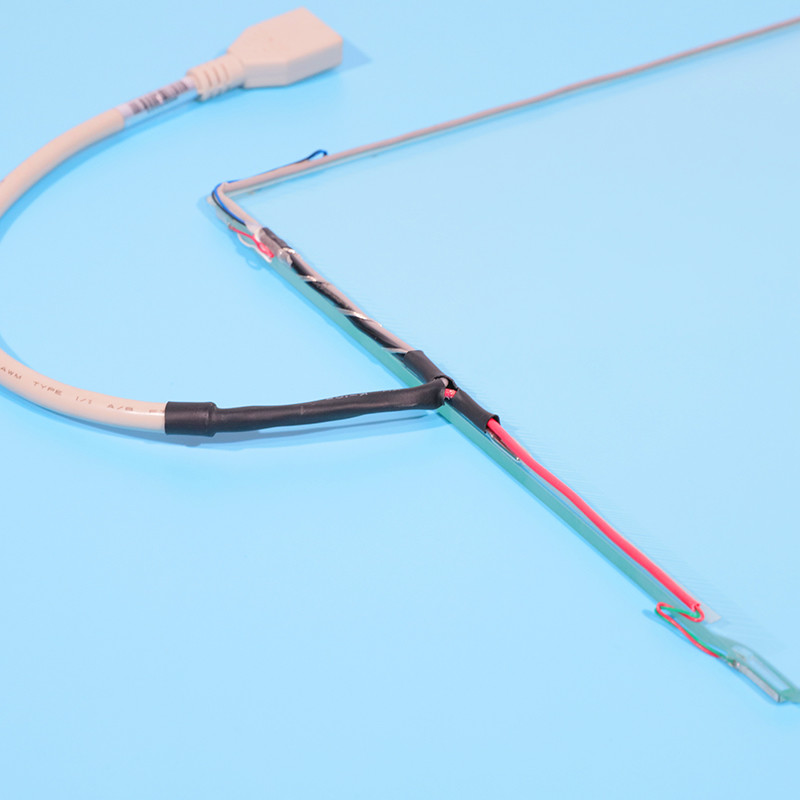

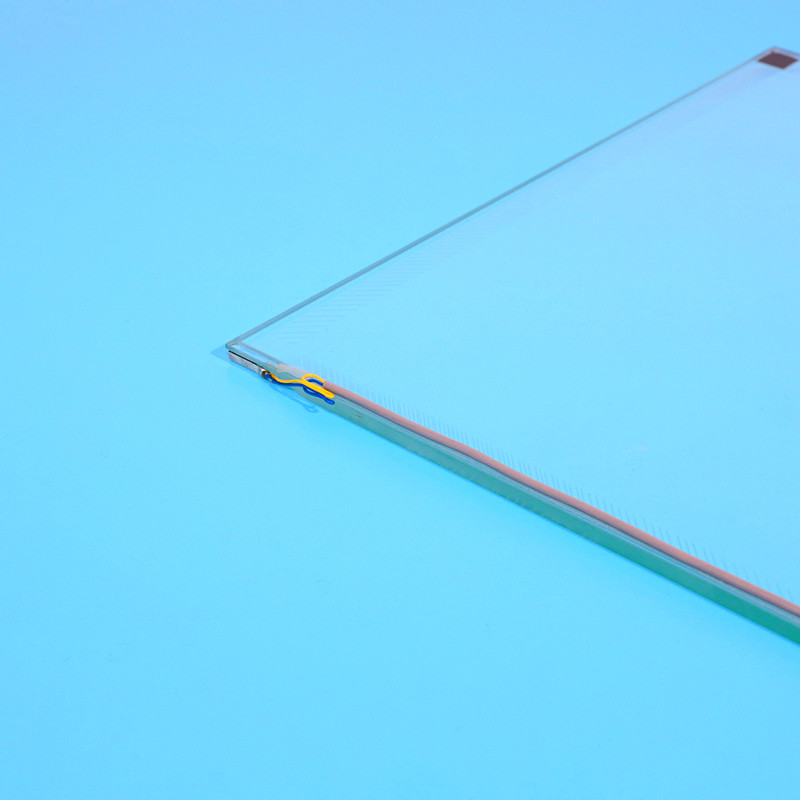

12.1 Inch Wave Touch Screen For Self Service Machine

12.1 Inch Wave Touch Screen For Self Service Machine
12.1 Inch Wave Touch Screen For Self Service Machine 12.1 Inch Wave Touch Screen For Self Service Machine 12.1 Inch Wave Touch Screen For Self Service Machine 12.1 Inch Wave Touch Screen For Self Service Machine 12.1 Inch Wave Touch Screen For Self Service Machine 12.1 Inch Wave Touch Screen For Self Service Machine
Place of OriginShenzhen，China
Brand NameKeeTouch
CertificationFCC, CE, RoHS
Model NumberKAL-0121-6B-OT1
Minimum Order Quantity1 piece
PriceNegotiable
Packaging Detailscarton box
Delivery Time7-15 work days
Payment TermsL/C, T/T, Western Union
Supply Ability10000 Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Touch MediumFinger, Gloved Hand, Rubber Soft Pen Etc.Size12.1 Inch
Resolution4096*4096, Z-axis 256Touch Activation Force＜80g
ControllerKCA-URO1L-R2GTransmission90%
Response Time10msProduct NameSAW Touch Screen
High Light

12.1Inch SAW Touch Panel

,

Wave SAW Touch Panel

,

OEM Surface Wave Touch Screen

Leave a Message
Product Description


Touch Panels 12.1 Inch For Self Service Machine Response Time ≤10ms



Touch Panels Main Features

1. Explosion-proof

2. Fast response

3. Stable performance,no distortion

4. Sensitive response, high definition, high resolution, excellent scratch resistance

5. Customizable:Other sizes can be offered (7"- 42")





Touch Panels Specifications

Sizes

 12.1 Inch

Touch Medium

Finger, gloved hand, rubber soft pen   etc.

Resolution

4096*4096, Z-axis 256

Touch Activation Force

＜80g

Controller

KCA-URO1L-R2G

Controller  Interface

USB & RS232

Response Time

≤10ms

Transmission

90%

Temperature

Operation Temp:-20℃ to +60℃

Storage Temp:-40℃ to +70℃

Humidity

40℃@90%RH,non-condensing

Operation Altitude

3000m

Electrostatic Protection

Per EN 61000-4-2, 1995 :

(8 kV air / 4 kV contact discharges).

Agency

FCC,CE,UL,RoHS

Surface Durability

Optical glass surface, Mohs' hardness   rating : 7.

Life Performance

More than 50 million touches in one   location.

(Tested by a stylus similar as   finger).





Applications

  • KeeTouch products are widely used in industries as following:

  • Automatic system: intelligent self-service terminal, intelligent retail terminal, etc.

  • Business Organizations: supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.

  • Financial Organizations: Banks, negotiable securities, funds, insurance companies, pawnshops;

  • Non-profit Organizations: Telecommunications, post offices, hospital, schools;

  • Entertainments: Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course.

  • Public Places: subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums,convention centers, ticket agencies, HR market, lottery centers;




Why choose us?


Factory you can trust

In 2012, KeeTouch was awarded the high and new technology enterprise of china and recognized by government.

The items we offered are approved by CCC, UL, ETL, FCC, CE,CB,BIS, RoHS.


Local support

We have branch office in Germany, Russia, Brazil and India. Provide localization services and quick after sales service.


Strong and professinal R&D team

We have 40+ Professional R & D engineers to meet your requirements and offer professional assistance to you .


Strict QC Before delivery

All items you received is inspected by strict QC and working temperature test to ensure quality.





FAQ

1. What about the MOQ for Touch Panels?

We don't have the limit for the MOQ.


2. Will these Touch Panels connect to any Pc?

Yes, It connects to any Pc with a standard VGA/DVI video port and a serial (RS-232) or USB port.


3. Delivery how many days for Touch Panels can be arranged?

Depends on order quantity and our production schedule ;3-5 working days for sample order of standard model. 7-15 working days for custom sample order & mass production after payment receipt.


4.How much the tax if I buy the Touch Panels ?

Suggest you consult your local customs department,because the import tax you need to pay to your country .


5. Are you Touch Panels factory or the trading company?

We are the direct factory in ShenZhen,we can OEM/ODM for you.


6. What is your shipping method?

DHL, UPS, FedEx, TNT, Sea Freight.
