90% High Transmission SAW 15.6 Inch Touch Screen For Monitors

90% High Transmission SAW 15.6 Inch Touch Screen For Monitors
90% High Transmission SAW 15.6 Inch Touch Screen For Monitors 90% High Transmission SAW 15.6 Inch Touch Screen For Monitors 90% High Transmission SAW 15.6 Inch Touch Screen For Monitors 90% High Transmission SAW 15.6 Inch Touch Screen For Monitors
Place of OriginShenzhen，China
Brand NameKeeTouch
CertificationFCC, UL, CCC, CB, CE, RoHS
Model NumberKAL-0156-6BP-ALC
Minimum Order Quantity1 piece
PriceNegotiable
Packaging Detailscarton box
Delivery Time7-15 work days
Payment TermsL/C, T/T, Western Union
Supply Ability10000 Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product NameSAW Touch ScreenOperation Temp-20℃ ~ +60℃
Storage Temp-40℃ ~ +70℃Humidity40℃@90%RH, Non-condensing
ControllerKCA-URO1L-R2GController  InterfaceUSB & RS232
Response Time≤10msTransmission90%
High Light

SAW Touch Screen 15.6 Inch

,

RS232 SAW Touch Screen

,

CB SAW Touch Screen

Leave a Message
Product Description

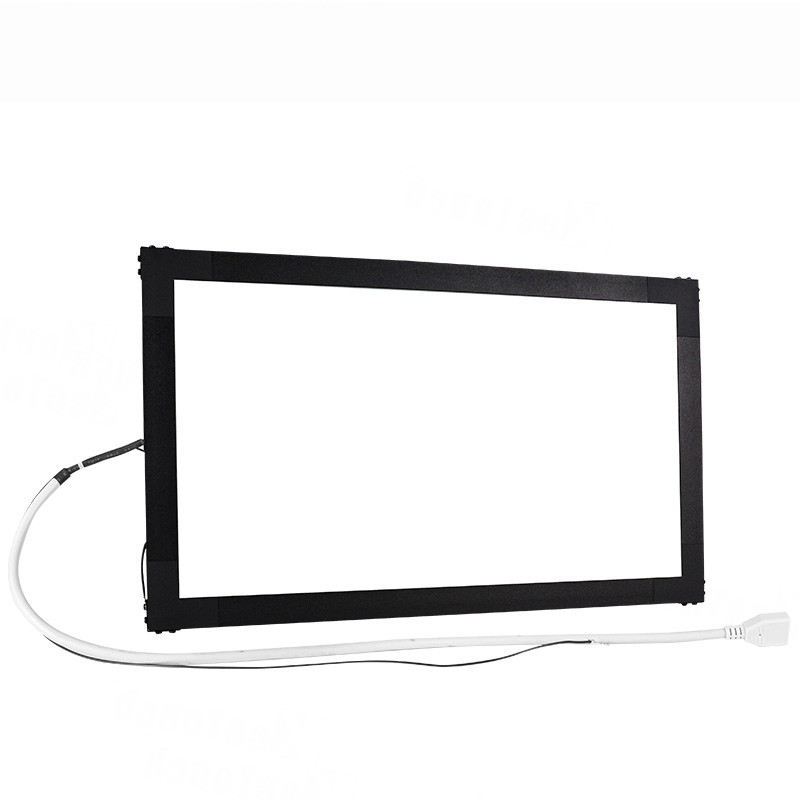

15.6 Inch SAW Touch Screen 90% High Transmission For Monitors



SAW Touch Screen Main Features

KeeTouch Surface Acoustic Wave (SAW) Touch Screen is developed by our R&D team, with our own design and continuously updating the most efficient touch screens to worldwide customers. The screen is suitable for all types of display monitors with RS232 or USB interface and they can be activated by finger, gloved hand, rubber soft pen etc. With fast response time ≤10ms, it provides perfect touch experience for users. Other sizes are available (7"- 43").





SAW Touch Screen Specifications

Sizes

15.6 Inch

Touch Medium

Finger, gloved hand, rubber soft pen etc.

Dimensions

See the engineer drawing

Resolution

4096*4096, Z-axis 256

Touch Activation Force

<80g

Controller

KCA-URO1L-R2G

Controller  Interface

USB & RS232

Response Time

≤10ms

Transmission

90%

Temperature

Operation Temp:-20℃ to +60℃

Storage Temp:-40℃ to +70℃

Humidity

40℃@90%RH, non-condensing

Operation Altitude

3000m

Electrostatic Protection

Per EN 61000-4-2, 1995 :

(8 kV air / 4 kV contact discharges).

Agency Approval

FCC, CE, UL, RoHS





Applications

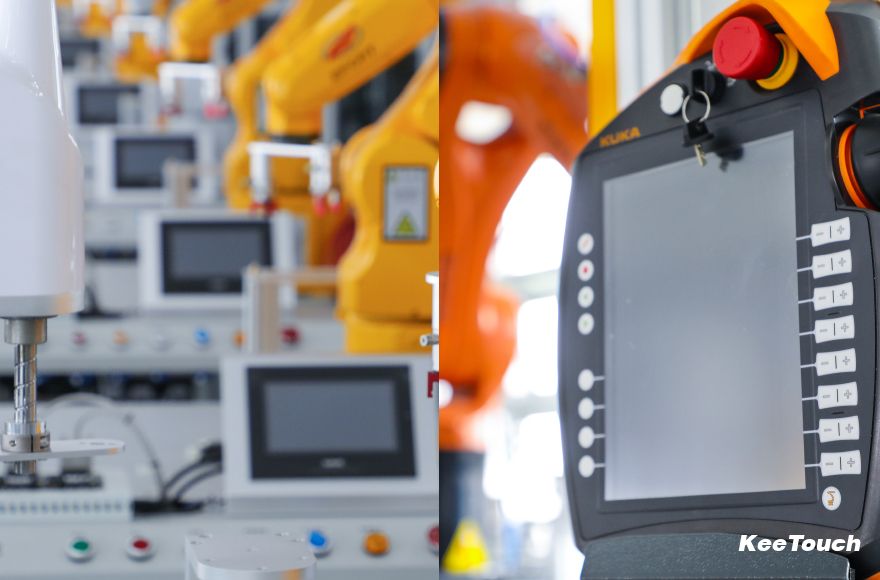

KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.








FAQ

1. Are you a manufacturer?

Yes, KeeTouch is a professional touch product manufacturer for over 18+ years, located in Shenzhen, China.


2. What’s your MOQ for the SAW Touch Screen?

Our minimum order quantity is 1pc only.


3. What is your warranty period for the SAW Touch Screen?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).


4. What is your payment method?

We can accept T/T, Western Union, Paypal, Credit card and Alipay. ( L/C can be negotiable. )


5. What is your delivery time?

3-5 work days for inventory orders, 7-15 business days for bulk production.
