Dust Proof 15.6 Inch SAW Touch Screen With Aluminum Frame

Dust Proof 15.6 Inch SAW Touch Screen With Aluminum Frame
Dust Proof 15.6 Inch SAW Touch Screen With Aluminum Frame Dust Proof 15.6 Inch SAW Touch Screen With Aluminum Frame Dust Proof 15.6 Inch SAW Touch Screen With Aluminum Frame Dust Proof 15.6 Inch SAW Touch Screen With Aluminum Frame Dust Proof 15.6 Inch SAW Touch Screen With Aluminum Frame
Place of OriginShenzhen，China
Brand NameKeeTouch
CertificationFCC, UL, CCC, CB, CE, RoHS
Model NumberKAL-0156-6BP-ALC
Minimum Order Quantity1 piece
PriceNegotiable
Packaging Detailscarton box
Delivery Time7-15 work days
Payment TermsL/C, T/T, Western Union
Supply Ability10000 Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product NameSAW Touch ScreenSize15.6 Inch
Resolution4096*4096, Z-axis 256Touch Activation Force<80g
ControllerKCA-URO1L-R2GController  InterfaceUSB & RS232
Response Time≤10msTransmission90%
High Light

CE SAW Touch Screen

,

Dust Proof 15.6 Inch Touch Screen

,

Aluminum Frame SAW Touch Screen

Leave a Message
Product Description

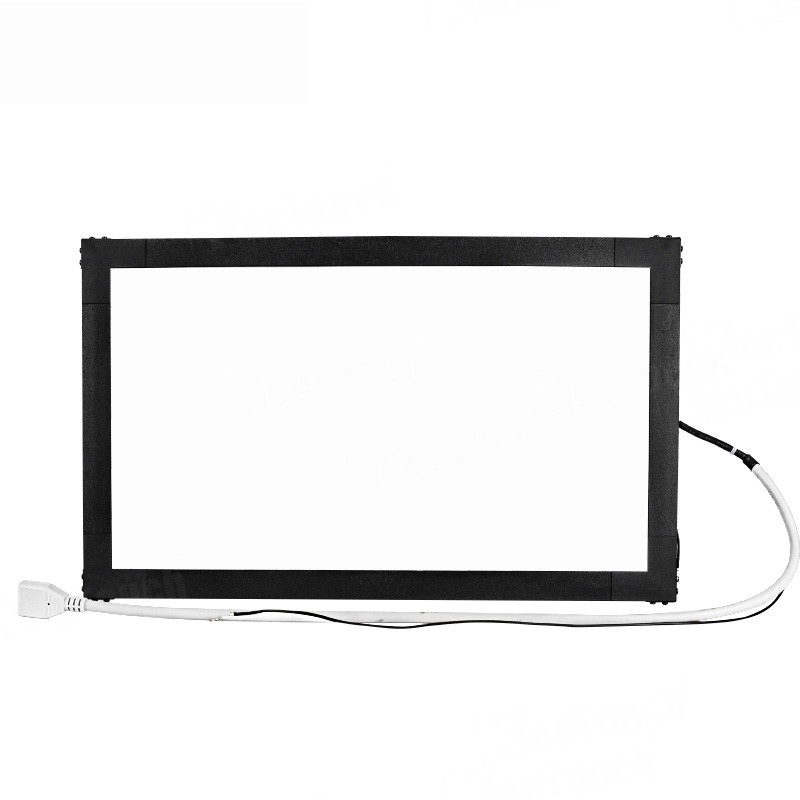

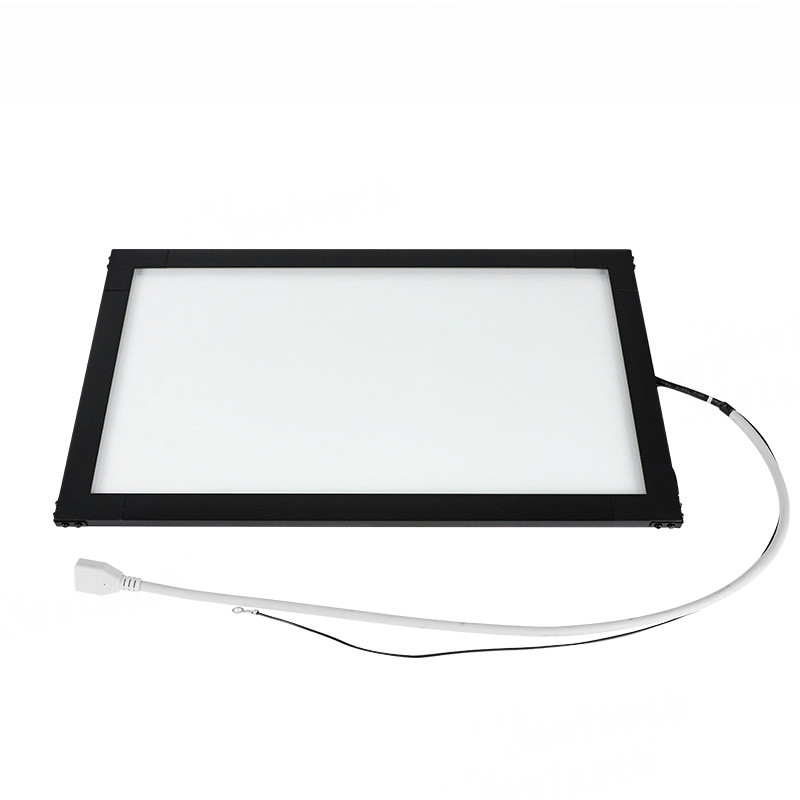

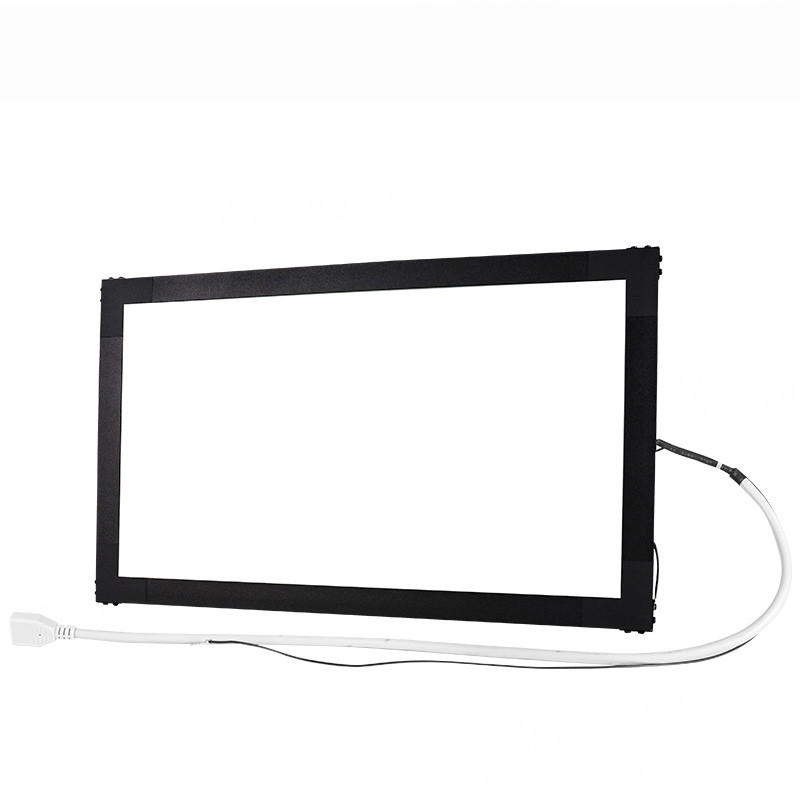

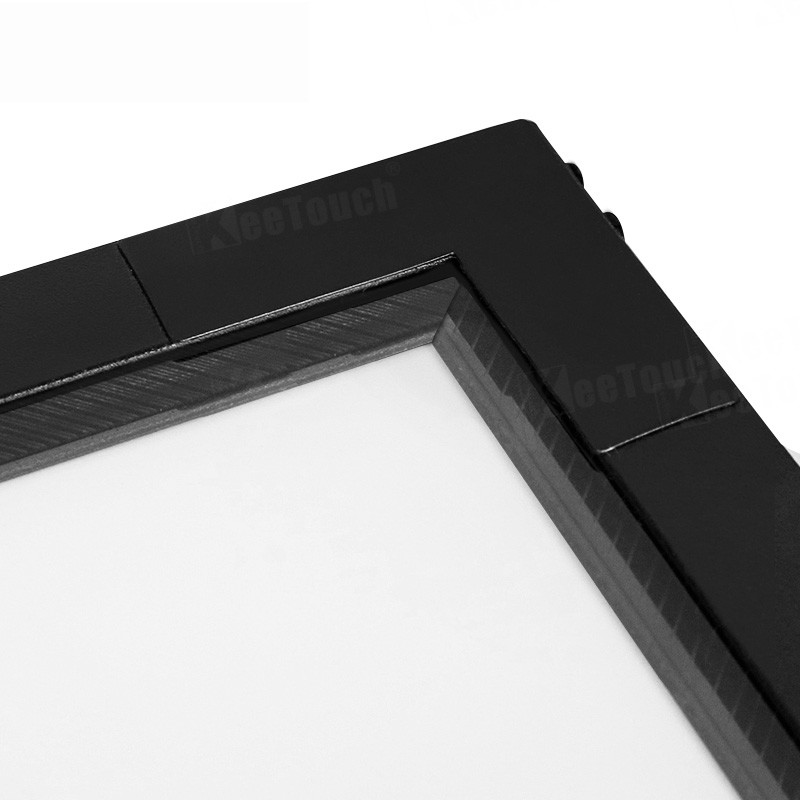

15.6 Inch SAW Touch Screen Dust Proof With Aluminum Frame



SAW Touch Screen Main Features

  • KeeTouch SAW touch screen, accurate touch, free of drift

  • Fast response time ≤10ms, perfect touch experience

  • Touch media: finger, gloved hand, rubber soft pen etc.

  • 90% high transmission, superior image clarity

  • Long life performance SAW touch screen: more than 50 million touches in one location

  • USB and RS232 interfaces, support Windows7, Windows8, Vista, XP, Mac, Linux, Android

  • Other sizes can be offered (7"- 43")




SAW Touch Screen Specifications

Size

15.6 Inch

Touch Medium

Finger, gloved hand, rubber soft pen etc.

Dimensions

See the engineer drawing

Resolution

4096*4096, Z-axis 256

Touch Activation Force

<80g

Controller

KCA-URO1L-R2G

Controller  Interface

USB & RS232

Response Time

≤10ms

Transmission

90%

Temperature

Operation Temp:-20℃ to +60℃

Storage Temp:-40℃ to +70℃

Humidity

40℃@90%RH, non-condensing

Operation Altitude

3000m

Electrostatic Protection

Per EN 61000-4-2, 1995 :

(8 kV air / 4 kV contact discharges).

Agency Approval

FCC, CE, UL, RoHS

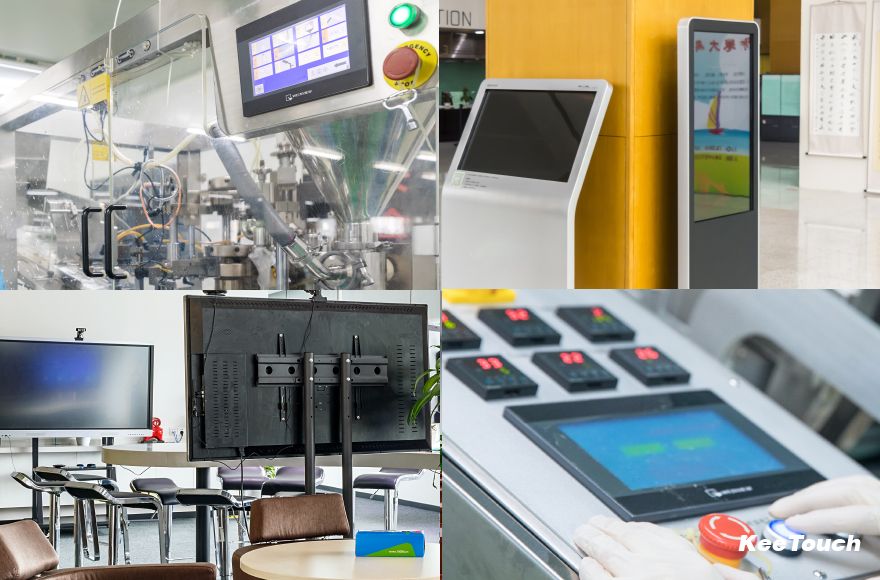

Applications

Widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.








FAQ

1. Are you a manufacturer?

Yes, KeeTouch is a professional touch product manufacturer for over 18+years, located in Shenzhen, China.


2. What’s your MOQ for the SAW Touch Screen?

Our minimum order quantity is 1pc only.


3. What is your warranty period for the SAW Touch Screen?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).


4. Can you produce the SAW Touch Screen according to the customer's requirements?

Sure, with 40+ Professional R & D engineers, OEM and ODM are welcome.
