SAW 15.6" Touch Screen Monitor Dust Proof 16 : 9 Ratio For ATM Kiosks

Place of Origin	Shenzhen，China
Brand Name	KeeTouch
Certification	CCC, UL, FCC, CE, CB, RoHS
Model Number
Minimum Order Quantity	1 piece
Price	Negotiable
Packaging Details	carton box
Delivery Time	7-15 work days
Payment Terms	L/C, T/T, Western Union
Supply Ability	1000 Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Display Type	16:9 Ratio 15.6" TFT-LCD	Suggested Resolution	1920*1080 @ 60Hz
Contrast Ratio	650:1	Video Input	VGA、DVI
Regular Warranty	1 Year	Support System	XP,WIN7,WIN8,WIN10,Linux,Android
LED Back Light Life (Typ.)	30,000 Hours	Product Name	SAW Touch Monitor
High Light	Dust Proof 15.6" Touch Screen Monitor , 15.6" Touch Screen Monitor Multifunctional , Multifunctional Kiosks 15.6" touchscreen monitor

Leave a Message

Product Description

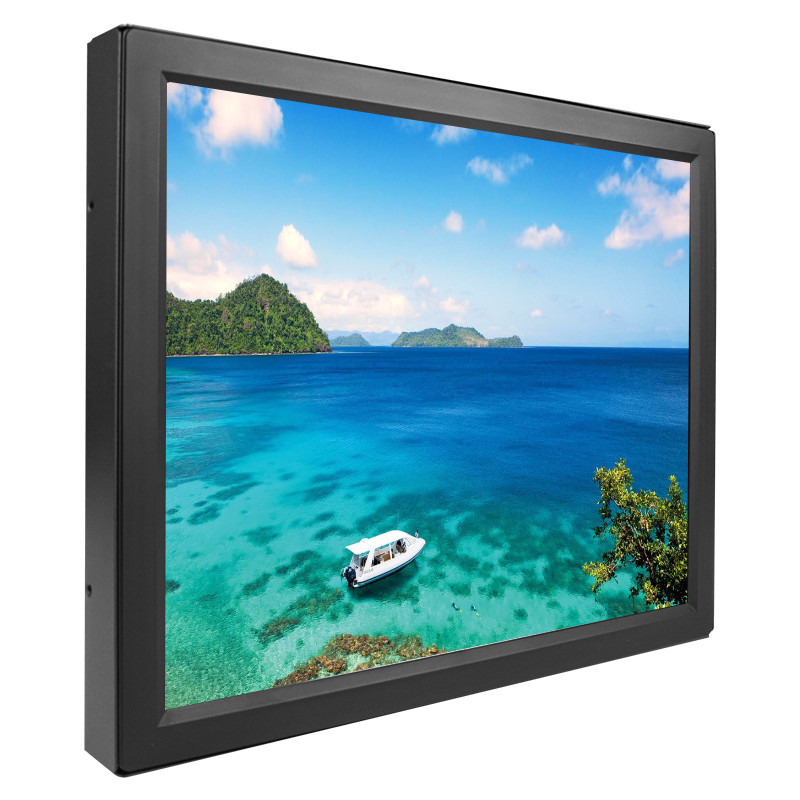

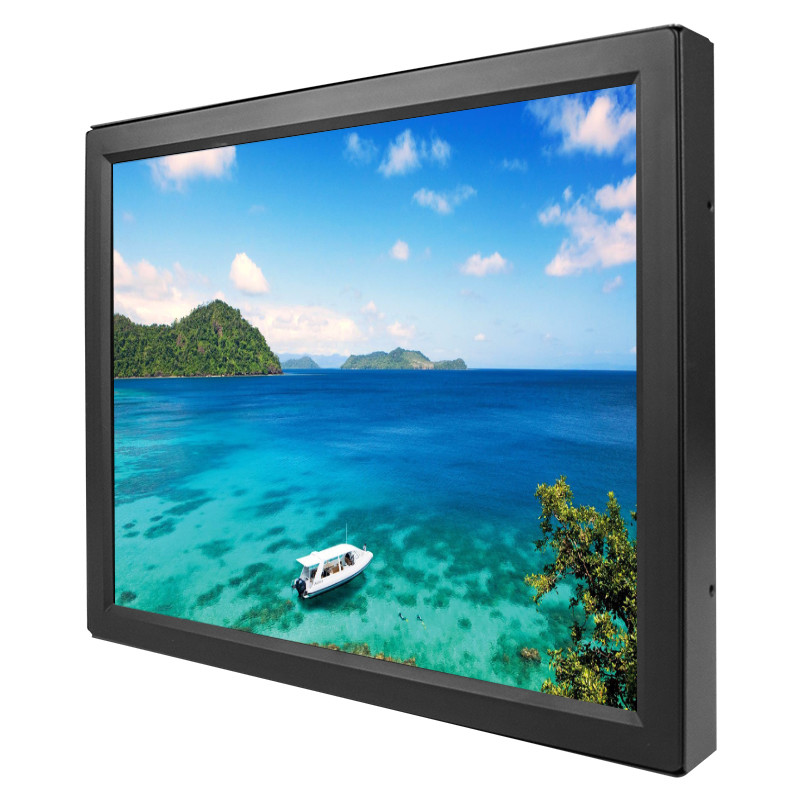

15.6 Inch SAW Touch Monitor Dust Proof 16:9 Ratio ATM Kiosks

SAW Touch Monitor Main Features:

SAW touch panel, accurate touch and great interactive experience
Professional designed SAW touch monitor with dust-proof function
1920*1080 high resolution, great image quality
VGA + HDMI interface, USB for touch
Support system: XP,WIN7,WIN8,WIN10, Linux, Android
Multiple mounting options including horizontal bracket-mount, vertical bracket
Other sizes can be offered (7"- 55")
SAW Touch Monitor Specifications

SAW Touch Monitor Mechanical Dimensions

Complete Machine
Model No.	KOT-0156U-SA4BP (P/N:KOT-156P-004)
Series	OT
Display Type	16:9 Ratio 15.6" TFT-LCD
Active Area	344.23*193.54(mm)
Monitor Dimensions (WHD)	388.5237.543(mm)
Suggested Resolution	1920*1080 @ 60Hz
Support Colors	16.7M
Brightness (Typ.)	Pure LCD Panel	400cd/m²
	With Touch Monitor	340cd/m²
Response Time (Typ.)	5ms
Viewing Angle(Typ.at CR＞10)）	Horizontal(left/right)	70°/70°
	Vertical(up/down)	60°/60°
Contrast Ratio (Typ.)	650:1
Video Input	VGA/HDMI
Frequency (H/V)	30～80KHz / 50～76Hz
Power Supply	Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz
Environment	Operating Temp.	0～50°C
	Operating RH	20%～80%
	Storage Temp.	-20～60°C
	Storage RH	10%～90%
MTBF	≥15,000 Hours
LED Back Light Life (Typ.)	≥15,000 Hours
Weight（N.W/G.W）	3Kg(1pcs)/8.25Kg(2pcs in one package)
Package dimensions	468150323(mm)(2pcs in one package)
Power Consumption	Standby Power: ≤1.5W / Operating Power: ≤15W
Mount Interface	1.VESA 75mm and 100mm 2.Mount bracket, horizontal or vertical mount

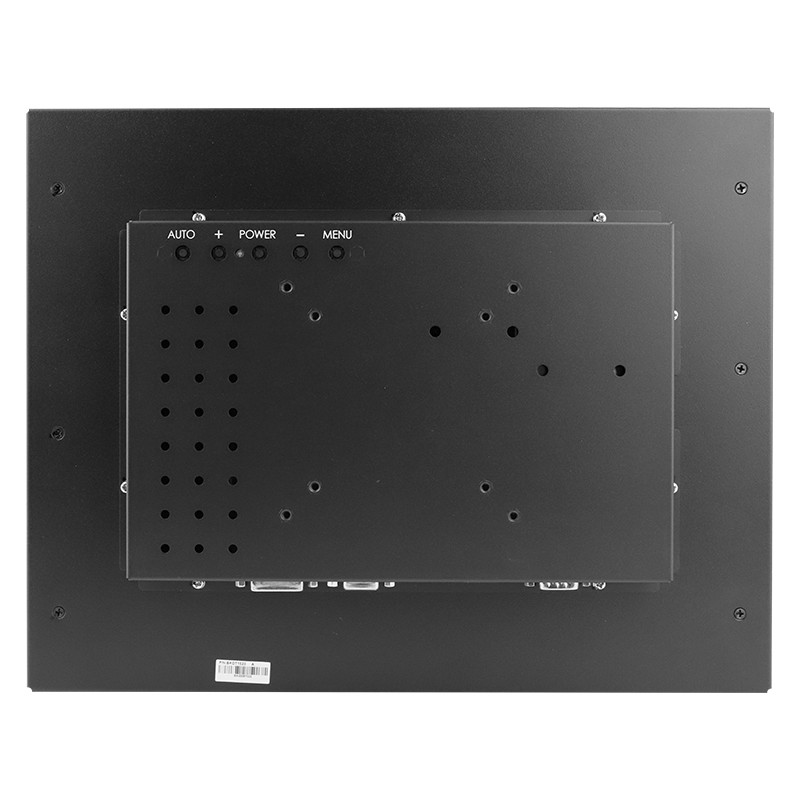

OSD Control	Buttons	AUTO,+,POWER,-,MENU
	Function	Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Agency approvals	CCC, UL, FCC, CE, CB, RoHS
Regular Warranty	1 year

Touch Screen
Touch Type	15" Surface acoustic wave touch screen
Touch input	USB
Response Time	≤10ms
Hardness	7H
Light Transmittance	≥90%
Support System	XP,WIN7,WIN8,WIN10,Linux,Android
Active Area	346*195(mm)
Thickness	4±0.2(mm)
Touch Test	≥50,000,000 times
Input Voltage	DC 5V±5%

Applications

KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
