10.4 Inch SAW Touch Monitor Dust Proof For Outdoor Indoor Kiosks

10.4 Inch SAW Touch Monitor Dust Proof For Outdoor Indoor Kiosks
10.4 Inch SAW Touch Monitor Dust Proof For Outdoor Indoor Kiosks 10.4 Inch SAW Touch Monitor Dust Proof For Outdoor Indoor Kiosks 10.4 Inch SAW Touch Monitor Dust Proof For Outdoor Indoor Kiosks 10.4 Inch SAW Touch Monitor Dust Proof For Outdoor Indoor Kiosks 10.4 Inch SAW Touch Monitor Dust Proof For Outdoor Indoor Kiosks
Place of OriginShenzhen，China
Brand NameKeeTouch
CertificationCCC, UL, FCC, CE, CB, RoHS
Model NumberKOT-104P-005
Minimum Order Quantity1 piece
PriceNegotiable
Packaging Detailscarton box
Delivery Time7-15 work days
Payment TermsL/C, T/T, Western Union
Supply Ability1000 Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Type4:3Ratio 10.4＂Active Matrix TFT-LCDSuggested Resolution800×600 (SVGA)
Contrast Ratio500:1Video InputVGA\DVI\HDMI
Regular Warranty1 YearSupport SystemXP,WIN7,WIN8,WIN10
Response TimeUSB: 8.4msProduct NameSAW Touch Monitor
High Light

Outdoor 10.4 Inch SAW Touch Monitor

,

SAW Touch Monitor Dust Proof

,

Kiosks Outdoor Touch Monitor

Leave a Message
Product Description

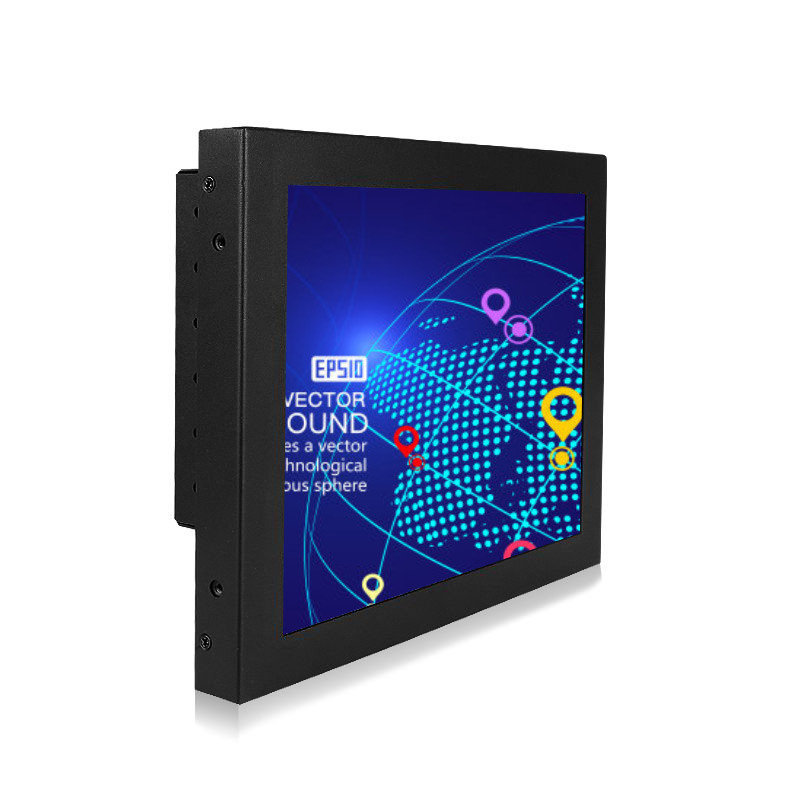

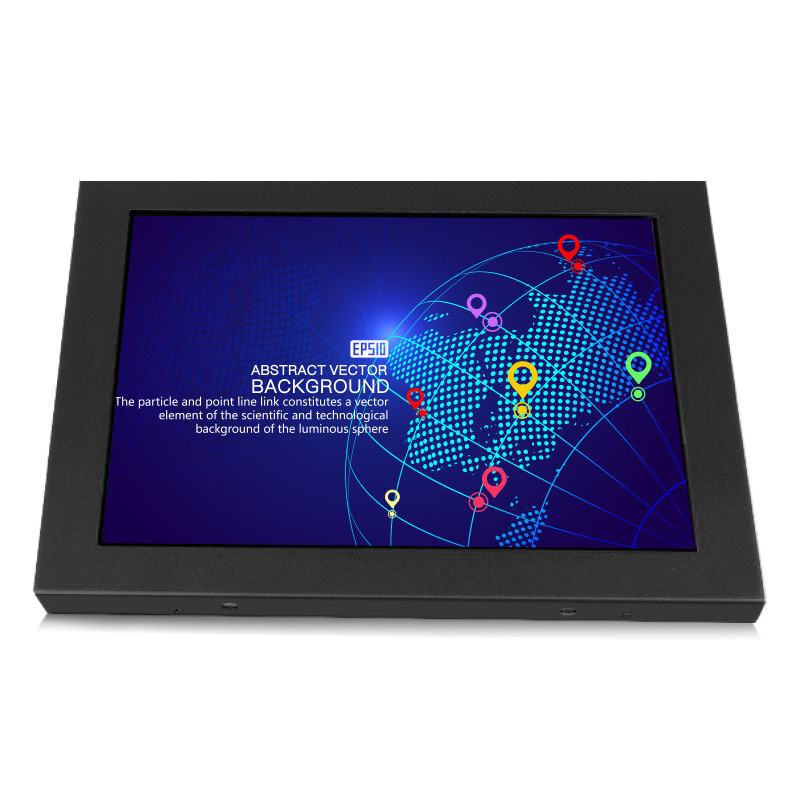

10.4 Inch SAW Monitor Touch Dust-Proof Outdoor And Indoor Kiosks



SAW Touch Monitor Main Features:


  • SAW touch panel, accurate touch and great interactive experience

  • Professional designed SAW touch monitor, narrow edge display touch solution

  • VGA + DVI + HDMI interface, USB for touch

  • Support system: XP,WIN7,WIN8,WIN10

  • Multiple mounting options including horizontal bracket-mount, vertical bracket

  • Other sizes are available (7''- 55'')

  • SAW Touch Monitor Specifications





SAW Touch Monitor Mechanical Dimensions


 Complete Machine

 Model No.

KOT-0104U-SA4BP(P/N:KOT-104P-005)

 Series

OT

 Display Type

4:3 Ratio 10.4＂Active matrix TFT-LCD

 Active Area

211.2×158.4(mm)

 Monitor Dimensions (W*H*D)

257*199*45.5(mm)

 Suggested Resolution

800×600 (SVGA)

 Support Colors

16.2M

 Brightness (Typ.)

Pure LCD Panel

300cd/m²

With Touch Monitor

270cd/m²

 Response Time (Typ.)

30ms

 Viewing Angle(Typ.at CR＞10)）

Horizontal(left/right):75°/75°

Vertical(up/down): 50°/60°

 Contrast Ratio (Typ.)

500:1

 Video Input

VGADVIHDMI

 Frequency (H/V)

30～80KHz / 60～75Hz

 Power Supply

Type: External brick

Display voltage: DC 12V±5%
Input (line) voltage: 100-240 VAC, 50-60 Hz

 Environment

Operating Temp.

0～50°C

Operating RH

20%～80%

Storage Temp.

-20～60°C

Storage RH

10%～90%

 MTBF

≥50,000 Hours

 LED Back Light Life (Typ.)

≥50,000 Hours

 Weight（N.W/G.W）

2.25Kg（1pcs）/6.55Kg（2pcs in one package）(Approx.)

 Package dimensions

330*220*280(mm)(2pcs in one package)

 Power Consumption

Standby Power: ≤2W / Operating Power: ≤7W

 Mount Interface

Mount bracket, horizontal or vertical mount

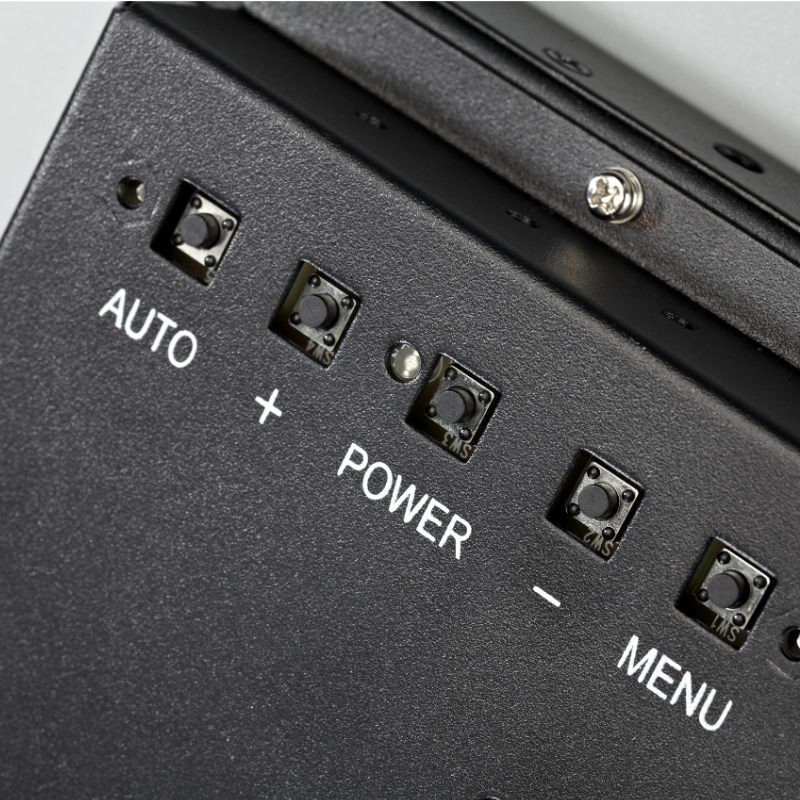

 OSD Control

Buttons

 AUTO,+,POWER,-,MENU

Function

Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset

Touch Type

 10.4”SAW 4mm thickness of touch screen

Touch Input

 USB

Response Time

 8.4ms

 Agency approvals

 CCC, UL, FCC, CE, CB, RoHS

 Regular Warranty

1 year

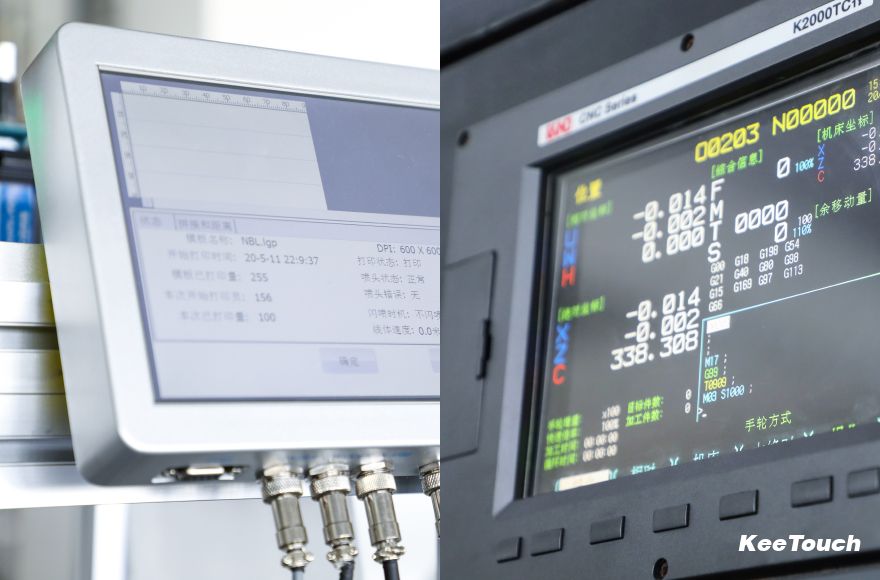

Applications

KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.





FAQ

1. Are you a manufacturer?

Yes, KeeTouch is a professional touch product manufacturer founded in 2006, located in Shenzhen, China.


2. What’s your MOQ for the SAW touch monitor?

Our minimum order quantity is 1pc only.


3. What is your warranty period for the SAW touch monitor?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).


4. Can you produce the SAW touch monitor according to the customer's requirements?

Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.


5. What is your payment method?

We can accept T/T, Western Union, Paypal, Credit card, and Alipay.(L/C can be negotiable.)


6. What is your delivery time?

3-5 work days for inventory orders, 7-15 business days for bulk production.
