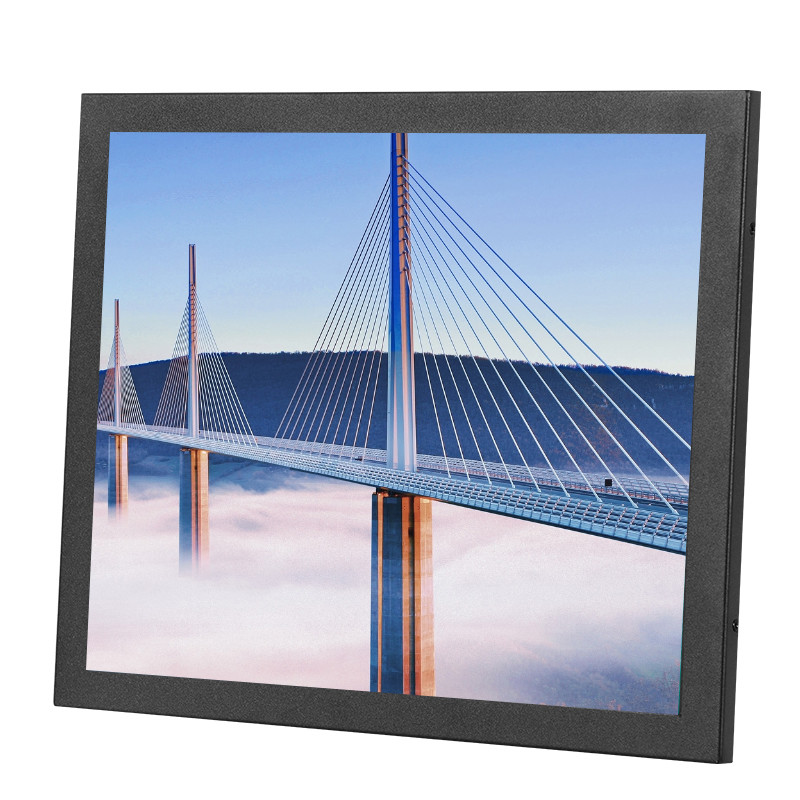

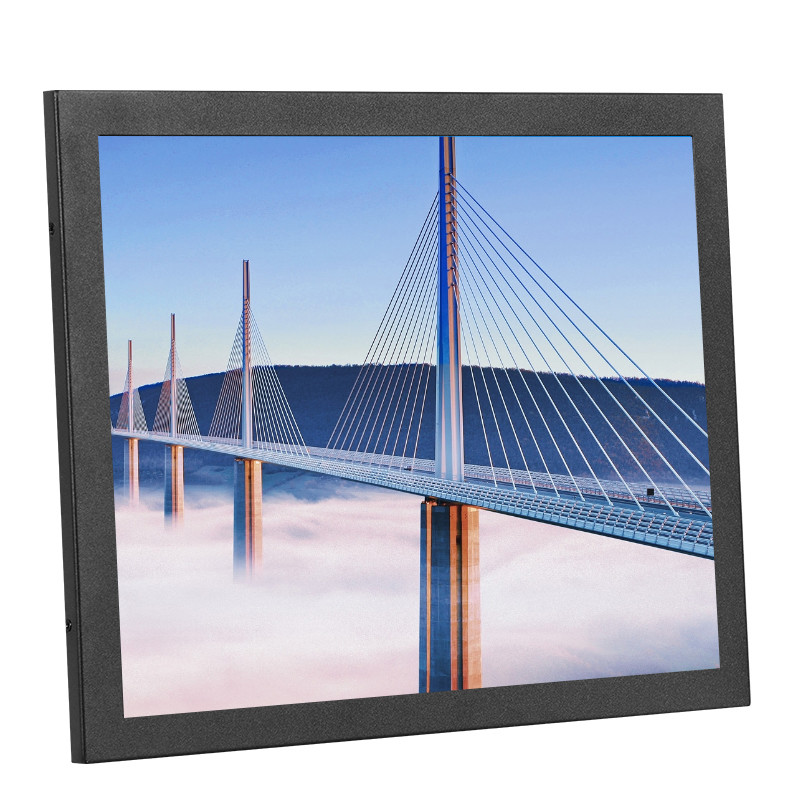

17 Inch SAW Touch Monitor IP65 Water Resistant 1280×1024 Resolution

17 Inch SAW Touch Monitor IP65 Water Resistant 1280×1024 Resolution
17 Inch SAW Touch Monitor IP65 Water Resistant 1280×1024 Resolution 17 Inch SAW Touch Monitor IP65 Water Resistant 1280×1024 Resolution 17 Inch SAW Touch Monitor IP65 Water Resistant 1280×1024 Resolution 17 Inch SAW Touch Monitor IP65 Water Resistant 1280×1024 Resolution 17 Inch SAW Touch Monitor IP65 Water Resistant 1280×1024 Resolution
Place of OriginShenzhen，China
Brand NameKeeTouch
CertificationCCC, UL, FCC, CE, CB, RoHS
Model NumberKOT-0170US-SA6BW(KOT-170W-003)
Minimum Order Quantity1 piece
PriceNegotiable
Packaging Detailscarton box
Delivery Time7-15 work days
Payment TermsL/C, T/T, Western Union
Supply Ability1000 Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Type5:4Ratio 17＂Active Matrix TFT-LCDSuggested Resolution1280*1024 @ 60Hz
Contrast Ratio1000:1Video InputVGA/DVI
Active Area338*270 (mm)Support Colors16.7M
LED Back Light Life (Typ.)30,000 HoursProduct NameSAW Touch Monitor
High Light

17Inch SAW Touch Monitor

,

SAW Touch Monitor IP65 Water Resistant

,

17 inch touch monitor 1280×1024

Leave a Message
Product Description


17 Inch SAW Touch Monitor IP65 Surface Waterproof For ATM Kiosks



SAW Touch Monitor Main Features:


  • KeeTouch SAW touch technology, accurate touch, fast response

  • Industrial grade SAW touch monitor with water-proof function

  • High quality panel with high resolution, contrast ratio and broad viewing angle

  • VGA+DVI interfaces, USB/RS232 for touch

  • Support system: XP,WIN7,WIN8,WIN10

  • Multiple mounting options including horizontal bracket-mount, vertical bracket

  • Other sizes are available (7''- 55'')





SAW Touch Monitor Specifications



 Complete Machine

 Model No.

 KOT-0170US-SA6BW (P/N:KOT-170W-003)

 Series

 OT

 Display Type

5:4Ratio 17＂Active matrix TFT-LCD

 Active Area

338*270 (mm)

 Monitor Dimensions (W*H*D)

391*323*54.5 (mm)

 Suggested Resolution

1280*1024 @ 60Hz

 Support Colors

16.7M

 Brightness (Typ.)

Pure LCD Panel

250cd/m²

With SAW glass sensor

225cd/m²

 Response Time (Typ.)

30ms

 Viewing Angle(Typ.at CR＞10)）

 Horizontal(left/right)

 160°（75°/85°）

 Vertical(up/down)

 150°（70°/80°）

 Contrast Ratio (Typ.)

1000:1

 Video Input

VGA/DVI

 Power Supply

Type: External brick

Display voltage: DC 12V±5%
Input (line) voltage: 100-240 VAC, 50-60 Hz

 Environment

Operating Temp.

0～50°C

Operating RH

20%～80%

Storage Temp.

-20～60°C

Storage RH

10%～90%

 MTBF

≥30,000 Hours

 LED Back Light Life (Typ.)

≥30,000 Hours

 Package dimensions

466*185*403(mm)(2pcs in one package)

 Power Consumption

Standby Power: ≤1.5W / Operating Power: ≤15W

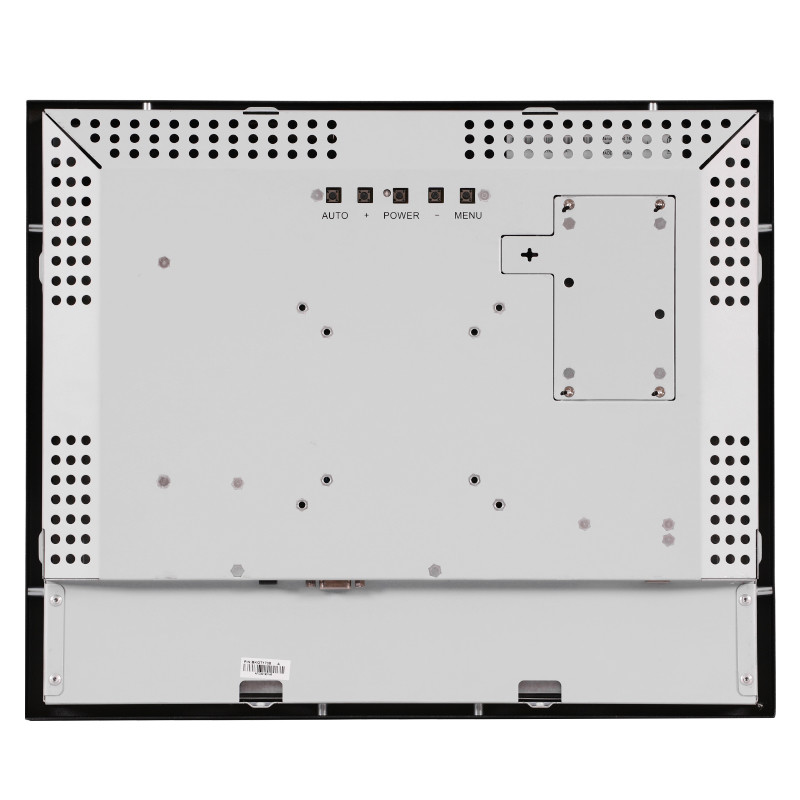

 Mount Interface

 1.VESA 75mm and 100mm

 2.Mount bracket, horizontal or vertical mount

 OSD Control

Buttons

 AUTO,+,POWER,-,MENU

Function

Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset

 Agency approvals

 CCC, UL, FCC, CE, CB, RoHS

 Regular Warranty

1 year




Touch Screen

Touch Type

17" Surface acoustic wave touch screen

Touch input

USB/RS232

Response Time

≤8ms(USB) / ≤12ms(RS232)

Hardness

7H

Light Transmittance

≥90%

Support System

XP,WIN7,WIN8，WIN10

Touch Test

≥50,000,000 times






Applications

KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.





FAQ

1. Are you a manufacturer?

Yes, KeeTouch is a professional touch product manufacturer founded in 2006, located in Shenzhen, China.


2. What’s your MOQ for the SAW touch monitor?

Our minimum order quantity is 1pc only.


3. What is your warranty period for the SAW touch monitor?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).


4. Can you produce the SAW touch monitor according to the customer's requirements?

Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.


5. What is your payment method?

We can accept T/T, Western Union, Paypal, Credit card, and Alipay.(L/C can be negotiable.)


6. What is your delivery time?

3-5 work days for inventory orders, 7-15 business days for bulk production.
