Dust Proof 18.5" Touch Screen Monitor, SAW Touch Screen 7H Hardness

Dust Proof 18.5
Dust Proof 18.5 Dust Proof 18.5 Dust Proof 18.5 Dust Proof 18.5
Place of OriginShenzhen，China
Brand NameKeeTouch
CertificationCCC, UL, FCC, CE, CB, RoHS
Model NumberKOT-185P-002(KOT-0185US-SA4BP)
Minimum Order Quantity1 piece
PriceNegotiable
Packaging Detailscarton box
Delivery Time7-15 work days
Payment TermsL/C, T/T, Western Union
Supply Ability1000 Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Type16:9 Ratio 18.5" TFT-LCDDisplay Active Area409.8*230.4(mm)
Response Time(Typ.)5msVideo InputVGA/DVI/HDMI
Storage Temp.-20～60°CSupport Colors10%～90%
Hardness7HProduct NameSAW Touch Monitor
High Light

DustProof 18.5" Touch Screen Monitor

,

18.5" Touch Screen Monitor DustProof

,

18.5" SAW Touch Screen

Leave a Message
Product Description

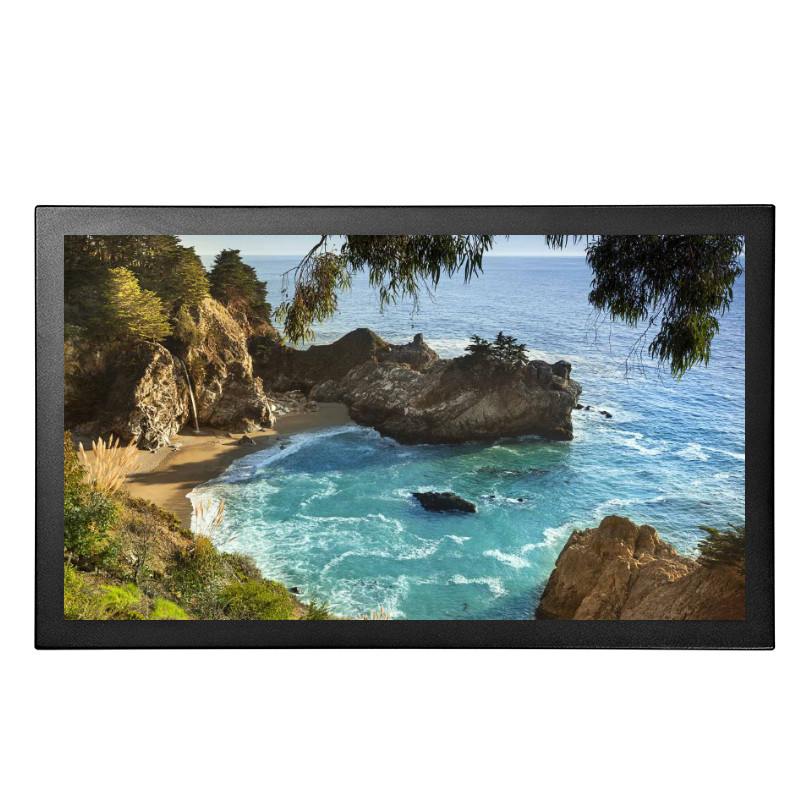

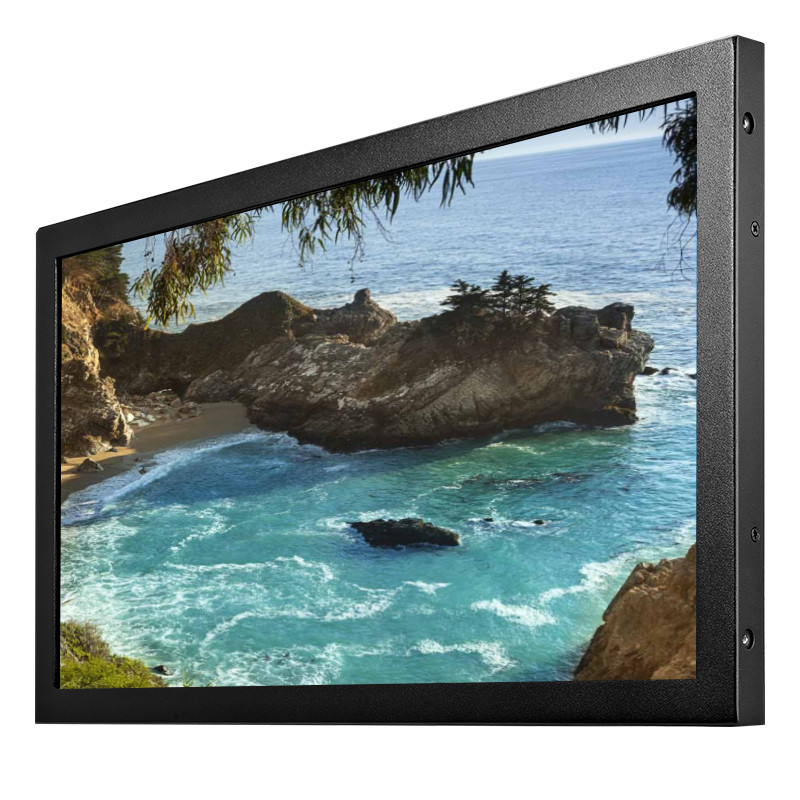

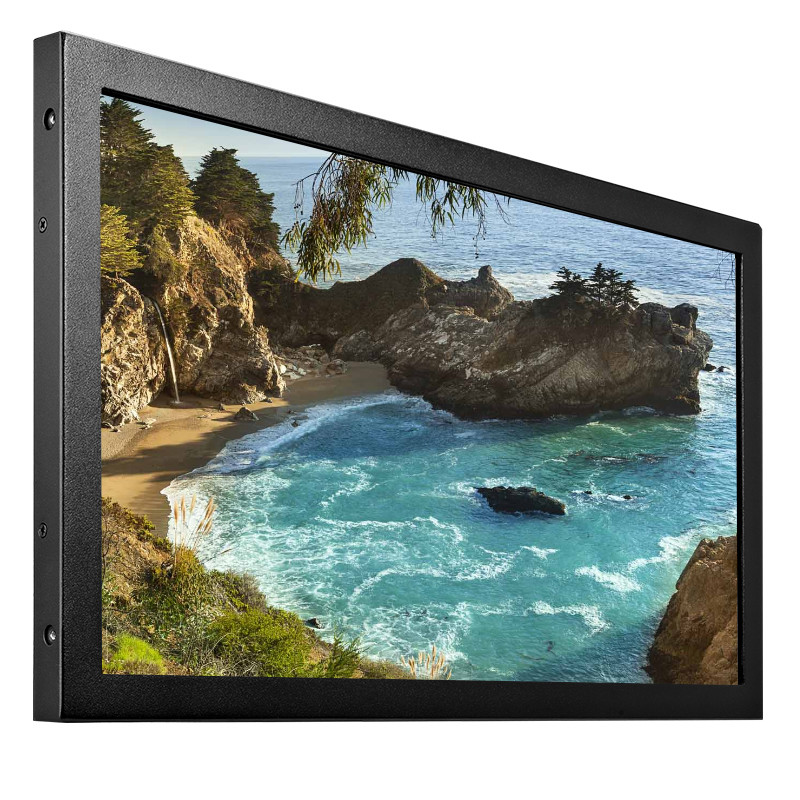

18.5 Inch SAW Touch Monitor Dust-Proof With USB RS232 Controller



SAW Touch Monitor Main Features:

  • KeeTouch SAW touch screen, finger operation

  • Industrial grade SAW touch monitor with dust-proof function

  • High quality panel with high resolution, high contrast ratio and wide viewing angle

  • Multiple mounting options include VESA mount, horizontal vertical brackets mount

  • VGA+DVI+HDMI interfaces,USB+RS232 for touch

  • Operation system: XP,WIN7,WIN8,WIN10, Linux, Android

  • Other sizes can be offered (7’’- 43’’)





SAW Touch Monitor Specifications



 Complete Machine

 Model No.

 KOT-0185US-SA4BP (P/N:KOT-185P-002)

 Series

 OT

 Display Type

16:9 Ratio 18.5" TFT-LCD

 Active Area

409.8*230.4(mm)

 Monitor Dimensions (W*H*D)

449.4*270*43(mm)

 Suggested Resolution

1366*768 @ 60Hz

 Support Colors

16.7M

 Brightness (Typ.)

Pure LCD Panel

250cd/m²

With Touch Monitor

225cd/m²

 Response Time (Typ.)

5ms

 Viewing Angle(Typ.at CR＞10)）

 Horizontal(left/right)

 85°/85°

 Vertical(up/down)

 80°/80°

 Contrast Ratio (Typ.)

1000:1

 Video Input

VGA/DVI/HDMI

 Power Supply

Type: External brick

Display voltage: DC 12V±5%
Input (line) voltage: 100-240 VAC, 50-60 Hz

 Environment

Operating Temp.

0～50°C

Operating RH

20%～80%

Storage Temp.

-20～60°C

Storage RH

10%～90%

 MTBF

≥30,000 Hours

 LED Back Light Life (Typ.)

≥30,000 Hours

 Weight（N.W/G.W）

4.6Kg(1pcs)/11.5Kg(2pcs in one package)

 Package dimensions

525*190*380(mm)(2pcs in one package)

 Power Consumption

Standby Power: ≤1.5W / Operating Power: ≤25W

 Mount Interface

 1.VESA 75mm and 100mm

 2.Mount bracket, horizontal or vertical mount

 OSD Control

Buttons

 AUTO,+,POWER,-,MENU

Function

Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset

 Agency approvals

 CCC, UL, FCC, CE, CB, RoHS

 Regular Warranty

1 year



Touch Screen

Touch Type

18.5" Surface acoustic wave touch screen

Touch input

USB/RS232

Response Time

≤8ms(USB) ; ≤12ms(RS232)

Hardness

7H

Light Transmittance

≥90%

Support System

XP,WIN7,WIN8,WIN10,Linux,Android

Active Area

411*231(mm)

Thickness

4±0.1(mm)

Touch Test

≥50,000,000 times

Input Voltage

DC 5V±5%






 Applications

Widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.


178






FAQ

1. Are you a manufacturer?

Yes, KeeTouch is a professional touch product manufacturer founded in 2006, located in Shenzhen, China.



2. What’s your MOQ for SAW touch monitor?

Our minimum order quantity is 1pc only.



3. What is your warranty period for SAW touch monitor?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).



4. Can you produce the product according to the customer's requirements?

Sure, with 40+ Professional R & D engineers, OEM and ODM are offered.



5. What is your payment method?

We can accept T/T, Western Union, Paypal, Pay Later, Credit card, Boleto, e-Checking and Alipay. ( L/C can be negotiable. )



6. What is your delivery time for SAW touch monitor?

3-5 work days for inventory orders, 7-15 business days for bulk production.
