SAW Touch Monitor 17 Inch Waterproof Multifunctional Compact Type
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Display Type | 5:4 Ratio 17＂Active Matrix TFT-LCD, LED Backlight | Display Active Area | 13.3＂(338mm)×10.6＂(270mm) |
|---|---|---|---|
| Response Time(Typ.) | 5s | Video Input | VGA/DVI |
| Storage Temp | -20～60°C | Support Colors | 16.7M |
| Touch Response Time | USB/ 8.4ms | Product Name | SAW Touch Monitor |
| High Light | SAW Touch Monitor,SAW Touch Monitor 17 Inch,touch monitor 17 inch Waterproof | ||
Product Description

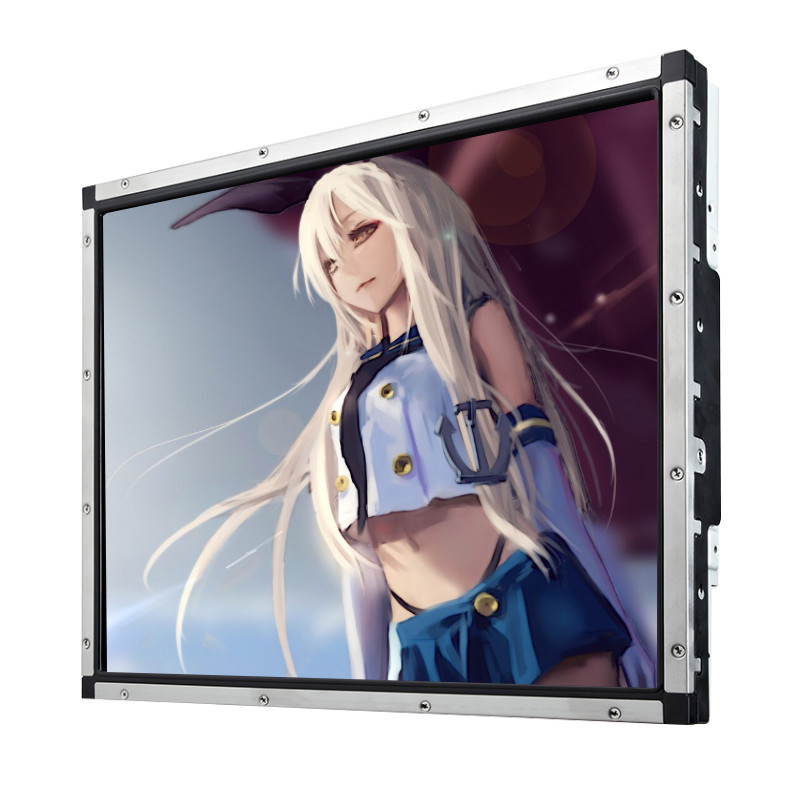

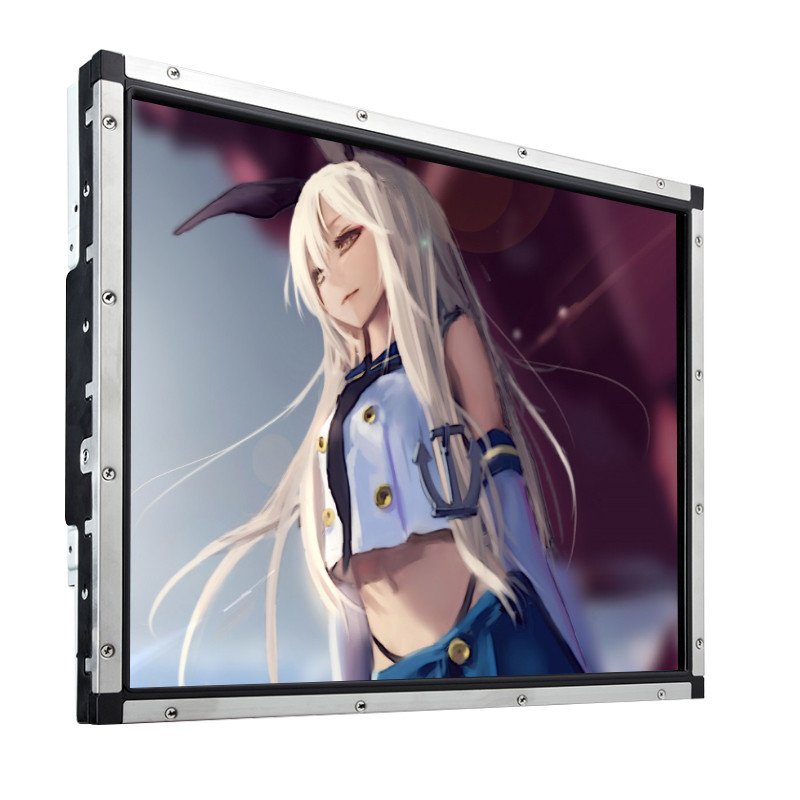

17 Inch SAW Touch Monitor Waterproof Compact Type For Banking Gaming
SAW Touch Monitor Main Features:
KeeTouch SAW touch panel, accurate touch and fast response
Water-proof and compact designed SAW touch monitor, durable and high-stability
High resolution and high contrast SAW touch monitor, superior clarity image
VGA A input video format, USB and RS232 for touch
Support system: XP,WIN7,WIN8,WIN10, Linux, Android
Multiple mounting options including horizontal bracket-mount, vertical bracket
Other sizes can be offered (7''- 55'')
SAW Touch Monitor Specifications
Complete Machine | ||
Model No. | KOT-0170US-SA4BCW(P/N:KOT-170C-019) | |
Series | OT | |
Display Type | 5:4 Ratio 17" TFT-LCD | |
Active Area | 337.920*270.336(mm) | |
Monitor Dimensions (W*H*D) | 369*307*50(mm) | |
Suggested Resolution | 1280*1024 @ 60Hz | |
Support Colors | 16.7M | |
Brightness (Typ.) | Pure LCD Panel | 250cd/m² |
With Touch Monitor | 225cd/m² | |
Response Time (Typ.) | 5ms | |
Viewing Angle(Typ.at CR＞10)） | Horizontal(left/right) | 85°/85° |
Vertical(up/down) | 80°/80° | |
Contrast Ratio (Typ.) | 1000:1 | |
Video Input | VGA/DVI | |
Frequency (H/V) | 37.9～80KHz / 60～75Hz | |
Power Supply | Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz | |
Environment | Operating Temp. | 0～50°C |
Operating RH | 20%～80% | |
Storage Temp. | -20～60°C | |
Storage RH | 10%～90% | |
MTBF | 30,000 Hours | |
LED Back Light Life (Typ.) | 30,000 Hours | |
Weight（N.W/G.W） | 5Kg(1pcs)/12.8Kg(2pcs in one package) | |
Package dimensions | 445*200*390(mm)(2pcs in one package) | |
Power Consumption | Standby Power: ?1.5W / Operating Power: ?15W | |

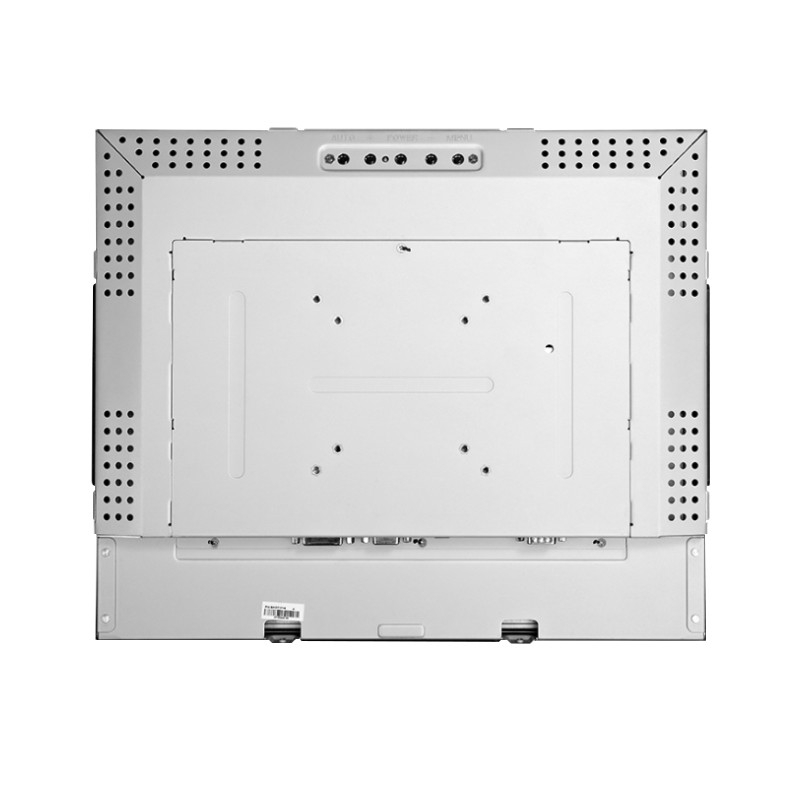

Mount Interface | 1. VESA 75mm and 100mm 2. Mount bracket, horizontal or vertical mount | |
OSD Control | Buttons | AUTO,+,POWER,-,MENU |
Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
CCC, UL, FCC, CE, CB, RoHS | ||
Regular Warranty | 1 year | |
Touch Screen | |
Touch Type | 17" Surface acoustic wave touch screen |
Touch input | USB/RS232 |
Response Time | 8ms(USB) / ?12ms(RS232) |
Hardness | 7H |
Light Transmittance | 90% |
Support System | XP,WIN7,WIN8，WIN10 |
Active Area | 338*270(mm) |
Thickness | 4.0±0.2(mm) |
Touch Test | 50,000,000 times |
Input Voltage | DC 5V±5% |
Applications
KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
FAQ
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer founded in 2006, located in Shenzhen, China.
2. What’s your MOQ for the SAW touch monitor?
Our minimum order quantity is 1pc only.
3. What is your warranty period for the SAW touch monitor?
Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
4. Can you produce the SAW touch monitor according to the customer's requirements?
Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.
5. What is your payment method?
We can accept T/T, Western Union, Paypal, Credit card and Alipay. ( L/C can be negotiable. )
6. What is your delivery time?
3-5 work days for inventory orders, 7-15 business days for bulk production.
