Compact Kiosk LCD Monitor, 21.5" Touch Screen With VGA DVI Video Input

Compact Kiosk LCD Monitor, 21.5
Compact Kiosk LCD Monitor, 21.5 Compact Kiosk LCD Monitor, 21.5 Compact Kiosk LCD Monitor, 21.5 Compact Kiosk LCD Monitor, 21.5
Place of OriginShenzhen，China
Brand NameKeeTouch
CertificationCCC, UL, FCC, CE, CB, RoHS
Model NumberKOT-215C-001(KOT-0215US-SA4BCP)
Minimum Order Quantity1 piece
PriceNegotiable
Packaging Detailscarton box
Delivery Time7-15 work days
Payment TermsL/C, T/T, Western Union
Supply Ability1000 Pieces per Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Type16:9 Ratio 21.5" TFT-LCDDisplay Active Area476.64*268.11(mm)
Response Time(Typ.)16msVideo InputVGA/DVI
Storage Temp.-20～60°CSupport Colors10%～90%
Response Time≤8ms(USB) ; ≤12ms(RS232)Product NameSAW Touch Monitor
High Light

Compact Kiosk LCD Monitor  21.5"

,

Compact 21.5" Kiosk LCD Monitor

,

Compact Kiosk 21.5" Touch Screen

Leave a Message
Product Description

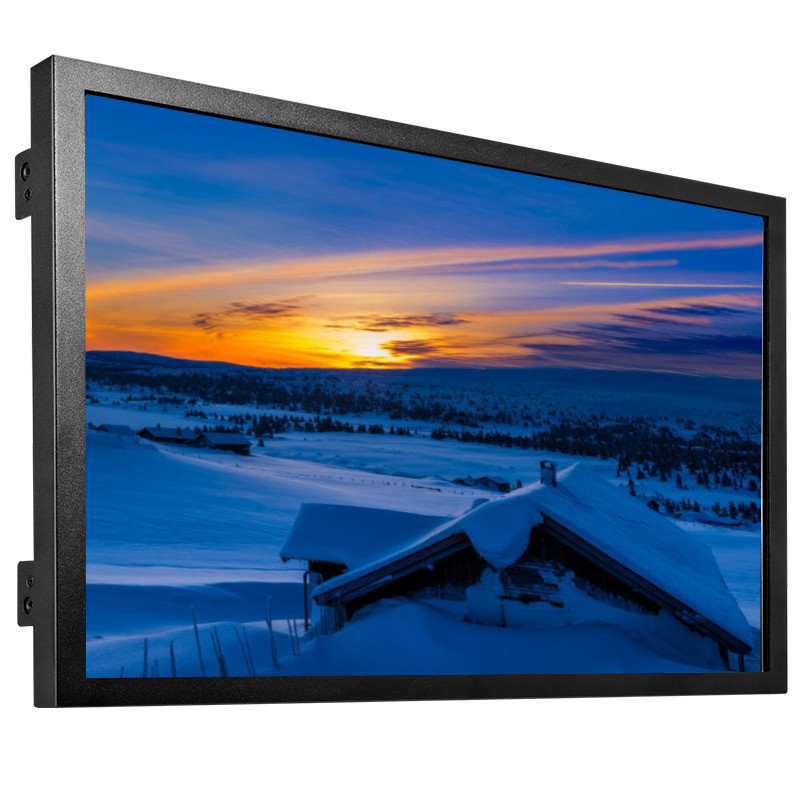

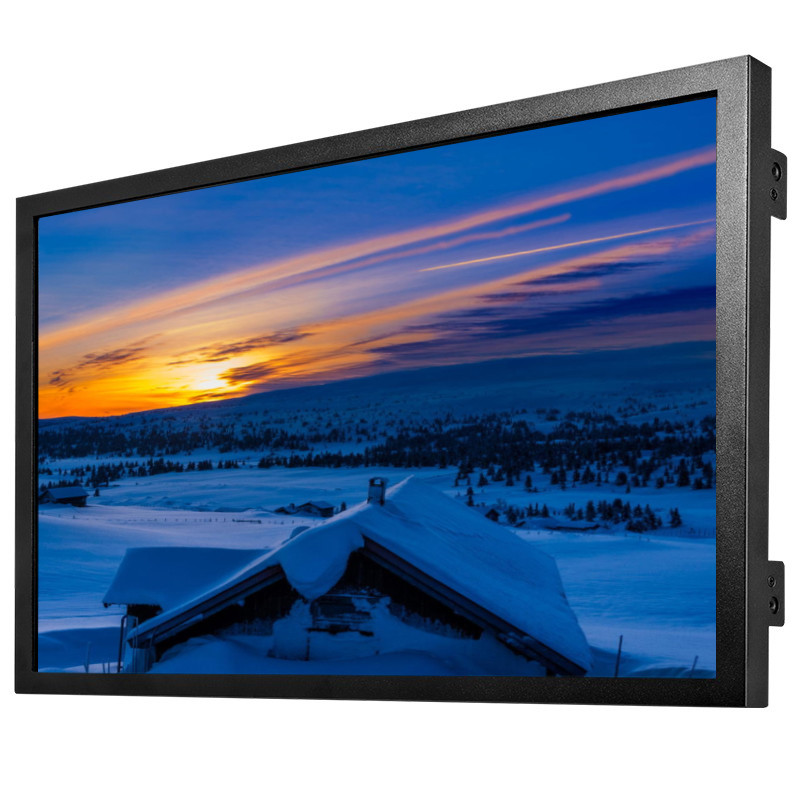

21.5 Inch SAW Touch Monitor Compact Designed For Kiosks



SAW Touch Monitor Main Features:


  • KeeTouch SAW touch screen, free of drift and good touch experience

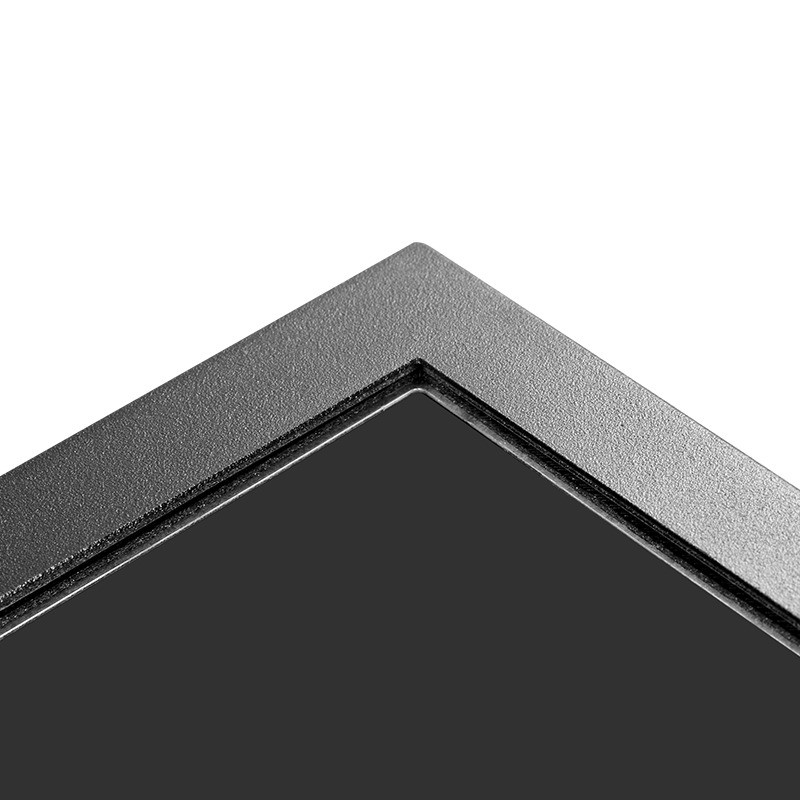

  • Compact designed dust-proof SAW touch monitor, easy for integration

  • High quality SAW touch monitor with high resolution, high contrast and wide viewing angle

  • Multiple mounting options include VESA mount, horizontal vertical brackets mount

  • VGA+DVI interfaces,USB+RS232 for touch input

  • Support systems: XP,WIN7,WIN8,WIN10, Linux, Android

  • Other sizes are optional or customized (7''- 43'')





Specification of SAW Touch Monitor




 Complete Machine

 Model No.

 KOT-0215US-SA4BCP (PN: KOT-215C-001)

 Series

 OT

 Display Type

16:9 Ratio 21.5" TFT-LCD

 Active Area

476.64*268.11(mm)

 Monitor Dimensions (W*H*D)

511.7*298*42.6(mm)

 Suggested Resolution

1920*1080@ 60Hz

 Support Colors

16.2M

 Brightness (Typ.)

Pure LCD Panel

250cd/m²

With Touch Monitor

225cd/m²

 Response Time (Typ.)

16ms

 Viewing Angle(Typ.at CR＞10)）

 Horizontal(left/right)

 85°/85°

 Vertical(up/down)

 80°/80°

 Contrast Ratio (Typ.)

1000:1

 Video Input

VGA/DVI

 Frequency (H/V)

30～80KHz / 60～75Hz

 Power Supply

Type: External brick

Display voltage: DC 12V±5%
Input (line) voltage: 100-240 VAC, 50-60 Hz

 Environment

Operating Temp.

0～50°C

Operating RH

20%～80%

Storage Temp.

-20～60°C

Storage RH

10%～90%

 MTBF

≥30,000 Hours

 LED Back Light Life (Typ.)

≥30,000 Hours

 Weight（N.W/G.W）

5.7Kg(1pcs)/13.8Kg(2pcs in one package)

 Package dimensions

605*195*400(mm)(2pcs in one package)

 Power Consumption

Standby Power: ≤1.5W / Operating Power: ≤20W

 Mount Interface

 1.VESA 75mm and 100mm

 2.Mount bracket, horizontal or vertical mount

 OSD Control

Buttons

 AUTO,+,POWER,-,MENU

Function

Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset

 Agency approvals

 CCC, UL, FCC, CE, CB, RoHS

 Regular Warranty

1 year




Touch Screen

Touch Type

21.5" Surface acoustic wave touch screen

Touch input

USB/RS232

Response Time

≤8ms(USB) ; ≤12ms(RS232)

Hardness

7H

Light Transmittance

≥90%

Support System

XP,WIN7,WIN8,WIN10,Linux,Android

Active Area

478*270(mm)

Thickness

4±0.2(mm)

Touch Test

≥50,000,000 times

Input Voltage

DC 5V±5%




Application:

PCAP Touch Monitor are widely used in such as kiosk, self-service, retail, gaming, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, railway stations, control and operation systems, airports, entertainments, smart home, subways,etc.





FAQ

1. Are you a manufacturer?

Yes, KeeTouch is a professional touch product manufacturer founded  in 2006, located in Shenzhen, China.


2. What’s your MOQ for SAW touch monitor?

Our minimum order quantity is 1pc only.


3. What is your warranty period for SAW touch monitor?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).


4. Can you produce the product according to the customer's requirements?

Sure, with 40+ Professional R & D engineers, OEM and ODM are offered.


5. What is your payment method?

We can accept T/T, Western Union, Paypal, Pay Later, Credit card and Alipay. ( L/C can be negotiable. )


6. What is your delivery time for SAW touch monitor?

3-5 work days for inventory orders, 7-15 business days for bulk production.
