Embedded TFT LCD 19 Inch Touch Screen Monitor For Interactive Display

Embedded TFT LCD 19 Inch Touch Screen Monitor For Interactive Display
Embedded TFT LCD 19 Inch Touch Screen Monitor For Interactive Display Embedded TFT LCD 19 Inch Touch Screen Monitor For Interactive Display Embedded TFT LCD 19 Inch Touch Screen Monitor For Interactive Display Embedded TFT LCD 19 Inch Touch Screen Monitor For Interactive Display Embedded TFT LCD 19 Inch Touch Screen Monitor For Interactive Display
Place of Origin Shenzhen，China
Brand Name KeeTouch
Certification CCC, ETL, FCC, CE, CB, RoHS
Model Number KOT-0190US-SA4BCW
Minimum Order Quantity 1 piece
Price Negotiable
Packaging Details carton box
Delivery Time 7-15 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 1000 Pieces per Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Type 5:4 Ratio 19" TFT-LCD Suggested Resolution 1280x1024 @ 60Hz
Contrast Ratio 1000:1 Video Input VGA/DVI
Regular Warranty 1 Year Support System XP,WIN7,WIN8,WIN10,Linux,Android
Operating Temp. 0～50°C Product Name SAW Touch Monitor
High Light

TFT 19 Inch Touch Screen Monitor

,

Interactive monitor touch screen 19 inch

,

Display monitor touch screen 19 inch
Leave a Message
Product Description

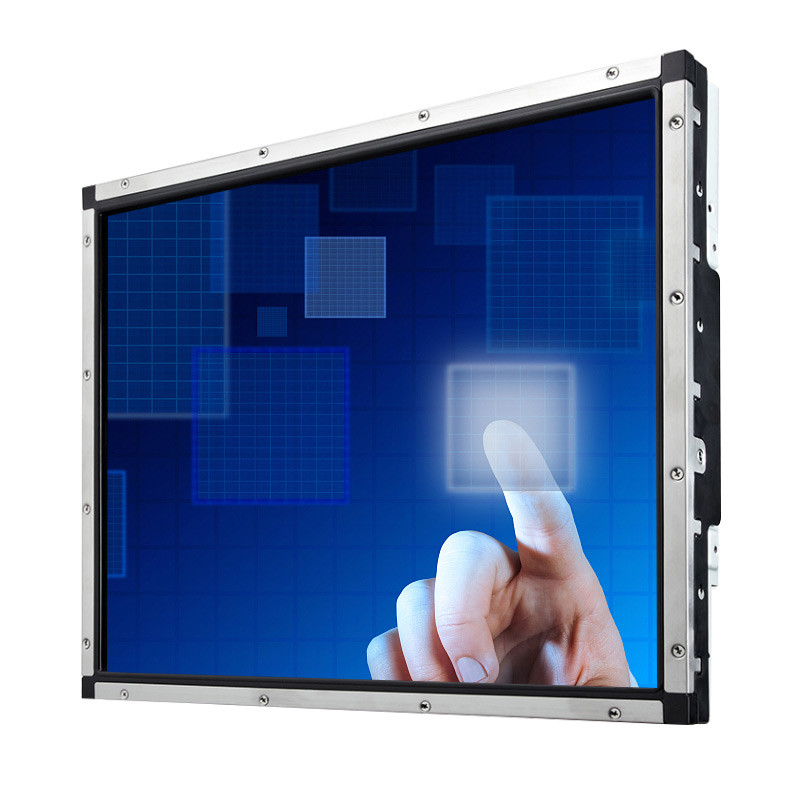

Embedded TFT LCD 19 Inch Touch Screen Monitor For Interactive Display



SAW Touch Monitor Description:



KeeTouch SAW touch monitor integrates with industrial grade LED with low power consumption. By applied with surface acoustic wave touch technology, it delivers a fast and accurate touch experience. The compact outer shell design and VESA holes behind rear cover are convenient for installation. Other sizes are optional for choosing from 7" to 43"



SAW Touch Monitor Specifications



Complete Machine
Model No. KOT-0190US-SA4BCW (P/N:KOT-190C-013)
Series OT
Display Type 5:4 Ratio 19" TFT-LCD
Active Area 376.32*301.06 (mm)
Monitor Dimensions (W*H*D) 416*344*54(mm)
Suggested Resolution 1280x1024 @ 60Hz
Support Colors 16.7M
Brightness (Typ.) Pure LCD Panel 250cd/m2
  With Touch Monitor 225cd/m2
Response Time (Typ.) 5ms
Viewing Angle(Typ.at CR＞10)) Horizontal(left/right) 85°/85°
  Vertical(up/down) 80°/80°
Contrast Ratio (Typ.) 1000:1
Video Input VGA/DVI
Frequency (H/V) 37.9 -80KHz/ 60～75Hz
Power Supply

Type: External brick

Display voltage: DC 12V±5%

Input (line) voltage: 100-240 VAC, 50-60 Hz
Environment Operating Temp. 0～50°C
  Operating RH 20%～80%
  Storage Temp. -20～60°C
  Storage RH 10%～90%
MTBF ≥50,000 Hours
LED Back Light Life (Typ.) ≥50,000 Hours
Weight(N.W/G.W) 5Kg(1pcs)/13.5Kg(2pcs in one package)
Package dimensions 530*250*460(mm)(2pcs in one package)
Power Consumption Standby Power: ≤1.5W / Operating Power: ≤20W
Mount Interface

1.VESA 75mm and 100mm

2.Mount bracket, horizontal or vertical mount
OSD Control Buttons AUTO,+,POWER,-,MENU
  Function Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Agency approvals CCC, UL, FCC, CE, CB, RoHS
Regular Warranty 1 year

Touch Screen
Touch Type 19" Surface acoustic wave touch screen
Touch input USB/RS232
Response Time ≤8ms(USB) ; ≤12ms(RS232)
Hardness 7H
Light Transmittance ≥90%
Support System XP,WIN7,WIN8,WIN10,Linux,Android
Active Area 382*305(mm)
Thickness 4±0.1(mm)
Touch Test ≥50,000,000 times
Input Voltage DC 5V±5%



SAW Touch Monitor Mechanical Dimensions



Embedded TFT LCD 19 Inch Touch Screen Monitor For Interactive Display 0



Applications

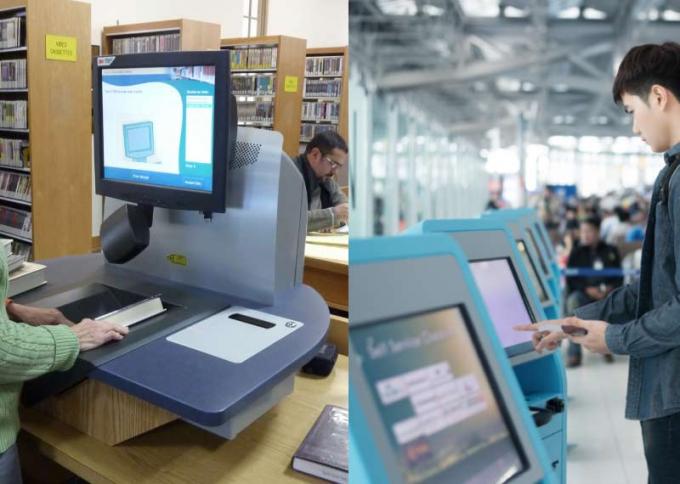

Widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.



Embedded TFT LCD 19 Inch Touch Screen Monitor For Interactive Display 1



Our Advantages:



  • Efficient Warehousing and Logistics

  • Branch offices widely spreads all over the world,such as Russia,Brazil,Germany and India etc.

  • Products are certificated by CCC, UL, ETL, FCC, CE, CB ,RoHS and other international certifications.

  • Developing a large number of agents and distributors,offering world-wide sales networks and comprehensive after-sale service system.



FAQ



1. Are you a manufacturer?

Yes, KeeTouch is a professional touch product manufacturer for over 16 years, located in Shenzhen, China.



2. What’s your MOQ for the SAW Touch Monitor?

Our minimum order quantity is 1pc only.



3. What is your warranty period for the SAW Touch Monitor?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).



4. Can you produce the SAW Touch Monitor according to the customer's requirements?

Sure, with 40+ Professional R & D engineers, OEM and ODM are offered.



5. What are the shipping ways of the SAW Touch monitor?

We will ship the goods according to customer’s requirement. For sample, normally by FedEx, DHL, UPS, TNT. For bulk order, by air or by sea.
