17 Inch SAW Touch Monitor IP65 Waterproof 1280x1024
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Display Type | 5:4 Ratio 17" TFT-LCD | Display Active Area | 337.920*270.336(mm) |
|---|---|---|---|
| Response Time(Typ.) | 5ms | Video Input | VGA/DVI |
| Contrast Ratio (Typ.) | 1000:1 | Operating Temp. | 0～50°C |
| Storage Temp. | -20～60°C | Product Name | SAW Touch Monitor |
| High Light | IP65 SAW Touch Monitor,SAW Touch Monitor 17Inch,1280x1024 SAW Touch Monitor | ||
Product Description

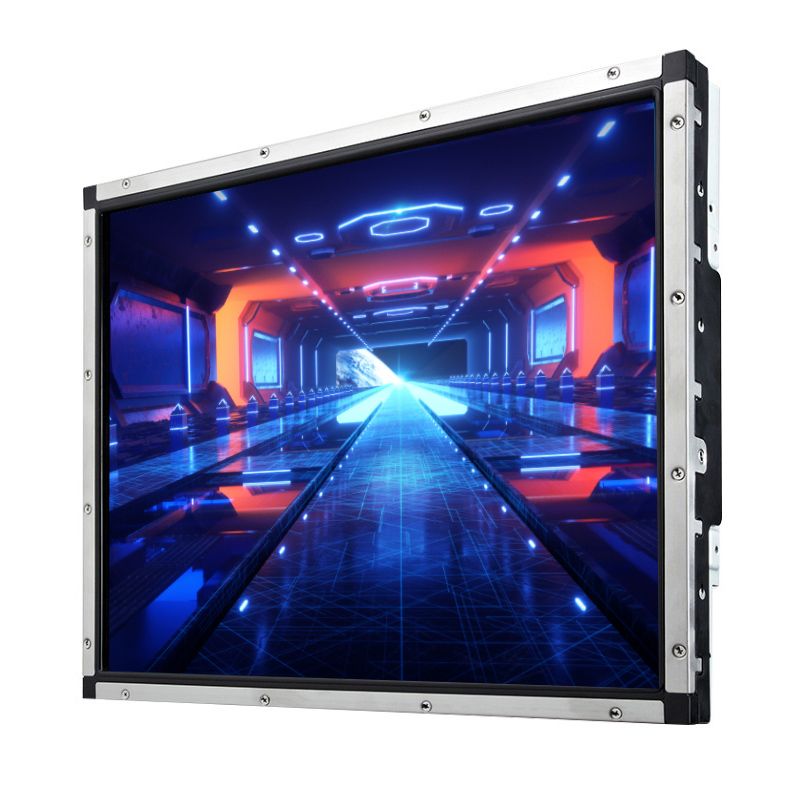

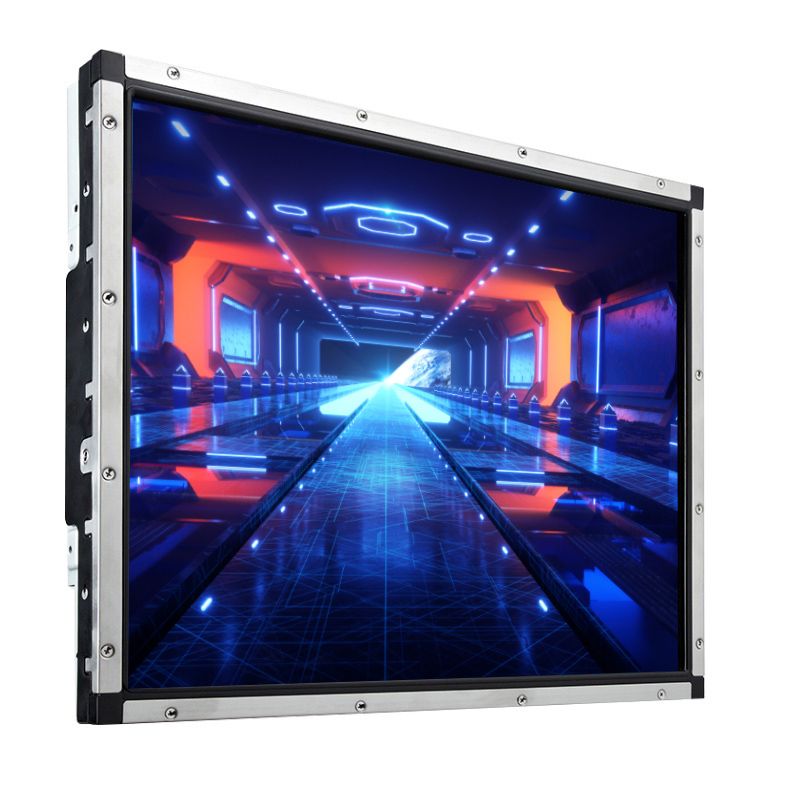

17 Inch SAW Touch Monitor IP65 Waterproof 1280x1024
SAW Touch Monitor Main Features:
SAW touch panel, accurate touch, high-quality touch experience
Compact design, IP65 surface waterproof SAW touch monitor
High resolution, high contrast SAW touch monitor with superior clarity image
Multiple mounting options include VESA mount, horizontal or vertical brackets mount

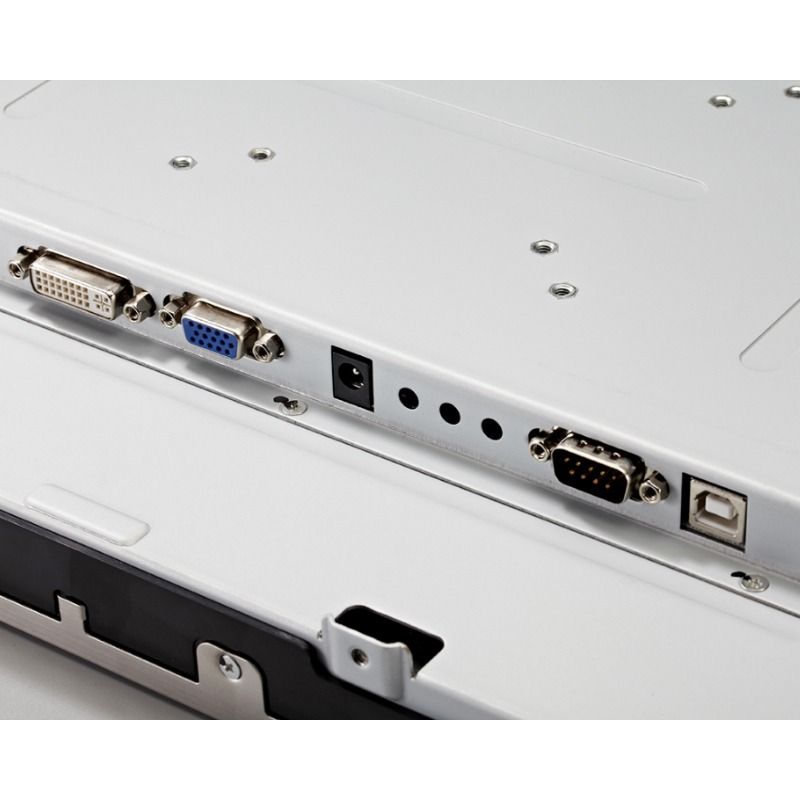

VGA+DVI interfaces,USB/RS232 for touch input
Support systems: XP,WIN7,WIN8,WIN10
Other sizes can be offered (7''- 43'')
SAW Touch Monitor Specifications
Complete Machine | ||
Model No. | KOT-0170US-SA4BCW(P/N:KOT-170C-019) | |
Series | OT | |
Display Type | 5:4 Ratio 17" TFT-LCD | |
Active Area | 337.920*270.336(mm) | |
Monitor Dimensions (W*H*D) | 369*307*50(mm) | |
Suggested Resolution | 1280*1024 @ 60Hz | |
Support Colors | 16.7M | |
Brightness (Typ.) | Pure LCD Panel | 250cd/m² |
With Touch Monitor | 225cd/m² | |
Response Time (Typ.) | 5ms | |
Viewing Angle(Typ.at CR＞10)） | Horizontal(left/right) | 85°/85° |
Vertical(up/down) | 80°/80° | |
Contrast Ratio (Typ.) | 1000:1 | |
Video Input | VGA/DVI | |
Frequency (H/V) | 37.9～80KHz / 60～75Hz | |
Power Supply | Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz | |
Environment | Operating Temp. | 0～50°C |
Operating RH | 20%～80% | |
Storage Temp. | -20～60°C | |
Storage RH | 10%～90% | |
MTBF | 30,000 Hours | |
LED Back Light Life (Typ.) | 30,000 Hours | |
Weight（N.W/G.W） | 5Kg(1pcs)/12.8Kg(2pcs in one package) | |
Package dimensions | 445*200*390(mm)(2pcs in one package) | |
Power Consumption | Standby Power: ?1.5W / Operating Power: 15W | |
Mount Interface | 1. VESA 75mm and 100mm 2. Mount bracket, horizontal or vertical mount | |
OSD Control | Buttons | AUTO,+,POWER,-,MENU |
Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
CCC, UL, FCC, CE, CB, RoHS | ||
Regular Warranty | 1 year | |
Touch Screen | |
Touch Type | 17" Surface acoustic wave touch screen |
Touch input | USB/RS232 |
Response Time | 8ms(USB) / ?12ms(RS232) |
Hardness | 7H |
Light Transmittance | 90% |
Support System | XP,WIN7,WIN8，WIN10 |
Active Area | 338*270(mm) |
Thickness | 4.0±0.2(mm) |
Touch Test | 50,000,000 times |
Input Voltage | DC 5V±5% |
Applications

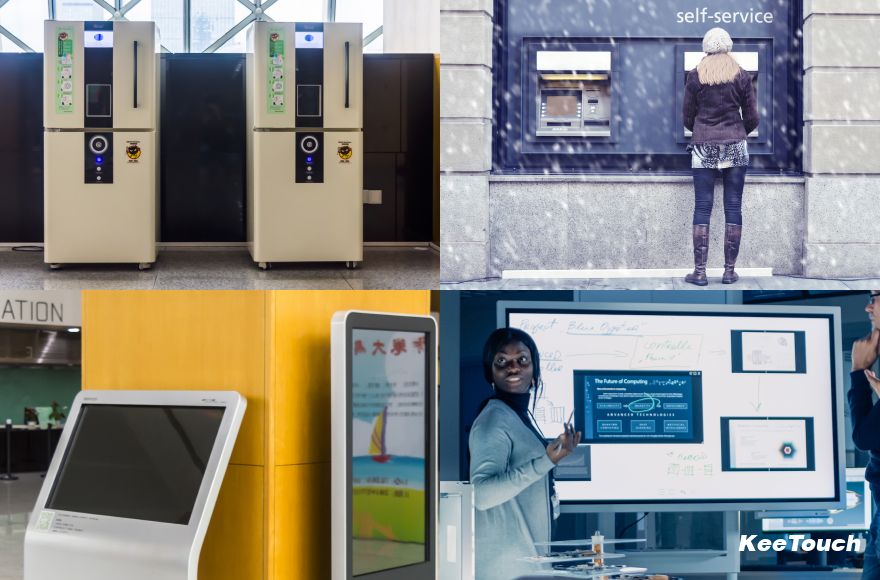

Widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
FAQ
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer founded in 2006, located in Shenzhen, China.
2. What’s your MOQ for SAW touch monitor?
Our minimum order quantity is 1pc only.
3. What is your warranty period for SAW touch monitor?
Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
4. Can you produce the product according to the customer's requirements?
Sure, with 40+ Professional R & D engineers, OEM and ODM are offered.
5. What is your payment method?
We can accept T/T, Western Union, Paypal, Credit card and Alipay. ( L/C can be negotiable. )
6. What is your delivery time for SAW touch monitor?
3-5 work days for inventory orders, 7-15 business days for bulk production.
