Dust Proof SAW 22 Inch Touch Screen Monitor With USB RS232 Interface

Dust Proof SAW 22 Inch Touch Screen Monitor With USB RS232 Interface
Dust Proof SAW 22 Inch Touch Screen Monitor With USB RS232 Interface Dust Proof SAW 22 Inch Touch Screen Monitor With USB RS232 Interface Dust Proof SAW 22 Inch Touch Screen Monitor With USB RS232 Interface Dust Proof SAW 22 Inch Touch Screen Monitor With USB RS232 Interface Dust Proof SAW 22 Inch Touch Screen Monitor With USB RS232 Interface
Place of OriginShenzhen，China
Brand NameKeeTouch
CertificationCCC, UL, FCC, CE, CB, RoHS
Model NumberKOT-220P-014(KOT-0220US-SA6BP)
Minimum Order Quantity1 piece
PriceNegotiable
Packaging Detailscarton box
Delivery Time7-15 work days
Payment TermsL/C, T/T, Western Union
Supply Ability1000 Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Type16:10 Ratio 22" TFT-LCDPure LCD Panel250cd/m²
Touch Screen Type22" Surface Acoustic Wave Touch Screen(6mm)Display Active Area376.32*301.06 (mm)
RespoSuggested Resolutionnse Time(Typ.)1680*1050@ 60HzVideo InputVGA/DVI
Response Time≤8ms(USB) ; ≤12ms(RS232)Product NameSAW Touch Monitor
High Light

22 Inch SAW Touch Screen Monitor

,

22 Inch Touch Screen Monitor

,

Dust Proof 22inch touch screen monitor

Leave a Message
Product Description

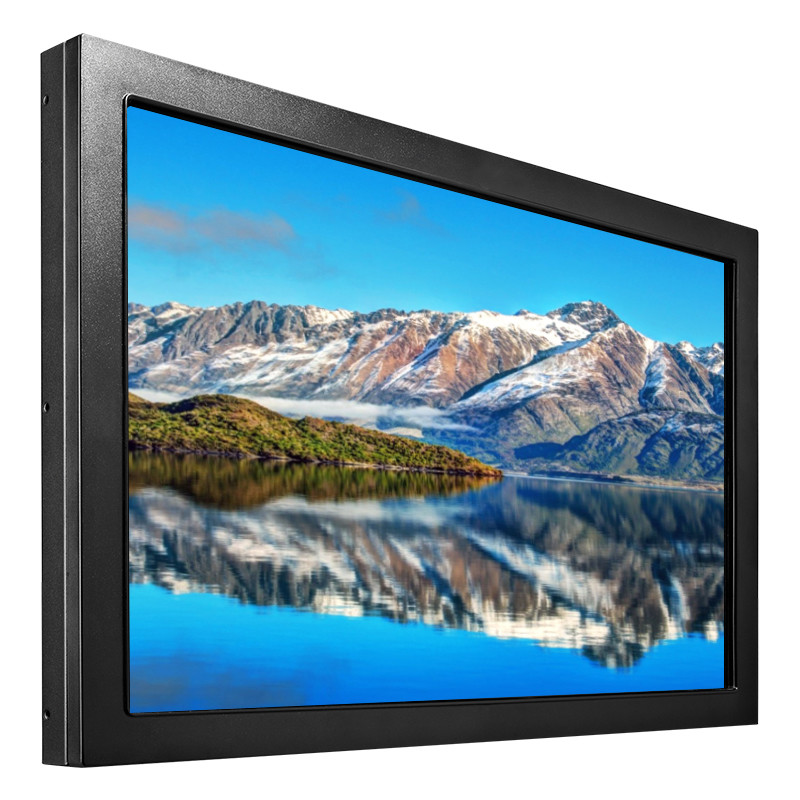

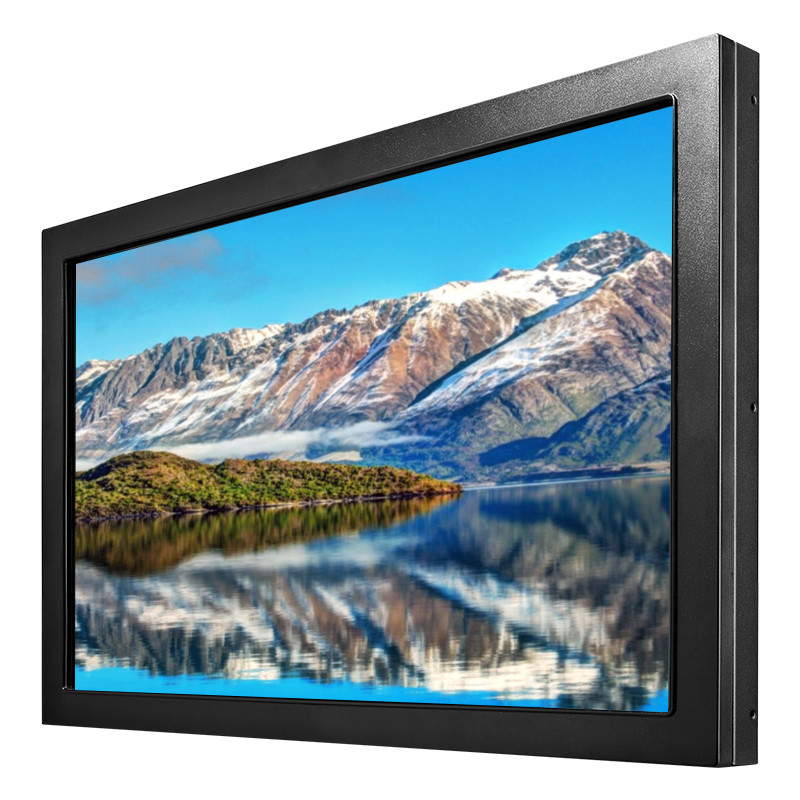

Dustproof 22 Inch SAW Touch Monitor With USB And RS232 Touch Interface



SAW Touch Monitor Description:


KeeTouch SAW touch panel delivers accurate touch and fast response. The high quality and dust-proof SAW touch monitor is durable in harsh environment. There are multiple mounting options include VESA mount, horizontal or vertical brackets mount. It's compatible with operating system like XP, WIN7, WIN8, WIN10, Linux, Android. Other sizes are available for 7" to 43".





SAW Touch Monitor Specifications


 Complete Machine

 Model No.

 KOT-0220US-SA6BP (P/N:KOT-220P-014)

 Series

 OT

 Display Type

16:10 Ratio 22" TFT-LCD

 Active Area

376.32*301.06 (mm)

 Monitor Dimensions (W*H*D)

473.8 mm×296.1 mm

 Suggested Resolution

1680*1050@ 60Hz

 Support Colors

16.7M

 Brightness (Typ.)

Pure LCD Panel

250cd/m²

With Touch Monitor

225cd/m²

 Response Time (Typ.)

5ms

 Viewing Angle(Typ.at CR＞10)）

 Horizontal(left/right)

 85°/85°

 Vertical(up/down)

 80°/80°

 Contrast Ratio (Typ.)

1000:1

 Video Input

VGA/DVI

 Video Input connector

Mini D-Sub 15-pin VGA and DVI-D

 Frequency (H/V)

30 -80KHz/ 60～75Hz

 Power Supply

Type: External brick

Display voltage: DC 12V±5%

Input (line) voltage: 100-240 VAC, 50-60 Hz

 Environment

Operating Temp.

0～50°C

Operating RH

20%～80%

Storage Temp.

-20～60°C

Storage RH

10%～90%

 MTBF

≥30,000 Hours

 Weight（N.W/G.W）

7.4Kg(1pcs)/20.8Kg(2pcs in one package)

 Package dimensions

635*190*435(mm)(2pcs in one package)

 Power Consumption

Standby Power: ≤1.5W / Operating Power: ≤30W

 Mount Interface

 1.VESA 75mm and 100mm

 2.Mount bracket, horizontal or vertical mount

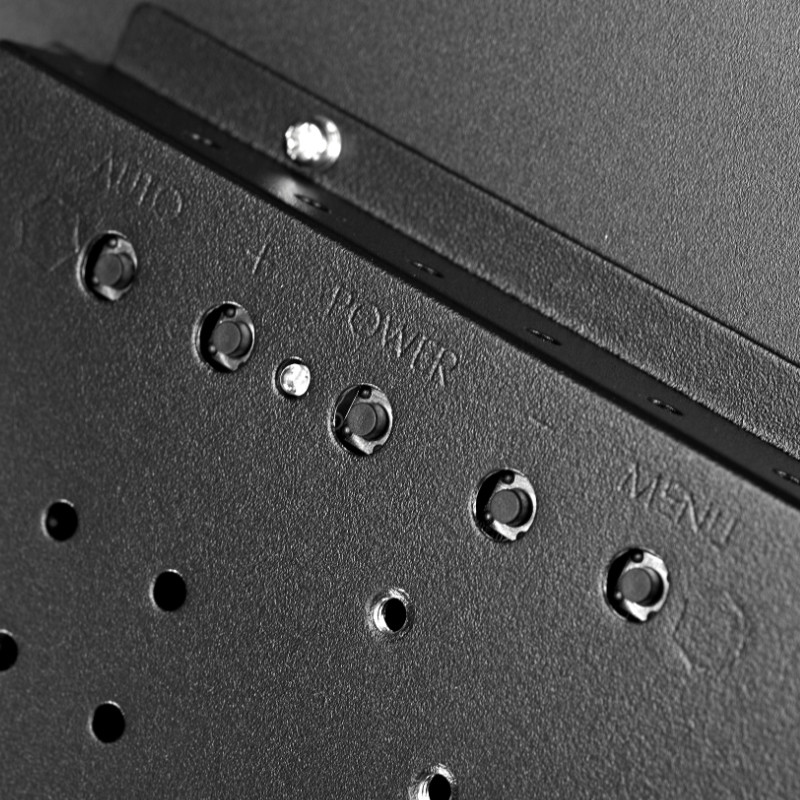

 OSD Control

Buttons

 AUTO,+,POWER,-,MENU

Function

Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset

 Touch Screen Type

 22" Surface acoustic wave touch screen(6mm)

 Touch input

 USB/RS232

 Agency approvals

 CCC, UL, FCC, CE, CB, RoHS

 Regular Warranty

 1 year





Applications

Widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.





Our Advantages:

  • High-tech and innovative enterprise

  • More than 175+ design patents

  • Completely and strictly quality control system

  • 30,000+ manufacturing capacity per year

  • Efficient Warehousing and Logistics





FAQ

1. Are you a manufacturer?

Yes, KeeTouch is a professional touch product manufacturer founded in 2006, located in Shenzhen, China.


2. What’s your MOQ for SAW touch monitor?

Our minimum order quantity is 1pc only.


3. What is your warranty period for SAW touch monitor?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).


4. Can you produce the SAW touch monitor according to the customer's requirements?

Sure, with 40+ Professional R & D engineers, OEM and ODM are offered.


5. Do you have stock?

Yes, we have a large quantity of stock for our regular model products.


6. What is your delivery time for SAW touch monitor?

3-5 work days for inventory orders, 7-15 business days for bulk production.
