10.4'' SAW Touch Monitor With 300 Nits Brightness For Self Service Kiosk

10.4'' SAW Touch Monitor With 300 Nits Brightness For Self Service Kiosk
10.4'' SAW Touch Monitor With 300 Nits Brightness For Self Service Kiosk 10.4'' SAW Touch Monitor With 300 Nits Brightness For Self Service Kiosk 10.4'' SAW Touch Monitor With 300 Nits Brightness For Self Service Kiosk 10.4'' SAW Touch Monitor With 300 Nits Brightness For Self Service Kiosk 10.4'' SAW Touch Monitor With 300 Nits Brightness For Self Service Kiosk 10.4'' SAW Touch Monitor With 300 Nits Brightness For Self Service Kiosk
Place of OriginShenzhen，China
Brand NameKeeTouch
CertificationCCC, UL, FCC, CE, CB, RoHS
Model NumberKOT-104P-002
Minimum Order Quantity1 piece
PriceNegotiable
Packaging Detailscarton box
Delivery Time7-15 work days
Payment TermsL/C, T/T, Western Union
Supply Ability1000 Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Type4:3 Ratio 10.4" TFT-LCDTouch Type10.4" Surface Acoustic Wave Touch Screen
Monitor Dimension257*199*45.5(mm) (W*H*D)Suggested Resolution800*600 @ 60Hz
Contrast Ratio500:1Video InputVGA
Regular Warranty1 YearProduct NameSAW Touch Monitor
High Light

SAW Touch Monitor 10.4"

,

800×600 Resolution Kiosk SAW Touch Monitor

,

Kiosk 10.4" Touch Monitor

Leave a Message
Product Description

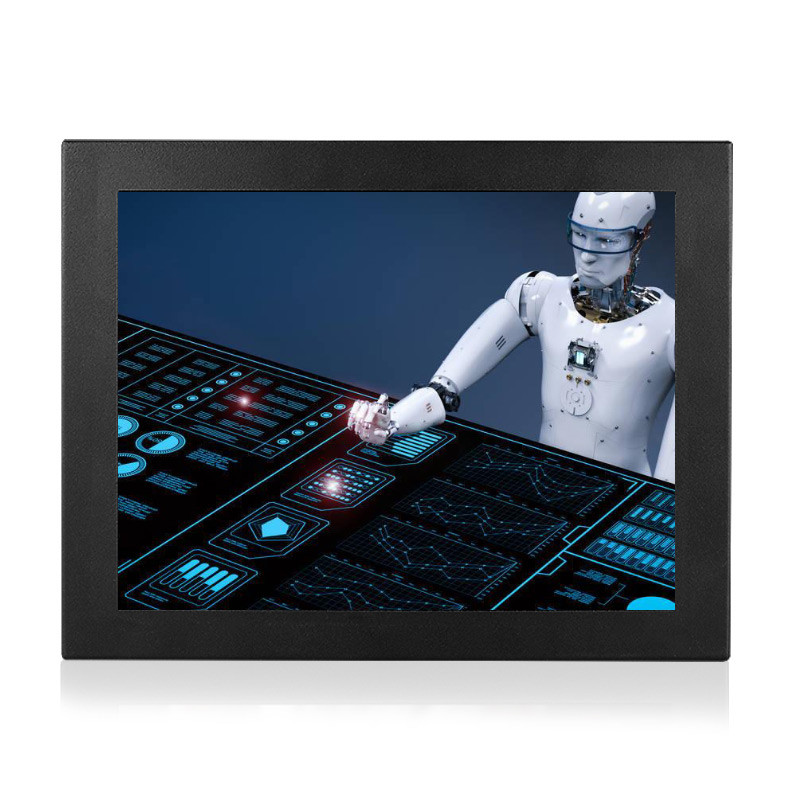

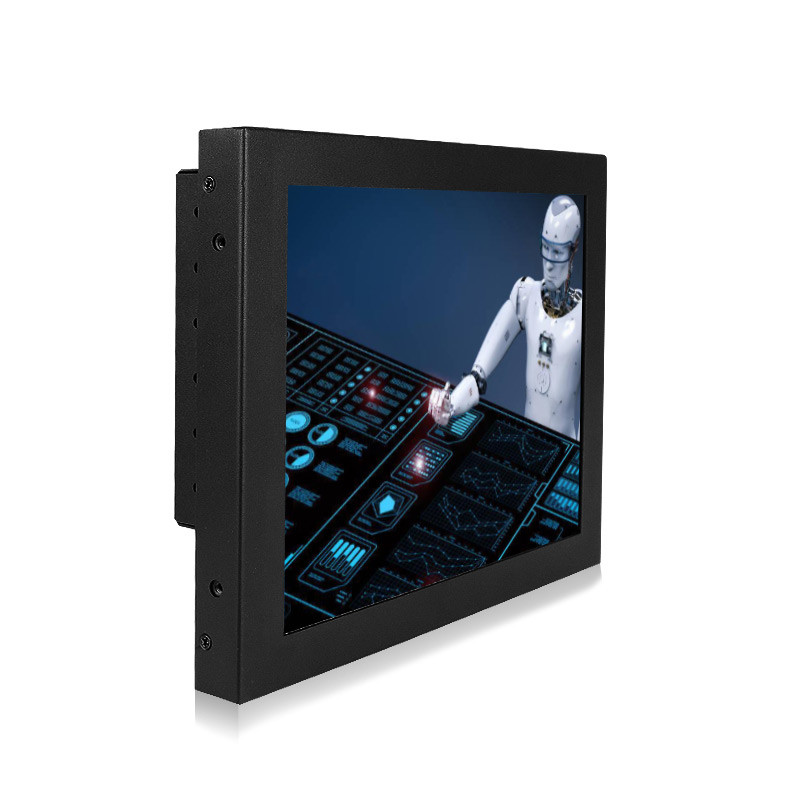

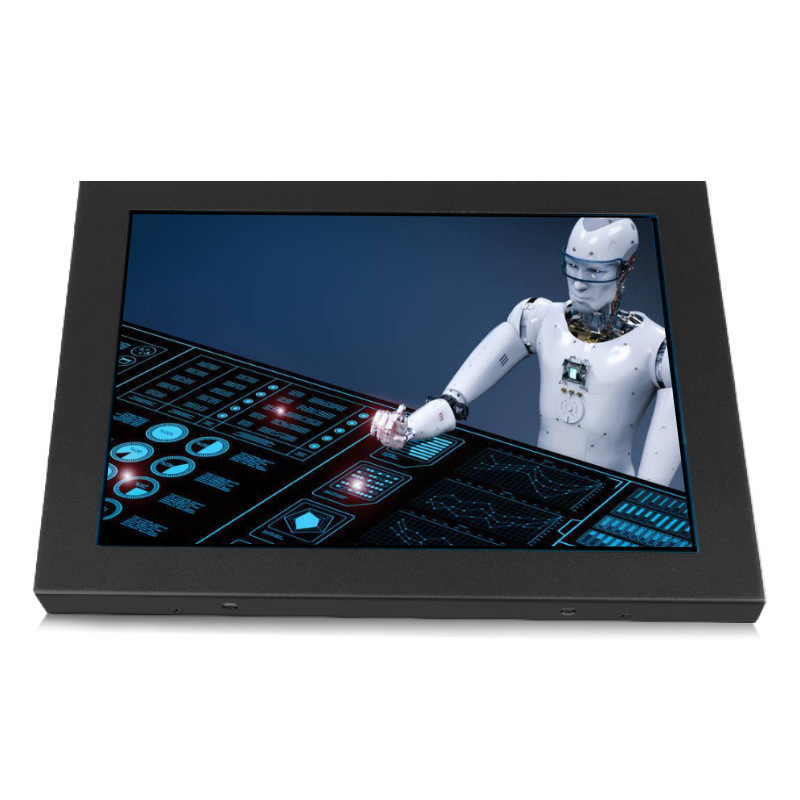

10.4'' SAW Touch Monitor With 300 Nits Brightness  For Self Service Kiosk



SAW Touch Monitor Description:


KeeTouch SAW touch monitor integrates with energy saving LEDS and anti-vandal touch glass to achieve a long working life span. It can support less than 8ms fast and accurate single touch experience. There are multiple mounting options include VESA mount, horizontal vertical brackets mount. Custom service is available for screen size, LCD brightness, interface, metal case color, etc.




SAW Touch Monitor Specifications


 Complete Machine

 Model No.

 KOT-0104U-SA4BP (P/N:KOT-104P-002)

 Series

 OT

 Display Type

4:3 Ratio 10.4" TFT-LCD

 Active Area

211.2*158.4(mm)

 Monitor Dimensions (W*H*D)

 257*199*45.5(mm)

 Suggested Resolution

800*600 @ 60Hz

 Support Colors

16.7M

 Brightness (Typ.)

Pure LCD Panel

300cd/m²

With Touch Monitor

270cd/m²

 Response Time (Typ.)

20ms

 Viewing Angle(Typ.at CR＞10)）

 Horizontal(left/right)

 75°/75°

 Vertical(up/down)

 50°/60°

 Contrast Ratio (Typ.)

 500:1

 Video Input

 VGA

 Frequency (H/V)

 37.9～46.9KHz / 60～75Hz

 Power Supply

Type: External brick

Display voltage: DC 12V±5%

Input (line) voltage: 100-240 VAC, 50-60 Hz

 Environment

Operating Temp.

0～50°C

Operating RH

20%～80%

Storage Temp.

-20～60°C

Storage RH

10%～90%

 LED Back Light Life (Typ.)

50,000 Hours

 Weight（N.W/G.W）

 2.25Kg(1pcs) / 6.55Kg(2pcs in one package)

 Package dimensions

 330*220*280(mm)(2pcs in one package)

 Power Consumption

Standby Power: ≤1W / Operating Power: ≤8W

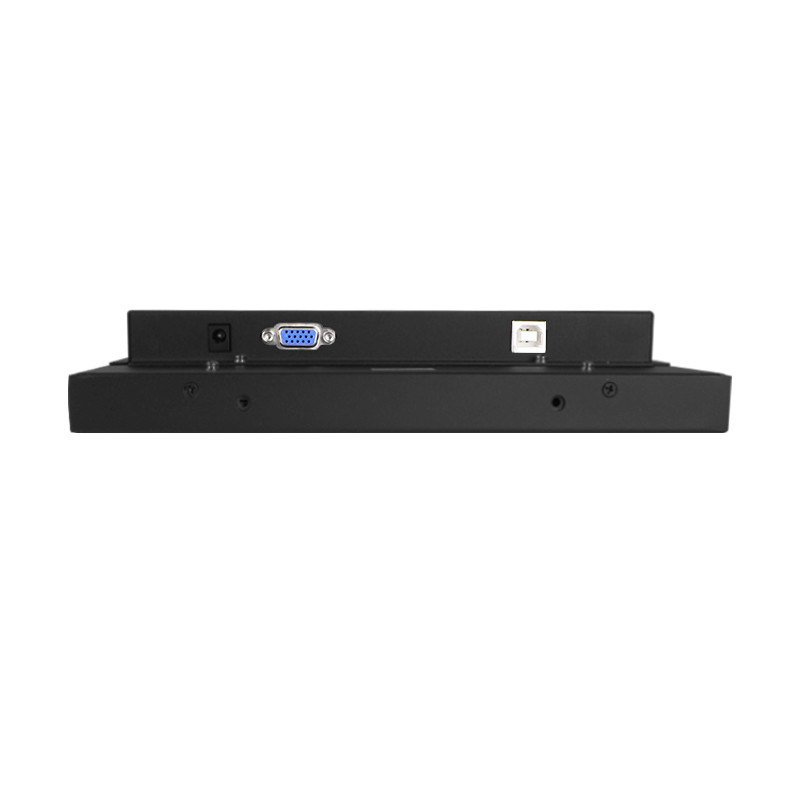

 Mount Interface

 1.VESA 75mm

 2.Mount bracket, horizontal or vertical mount



 OSD Control

Buttons

 AUTO,+,POWER,-,MENU

Function

Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset

 Agency approvals

 CCC, UL, FCC, CE, CB, RoHS

 Regular Warranty

1 year



Touch Screen

Touch Type

10.4" Surface acoustic wave touch screen

Touch input

USB

Response Time

≤8ms

Hardness

7H

Light Transmittance

≥90%

Support System

XP,WIN7,WIN8,WIN10

Active Area

212*159(mm)

Thickness

4.0±0.1(mm)

Touch Test

50,000,000 times

Input Voltage

5V






Applications

KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.





Our Advantages:

  • More than 15 years professional experience in touch product industry

  • 200 staffs, 45 trained R&D engineers and design teams support OEM / ODM projects

  • 5 production lines including 3 touch screen lines, 1 touch monitor line and 1 hardware accessories line

  • High-tech and innovative enterprise

  • More than 175+ design patents

  • Completely and strictly quality control system





FAQ

1. Are you a manufacturer?

Yes, KeeTouch is a professional touch product manufacturer founded in 2006, located in Shenzhen, China.


2. What's your MOQ for the SAW touch monitor?

Our minimum order quantity is 1pc only.


3. What is your warranty period for the SAW touch monitor?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).


4. Can you produce the SAW touch monitor according to the customer's requirements?

Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.


5. What package do you provide for SAW touch monitor?

Our package usually is carton.


6. Do you have SAW touch monitor in stock?

Yes, we have a large quantity of stock for our regular model products.
