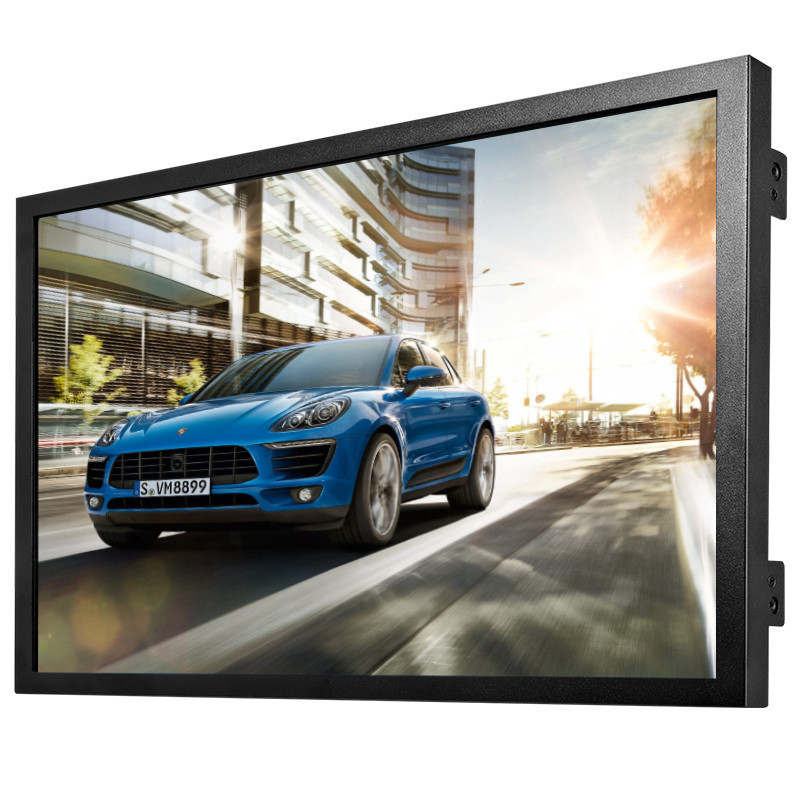

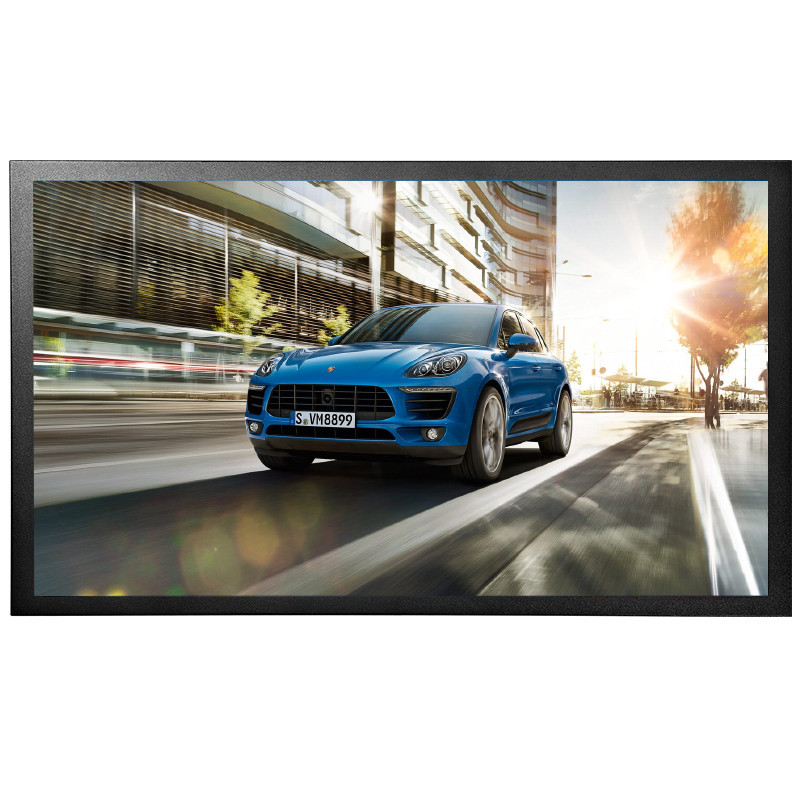

Wide Touch Screen 21.5" , Industrial Touch LCD Monitor For Digital Signage

Wide Touch Screen 21.5
Wide Touch Screen 21.5 Wide Touch Screen 21.5 Wide Touch Screen 21.5 Wide Touch Screen 21.5
Place of OriginShenzhen，China
Brand NameKeeTouch
CertificationCCC, UL, FCC, CE, CB, RoHS
Model NumberKOT-215C-001(KOT-0215US-SA4BCP)
Minimum Order Quantity1 piece
PriceNegotiable
Packaging Detailscarton box
Delivery Time7-15 work days
Payment TermsL/C, T/T, Western Union
Supply Ability1000 Pieces per Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Type16:9 Ratio 21.5" TFT-LCDDisplay Active Area476.64*268.11(mm)
Response Time(Typ.)16msVideo InputVGA/DVI
Support Colors10%～90%Response Time≤8ms(USB) ; ≤12ms(RS232)
Product NameSAW Touch MonitorMTBF≥30,000 Hour
High Light

Wide Touch Screen 21.5"

,

Industrial Touch Screen 21.5"

,

21.5" Industrial Touch LCD Monitor

Leave a Message
Product Description


21.5 Inch SAW Touch Monitor Wide TFT LCD Screen For Digital Signage


SAW Touch Monitor Description:


KeeTouch SAW touch monitor delivers superior image clarity, resolution, light transmission, and reliability because it utilizes clear glass that continues to work even if scratched. The stable, drift-free operation of Surface Acoustic Wave touchscreen technology provides an accurate touch response measured on three axes using a finger, gloved hand, or passive stylus. It's well compatible with XP, WIN7, WIN8, WIN10, Linux, Android. Other sizes can be offered for 7" to 43".





SAW Touch Monitor Specifications


 Complete Machine

 Model No.

 KOT-0215US-SA4BCP (PN: KOT-215C-001)

 Series

 OT

 Display Type

16:9 Ratio 21.5" TFT-LCD

 Active Area

476.64*268.11(mm)

 Monitor Dimensions (W*H*D)

511.7*298*42.6(mm)

 Suggested Resolution

1920*1080@ 60Hz

 Support Colors

16.2M

 Brightness (Typ.)

Pure LCD Panel

250cd/m2

With Touch Monitor

225cd/m2

 Response Time (Typ.)

16ms

 Viewing Angle(Typ.at CR＞10)）

 Horizontal(left/right)

 85°/85°

 Vertical(up/down)

 80°/80°

 Contrast Ratio (Typ.)

1000:1

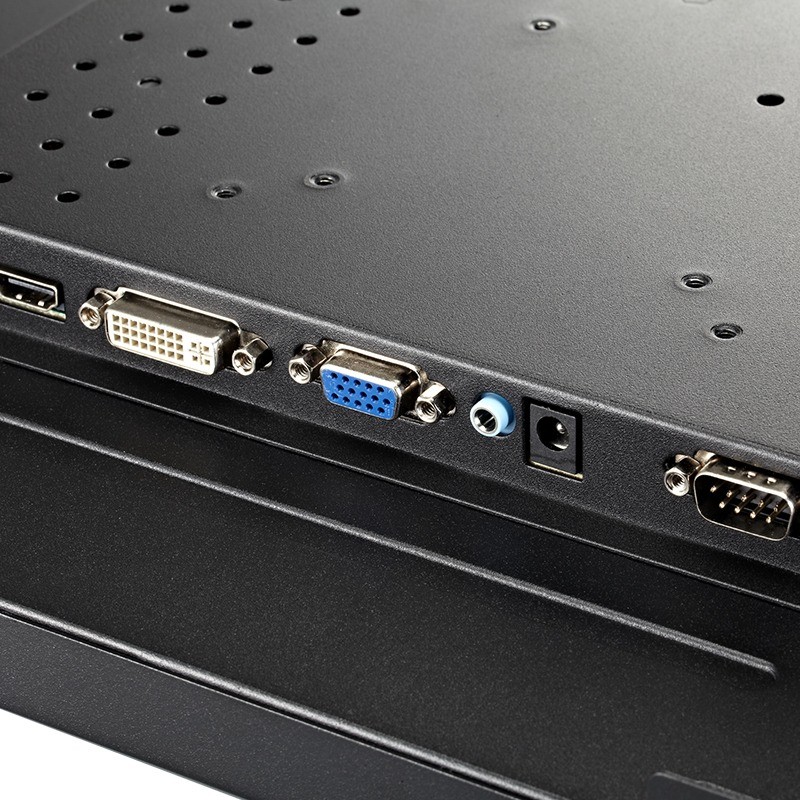

 Video Input

VGA/DVI

 Frequency (H/V)

30～80KHz / 60～75Hz

 Power Supply

Type: External brick

Display voltage: DC 12V±5%

Input (line) voltage: 100-240 VAC, 50-60 Hz

 Environment

Operating Temp.

0～50°C

Operating RH

20%～80%

Storage Temp.

-20～60°C

Storage RH

10%～90%

 MTBF

≥30,000 Hours

 LED Back Light Life (Typ.)

≥30,000 Hours

 Weight（N.W/G.W）

5.7Kg(1pcs)/13.8Kg(2pcs in one package)

 Package dimensions

605*195*400(mm)(2pcs in one package)

 Power Consumption

Standby Power: ≤1.5W / Operating Power: ≤20W

 Mount Interface

 1.VESA 75mm and 100mm

 2.Mount bracket, horizontal or vertical mount

 OSD Control

Buttons

 AUTO,+,POWER,-,MENU

Function

Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset

 Agency approvals

 CCC, UL, FCC, CE, CB, RoHS

 Regular Warranty

1 year


Touch Screen

Touch Type

21.5" Surface acoustic wave touch screen

Touch input

USB/RS232

Response Time

≤8ms(USB) ; ≤12ms(RS232)

Hardness

7H

Light Transmittance

≥90%

Support System

XP,WIN7,WIN8,WIN10,Linux,Android

Active Area

478*270(mm)

Thickness

4±0.2(mm)

Touch Test

≥50,000,000 times

Input Voltage

DC 5V±5%




Our Advantages:



  • Professional experience in touch product industry since 2006;

  • 200 staffs, 45 trained R&D engineers and design teams support OEM / ODM projects;

  • 5 production lines including 3 touch screen lines,1 touch monitor line and 1 hardware accessories line;

  • Branch offices widely spreads all over the world,such as Russia,Brazil,Germany and India etc;

  • Products are certificated by CCC, UL, ETL, FCC, CE, CB ,RoHS and other international certifications.





FAQ



1. Are you a manufacturer?

Yes, KeeTouch is a professional touch product manufacturer since 2006, located in Shenzhen, China.



2. What’s your MOQ for SAW touch monitor?

Our minimum order quantity is 1pc only.



3. What is your warranty period for SAW touch monitor?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).



4. Can you produce the SAW touch monitor according to the customer's requirements?

Sure, with 40+ Professional R & D engineers, OEM and ODM are offered.



5. What is your payment method?

We can accept T/T, Western Union, Paypal, Credit card, and Alipay.(L/C can be negotiable.)



6. Do you have the SAW touch monitor in stock?

Yes, we have a large quantity of stock for our regular model products.
