Anti Scratch SAW Touch Monitor , 10.4 Inch LCD Monitor Anti Vandal

Anti Scratch SAW Touch Monitor , 10.4 Inch LCD Monitor Anti Vandal
Anti Scratch SAW Touch Monitor , 10.4 Inch LCD Monitor Anti Vandal Anti Scratch SAW Touch Monitor , 10.4 Inch LCD Monitor Anti Vandal Anti Scratch SAW Touch Monitor , 10.4 Inch LCD Monitor Anti Vandal Anti Scratch SAW Touch Monitor , 10.4 Inch LCD Monitor Anti Vandal Anti Scratch SAW Touch Monitor , 10.4 Inch LCD Monitor Anti Vandal
Place of OriginShenzhen，China
Brand NameKeeTouch
CertificationCCC, UL, FCC, CE, CB, RoHS
Model NumberKOT-104P-002
Minimum Order Quantity1 piece
PriceNegotiable
Packaging Detailscarton box
Delivery Time7-15 work days
Payment TermsL/C, T/T, Western Union
Supply Ability1000 Pieces per Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Type4:3 Ratio 10.4" TFT-LCDSuggested Resolution800*600 @ 60Hz
Contrast Ratio500:1Video InputVGA
Regular Warranty1 YearSupport SystemXP,WIN7,WIN8,WIN10
Light Transmittanc≥90%Touch Test50,000,000 Times
Product NameSAW Touch Monitor
High Light

LCD SAW Touch Monitor AntiVandal

,

Anti Scratch SAW Touch Monitor

,

10.4 Inch LCD Monitor Anti Vandal

Leave a Message
Product Description

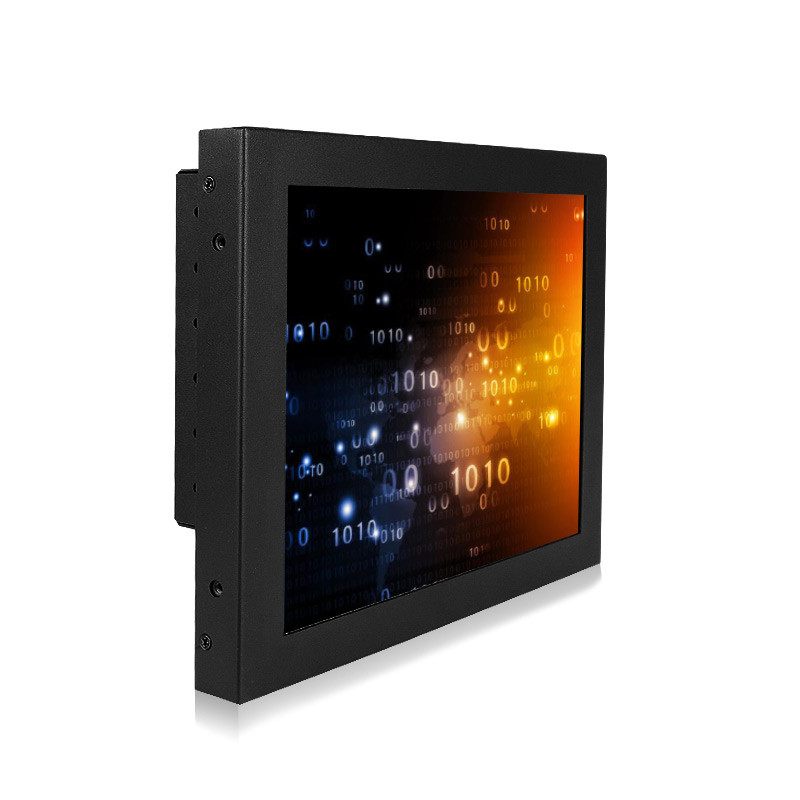

10.4 Inch SAW Touch LCD Monitor Anti Scratch Anti Vandal Screen For Smart Locker


SAW Touch Monitor Description:


KeeTouch SAW touch monitor integrates with surface acoustic wave touch technology to deliver a superior image clarity with high light transmission. It has sensitive and fast touch response supported by anti-scratch and anti-vandal screen, more than 50 million touches in a single point. Multiple mounting options include VESA mount, horizontal vertical brackets mount.





SAW Touch Monitor Specifications



 Complete Machine

 Model No.

 KOT-0104U-SA4BP (P/N:KOT-104P-002)

 Series

 OT

 Display Type

4:3 Ratio 10.4" TFT-LCD

 Active Area

211.2*158.4(mm)

 Monitor Dimensions (W*H*D)

 257*199*45.5(mm)

 Suggested Resolution

800*600 @ 60Hz

 Support Colors

16.7M

 Brightness (Typ.)

Pure LCD Panel

300cd/m2

With Touch Monitor

270cd/m2

 Response Time (Typ.)

20ms

 Viewing Angle(Typ.at CR＞10)）

 Horizontal(left/right)

 75°/75°

 Vertical(up/down)

 50°/60°

 Contrast Ratio (Typ.)

 500:1

 Video Input

 VGA

 Frequency (H/V)

 37.9～46.9KHz / 60～75Hz

 Power Supply

Type: External brick

Display voltage: DC 12V±5%

Input (line) voltage: 100-240 VAC, 50-60 Hz

 Environment

Operating Temp.

0～50°C

Operating RH

20%～80%

Storage Temp.

-20～60°C

Storage RH

10%～90%

 MTBF

50,000 Hours

 LED Back Light Life (Typ.)

50,000 Hours

 Weight（N.W/G.W）

 2.25Kg(1pcs) / 6.55Kg(2pcs in one package)

 Package dimensions

 330*220*280(mm)(2pcs in one package)

 Power Consumption

Standby Power: ≤1W / Operating Power: ≤8W

 Mount Interface

 1.VESA 75mm

 2.Mount bracket, horizontal or vertical mount

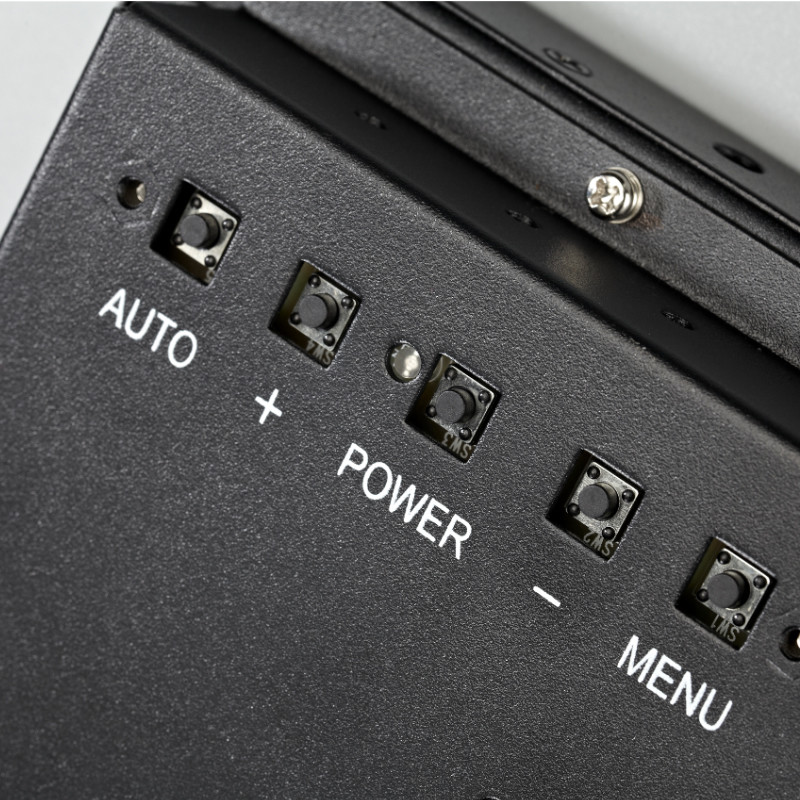

 OSD Control

Buttons

 AUTO,+,POWER,-,MENU

Function

Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset

 Agency approvals

 CCC, ETL, FCC, CE, CB, RoHS

 Regular Warranty

1 year


Touch Screen

Touch Type

10.4" Surface acoustic wave touch screen

Touch input

USB

Response Time

≤8ms

Hardness

7H

Light Transmittance

≥90%

Support System

XP,WIN7,WIN8,WIN10

Active Area

212*159(mm)

Thickness

4.0±0.1(mm)

Touch Test

50,000,000 times

Input Voltage

5V

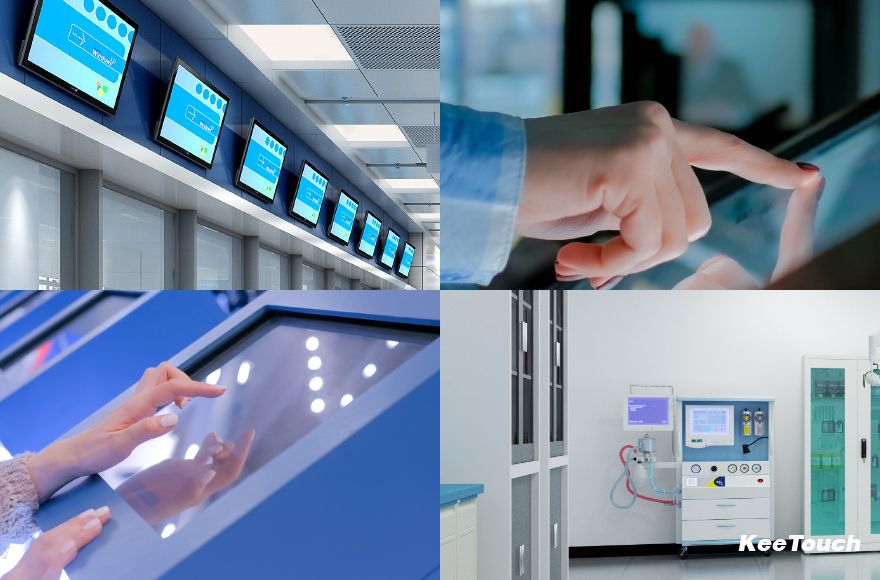

Applications



KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.



43




Our Advantages:



  • Completely and strictly quality control system.
  • Comply with ISO9001 quality system,ISO14001 environment management system and OC080000 limit harmful material management system certifications.
  • Developing a large number of agents and distributors,offering world-wide sales networks and comprehensive after-sale service system.
  • Products are certificated by CCC, UL, ETL, FCC, CE, CB ,RoHS and other international certifications.





FAQ



 1. Are you a manufacturer?

Yes, KeeTouch is a professional touch product manufacturer since 2006, located in Shenzhen, China.



2. What’s your MOQ for the SAW touch monitor?

Our minimum order quantity is 1pc only.



3. What is your warranty period for the SAW touch monitor?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).



4. Do you have the SAW Touch Monitor in stock?

Yes, we have a large quantity of stock for our regular model products.



5. Do you give any discount for the SAW Touch Monitor?

We will do utmost to support you with the competitive price, also good service will be offered.
