18.5 Inch Interactive Touch Screen Monitor Scratch Resistant 250cd/M2 Brightness

18.5 Inch Interactive Touch Screen Monitor Scratch Resistant 250cd/M2 Brightness
18.5 Inch Interactive Touch Screen Monitor Scratch Resistant 250cd/M2 Brightness 18.5 Inch Interactive Touch Screen Monitor Scratch Resistant 250cd/M2 Brightness 18.5 Inch Interactive Touch Screen Monitor Scratch Resistant 250cd/M2 Brightness 18.5 Inch Interactive Touch Screen Monitor Scratch Resistant 250cd/M2 Brightness
Place of OriginShenzhen，China
Brand NameKeeTouch
CertificationCCC, UL, FCC, CE, CB, RoHS
Model NumberKOT-185P-002(KOT-0185US-SA4BP)
Minimum Order Quantity1 piece
PriceNegotiable
Packaging Detailscarton box
Delivery Time7-15 work days
Payment TermsL/C, T/T, Western Union
Supply Ability1000 Pieces per Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Type16:9 Ratio 18.5" TFT-LCDPure LCD Panel Brightness250cd/m²
Display Active Area409.8*230.4(mm)Response Time(Typ.)5ms
Video InputVGA/DVI/HDMISupport Colors10%～90%
MTBF≥30,000 HoursProduct NameSAW Touch Monitor
High Light

18.5Inch Interactive Touch Screen Monitor

,

250cd/M2 Interactive Touch Screen Monitor

Leave a Message
Product Description

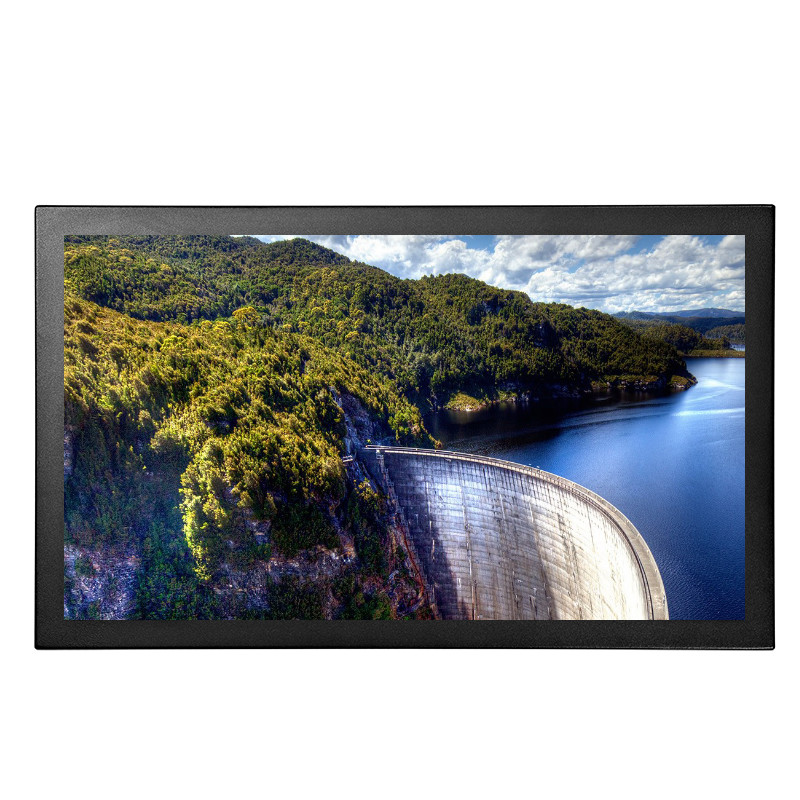

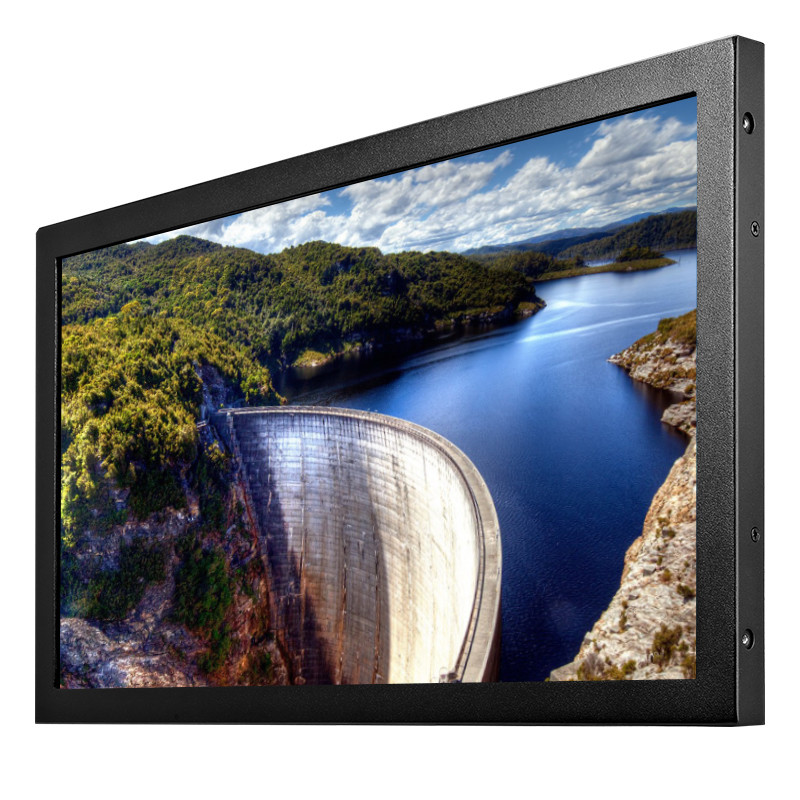

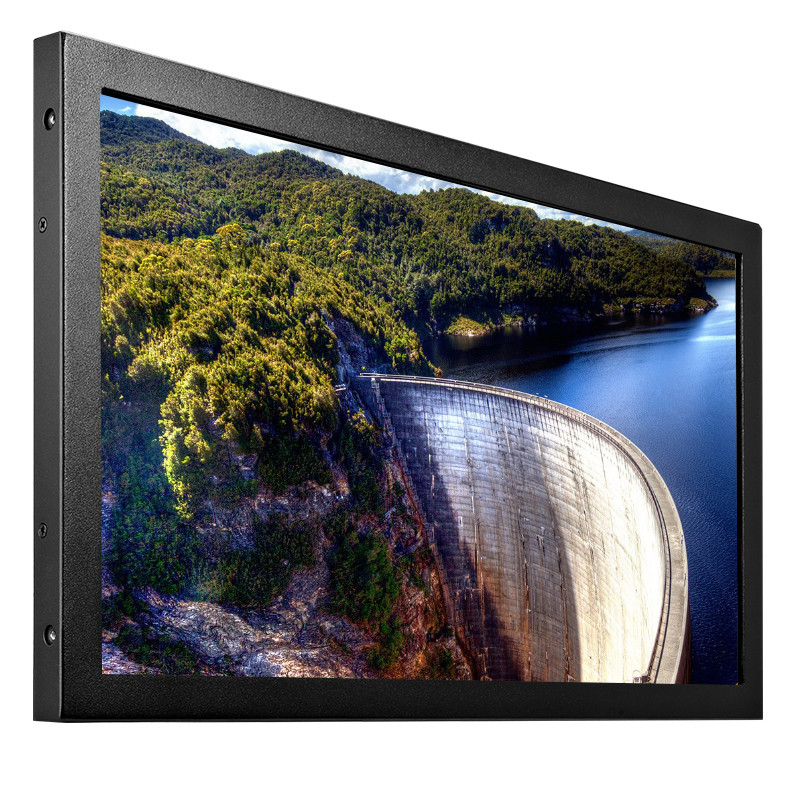

18.5 Inch SAW Touch Monitor Scratch Resistant Interactive Wide Screen


SAW Touch Monitor Description:


KeeTouch SAW touch monitor delivers superior image clarity, resolution, light transmission, and reliability because it utilizes clear glass that continues to work even if scratched. The stable, drift-free operation of Surface Acoustic Wave touchscreen technology provides an accurate touch response measured on three axes using a finger, gloved hand, or passive stylus. It's well compatible with XP, WIN7, WIN8, WIN10, Linux, Android. Other sizes can be offered for 7" to 43".




SAW Touch Monitor Specifications



 Complete Machine

 Model No.

 KOT-0185US-SA4BP (P/N:KOT-185P-002)

 Series

 OT

 Display Type

16:9 Ratio 18.5" TFT-LCD

 Active Area

409.8*230.4(mm)

 Monitor Dimensions (W*H*D)

449.4*270*43(mm)

 Suggested Resolution

1366*768 @ 60Hz

 Support Colors

16.7M

 Brightness (Typ.)

Pure LCD Panel

250cd/m2

With Touch Monitor

225cd/m2

 Response Time (Typ.)

5ms

 Viewing Angle(Typ.at CR＞10)）

 Horizontal(left/right)

 85°/85°

 Vertical(up/down)

 80°/80°

 Contrast Ratio (Typ.)

1000:1

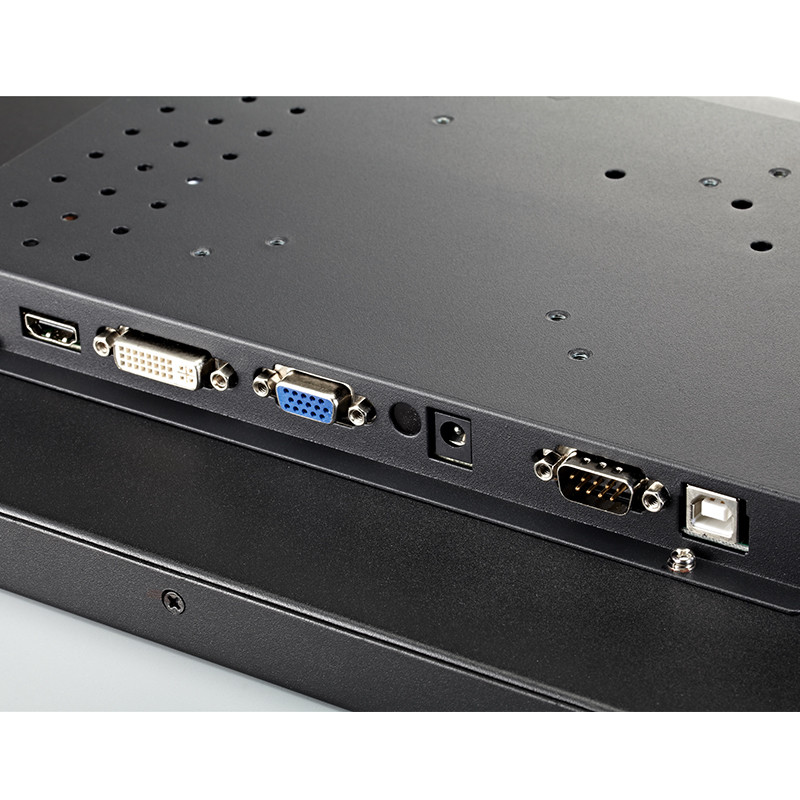

 Video Input

VGA/DVI/HDMI

 Frequency (H/V)

30～48KHz / 50～76Hz

 Power Supply

Type: External brick

Display voltage: DC 12V±5%
Input (line) voltage: 100-240 VAC, 50-60 Hz

 Environment

Operating Temp.

0～50°C

Operating RH

20%～80%

Storage Temp.

-20～60°C

Storage RH

10%～90%

 MTBF

≥30,000 Hours

 LED Back Light Life (Typ.)

≥30,000 Hours

 Weight（N.W/G.W）

4.6Kg(1pcs)/11.5Kg(2pcs in one package)

 Package dimensions

525*190*380(mm)(2pcs in one package)

 Power Consumption

Standby Power: ≤1.5W / Operating Power: ≤25W

 Mount Interface

 1.VESA 75mm and 100mm

 2.Mount bracket, horizontal or vertical mount

 OSD Control

Buttons

 AUTO,+,POWER,-,MENU

Function

Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset

 Agency approvals

 CCC, ETL, FCC, CE, CB, RoHS

 Regular Warranty

1 year


Touch Screen

Touch Type

18.5" Surface acoustic wave touch screen

Touch input

USB/RS232

Response Time

≤8ms(USB) ; ≤12ms(RS232)

Hardness

7H

Light Transmittance

≥90%

Support System

XP,WIN7,WIN8,WIN10,Linux,Android

Active Area

411*231(mm)

Thickness

4±0.1(mm)

Touch Test

≥50,000,000 times

Input Voltage

DC 5V±5%






Applications


Widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.



44





Our Advantages:



  • High-tech and innovative enterprise;

  • More than 175+ design patents;

  • Completely and strictly quality control system;

  • 30,000+ manufacturing capacity per year;

  • Efficient Warehousing and Logistics;






FAQ



1. Are you a manufacturer?

Yes, KeeTouch is a professional touch product manufacturer since 2006, located in Shenzhen, China.



2. What’s your MOQ for SAW touch monitor?

Our minimum order quantity is 1pc only.



3. What is your warranty period for SAW touch monitor?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).



4. Can you produce the product according to the customer's requirements?

Sure, with 40+ Professional R & D engineers, OEM and ODM are offered.



5. Do you give any discount for the SAW touch monitor?

We will do utmost to support you with the competitive price, also good service will be offered.



6. What is your delivery time for SAW touch monitor?

3-5 work days for inventory orders, 7-15 business days for bulk production.
