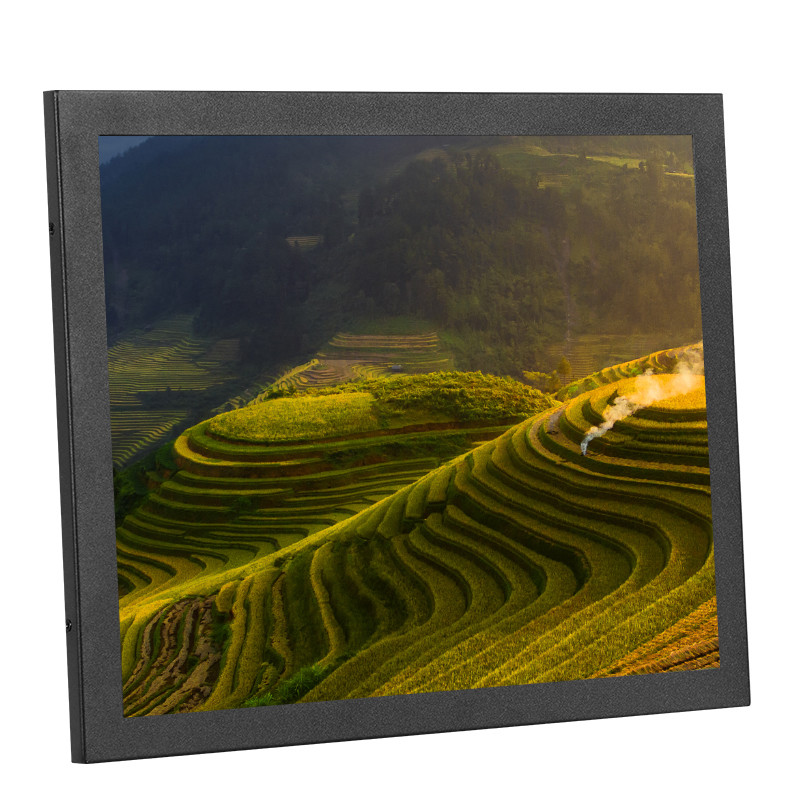

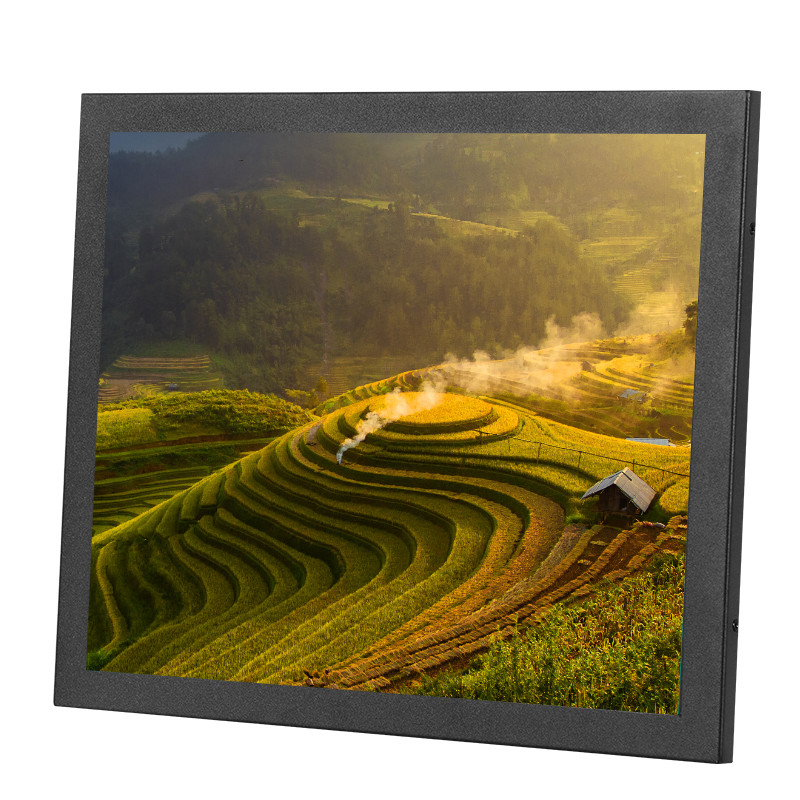

17 Inch LCD Touch Screen Display Monitor VESA Mounted For Self Service Kiosk

17 Inch LCD Touch Screen Display Monitor VESA Mounted For Self Service Kiosk
17 Inch LCD Touch Screen Display Monitor VESA Mounted For Self Service Kiosk 17 Inch LCD Touch Screen Display Monitor VESA Mounted For Self Service Kiosk 17 Inch LCD Touch Screen Display Monitor VESA Mounted For Self Service Kiosk 17 Inch LCD Touch Screen Display Monitor VESA Mounted For Self Service Kiosk
Place of OriginShenzhen，China
Brand NameKeeTouch
CertificationCCC, UL, FCC, CE, CB, RoHS
Model NumberKOT-0170US-SA6BW(KOT-170W-003)
Minimum Order Quantity1 piece
PriceNegotiable
Packaging Detailscarton box
Delivery Time7-15 work days
Payment TermsL/C, T/T, Western Union
Supply Ability1000 Pieces per Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Type5:4Ratio 17＂Active Matrix TFT-LCDSuggested Resolution1280*1024 @ 60Hz
Touch Type17" Surface Acoustic Wave Touch ScreenMonitor Dimensions (W*H*D)391*323*54.5 (mm)
Contrast Ratio1000:1Video InputVGA/DVI
Active Area338*270 (mm)Product NameSAW Touch Monitor
High Light

17Inch LCD Touch Screen Display

,

Kiosk LCD Touch Screen Display

,

VESA kiosk touch screen monitor

Leave a Message
Product Description


17 Inch SAW Touch Monitor VESA Mounted LCD Screen Display For Self Service Kiosk


SAW Touch Monitor Description:



KeeTouch SAW touch monitor features scratch resistant glass, a highly durable build and an IP rating. It's high contrast and high resolution to deliver a superior image clarity. The stable, drift-free operation of Surface Acoustic Wave touchscreen technology provides an accurate touch response measured on three axes using a finger, gloved hand, or passive stylus. It's well compatible with XP, WIN7, WIN8, WIN10, Linux, Android.





SAW Touch Monitor Specifications


 Complete Machine

 Model No.

 KOT-0170US-SA6BW (P/N:KOT-170W-003)

 Series

 OT

 Display Type

5:4Ratio 17＂Active matrix TFT-LCD

 Active Area

338*270 (mm)

 Monitor Dimensions (W*H*D)

391*323*54.5 (mm)

 Suggested Resolution

1280*1024 @ 60Hz

 Support Colors

16.7M

 Brightness (Typ.)

Pure LCD Panel

250cd/m2

With SAW glass sensor

225cd/m2

 Response Time (Typ.)

30ms

 Viewing Angle(Typ.at CR＞10)）

 Horizontal(left/right)

 160°（75°/85°）

 Vertical(up/down)

 150°（70°/80°）

 Contrast Ratio (Typ.)

1000:1

 Video Input

VGA/DVI

 Frequency (H/V)

30～80KHz / 60～75Hz

 Power Supply

Type: External brick

Display voltage: DC 12V±5%
Input (line) voltage: 100-240 VAC, 50-60 Hz

 Environment

Operating Temp.

0～50°C

Operating RH

20%～80%

Storage Temp.

-20～60°C

Storage RH

10%～90%

 MTBF

≥30,000 Hours

 LED Back Light Life (Typ.)

≥30,000 Hours

 Package dimensions

466*185*403(mm)(2pcs in one package)

 Power Consumption

Standby Power: ≤1.5W / Operating Power: ≤15W

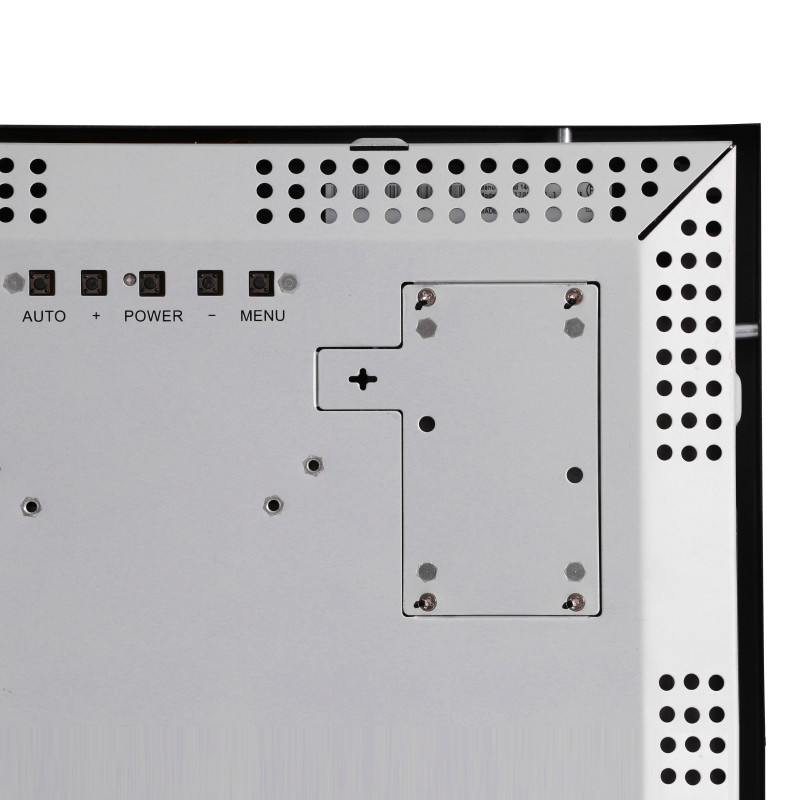

 Mount Interface

 1.VESA 75mm and 100mm

 2.Mount bracket, horizontal or vertical mount

 OSD Control

Buttons

 AUTO,+,POWER,-,MENU

Function

Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset

 Agency approvals

 CCC, ETL, FCC, CE, CB, RoHS

 Regular Warranty

1 year


Touch Screen

Touch Type

17" Surface acoustic wave touch screen

Touch input

USB/RS232

Response Time

≤8ms(USB) / ≤12ms(RS232)

Hardness

7H

Light Transmittance

≥90%

Support System

XP,WIN7,WIN8，WIN10

Touch Test

≥50,000,000 times




Applications


KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.



53





Our Advantages:


  • Professional experience in touch product industry since 2006;

  • 200 staffs, 45 trained R&D engineers and design teams support OEM / ODM projects;

  • 5 production lines including 3 touch screen lines,1 touch monitor line and 1 hardware accessories line;

  • Branch offices widely spreads all over the world,such as Russia,Brazil,Germany and India etc;

  • Developing a large number of agents and distributors,offering world-wide sales networks and comprehensive after-sale service system;





FAQ



1. Are you a manufacturer?

Yes, KeeTouch is a professional touch product manufacturer since 2006, located in Shenzhen, China.



2. What’s your MOQ for the SAW touch monitor?

Our minimum order quantity is 1pc only.



3. What is your warranty period for the SAW touch monitor?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).



4. Can you produce the SAW touch monitor according to the customer's requirements?

Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.



5. Do you have the SAW touch monitor in stock?

Yes, we have a large quantity of stock for our regular model products.



6. Do you give any discount?

We will do utmost to support you with the competitive price, also good service will be offered.
