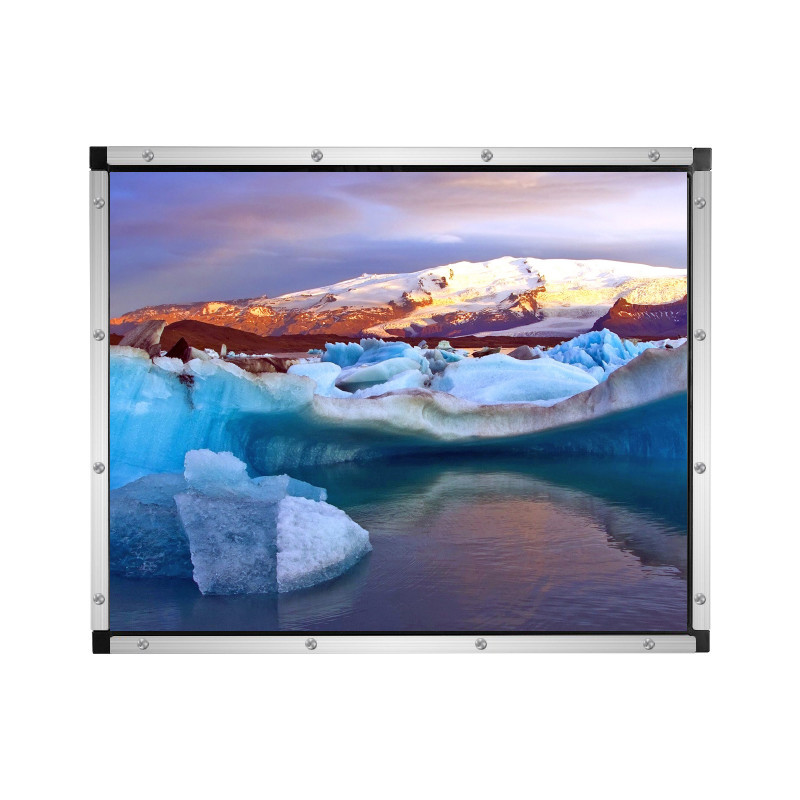

Embedded LCD Interactive Touch Monitor 17 Inch 1280×1024 Resolution

Embedded LCD Interactive Touch Monitor 17 Inch 1280×1024 Resolution
Embedded LCD Interactive Touch Monitor 17 Inch 1280×1024 Resolution Embedded LCD Interactive Touch Monitor 17 Inch 1280×1024 Resolution Embedded LCD Interactive Touch Monitor 17 Inch 1280×1024 Resolution Embedded LCD Interactive Touch Monitor 17 Inch 1280×1024 Resolution Embedded LCD Interactive Touch Monitor 17 Inch 1280×1024 Resolution
Place of OriginShenzhen，China
Brand NameKeeTouch
CertificationCCC, UL, FCC, CE, CB, RoHS
Model NumberKOT-0170US-SA4BCW(KOT-170C-019)
Minimum Order Quantity1 piece
PriceNegotiable
Packaging Detailscarton box
Delivery Time7-15 work days
Payment TermsL/C, T/T, Western Union
Supply Ability1000 Pieces per Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Type5:4 Ratio 17" TFT-LCDDisplay Active Area337.920*270.336(mm)
Response Time(Typ.)5msVideo InputVGA/DVI
Contrast Ratio (Typ.)1000:1Product NameSAW Touch Monitor
Monitor Dimensions (W*H*D)369*307*50(mm)Touch Type17" Surface Acoustic Wave Touch Screen
High Light

1280×1024 Interactive Touch Monitor

,

Interactive Touch Monitor 17Inch

,

Embedded LCD Touch Monitor

Leave a Message
Product Description


17 Inch SAW Touch Monitor Embedded Interactive LCD Touch Screen Display


SAW Touch Monitor Description:



KeeTouch SAW touch monitor integrates with high resolution and high contrast LCD panel to deliver a superior clarity image. The P65 waterproof design on front panel can make sure an excellent touch performance in harsh environment. There are multiple mounting options include VESA mount, horizontal or vertical brackets mount. It's well compatible with operating system like XP, WIN7, WIN8, WIN10. Other sizes can be offered for 7" to 43".






SAW Touch Monitor Specifications


Complete Machine

Model No.

KOT-0170US-SA4BCW(P/N:KOT-170C-019)

Series

OT

Display Type

5:4 Ratio 17" TFT-LCD

Active Area

337.920*270.336(mm)

Monitor Dimensions (W*H*D)

369*307*50(mm)

Suggested Resolution

1280*1024 @ 60Hz

Support Colors

16.7M



Brightness (Typ.)

Pure LCD Panel

250cd/m²

With Touch Monitor

225cd/m²

Response Time (Typ.)

5ms



Viewing Angle(Typ.at CR＞10)）

Horizontal(left/right)

85°/85°

Vertical(up/down)

80°/80°

Contrast Ratio (Typ.)

1000:1

Video Input

VGA/DVI

Frequency (H/V)

37.9～80KHz / 60～75Hz



Power Supply

Type: External brick

Display voltage: DC 12V±5%

Input (line) voltage: 100-240 VAC, 50-60 Hz





Environment

Operating Temp.

0～50°C

Operating RH

20%～80%

Storage Temp.

-20～60°C

Storage RH

10%～90%

MTBF

30,000 Hours

LED Back Light Life (Typ.)

30,000 Hours

Weight（N.W/G.W）

5Kg(1pcs)/12.8Kg(2pcs in one package)

Package dimensions

445*200*390(mm)(2pcs in one package)

Power Consumption

Standby Power: ?1.5W / Operating Power: ?15W



Mount Interface

1. VESA 75mm and 100mm

2. Mount bracket, horizontal or vertical mount



OSD Control

Buttons

AUTO,+,POWER,-,MENU

Function

Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset

Agency approvals

CCC, ETL, FCC, CE, CB, RoHS

Regular Warranty

1 year


Touch Screen

Touch Type

17" Surface acoustic wave touch screen

Touch input

USB/RS232

Response Time

8ms(USB) / ?12ms(RS232)

Hardness

7H

Light Transmittance

90%

Support System

XP,WIN7,WIN8，WIN10

Active Area

338*270(mm)

Thickness

4.0±0.2(mm)

Touch Test

50,000,000 times

Input Voltage

DC 5V±5%




Applications



Widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.



67




Our Advantages:


  • Professional experience in touch product industry;

  • 200 staffs, 45 trained R&D engineers and design teams support OEM / ODM projects;

  • 5 production lines including 3 touch screen lines,1 touch monitor line and 1 hardware accessories line;

  • Branch offices widely spreads all over the world,such as Russia,Brazil,Germany and India etc;

  • Developing a large number of agents and distributors,offering world-wide sales networks and comprehensive after-sale service system;





FAQ


1. Are you a manufacturer?

Yes, KeeTouch is a professional touch product manufacturer since 2006, located in Shenzhen, China.



2. What’s your MOQ for SAW touch monitor?

Our minimum order quantity is 1pc only.



3. What is your warranty period for SAW touch monitor?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).



4. Can you produce the SAW touch monitor according to the customer's requirements?

Sure, with 40+ Professional R & D engineers, OEM and ODM are offered.



5. What is your payment method?

We can accept T/T, Western Union, Paypal, Credit card, and Alipay.(L/C can be negotiable.)



6. What is your delivery time for SAW touch monitor?

3-5 work days for inventory orders, 7-15 business days for bulk production.
