800×600 Resolution SAW Touch Monitor 10.4 Inch Open Frame With Multiple Interfaces

800×600 Resolution SAW Touch Monitor 10.4 Inch Open Frame With Multiple Interfaces
800×600 Resolution SAW Touch Monitor 10.4 Inch Open Frame With Multiple Interfaces 800×600 Resolution SAW Touch Monitor 10.4 Inch Open Frame With Multiple Interfaces 800×600 Resolution SAW Touch Monitor 10.4 Inch Open Frame With Multiple Interfaces 800×600 Resolution SAW Touch Monitor 10.4 Inch Open Frame With Multiple Interfaces 800×600 Resolution SAW Touch Monitor 10.4 Inch Open Frame With Multiple Interfaces 800×600 Resolution SAW Touch Monitor 10.4 Inch Open Frame With Multiple Interfaces
Place of OriginShenzhen，China
Brand NameKeeTouch
CertificationCCC, UL, FCC, CE, CB, RoHS
Model NumberKOT-104P-005
Minimum Order Quantity1 piece
PriceNegotiable
Packaging Detailscarton box
Delivery Time7-15 work days
Payment TermsL/C, T/T, Western Union
Supply Ability1000 Pieces per Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Type4:3Ratio 10.4＂Active Matrix TFT-LCDSuggested Resolution800×600 (SVGA)
Contrast Ratio500:1Video InputVGA、DVI、HDMI
Regular Warranty1 YearSupport SystemXP,WIN7,WIN8,WIN10
Response TimeUSB: 8.4msProduct NameSAW Touch Monitor
High Light

SAW Touch Monitor 10.4 Inch

,

SAW Touch Monitor 800×600

,

10.4 inch open frame touch monitor

Leave a Message
Product Description

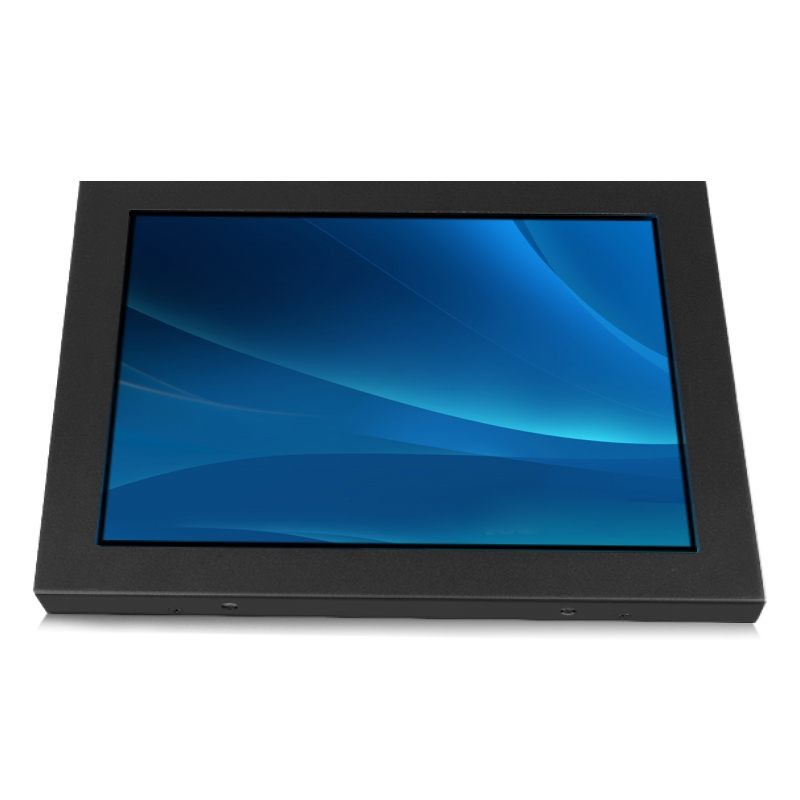

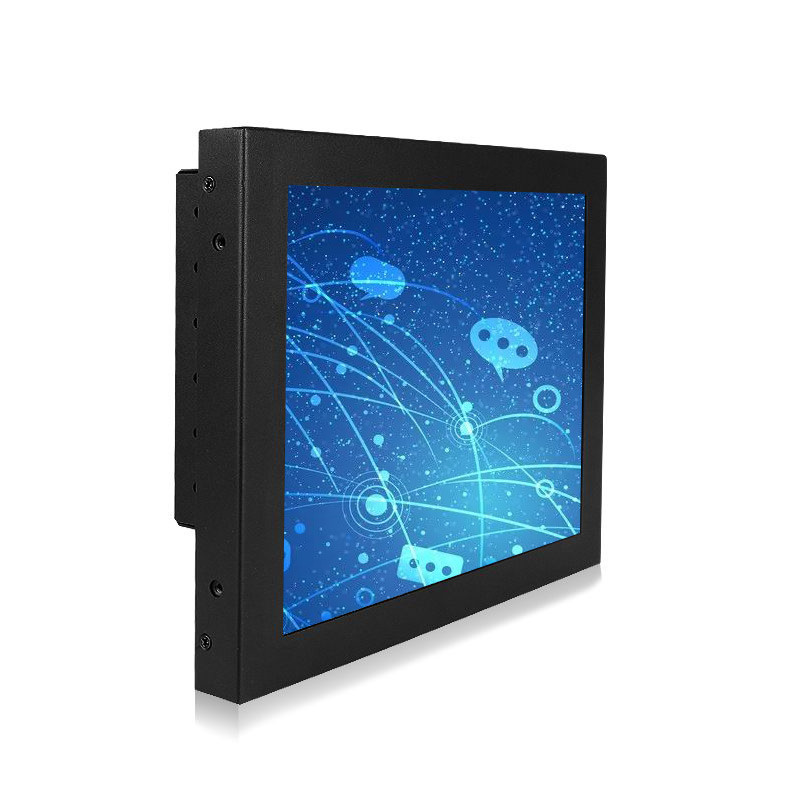

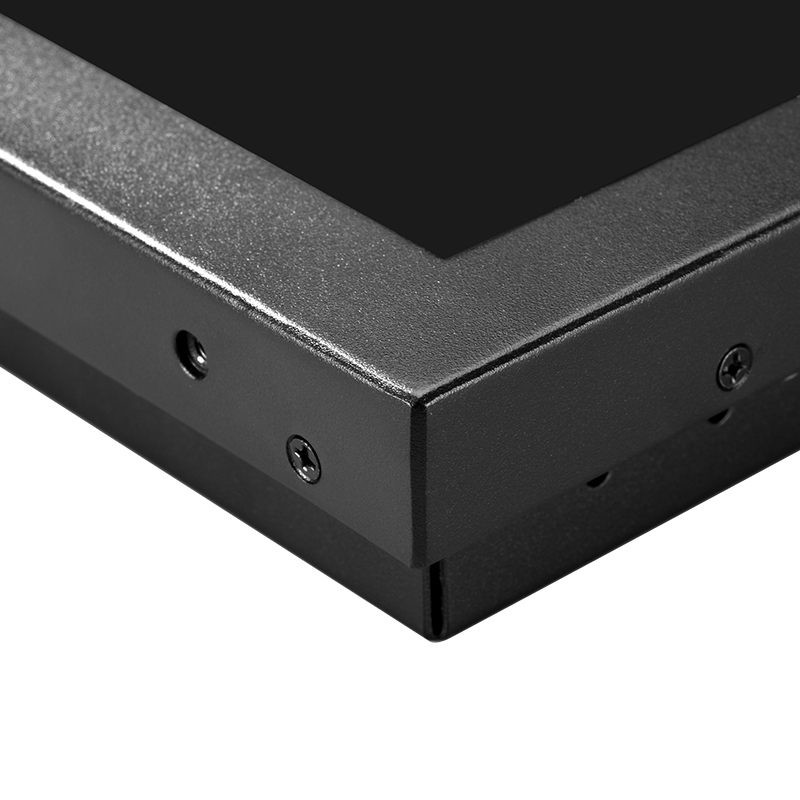

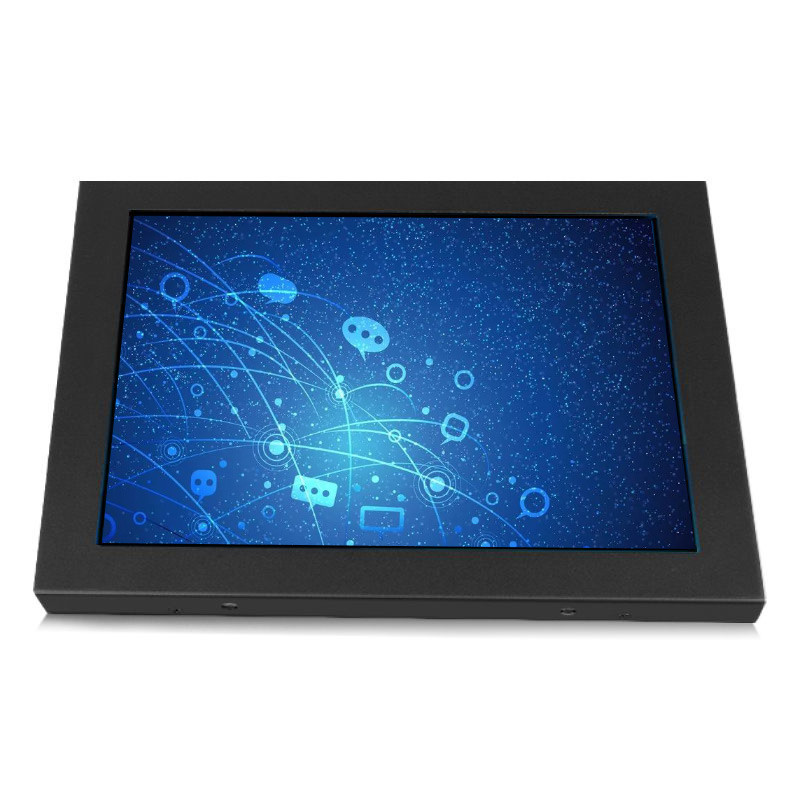

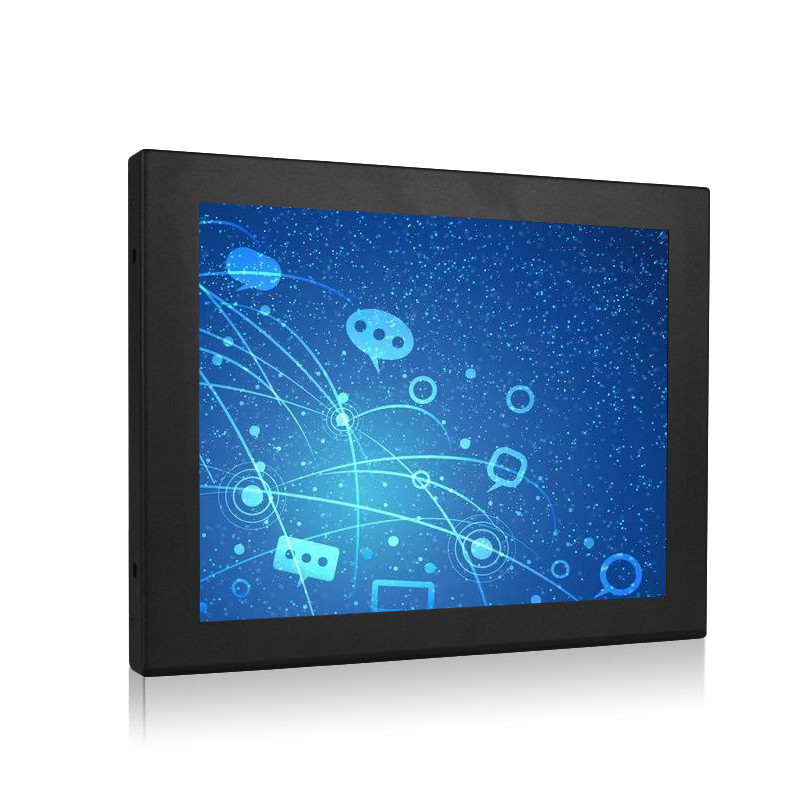

10.4 Inch SAW Touch Monitor 800×600 Resolution Open Frame Screen


SAW Touch Monitor Description:


KeeTouch SAW touch monitor applied with scratch resistance pure touch glass to deliver a fast and accurate touch experience. It has a long life working span with more than 50 million touches in a single point. Multiple interfaces include VGA, DVI, HDMI. Custom size for OEM available.





SAW Touch Monitor Specifications



 Complete Machine

 Model No.

KOT-0104U-SA4BP(P/N:KOT-104P-005)

 Series

OT

 Display Type

4:3 Ratio 10.4＂Active matrix TFT-LCD

 Active Area

211.2×158.4(mm)

 Monitor Dimensions (W*H*D)

257*199*45.5(mm)

 Suggested Resolution

800×600 (SVGA)

 Support Colors

16.2M

 Brightness (Typ.)

Pure LCD Panel

300cd/m²

With Touch Monitor

270cd/m²

 Response Time (Typ.)

30ms

 Viewing Angle(Typ.at CR＞10)）

Horizontal(left/right):75°/75°

Vertical(up/down): 50°/60°

 Contrast Ratio (Typ.)

500:1

 Video Input

VGADVIHDMI

 Frequency (H/V)

30～80KHz / 60～75Hz

 Power Supply

Type: External brick

Display voltage: DC 12V±5%
Input (line) voltage: 100-240 VAC, 50-60 Hz

 Environment

Operating Temp.

0～50°C

Operating RH

20%～80%

Storage Temp.

-20～60°C

Storage RH

10%～90%

 MTBF

≥50,000 Hours

 LED Back Light Life (Typ.)

≥50,000 Hours

 Weight（N.W/G.W）

2.25Kg（1pcs）/6.55Kg（2pcs in one package）(Approx.)

 Package dimensions

330*220*280(mm)(2pcs in one package)

 Power Consumption

Standby Power: ≤2W / Operating Power: ≤7W

 Mount Interface

Mount bracket, horizontal or vertical mount

 OSD Control

Buttons

 AUTO,+,POWER,-,MENU

Function

Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset

Touch Type

 10.4”SAW 4mm thickness of touch screen

Touch Input

 USB

Response Time

 8.4ms

 Agency approvals

 CCC, UL, FCC, CE, CB, RoHS

 Regular Warranty

1 year





Applications



KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.


91




Our Advantages:


  • 5 production lines including 3 touch screen lines,1 touch monitor line and 1 hardware accessories line.

  • Comply with ISO9001 quality system,ISO14001 environment management system and OC080000 limit harmful material management system certifications.

  • Branch offices widely spreads all over the world,such as Russia,Brazil,Germany and India etc.

  • Developing a large number of agents and distributors,offering world-wide sales networks and comprehensive after-sale service system.





FAQ



1. Are you a manufacturer?

Yes, KeeTouch is a professional touch product manufacturer since 2006, located in Shenzhen, China.



2. What’s your MOQ for the SAW touch monitor?

Our minimum order quantity is 1pc only.



3. What is your warranty period for the SAW touch monitor?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).



4. Can you produce the SAW touch monitor according to the customer's requirements?

Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.



5. Do you give any discount?
We will do utmost to support you with the competitive price, also good service will be offered.



6. What is your delivery time for the SAW touch monitor?

3-5 work days for inventory orders, 7-15 business days for bulk production.
