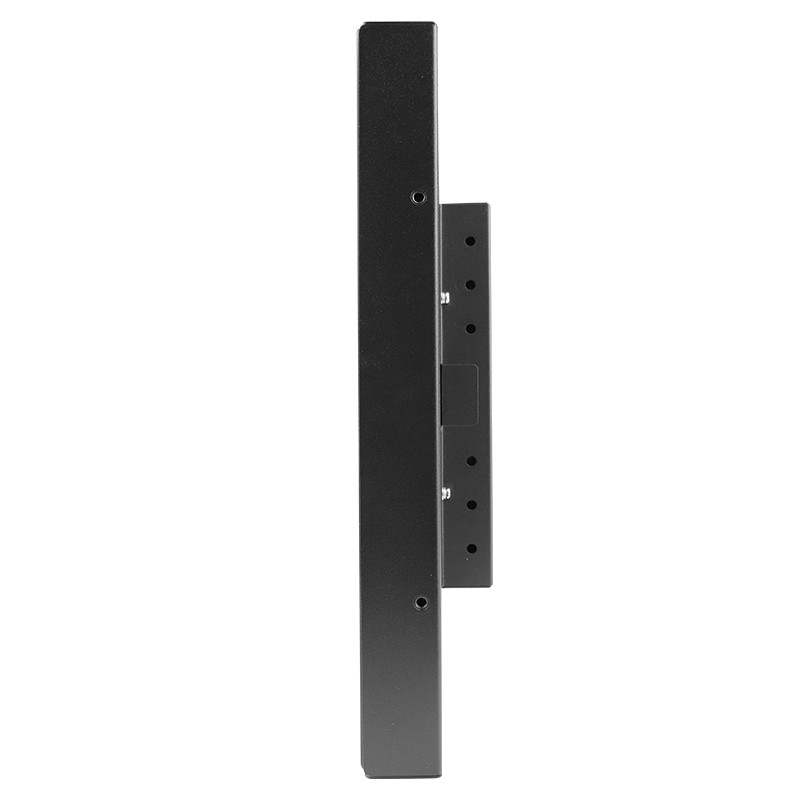

Anti Vandal SAW Touch Monitor , 15.6" Touch Screen Monitor For Gaming Terminal

Anti Vandal SAW Touch Monitor , 15.6
Anti Vandal SAW Touch Monitor , 15.6 Anti Vandal SAW Touch Monitor , 15.6
Place of OriginShenzhen，China
Brand NameKeeTouch
CertificationCCC, UL, FCC, CE, CB, RoHS
Model NumberKOT-156P-004
Minimum Order Quantity1 piece
PriceNegotiable
Packaging Detailscarton box
Delivery Time7-15 work days
Payment TermsL/C, T/T, Western Union
Supply Ability1000 Pieces per Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Type16:9 Ratio 15.6" TFT-LCDSuggested Resolution1920*1080 @ 60Hz
Support Color16.7MContrast Ratio650:1
Video InputVGA、DVIRegular Warranty1 Year
Support SystemXP,WIN7,WIN8,WIN10,Linux,AndroidProduct NameSAW Touch Monitor
High Light

Anti Vandal SAW Touch Monitor

,

15.6" SAW Touch Monitor

,

Gaming 15.6" Touch Screen Monitor

Leave a Message
Product Description


15.6 Inch SAW Touch Monitor Anti Vandal Wide Screen For Gaming Terminal


SAW Touch Monitor Main Features:


KeeTouch SAW Touch monitor integrates with pure glass touch screen to deliver superior image clarity and high light transmission. It's fast and sensitive touch response. The scratch resistance SAW touch panel supports more than 50 million touches in a single point. Multiple mounting options includes horizontal bracket-mount, vertical bracket.  Other sizes can be offered for 7" to 55".






SAW Touch Monitor Specifications


 Complete Machine

 Model No.

 KOT-0156U-SA4BP (P/N:KOT-156P-004)

 Series

 OT

 Display Type

16:9 Ratio 15.6" TFT-LCD

 Active Area

344.23*193.54(mm)

 Monitor Dimensions (W*H*D)

388.5*237.5*43(mm)

 Suggested Resolution

1920*1080 @ 60Hz

 Support Colors

16.7M

 Brightness (Typ.)

Pure LCD Panel

400cd/m2

With Touch Monitor

340cd/m2

 Response Time (Typ.)

5ms

 Viewing Angle(Typ.at CR＞10)）

 Horizontal(left/right)

 70°/70°

 Vertical(up/down)

 60°/60°

 Contrast Ratio (Typ.)

650:1

 Video Input

VGA/HDMI

 Frequency (H/V)

30～80KHz / 50～76Hz

 Power Supply

Type: External brick

Display voltage: DC 12V±5%

Input (line) voltage: 100-240 VAC, 50-60 Hz

 Environment

Operating Temp.

0～50°C

Operating RH

20%～80%

Storage Temp.

-20～60°C

Storage RH

10%～90%

 MTBF

≥15,000 Hours

 LED Back Light Life (Typ.)

≥15,000 Hours

 Weight（N.W/G.W）

3Kg(1pcs)/8.25Kg(2pcs in one package)

 Package dimensions

468*150*323(mm)(2pcs in one package)

 Power Consumption

Standby Power: ≤1.5W / Operating Power: ≤15W

 Mount Interface

 1.VESA 75mm and 100mm

 2.Mount bracket, horizontal or vertical mount

 OSD Control

Buttons

 AUTO,+,POWER,-,MENU

Function

Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset

 Agency approvals

 CCC, ETL, FCC, CE, CB, RoHS

 Regular Warranty

1 year






Applications



KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.



93




Our Advantages:


  • More than 15 years professional experience in touch product industry.

  • 200 staffs, 45 trained R&D engineers and design teams support OEM / ODM projects.

  • 5 production lines including 3 touch screen lines,1 touch monitor line and 1 hardware accessories line.

  • Comply with ISO9001 quality system,ISO14001 environment management system and OC080000 limit harmful material management system certifications;





FAQ



1. Are you a manufacturer?

Yes, KeeTouch is a professional touch product manufacturer since 2006, located in Shenzhen, China.



2. What’s your MOQ for the SAW touch monitor?

Our minimum order quantity is 1pc only.



3. What is your warranty period for the SAW touch monitor?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).



4. Can you produce the SAW touch monitor according to the customer's requirements?

Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.



5. What package do you provide for the SAW touch monitor?
Our package usually is carton.



6. What is your delivery time?

3-5 work days for inventory orders, 7-15 business days for bulk production.
