21.5 Inch Dust Proof SAW Touch Screen With USB RS232 Controller
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Brightness | 250cd/m² | Weight（N.W/G.W） | 5.7Kg(1pcs)/13.8Kg(2pcs In One Package) |
|---|---|---|---|
| Response Time | 16ms | Touch Technology | SAW |
| Viewing Angle | 85°/85/80°/80° | Power Consumption | 20W |
| Screen Size | 21.5 Inch | Interface | VGA/DVI |
| High Light | 21.5inch surface acoustic wave touch screen,USB SAWtouch screen,dust proof saw touch monitor | ||
Product Description

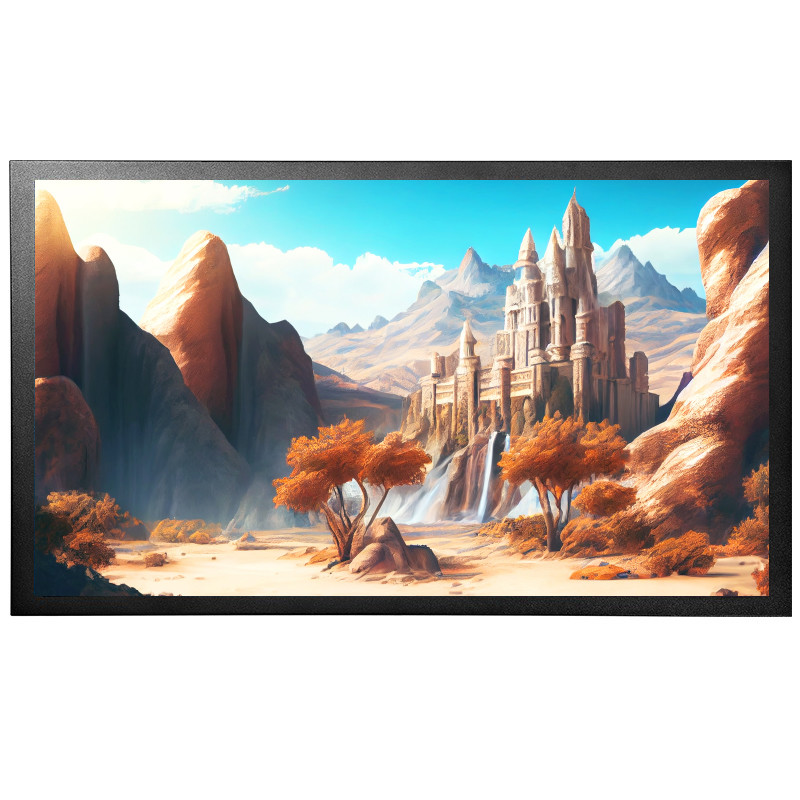

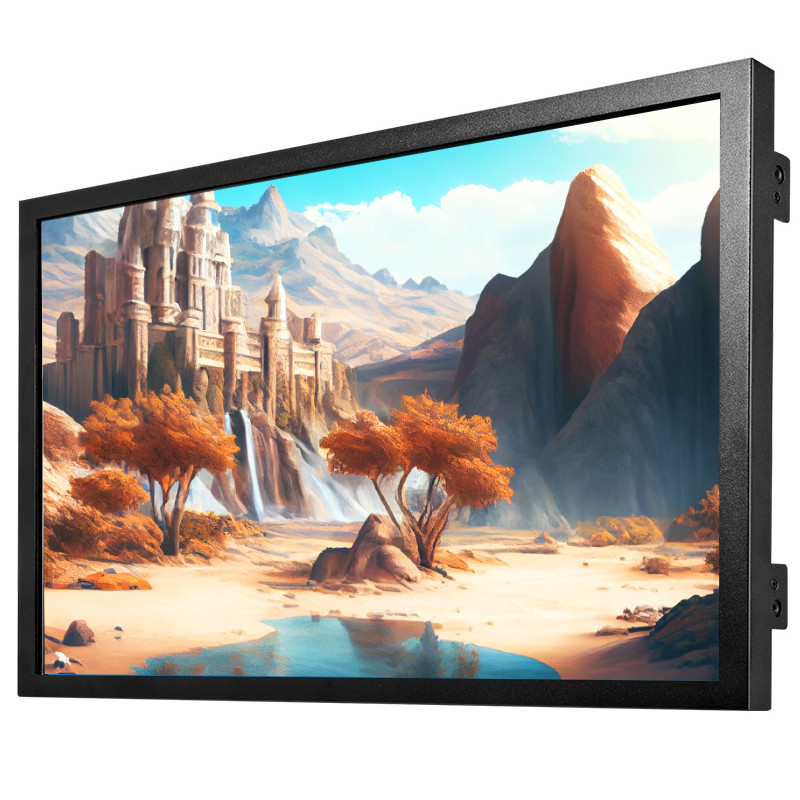

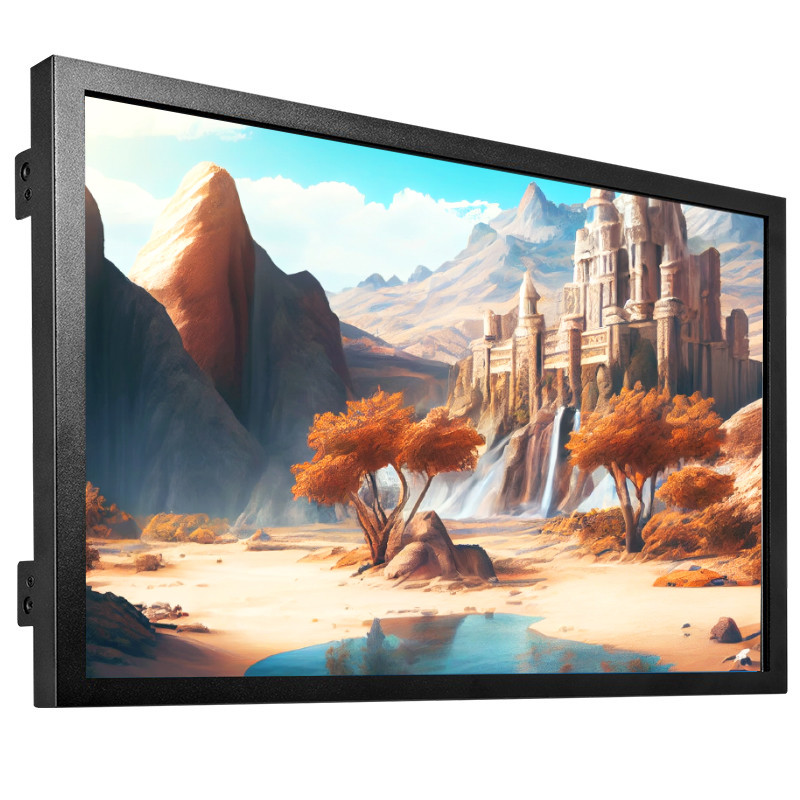

21.5 Inch Dust Proof SAW Touch Screen With USB RS232 Controller
The SAW Touch Monitor is a 21.5 inch HD touch screen display with a wide viewing angle of 85°/85/80°/80° and a contrast ratio of 1000:1. With a resolution of 1920*1080 @ 60Hz, the SAW Touch Monitor offers an enhanced visual experience with its high quality touch screen display. The touch screen is highly responsive and provides clear and accurate images. The wide viewing angle ensures that the images remain clear even when viewed from different angles. The SAW Touch Monitor is the perfect solution for all your HD touch screen display needs.
Specification:
Complete Machine | ||
Model No. | KOT-0215US-SA4BCP (PN: KOT-215C-001) | |
Series | OT | |
Display Type | 16:9 Ratio 21.5" TFT-LCD | |
Active Area | 476.64*268.11(mm) | |
Monitor Dimensions (W*H*D) | 511.7*298*42.6(mm) | |
Suggested Resolution | 1920*1080@ 60Hz | |
Support Colors | 16.2M | |
Brightness (Typ.) | Pure LCD Panel | 250cd/m2 |
With Touch Monitor | 225cd/m2 | |
Response Time (Typ.) | 16ms | |
Viewing Angle(Typ.at CR＞10)） | 85°/85° | |
80°/80° | ||
Contrast Ratio (Typ.) | 1000:1 | |

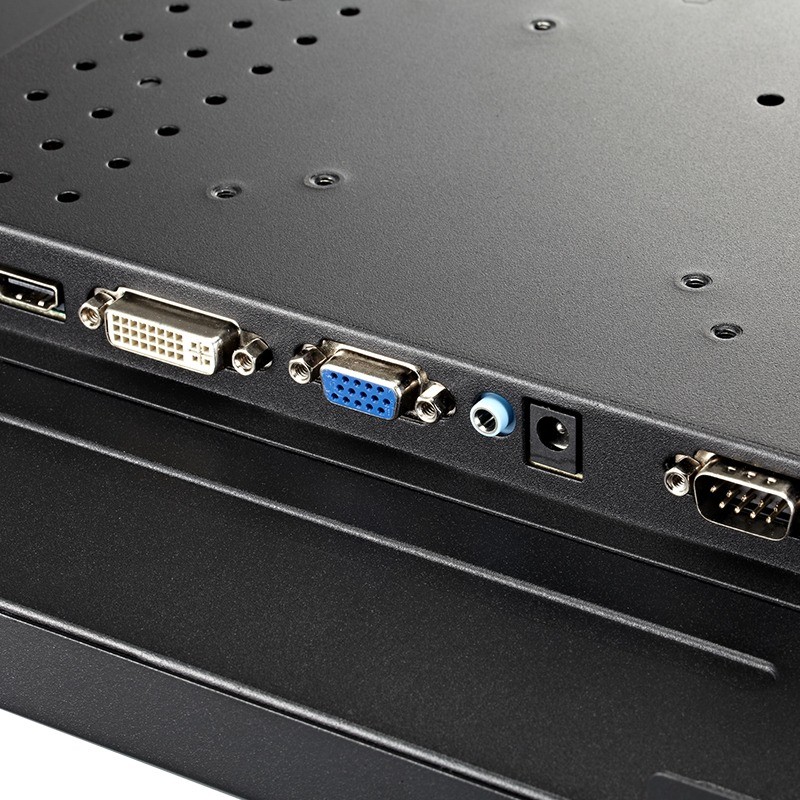

Video Input | VGA/DVI | |
Frequency (H/V) | 30～80KHz / 60～75Hz | |
Power Supply | Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz | |
Environment | Operating Temp. | 0～50°C |
Operating RH | 20%～80% | |
Storage Temp. | -20～60°C | |
Storage RH | 10%～90% | |
MTBF | ≥30,000 Hours | |
LED Back Light Life (Typ.) | ≥30,000 Hours | |
Weight（N.W/G.W） | 5.7Kg(1pcs)/13.8Kg(2pcs in one package) | |
Package dimensions | 605*195*400(mm)(2pcs in one package) | |
Power Consumption | Standby Power: ≤1.5W / Operating Power: ≤20W | |
Mount Interface | 1.VESA 75mm and 100mm 2.Mount bracket, horizontal or vertical mount | |
OSD Control | Buttons | AUTO,+,POWER,-,MENU |
Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
CCC, UL, FCC, CE, CB, RoHS | ||
Regular Warranty | 1 year | |
Touch Screen | |
Touch Type | 21.5" Surface acoustic wave touch screen |
Touch input | USB/RS232 |
Response Time | ≤8ms(USB) ; ≤12ms(RS232) |
Hardness | 7H |
Light Transmittance | ≥90% |
Support System | XP,WIN7,WIN8,WIN10,Linux,Android |
Active Area | 478*270(mm) |
Thickness | 4±0.2(mm) |
Touch Test | ≥50,000,000 times |
Input Voltage | DC 5V±5% |
Applications:
SAW Touch Monitors find extensive applications across various industries, including kiosks, retail, finance, gaming, self-service, transit, conferences, education, healthcare, public services, e-commerce, hotels, restaurants, travel services, payment systems, museums, exhibitions, smart homes, subways, control and operation systems, railway stations, airports, and entertainment, among others.
Support and Services:
SAW Touch Monitor provides technical support and services for our customers. Our experienced technicians are available to answer any questions or concerns you may have about our products and services. We offer a range of support options, including phone, email, and online chat. We also provide a comprehensive library of how-to videos and tutorials to help you get the most out of your SAW Touch Monitor.
We guarantee that all our products are rigorously tested and inspected before being shipped to you, ensuring that you receive the highest quality product. We also offer a comprehensive warranty and repair service, so if you experience any issues with your product, we are here to help. We are committed to providing you with the best customer service and support possible.
FAQ:
Q: What is the Brand Name of SAW Touch Monitor?
A: The Brand Name of SAW Touch Monitor is KeeTouch.
Q: What is the Model Number of SAW Touch Monitor?
A: The Model Number of SAW Touch Monitor is KOT-215C-001.
Q: Where is the Place of Origin of SAW Touch Monitor?
A: The Place of Origin of SAW Touch Monitor is Shenzhen, China.
Q: What Certifications does SAW Touch Monitor have?
A: SAW Touch Monitor has CCC, UL, FCC, CE, CB, and RoHS Certifications.
Q: What is the Minimum Order Quantity for SAW Touch Monitor?
A: The Minimum Order Quantity for SAW Touch Monitor is 1pcs.
