21.5 Inch SAW Touch Monitor Open Frame With VGA/DVI Interfaces For Retail Stores

21.5 Inch SAW Touch Monitor Open Frame With VGA/DVI Interfaces For Retail Stores
21.5 Inch SAW Touch Monitor Open Frame With VGA/DVI Interfaces For Retail Stores 21.5 Inch SAW Touch Monitor Open Frame With VGA/DVI Interfaces For Retail Stores 21.5 Inch SAW Touch Monitor Open Frame With VGA/DVI Interfaces For Retail Stores 21.5 Inch SAW Touch Monitor Open Frame With VGA/DVI Interfaces For Retail Stores 21.5 Inch SAW Touch Monitor Open Frame With VGA/DVI Interfaces For Retail Stores
Place of OriginShenzhen, China
Brand NameKeeTouch
CertificationCCC, UL, FCC, CE, CB, RoHS
Model NumberKOT-215C-001
Minimum Order Quantity1pcs
PriceNegotiable
Packaging Detailstwo pieces per carton
Delivery Time7-15 work days
Payment TermsT/T, Western Union, L/C
Supply Ability10000 Piece/Pieces per Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Viewing Angle85°/85/80°/80°Touch TechnologySAW
InterfaceVGA/DVIBrightness250cd/㎡
Product NameSAW Touch MonitorResponse Time16ms
Screen Size21.5 InchResolution1920*1080 @ 60Hz
High Light

VGA/DVI saw touch monitor

,

open frame saw touch monitor

,

21.5 inch surface acoustic wave touch screen

Leave a Message
Product Description

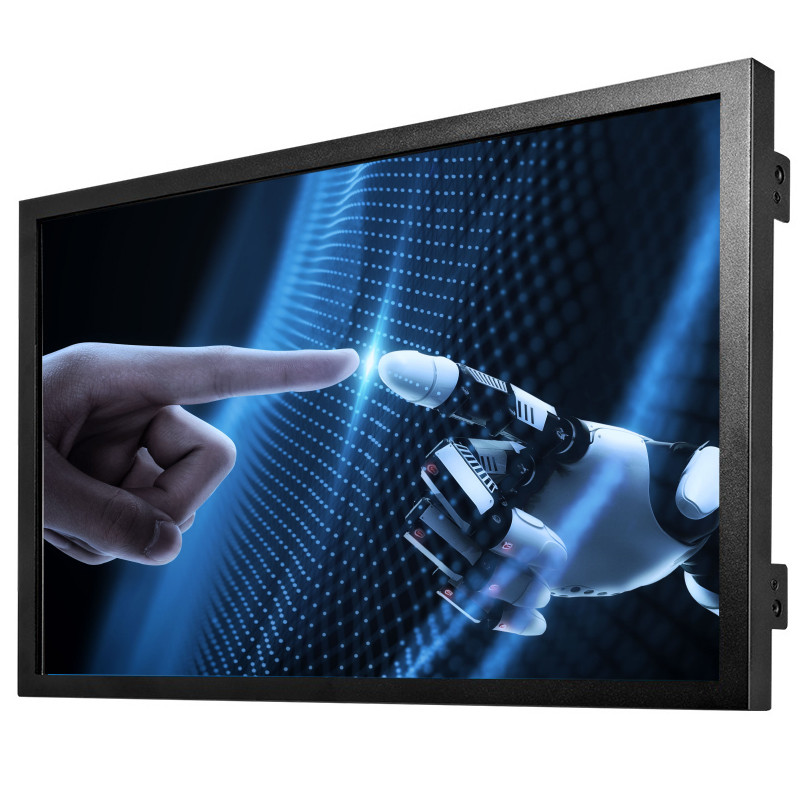

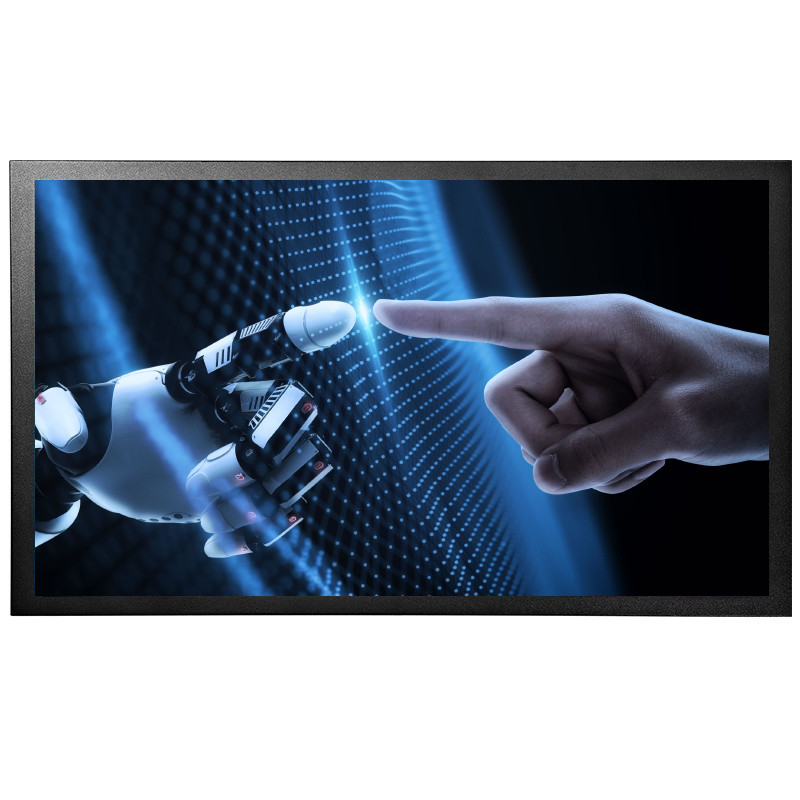

21.5 Inch SAW Touch Monitor Open Frame With VGA/DVI Interfaces For Retail Stores

This 21.5 Inch Monitor is of industrial-grade quality, featuring a high resolution and a high contrast ratio, ensuring superior image clarity and a remarkable visual experience for users. Additionally, it boasts a long working life, thanks to its scratch-resistant and waterproof functions. Moreover, it provides VGA/DVI interfaces for use and USB/RS232 ports for touch. Furthermore, it offers multiple mounting options, including VESA mount, horizontal or vertical bracket mount.





Specification

 Complete Machine

 Model No.

 KOT-0215US-SA4BCP (PN:   KOT-215C-001)

 Series

 OT

 Display Type

16:9 Ratio   21.5" TFT-LCD

 Active Area

476.64*268.11(mm)

 Monitor Dimensions (W*H*D)

511.7*298*42.6(mm)

 Suggested Resolution

1920*1080@   60Hz

 Support Colors

16.2M

 Brightness (Typ.)

Pure LCD   Panel

250cd/㎡

With Touch Monitor

225cd/㎡

 Response Time (Typ.)

16ms

 Viewing Angle(Typ.at CR＞10)）

 Horizontal(left/right)

 85°/85°

 Vertical(up/down)

 80°/80°

 Contrast Ratio (Typ.)

1000:1

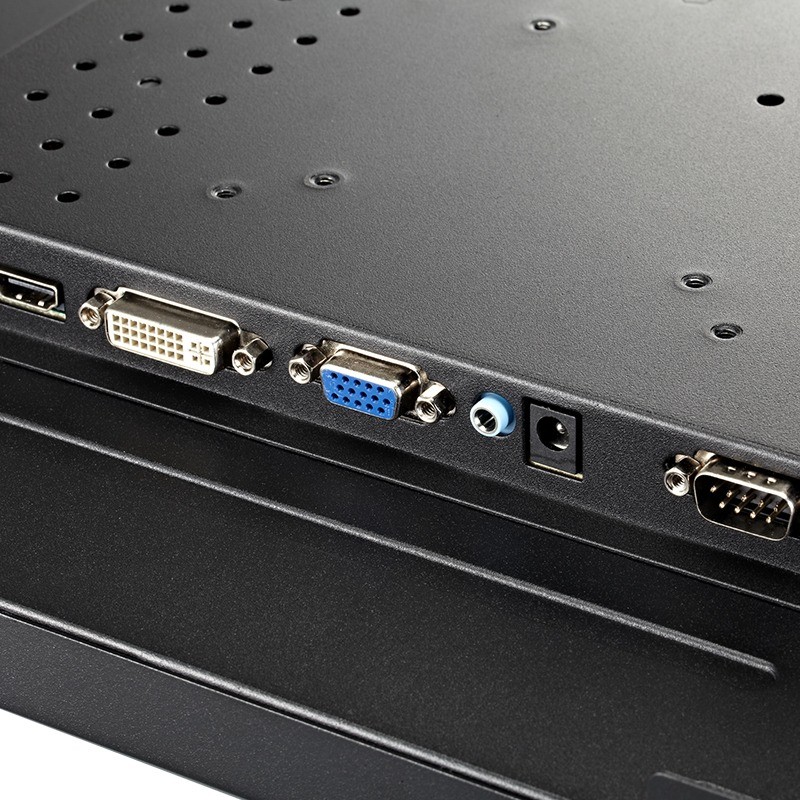

 Video Input

VGA/DVI

 Frequency (H/V)

30～80KHz / 60～75Hz

 Power Supply

Type: External brick

Display voltage: DC 12V±5%
  Input (line) voltage: 100-240 VAC, 50-60 Hz

 Environment

Operating Temp.

0～50°C

Operating RH

20%～80%

Storage Temp.

-20～60°C

Storage RH

10%～90%

 MTBF

≥30,000   Hours

 LED Back Light Life (Typ.)

≥30,000   Hours

 Weight（N.W/G.W）

5.7Kg(1pcs)/13.8Kg(2pcs   in one package)

 Package dimensions

605*195*400(mm)(2pcs in one package)

 Power Consumption

Standby Power: ≤1.5W / Operating Power:   ≤20W

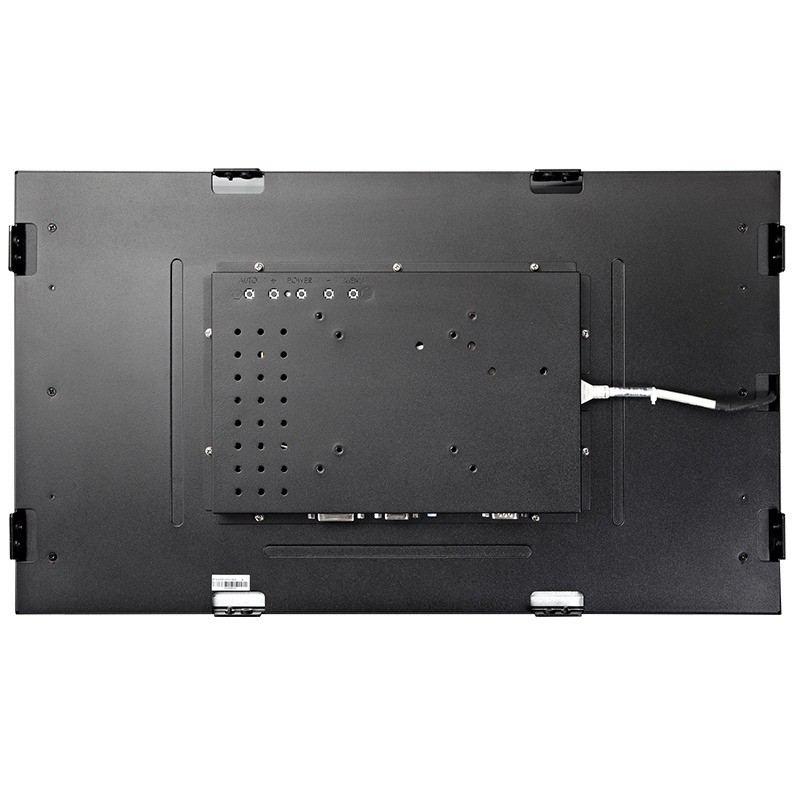

 Mount Interface

 1.VESA 75mm and 100mm

 2.Mount bracket, horizontal or vertical mount

 OSD Control

Buttons

 AUTO,+,POWER,-,MENU

Function

Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location,   Languages, Function, Reset

Agency approvals

CCC, UL, FCC,   CE, CB, RoHS

 Regular Warranty

1 year


Touch Screen

Touch Type

21.5"   Surface acoustic wave touch screen

Touch   input

USB/RS232

Response Time

≤8ms(USB) ; ≤12ms(RS232)

Hardness

7H

Light Transmittance

≥90%

Support System

XP,WIN7,WIN8,WIN10,Linux,Android

Active Area

478*270(mm)

Thickness

4±0.2(mm)

Touch Test

≥50,000,000 times

Input Voltage

DC 5V±5%


NOTE:

① The display SPEC. are adjusted according to the selected LCD screen and touch screen

② The support system is adjusted according the specific system and version.





Applications:

KeeTouch products find extensive applications across various industries, including kiosks, retail, public services, payment systems, gaming, self-service, control and operation systems, finance, transit, travel services, conferences, education, healthcare, e-commerce, hotels, restaurants, museums, smart homes, subways, exhibitions, railway stations, airports, and entertainment, among others.
