21.5 Inch VDA/DVI Interface SAW Touch Screen Technology High Brightness For Kiosks
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Brightness | 250cd/㎡ | Weight（N.W/G.W） | 5.7Kg(1pcs)/13.8Kg(2pcs In One Package) |
|---|---|---|---|
| Contrast Ratio | 1000:1 | Power Consumption | 20W |
| Aspect Ratio | 16:9 Ratio | Screen Size | 21.5 Inch |
| Interface | VGA/DVI | Resolution | 1920*1080 @ 60Hz |
| High Light | DVI interface SAW touch screen technology,high brightness saw touch screen technology, DVIsurface acoustic wave touch screen | ||
Product Description

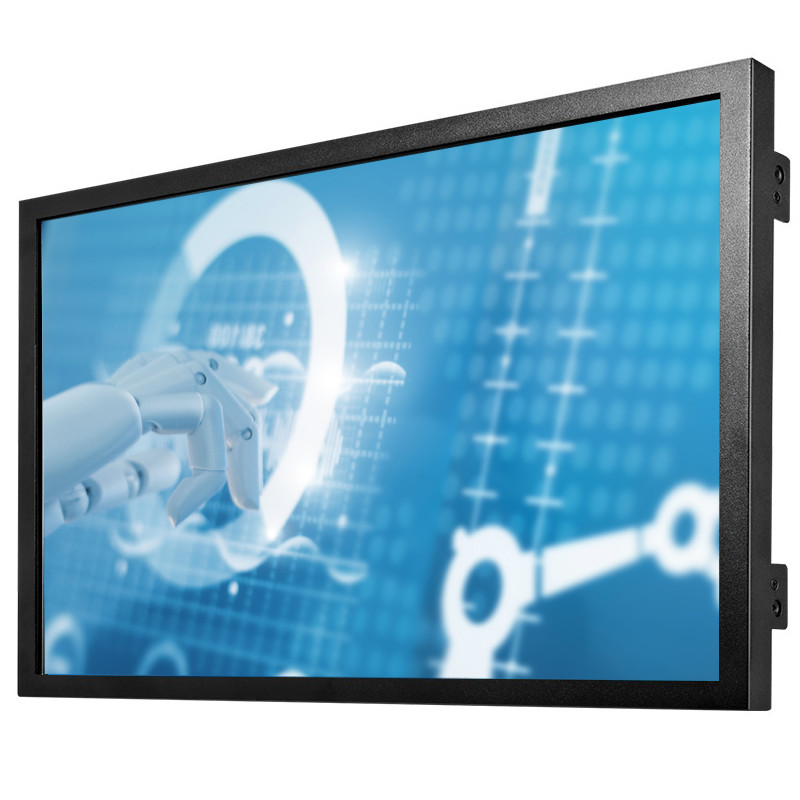

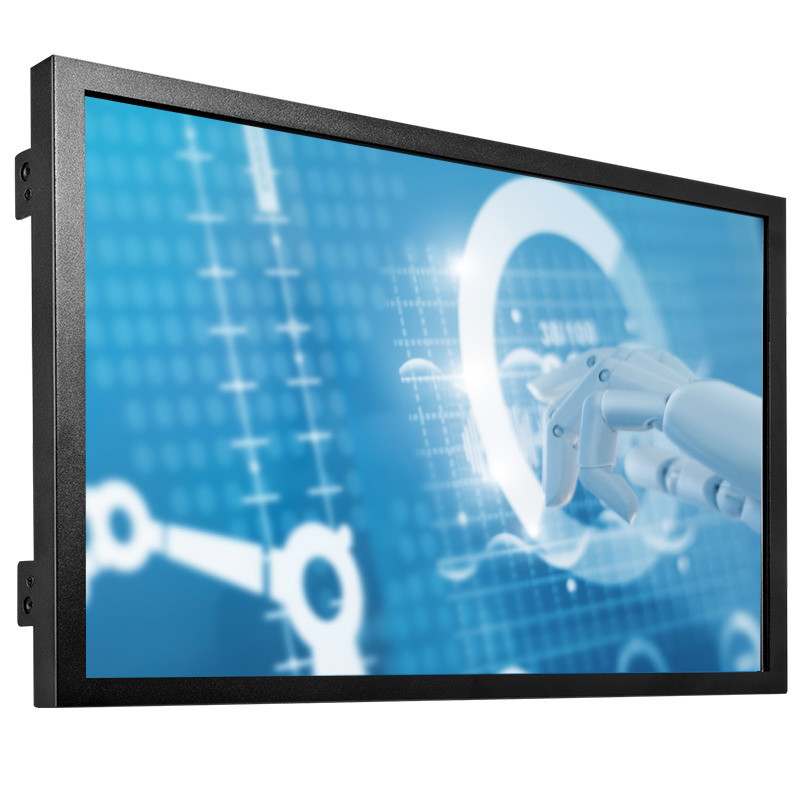

21.5 Inch VDA/DVI Interface Saw Touch Screen Technology High Brightness For Kiosks
SAW Touch Monitor is an open frame LCD touch screen with a 16:9 aspect ratio, designed with a capacitive touch screen kit and a SAW touch technology. It's compact and lightweight with a net weight of 5.7kg for 1 piece, and it has a resolution of 1920*1080 @ 60Hz. The monitor supports VGA and DVI interfaces, bringing you a highly efficient and interactive experience.
Specification:
Complete Machine | ||
Model No. | KOT-0215US-SA4BCP (PN: KOT-215C-001) | |
Series | ||
Display Type | 16:9 Ratio 21.5" TFT-LCD | |
Active Area | 476.64*268.11(mm) | |
Monitor Dimensions (W*H*D) | 511.7*298*42.6(mm) | |
Suggested Resolution | 1920*1080@ 60Hz | |
Support Colors | 16.2M | |
Brightness (Typ.) | Pure LCD Panel | 250cd/㎡ |
With Touch Monitor | 225cd/㎡ | |
Response Time (Typ.) | 16ms | |
Viewing Angle(Typ.at CR＞10)） | Horizontal(left/right) | 85°/85° |
Vertical(up/down) | 80°/80° | |
Contrast Ratio (Typ.) | 1000:1 | |

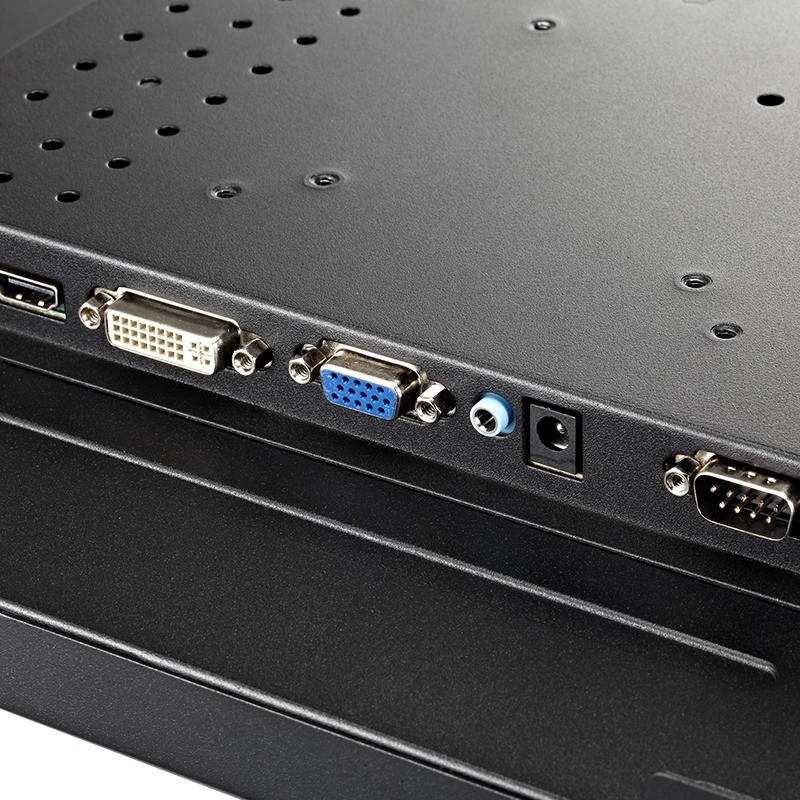

Video Input | VGA/DVI | |
Frequency (H/V) | 30～80KHz / 60～75Hz | |
Power Supply | Type: External brick Display voltage: DC 12V±5% | |
Environment | Operating Temp. | 0～50°C |
Operating RH | 20%～80% | |
Storage Temp. | -20～60°C | |
Storage RH | 10%～90% | |
LED Back Light Life (Typ.) | ≥30,000 Hours | |
Weight（N.W/G.W） | 5.7Kg(1pcs)/13.8Kg(2pcs in one package) | |
Package dimensions | 605*195*400(mm)(2pcs in one package) | |
Power Consumption | Standby Power: ≤1.5W / Operating Power: ≤20W | |

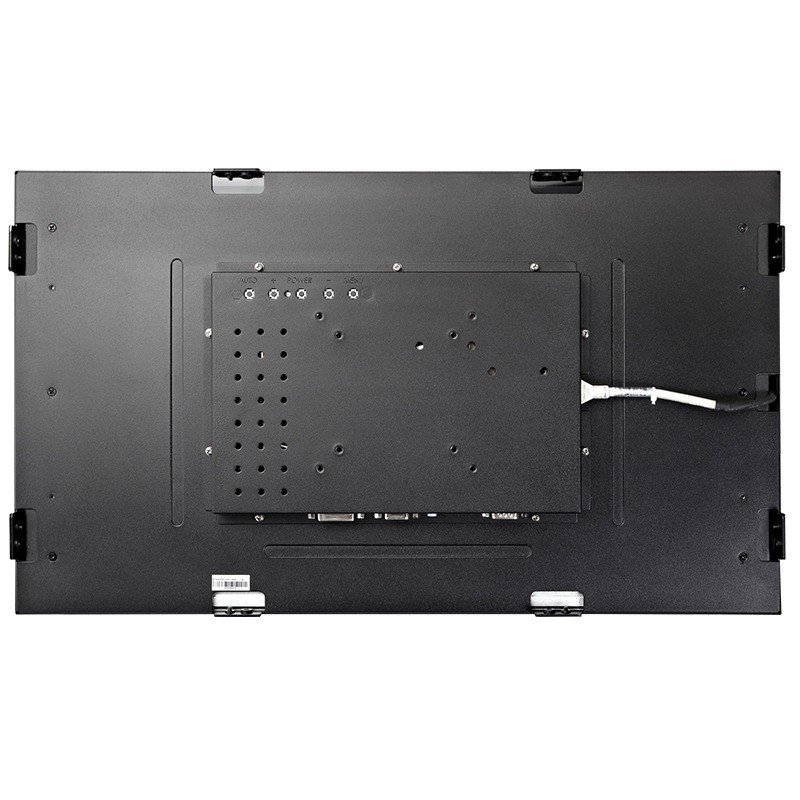

Mount Interface | 1.VESA 75mm and 100mm 2.Mount bracket, horizontal or vertical mount | |
OSD Control | Buttons | AUTO,+,POWER,-,MENU |
Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
Agency approvals | CCC, UL, FCC, CE, CB, RoHS | |
Regular Warranty | 1 year | |
Touch Screen | |
Touch Type | 21.5" Surface acoustic wave touch screen |
Touch input | USB/RS232 |
Response Time | ≤8ms(USB) ; ≤12ms(RS232) |
Hardness | 7H |
Light Transmittance | ≥90% |
Support System | XP,WIN7,WIN8,WIN10,Linux,Android |
Active Area | 478*270(mm) |
Thickness | 4±0.2(mm) |
Touch Test | ≥50,000,000 times |
Input Voltage | DC 5V±5% |
NOTE :
① The display SPEC. are adjusted according to the selected LCD screen and touch screen
② The support system is adjusted according the specific system and version.
Applications:
KeeTouch products find extensive applications across various industries, including kiosks, retail, public services, payment systems, gaming, self-service, control and operation systems, finance, transit, travel services, conferences, education, healthcare, e-commerce, hotels, restaurants, museums, smart homes, subways, exhibitions, railway stations, airports, and entertainment, among others.
Support and Services:
We are committed to providing our customers with the highest quality SAW Touch Monitor products and services. Our technical support and service team is ready to assist you with any questions or concerns you may have.
We offer a variety of support services, including:
Troubleshooting assistance
Software updates and patches
Replacement parts and accessories
Product installation and setup
User manuals and documentation
Our team of experts is available to answer your questions and help you find the solution that best fits your needs.
FAQ:
1: What is the brand name of the SAW Touch Monitor?
The brand name of the SAW Touch Monitor is KeeTouch.
2: What is the model number?
The model number is KOT-215C-001.
3. Where is the SAW Touch Monitor manufactured?
The SAW Touch Monitor is manufactured in Shenzhen, China.
4: What certifications does the SAW Touch Monitor have?
The SAW Touch Monitor has CCC, UL, FCC, CE, CB, RoHS certifications.
5: What is the minimum order quantity?
The minimum order quantity is 1pcs.
