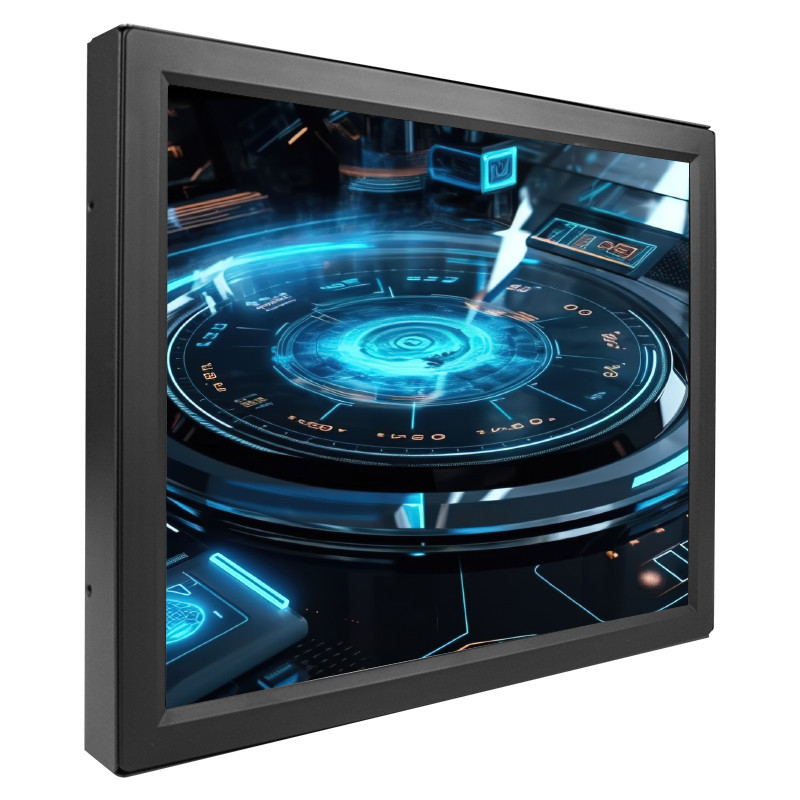

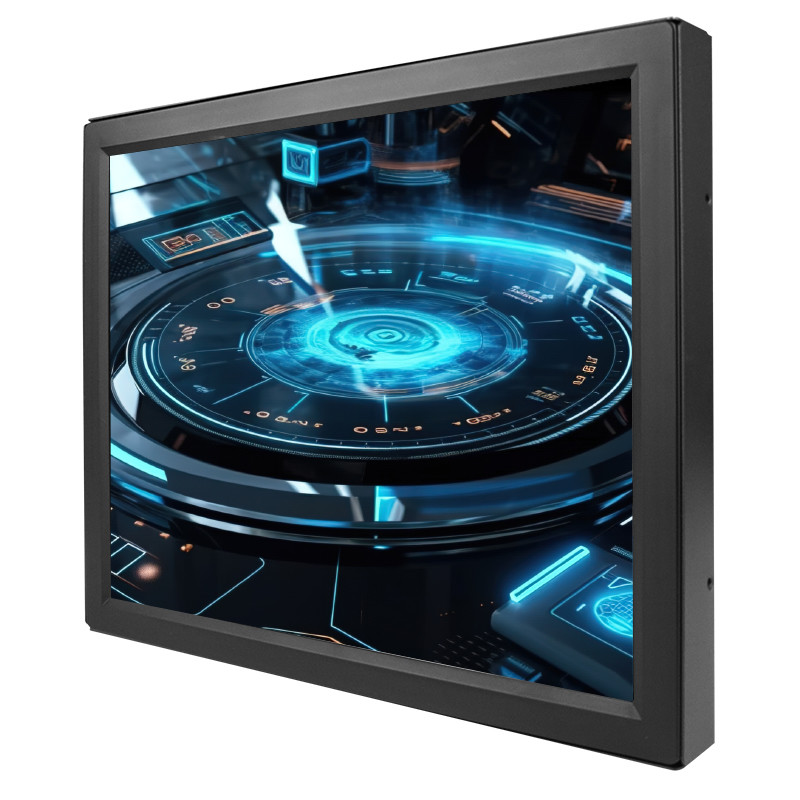

15.6 Inch Saw Touch Monitor 16:9 Display Type 1920*1080 Resolution For Kiosks
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Contrast Ratio | 650:1 | Resolution | 1920*1080 @ 60Hz |
|---|---|---|---|
| Viewing Angle | 70°/70/60°/60° | Response Time | 5ms |
| Product Name | SAW Touch Monitor | Screen Size | 15.6 Inch |
| Interface | VGA/DVI | Aspect Ratio | 16:9 Ratio |
| High Light | capacitive saw touchscreen monitor,kiosks saw touchscreen monitor,kiosks surface acoustic wave touch screen | ||
Product Description
15.6 Inch Saw Touch Monitor 16:9 Display Type 1920*1080 Resolution For Kiosks
SAW Touch Monitor is a top of the line capacitive touch screen open frame LCD display with excellent viewing angle of 70°/7060°/60°. It comes with VGA/DVI interface and only consumes 15W of power. Weighing only 3Kg (1pcs) / 8.25Kg (2pcs In One Package), it is light and easy to carry.The SAW Touch Monitor is an ideal choice for applications that demand accurate and fast response time, such as industrial automation, interactive kiosk and retail solutions. It boasts a clear display and high-quality image with bright colors and sharp contrast. With its open frame LCD display, it is easy to install in a variety of different environments.Choose the SAW Touch Monitor for a reliable and efficient experience. It is the perfect solution for any of your touch-screen needs.
Specification
Complete Machine | ||
Model No. | KOT-0156U-SA4BP (P/N:KOT-156P-004) | |
Series | ||
Display Type | 16:9 Ratio 15.6" TFT-LCD | |
Active Area | 344.23*193.54(mm) | |
Monitor Dimensions (W*H*D) | 388.5*237.5*43(mm) | |
Suggested Resolution | 1920*1080 @ 60Hz | |
Support Colors | 16.7M | |
Brightness (Typ.) | Pure LCD Panel | 400cd/㎡ |
With Touch Monitor | 340cd/㎡ | |
Response Time (Typ.) | 5ms | |
Viewing Angle(Typ.at CR＞10)） | Horizontal(left/right) | 70°/70° |
Vertical(up/down) | 60°/60° | |
Contrast Ratio (Typ.) | 650:1 | |
Video Input | VGA/HDMI | |
Frequency (H/V) | 30～80KHz / 50～76Hz | |
Power Supply | Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz | |
Environment | Operating Temp. | 0～50°C |
Operating RH | 20%～80% | |
Storage Temp. | -20～60°C | |
Storage RH | 10%～90% | |
MTBF | ≥15,000 Hours | |
LED Back Light Life (Typ.) | ≥15,000 Hours | |
Weight（N.W/G.W） | 3Kg(1pcs)/8.25Kg(2pcs in one package) | |
Package dimensions | 468*150*323(mm)(2pcs in one package) | |
Power Consumption | Standby Power: ≤1.5W / Operating Power: ≤15W | |
Mount Interface | 1.VESA 75mm and 100mm 2.Mount bracket, horizontal or vertical mount | |

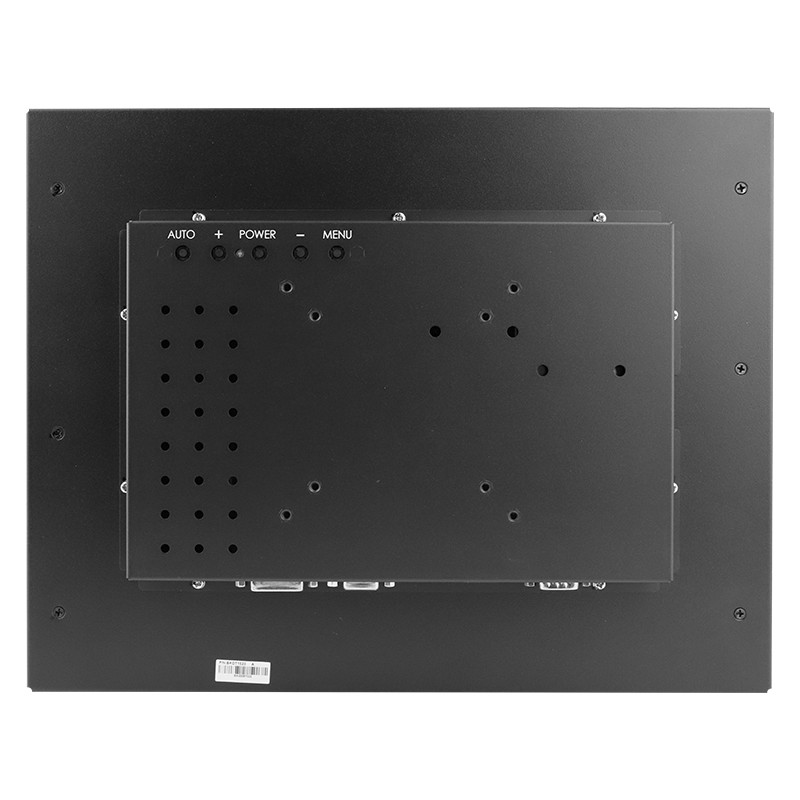

OSD Control | Buttons | AUTO,+,POWER,-,MENU |
Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
CCC, ETL, FCC, CE, CB, RoHS | ||
Regular Warranty | 1 year | |
Touch Screen | |
Touch Type | 15" Surface acoustic wave touch screen |
Touch input | USB |
Response Time | ≤10ms |
Hardness | 7H |
Light Transmittance | ≥90% |
Support System | XP,WIN7,WIN8,WIN10,Linux,Android |
Active Area | 346*195(mm) |
Thickness | 4±0.2(mm) |
Touch Test | ≥50,000,000 times |
Input Voltage | DC 5V±5% |
NOTE :
① The display SPEC. are adjusted according to the selected LCD screen and touch screen
② The support system is adjusted according the specific system and version.
Mechanical Dimensions
Applications
KeeTouch Saw touch monitors are widely used in industries such as kiosk, retail, travel service, gaming, hotels, finance, self-service, education, exhibitions, smart home, entertainments, transit, healthcare, public service, e-commerce, restaurants, payment systems, operation systems, railway stations, museums, subways, control and conference, airports, etc.
Support and Services
SAW Touch Monitor Technical Support and Service
SAW Touch Monitors are designed and manufactured to the highest quality standards. All SAW Touch Monitors come with a limited warranty that covers any defects in material or workmanship for a period of 1 year from the date of purchase. In the event of a technical issue, our technical support team is here to help.
Technical Support
We offer technical support for all SAW Touch Monitors. Our technical support team is available to answer any questions you may have about setup, configuration, installation, and troubleshooting. You can reach us 24/7 via email, phone, or live chat.
In the event that your SAW Touch Monitor is not functioning properly, we offer both on-site and remote service. Our technicians can come to your site to diagnose and repair any problems you may be having. For remote services, we will provide step-by-step instructions to help you get your SAW Touch Monitor back up and running.
Packing and Shipping
SAW Touch Monitor Packaging and Shipping:
The SAW Touch Monitor is packaged in a secure cardboard box.
To ensure the product is not damaged during shipping, the box is filled with foam and the product is securely fastened in the box.
The box is then sealed with tape and labeled with the product information.
The box is then placed in a larger cardboard box and filled with protective material for additional protection.
The larger box is then sealed with tape and labeled with the product information.
The SAW Touch Monitor is then shipped to the customer via a reliable shipping carrier.
FAQ
Q1: What is the Brand Name of the SAW Touch Monitor?
A1: The Brand Name of the SAW Touch Monitor is KEETOUCH.
Q2: What is the Model Number of the SAW Touch Monitor?
A2: The Model Number of the SAW Touch Monitor is KOT-156P-004.
Q3: Where is the Place of Origin of the SAW Touch Monitor?
A3: The Place of Origin of the SAW Touch Monitor is Shenzhen, China.
Q4: What Certifications does the SAW Touch Monitor have?
A4: The SAW Touch Monitor has Certifications of CCC, UL, FCC, CE, CB, RoHS.
Q5: What is the Minimum Order Quantity of the SAW Touch Monitor?
A5: The Minimum Order Quantity of the SAW Touch Monitor is 1pcs.
