17 Inch SAW Touch Monitor 1000:1 Contrast Ratio For Self Service Solution
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Display Type | 5:4 Ratio 17＂Active Matrix TFT-LCD, LED Backlight | Display Active Area | 13.3＂(338mm)×10.6＂(270mm) |
|---|---|---|---|
| Operation Temp | 0～50°C | Pure LCD Panel | 250cd/㎡ |
| Response Time(Typ.) | 5s | Video Input | VGA/DVI |
| Touch Screen Type | Keetouch 17" SAW 4 Mm Compact Touch Sensor | Product Name | SAW Touch Monitor |
| High Light | SAW Touch Monitor 1000:1,17In SAW Touch Monitor,CCC 17 Inch Touch Monitor | ||
Product Description
17 Inch SAW Touch Monitor 1000:1 Contrast Ratio For Self-Service Solution
This product comes with SAW touchscreen technology, fast response, free of drift and accurate touch. It is industrial grade SAW touch Monitor with IP65 waterproof function. VGA interface and USB port are provided for use. What’s more, customized services are provided to meet individual requirements. And it supports a variety of operating systems: XP,WIN7,WIN8 and WIN10.
Specifications of SAW Touch Monitor
Model No. | KOT-0170U-SA4BCW（P/N:KOT-170C-009） | |||
Series | ||||
Display Type | 5:4 Ratio 17＂Active matrix TFT-LCD, LED backlight | |||
Display Active Area | 13.3＂(338mm)×10.6＂(270mm) | |||
Touch Monitor Dimensions | Width: 369mm Width with brackets: 389.4 mm Height: 307mm Height with brackets: 327.4mm Depth: 49mm(not include lip):50mm(include lip) | |||
Suggested Resolution | 1280×1024@60Hz | |||
Support Colors | 16.7M | |||
Brightness(Typ.) | Pure LCD Panel | 250cd/m2 | ||
With SAW Glass | 225cd/m2 | |||
Response Time(Typ.) | 5ms | |||
Viewing Angle (Typ.at CR＞10)） | Horizontal(left/right)： 170°（85°/85°） | |||
Vertical(up/down)： 160°（80°/80°） | ||||
1000:1 | ||||
Video Input | Analog RGB | |||
Frequency（H/V） | 30～80KHz / 60～75Hz | |||
Power Supply | Type: External brick Input (line) voltage: 100-240 VAC, 50-60 Hz | |||
Environment | Operation Temp: | 0～50°C | ||
Storage Temp: | -20～60°C | |||
Operation RH: | 20%～80% | |||
Storage RH: | 10%～90% | |||
30,000 Hours | ||||
LED Back light Life(Typ.) | 30,000 Hours | |||
Weight（N.W/G.W） | N.W :5Kg (Single) /G.W:12.8Kg (2pcs in one package) | |||
Package Dimensions | 445（L）*200(W)*395(H)mm（2pcs in one package） | |||
Power Consumption | 16W Max. | |||
Standby power consumption | 0.95W | |||
Mount Interface | 1)VESA 75mm and 100mm 2)Mount bracket, horizontal or vertical(Standard mount brackets are supplied) | |||

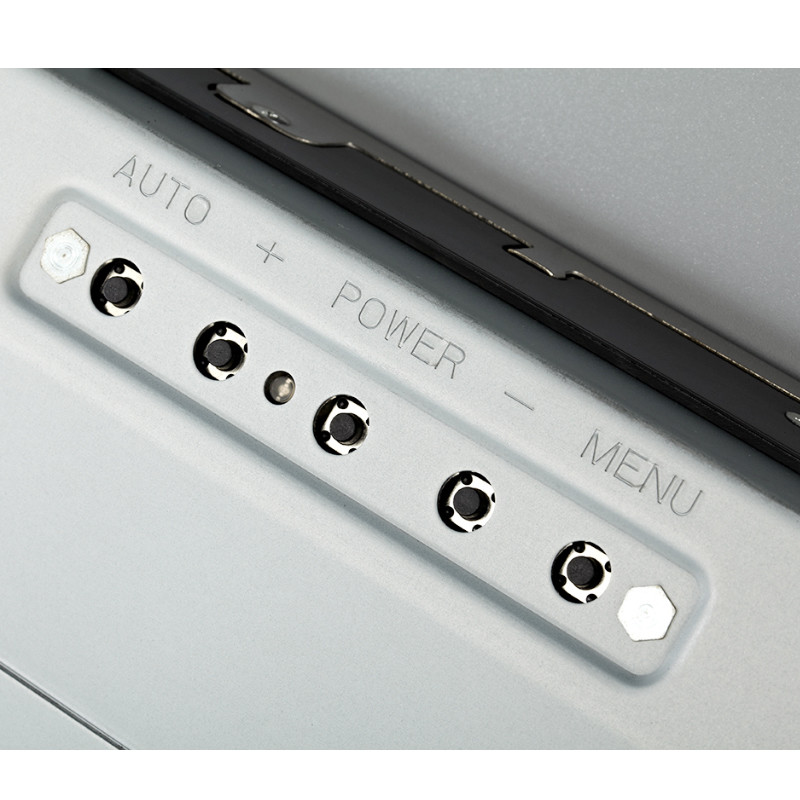

OSD Control | Buttons | AUTO,+,POWER,-,MENU | ||
Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |||
Touch screen Type | Keetouch 17" SAW 4 mm compact touch sensor | |||
Touch System Interface | Having USB interface | |||
Touch Response time | USB/ 8.4ms | |||
Agency Approval | CCC, ETL, FCC, CE, CB, RoHS | |||
Regular Warranty | 1 year | |||
Applications
SAW Touch Monitor are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
Advantages of SAW Touch Monitor
1. High Clarity: SAW touch screens maintain high clarity and contrast levels, even when viewed from different angles or under varying lighting conditions, providing a clear and vibrant display.
2. High Sensitivity: SAW touch screens are highly sensitive and can detect even the slightest touch or gesture, providing a responsive and accurate user experience.
3. Durability: SAW touch screens are highly durable and can withstand heavy usage, making them ideal for use in public places such as retail stores, museums, and airports.
Why choose us?
1. We are a leading provider of industrial grade touch products and touch solutions for over 17 years.
2. Our core competence is differentiated product customization. With over 40 professional R&D engineers, we can offer OEM and ODM services to meet customer’s individual requirements.
3. Our company has been approved by ISO9001 and ISO14001, and with the certifications CCC, UL, FCC, CE, CB, BIS, RoHS, etc. for the products.
4. Professional after-sales team at any time to provide services to customers.
FAQ:
1. Can you produce the SAW Touch Monitor according to the customer's requirements?
Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.
2. What is your payment method?
We can accept T/T, Western Union, Paypal, Credit card and Alipay. ( L/C can be negotiable. )
3. What is your delivery time?
3-5 work days for inventory orders, 7-15 business days for bulk production.
