17 Inch SAW Touch Monitor Open Frame IP65 Waterproof
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Display Type | 5:4 Ratio 17＂Active Matrix TFT-LCD, LED Backlight | Display Active Area | 13.3＂(338mm)×10.6＂(270mm) |
|---|---|---|---|
| Operation Temp | 0～50°C | Pure LCD Panel | 250cd/㎡ |
| Response Time(Typ.) | 5s | Video Input | VGA/DVI |
| Touch Screen Type | Keetouch 17" SAW 4 Mm Compact Touch Sensor | Product Name | SAW Touch Monitor |
| High Light | 17 Inch SAW Touch Monitor,Waterproof SAW Touch Monitor,SAW 17 Inch Touch Monitor | ||
Product Description

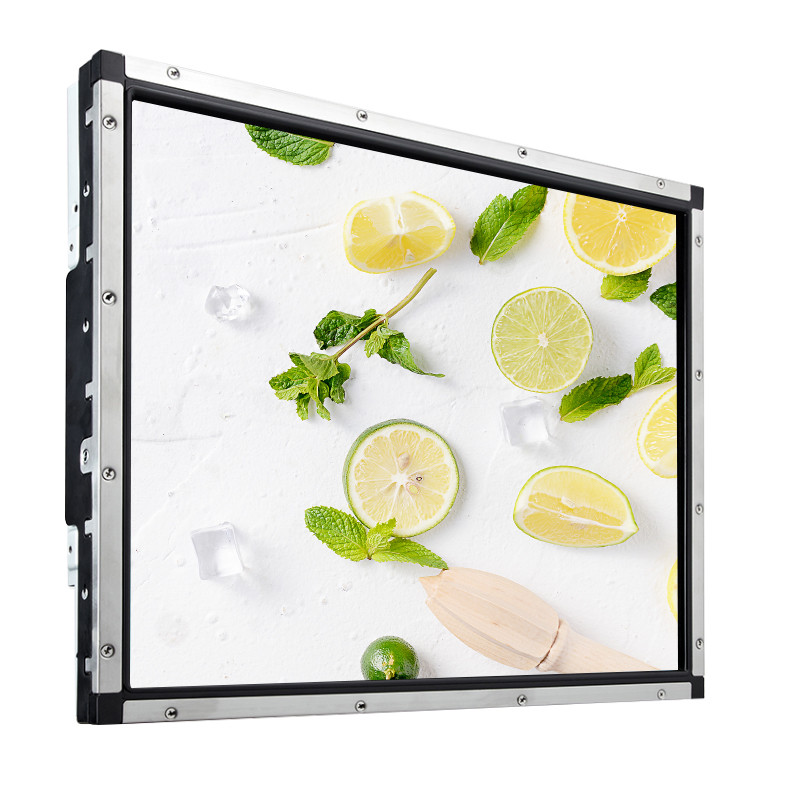

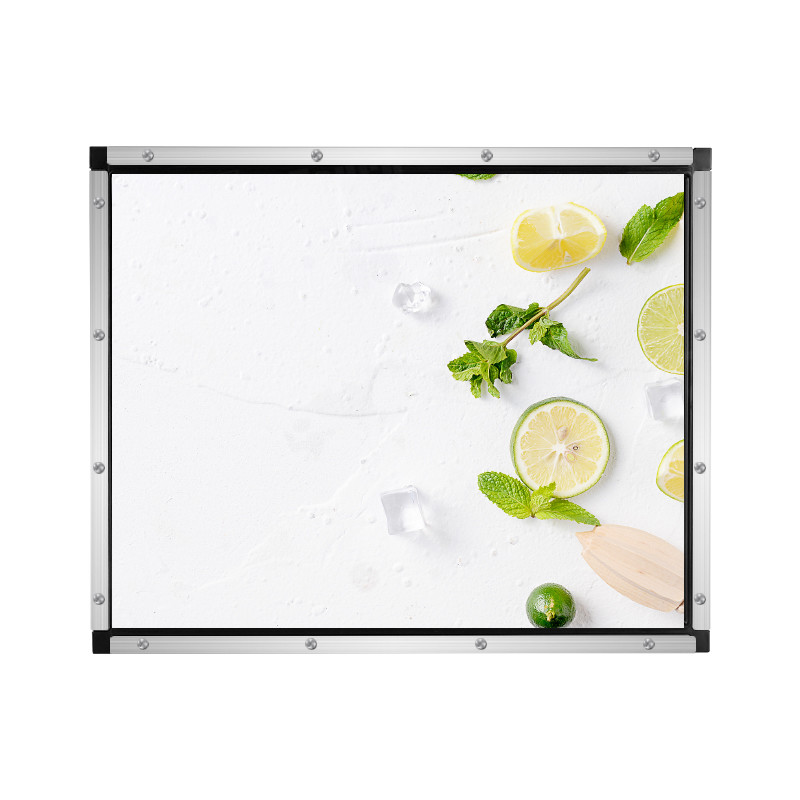

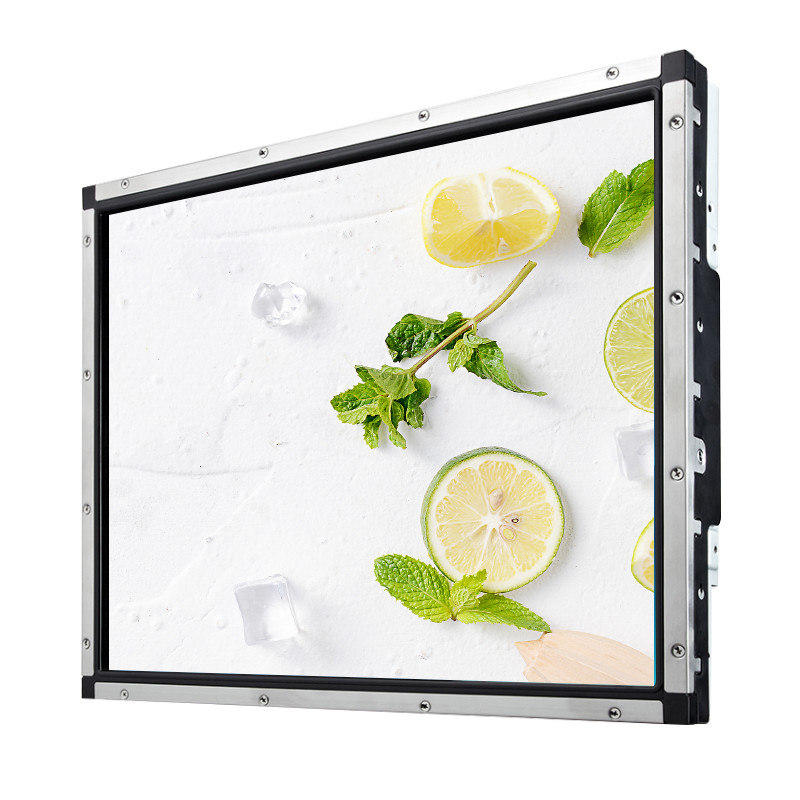

17 Inch SAW Touch Monitor Open Frame IP65 Waterproof
SAW touch monitor uses ultrasonic waves to detect touch input. This SAW touch monitor is highly durable, which can be normally used in very harsh environments. Also, it has good clarity and image quality, which is an ideal choice for various applications. With our professional R&D team, OEM and ODM services can be offered to meet customer’s individual requirements.
Specifications of SAW Touch Monitor
Model No. | KOT-0170U-SA4BCW（P/N:KOT-170C-009） | |||
Series | ||||
Display Type | 5:4 Ratio 17＂Active matrix TFT-LCD, LED backlight | |||
Display Active Area | 13.3＂(338mm)×10.6＂(270mm) | |||
Touch Monitor Dimensions | Width: 369mm Width with brackets: 389.4 mm Height: 307mm Height with brackets: 327.4mm Depth: 49mm(not include lip):50mm(include lip) | |||
Suggested Resolution | 1280×1024@60Hz | |||
Support Colors | 16.7M | |||
Brightness(Typ.) | Pure LCD Panel | 250cd/m2 | ||
With SAW Glass | 225cd/m2 | |||
Response Time(Typ.) | 5ms | |||
Viewing Angle (Typ.at CR＞10)） | Horizontal(left/right)： 170°（85°/85°） | |||
Vertical(up/down)： 160°（80°/80°） | ||||
1000:1 | ||||

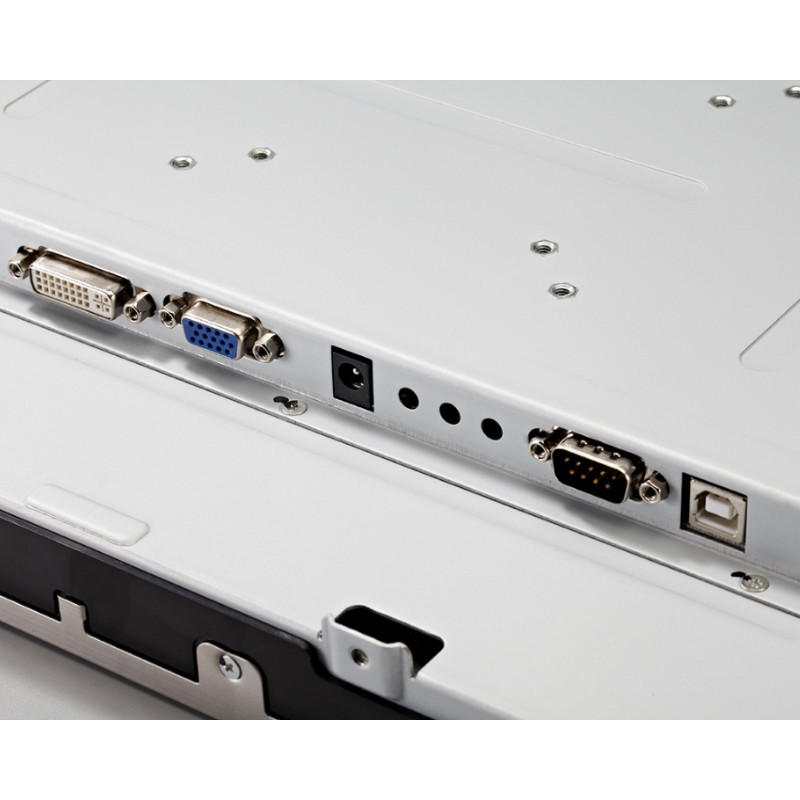

Video Input | Analog RGB | |||
Frequency（H/V） | 30～80KHz / 60～75Hz | |||
Power Supply | Type: External brick Input (line) voltage: 100-240 VAC, 50-60 Hz | |||
Environment | Operation Temp: | 0～50°C | ||
Storage Temp: | -20～60°C | |||
Operation RH: | 20%～80% | |||
Storage RH: | 10%～90% | |||
30,000 Hours | ||||
LED Back light Life(Typ.) | 30,000 Hours | |||
Weight（N.W/G.W） | N.W :5Kg (Single) /G.W:12.8Kg (2pcs in one package) | |||
Package Dimensions | 445（L）*200(W)*395(H)mm（2pcs in one package） | |||
Power Consumption | 16W Max. | |||
Standby power consumption | 0.95W | |||
Mount Interface | 1)VESA 75mm and 100mm 2)Mount bracket, horizontal or vertical(Standard mount brackets are supplied) | |||
OSD Control | Buttons | AUTO,+,POWER,-,MENU | ||
Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |||
Touch screen Type | Keetouch 17" SAW 4 mm compact touch sensor | |||
Touch System Interface | Having USB interface | |||
Touch Response time | USB/ 8.4ms | |||
Agency Approval | CCC, ETL, FCC, CE, CB, RoHS | |||
Regular Warranty | 1 year | |||
Applications

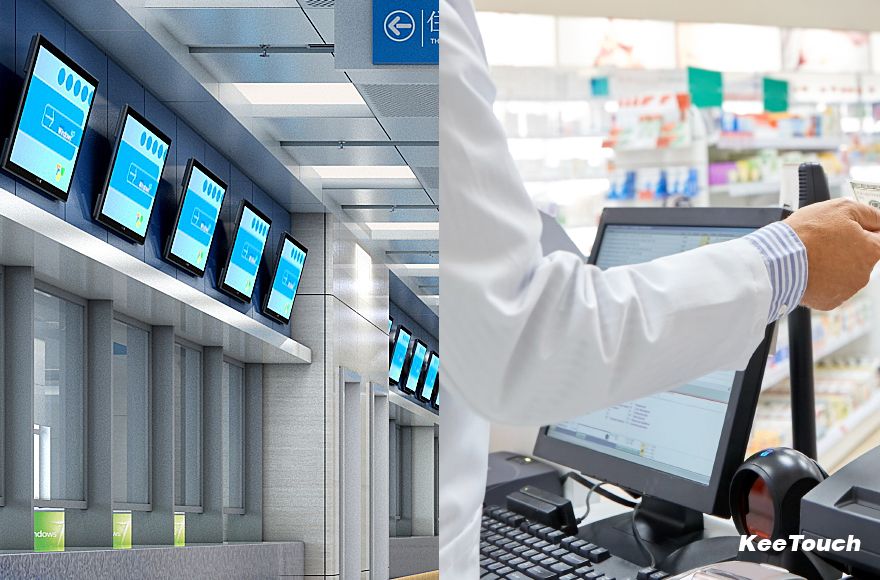

SAW Touch Monitor are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
Advantages of SAW Touch Monitor
1. High Clarity: SAW touch screens maintain high clarity and contrast levels, even when viewed from different angles or under varying lighting conditions, providing a clear and vibrant display.
2. High Sensitivity: SAW touch screens are highly sensitive and can detect even the slightest touch or gesture, providing a responsive and accurate user experience.
3. Durability: SAW touch screens are highly durable and can withstand heavy usage, making them ideal for use in public places such as retail stores, museums, and airports.
Why choose us?
1. Quality products: All our products have passed strict quality inspection by the quality department before shipment.
2. Competitive pricing: With a strong supply chain, our products’ prices are very competitive.
3. Timely delivery: We have raw materials in stock all year round, the goods can be produced and sent out quickly.
4. Responsive Customer Service: Professional after-sales team at any time to provide services to customers.
FAQ:
1. What package do you provide for the SAW Touch Monitor?
Our package usually is carton.
2. Do you have stock?
Yes, we have a large quantity of stock for our regular model products.
3. What are the shipping ways?
We will ship the goods according to customer’s requirement. For sample, normally by FedEx, DHL, UPS, TNT. For bulk order, by air or by sea.
4. Do you give any discount for the SAW Touch Monitor?
We will do utmost to support you with the competitive price, also good service will be offered.
