Anti Glare And Anti Proof SAW 15 Inch Touch Monitor For Kiosks
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power Consumption | Standby Power: ≤1.5W / Operating Power: ≤12W | Touch System Interface | Having USB And Serial(RS232) Interface |
|---|---|---|---|
| Touch Response Time | USB/Serial: 8.4/10.4ms | Regular Warranty | 1 Year |
| Storage Temp | -20～60°C | Storage RH | 10%～90% |
| LED Back Light Life (Typ.) | 50,000 Hours | Product Name | SAW Touch Monitor |
| High Light | Anti Proof SAW Touch Monitor,SAW 15 Inch Touch Monitor,SAW Touch Monitor For Kiosks | ||
Product Description

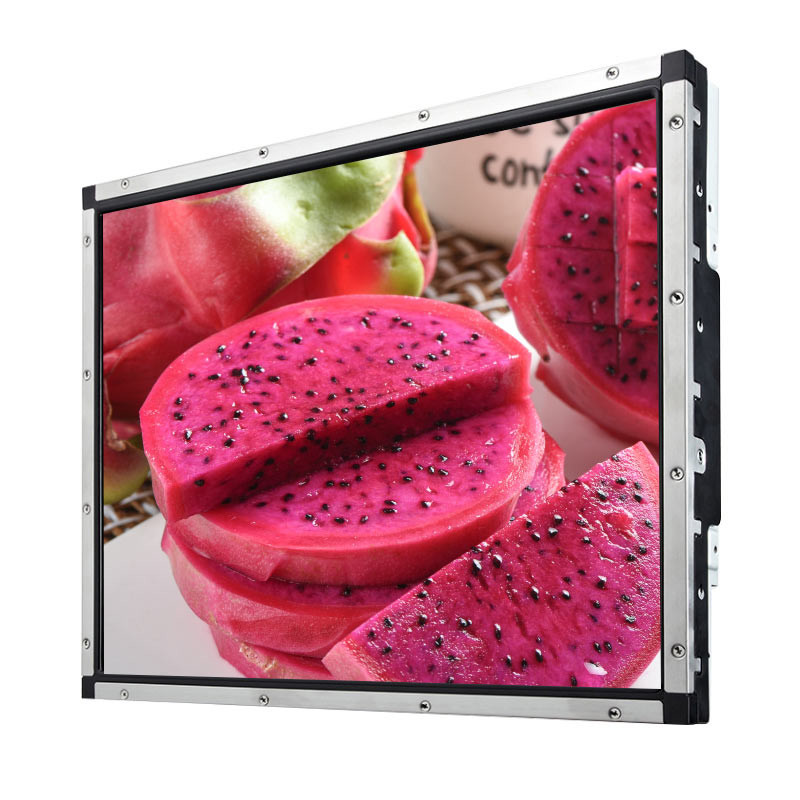

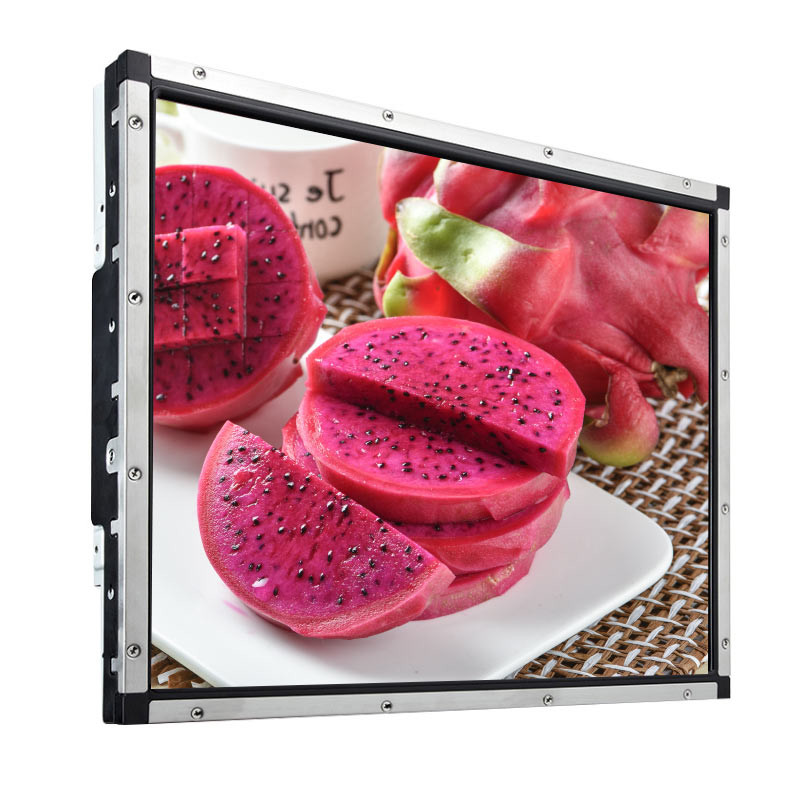

15 Inch SAW Touch Monitor Anti-Glare Anti-Proof For Kiosks
This SAW touch monitor comes with features as below: resolution 1024x768, contrast ratio 800:1 and broad viewing angle. It is designed with anti-vandal, anti-glare and IP65 surface waterproof function. Also, both VGA and DVI interfaces are provided for use, the USB port for touch. And multiple mounting options are available, including VESA mount, horizontal and vertical brackets mount. Per customer’s individual requirements, OEM and ODM services can be offered.
SAW Touch Monitor Specifications
Complete Machine | ||
Model No. | KOT-0150US-SA6BCW (P/N:KOT-150C-003) | |
Series | ||
Display Type | 4:3 Ratio 15" TFT-LCD | |
304.1*228.1(mm) | ||
Monitor Dimensions (W*H*D) | 336.4*264.4*45.9(mm) | |
Suggested Resolution | 1024*768 @ 60Hz | |
Support Colors | 16.2M | |
Brightness (Typ.) | Pure LCD Panel | 420cd/㎡ |
With Touch Monitor | 378cd/㎡ | |
Response Time (Typ.) | 5ms | |
Viewing Angle(Typ.at CR＞10)） | Horizontal(left/right) | 80°/80° |
Vertical(up/down) | 80°/80° | |
Contrast Ratio (Typ.) | 800:1 | |
Video Input | VGA/DVI | |
Frequency (H/V) | 30～60KHz / 60～75Hz | |
Power Supply | Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz | |
Environment | Operating Temp. | 0～50°C |
Operating RH | 20%～80% | |
Storage Temp. | -20～60°C | |
Storage RH | 10%～90% | |
MTBF | 50,000 Hours | |
LED Back Light Life (Typ.) | 50,000 Hours | |
Weight（N.W/G.W） | 3.5Kg(1pcs)/11Kg(2pcs in one package) | |
Package dimensions | 429*183*356(mm)(2pcs in one package) | |
Power Consumption | ||

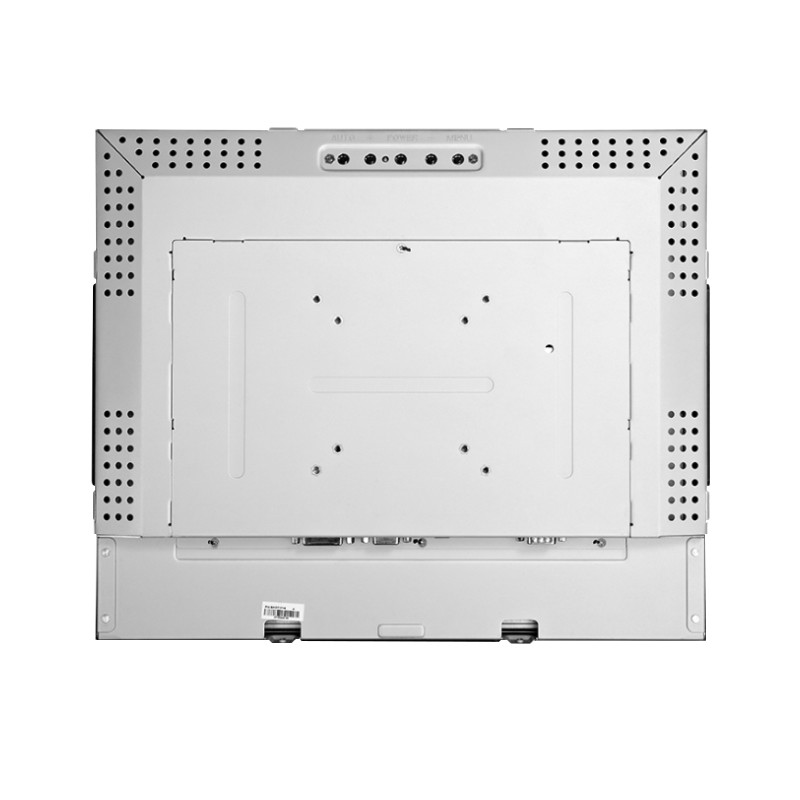

Mount Interface | 1.VESA 75mm and 100mm 2.Mount bracket, horizontal or vertical mount | |

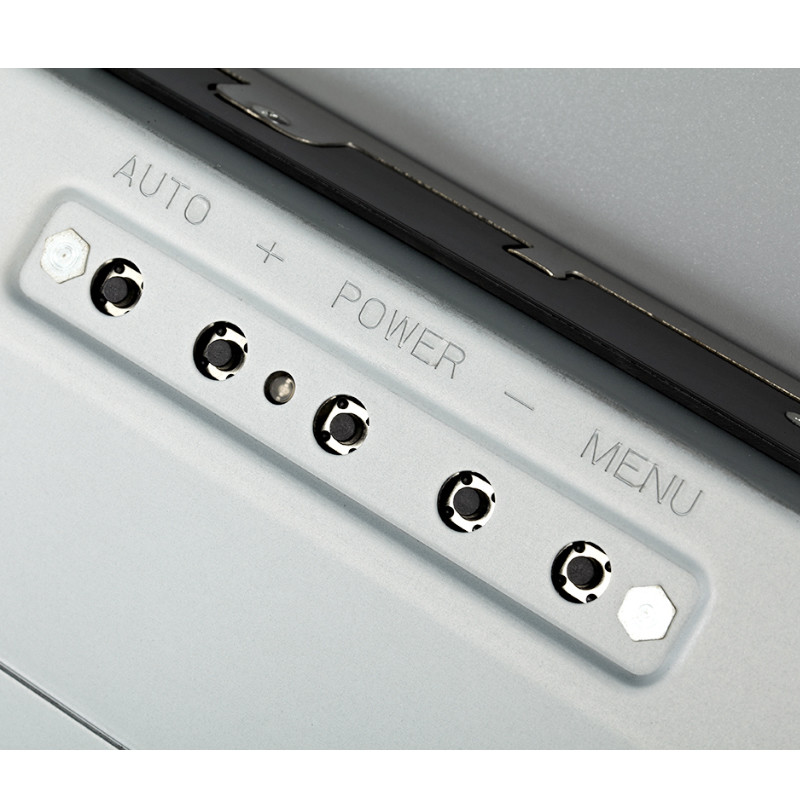

OSD Control | Buttons | AUTO,+,POWER,-,MENU |
Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
Touch Screen Type | KeeTouch 15" SAW 6 mm Compact Touchscreen(anti-glare,vandal-proof) | |
Touch System Interface | Having USB and Serial(RS232) Interface | |
Touch Response Time | USB/Serial: 8.4/10.4ms | |
CCC, ETL, FCC, CE, CB, RoHS | ||
Regular Warranty | 1 year | |
NOTE :
① The display SPEC. are adjusted according to the selected LCD screen and touch screen
② The support system is adjusted according the specific system and version.
Applications

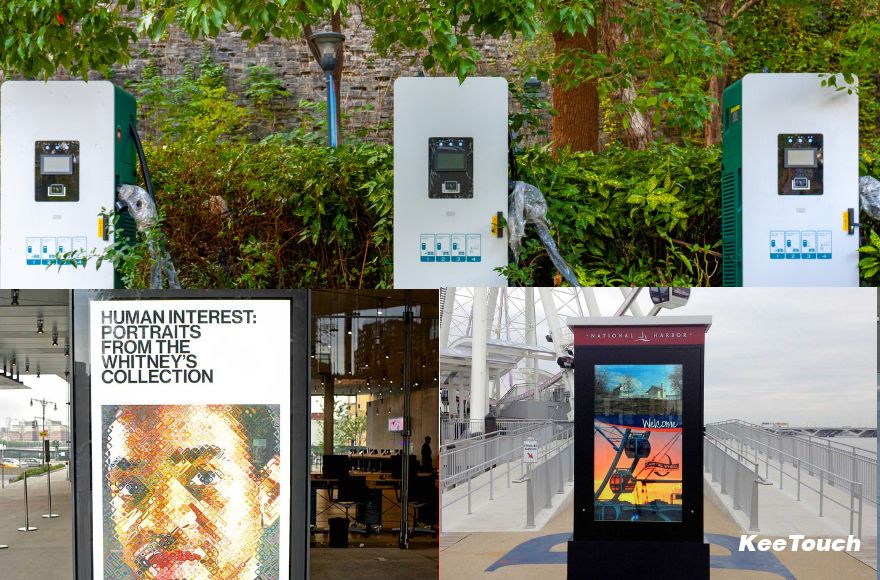

KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
FAQ
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer founded in 2006, located in Shenzhen, China.
2. What is your warranty period for the SAW Touch Monitor?
Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
3. Can you produce the SAW Touch Monitor according to the customer's requirements?
Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.
4. What package do you provide?
Our package usually is carton.
5. Do you have stock?
Yes, we have a large quantity of stock for our regular model products.
6. What are the shipping ways?
We will ship the goods according to customer’s requirement. For sample, normally by FedEx, DHL, UPS, TNT. For bulk order, by air or by sea.
7. Do you give any discount for the SAW Touch Monitor?
We will do utmost to support you with the competitive price, also good service will be offered.
