15 Inch SAW Touch Monitor Open Frame Single Touch 420 Nits Digital LCD Screen
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Display Type | 4:3 Ratio 15" TFT-LCD | Touch Screen Type | KeeTouch 15" SAW 4 Mm Compact Touchscreen |
|---|---|---|---|
| Suggested Resolution | 1024*768 @ 60Hz | Contrast Ratio | 800:1 |
| Video Input | VGA/DVI | Regular Warranty | 1 Year |
| Operating Temp. | 0～50°C | Product Name | SAW Touch Monitor |
Product Description

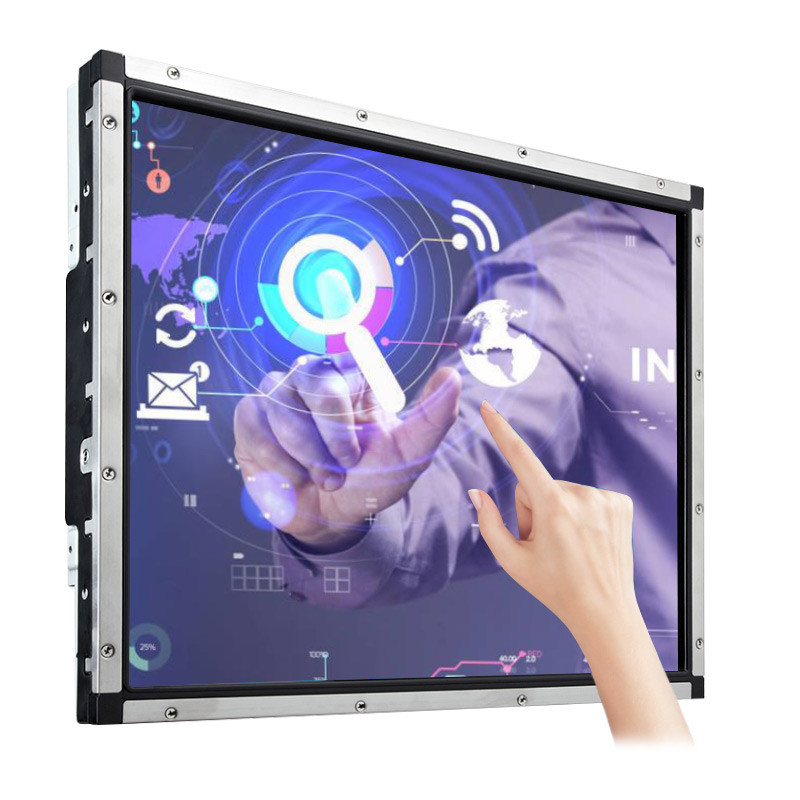

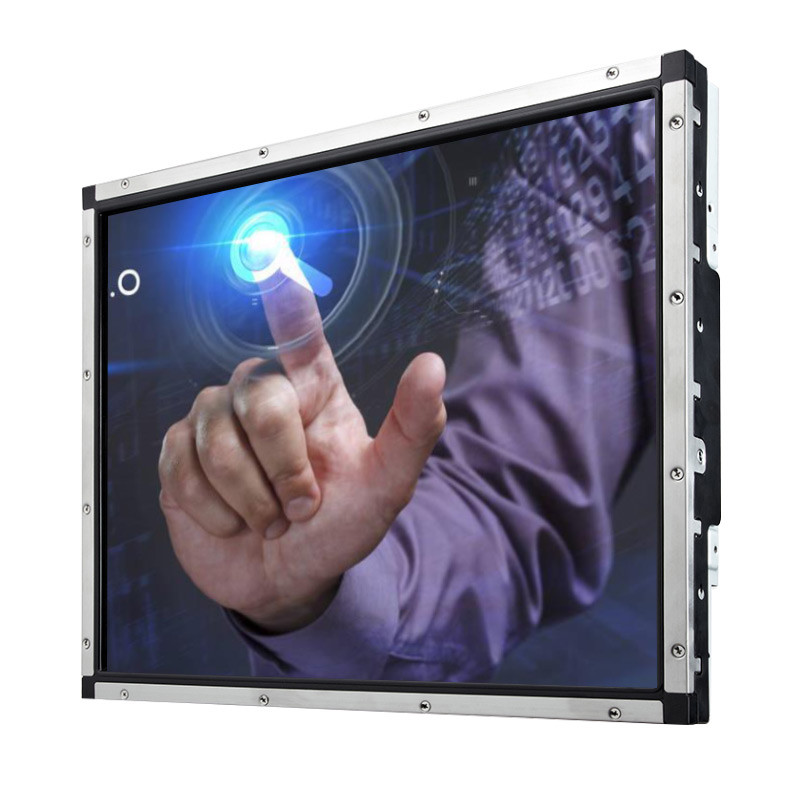

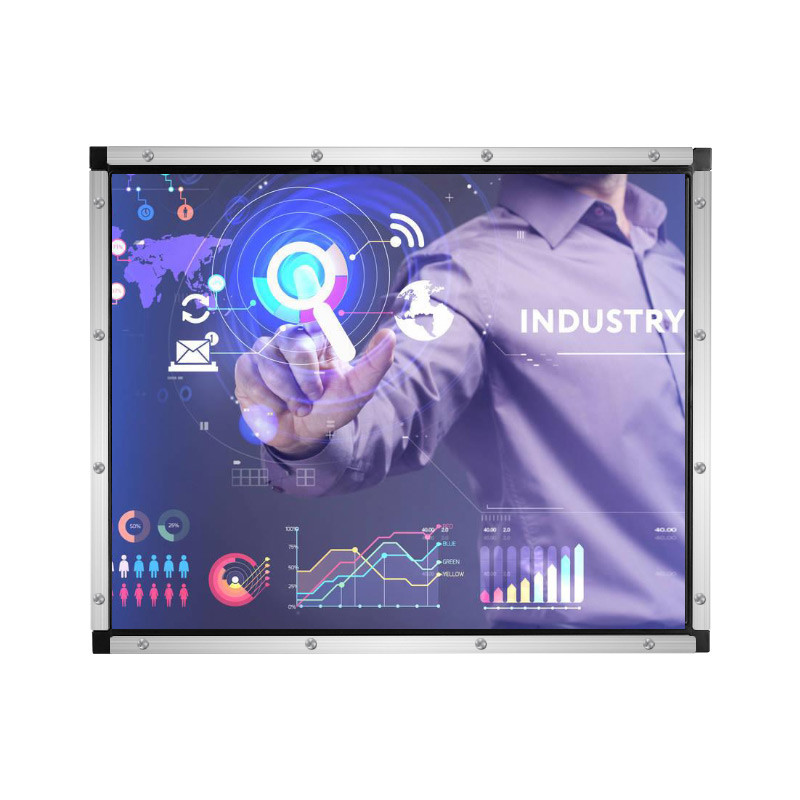

15 Inch SAW Touch Monitor Open Frame Single Touch 420 Nits Digital LCD Screen
KeeTouch SAW touch monitor integrates with saw touch screen panel with high sensitivity and fast response. The high resolution and industrial grade LCD screen deliver a high clarity image. There are multiple interfaces like VGA, DVI, USB and RS232. It is well compatible with XP, WIN7, WIN8, WIN10, Linux, Android. Other sizes are available for 7" to 55".
SAW Touch Monitor Specifications
Complete Machine | ||
Model No. | KOT-0150US-SA4BCW (P/N:KOT-150C-004) | |
Series | OT | |
Display Type | 4:3 Ratio 15" TFT-LCD | |
Active Area | 304.1*228.1(mm) | |
Monitor Dimensions (W*H*D) | 336.4*264.4*43.9(mm) | |
Suggested Resolution | 1024*768 @ 60Hz | |
Support Colors | 16.2M | |
Brightness (Typ.) | Pure LCD Panel | 420cd/m2 |
With Touch Monitor | 378cd/m2 | |
Response Time (Typ.) | 5ms | |
Viewing Angle(Typ.at CR＞10)） | Horizontal(left/right) | 80°/80° |
Vertical(up/down) | 80°/80° | |
Contrast Ratio (Typ.) | 800:1 | |
Video Input | VGA/DVI | |
Frequency (H/V) | 30～60KHz / 60～75Hz | |
Power Supply | Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz | |
Environment | Operating Temp. | 0～50°C |
Operating RH | 20%～80% | |
Storage Temp. | -20～60°C | |
Storage RH | 10%～90% | |
MTBF | 50,000 Hours | |
LED Back Light Life (Typ.) | 50,000 Hours | |
Weight（N.W/G.W） | 3.5Kg(1pcs)/11Kg(2pcs in one package) | |
Package dimensions | 429*183*356(mm)(2pcs in one package) | |
Power Consumption | Standby Power: ≤1.5W / Operating Power: ≤12W | |
Mount Interface | 1. VESA 75mm and 100mm 2. Mount bracket, horizontal or vertical mount | |
OSD Control | Buttons | AUTO,+,POWER,-,MENU |
Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
Touch Screen Type | KeeTouch 15" SAW 4 mm Compact Touchscreen | |
Touch System Interface | Having USB and Serial(RS232) Interface | |
Touch Response Time | USB/Serial: 8.4/10.4ms | |
CCC, UL, FCC, CE, CB, RoHS | ||
Regular Warranty | 1 year | |
NOTE :
① The display SPEC. are adjusted according to the selected LCD screen and touch screen
② The support system is adjusted according the specific system and version.
Applications
KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
Our Advantages:
High-tech and innovative enterprise
More than 175+ design patents
Completely and strictly quality control system
More than 15 years professional experience in touch product industry
Products are certificated by CCC, UL, ETL, FCC, CE, CB, RoHS and other international certifications
FAQ
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer founded in 2006, located in Shenzhen, China.
2. What’s your MOQ for the SAW touch monitor?
Our minimum order quantity is 1pc only.
3. What is your warranty period for the SAW touch monitor?
Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
4. Can you produce the SAW touch monitor according to the customer's requirements?
Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.
5. What is your payment method?
We can accept T/T, Western Union, Paypal, Credit card and Alipay. ( L/C can be negotiable. )
6. Do you have the SAW touch monitor in stock?
Yes, we have a large quantity of stock for our regular model products.
