15 Inch SAW Touch Monitor Plug And Play Anti Vandal LCD Display

15 Inch SAW Touch Monitor Plug And Play Anti Vandal LCD Display
15 Inch SAW Touch Monitor Plug And Play Anti Vandal LCD Display 15 Inch SAW Touch Monitor Plug And Play Anti Vandal LCD Display 15 Inch SAW Touch Monitor Plug And Play Anti Vandal LCD Display 15 Inch SAW Touch Monitor Plug And Play Anti Vandal LCD Display 15 Inch SAW Touch Monitor Plug And Play Anti Vandal LCD Display
Place of OriginShenzhen，China
Brand NameKeeTouch
CertificationCCC, UL, FCC, CE, CB, RoHS
Model NumberKOT-150C-004
Minimum Order Quantity1 piece
PriceNegotiable
Packaging Detailscarton box
Delivery Time7-15 work days
Payment TermsL/C, T/T, Western Union
Supply Ability1000 Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Type4:3 Ratio 15" TFT-LCDMonitor Dimensions336.4*264.4*43.9(mm) (W*H*D)
Suggested Resolution1024*768 @ 60HzContrast Ratio800:1
Video InputVGA/DVIRegular Warranty1 Year
Touch Response TimeUSB/Serial: 8.4/10.4msProduct NameSAW Touch Monitor
Leave a Message
Product Description


15 Inch SAW Touch Monitor Plug And Play Anti Vandal LCD Display



SAW Touch Monitor Description:

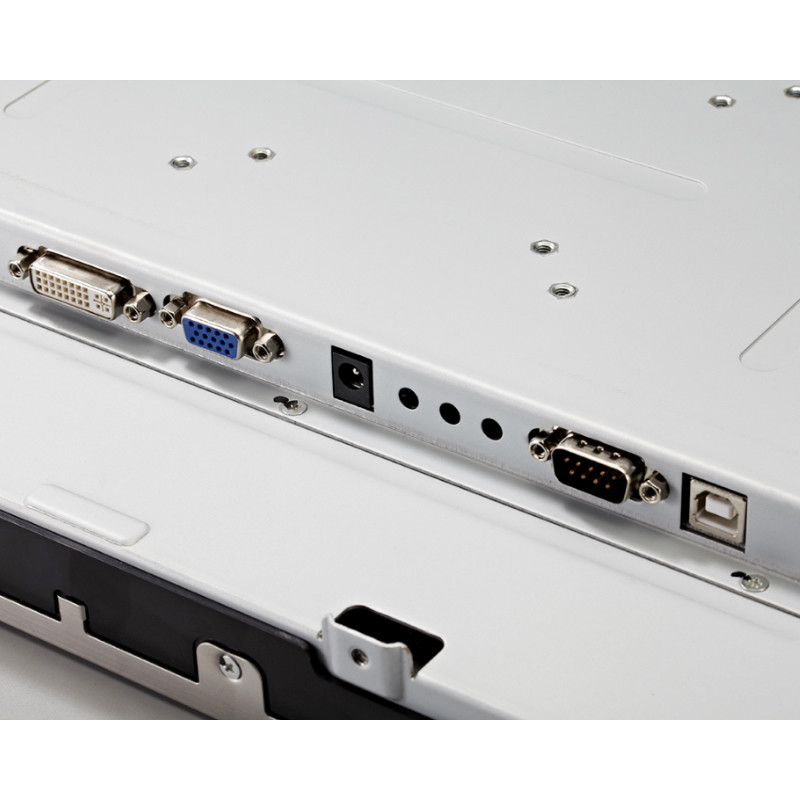

KeeTouch SAW Touch monitor is a plug and play device for easy operation. It is made of anti-vandal pure glass and 420 nits high resolution LCD to deliver a clear image display. The surface acoustic wave touch technology supports accuracy and fast single touch experience. There are multiple interfaces like VGA, DVI, USB, RS232. Customized service is available for size, metal case color, interface, etc.






SAW Touch Monitor Specifications

Complete Machine

Model No.

KOT-0150US-SA4BCW (P/N:KOT-150C-004)

Series

OT

Display Type

4:3 Ratio   15" TFT-LCD

Active   Area

304.1*228.1(mm)

Monitor   Dimensions (W*H*D)

336.4*264.4*43.9(mm)

Suggested Resolution

1024*768 @ 60Hz

Support   Colors

16.2M

Brightness   (Typ.)

Pure LCD   Panel

420cd/㎡

With Touch   Monitor

378cd/㎡

Response Time (Typ.)

5ms

Viewing   Angle(Typ.at CR＞10)）

Horizontal(left/right)

80°/80°

Vertical(up/down)

80°/80°

Contrast Ratio (Typ.)

800:1

Video Input

VGA/DVI

Frequency   (H/V)

30～60KHz / 60～75Hz



Power   Supply

Type: External brick

Display voltage: DC 12V±5%

Input (line) voltage: 100-240 VAC, 50-60 Hz





Environment

Operating   Temp.

0～50°C

Operating RH

20%～80%

Storage Temp.

-20～60°C

Storage RH

10%～90%

MTBF

50,000 Hours

LED   Back Light Life (Typ.)

50,000 Hours

Weight（N.W/G.W）

3.5Kg(1pcs)/11Kg(2pcs   in one package)

Package dimensions

429*183*356(mm)(2pcs   in one package)

Power Consumption

Standby   Power: ≤1.5W / Operating Power: ≤12W

Mount   Interface

1. VESA   75mm and 100mm

2. Mount   bracket, horizontal or vertical mount

OSD   Control

Buttons

AUTO,+,POWER,-,MENU

Function

Brightness,   Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function,   Reset

Touch Screen Type

KeeTouch 15"   SAW 4 mm Compact Touchscreen

Touch System Interface

Having USB   and Serial(RS232) Interface

Touch Response Time

USB/Serial:   8.4/10.4ms

Agency approvals

CCC, UL, FCC, CE, CB, RoHS

Regular   Warranty

1   year


NOTE :

① The display SPEC. are adjusted according to the selected LCD screen and touch screen

② The support system is adjusted according the specific system and version.





Applications

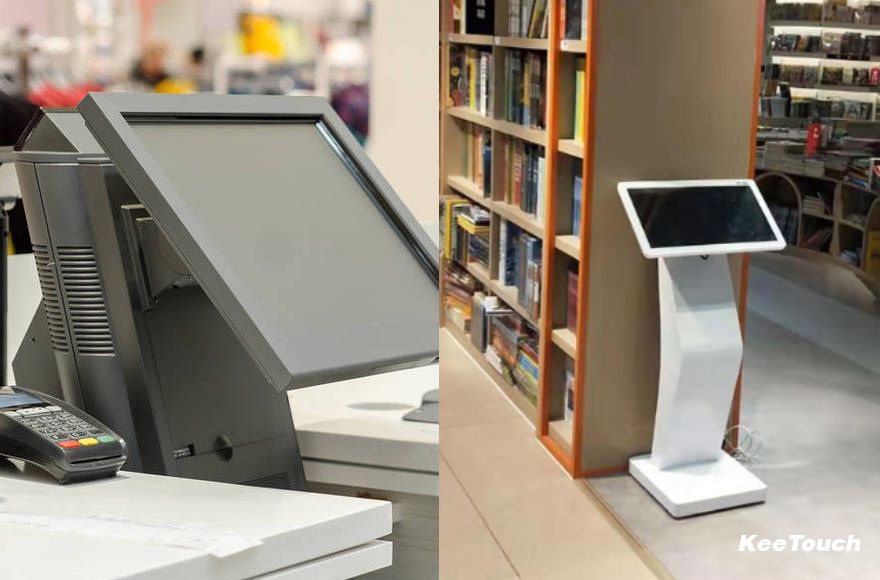

KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.







Our Advantages:

Branch offices widely spreads all over the world,such as Russia,Brazil,Germany and India etc.

Comply with ISO9001 quality system,ISO14001 environment management system and OC080000 limit harmful material management system certifications

More than 15 years professional experience in touch product industry.

200 staffs, 45 trained R&D engineers and design teams support OEM / ODM projects.




FAQ

1. Are you a manufacturer?

Yes, KeeTouch is a professional touch product manufacturer founded in 2006, located in Shenzhen, China.


2. What’s your MOQ for the SAW touch monitor?

Our minimum order quantity is 1pc only.


3. What is your warranty period for the SAW touch monitor?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).


4. Can you produce the SAW touch monitor according to the customer's requirements?

Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.



5. Do you give any discount?
We will do utmost to support you with the competitive price, also good service will be offered.


6. What is your delivery time of the SAW touch monitor?

3-5 work days for inventory orders, 7-15 business days for bulk production.
