Anti Vandal SAW 19 Inch Touch Monitor 1000:1 Contrast For ATM
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Operating Temp | 0～50°C | Operating RH | 20%～80% |
|---|---|---|---|
| Brightness Of Pure LCD Panel | 250cd/㎡ | Brightness With Touch Monitor | 225cd/㎡ |
| Viewing Angle Horizontal(left/right) | 85°/85° | Viewing Angle Vertical(up/down) | 80°/80° |
| Storage Temp | -20～60°C | Storage RH | 10%～90% |
| High Light | 19 Inch Touch Monitor Anti Vandal,ATM SAW Touch Monitor,RoHS SAW Touch Monitor | ||
Product Description

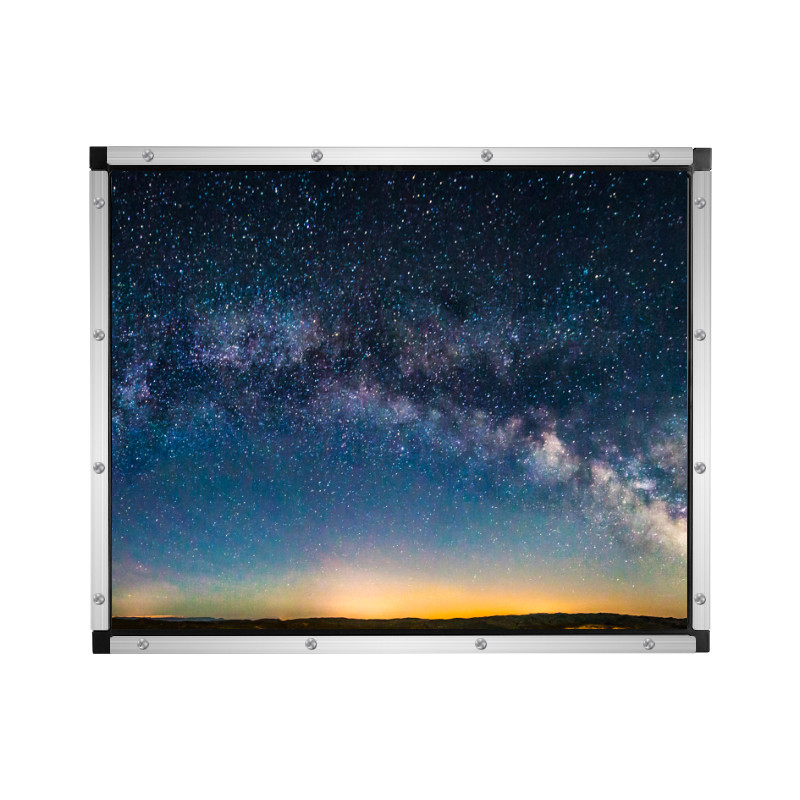

19 Inch SAW Touch Monitor Anti-Vandal 1000:1 Contrast For ATMs
Description of SAW Touch Monitor
1. This product comes with SAW touch technology, fast response and super interactive experience.
2. It is industrial grade SAW touch Monitor with anti-vandal and IP65 front frame waterproof function.

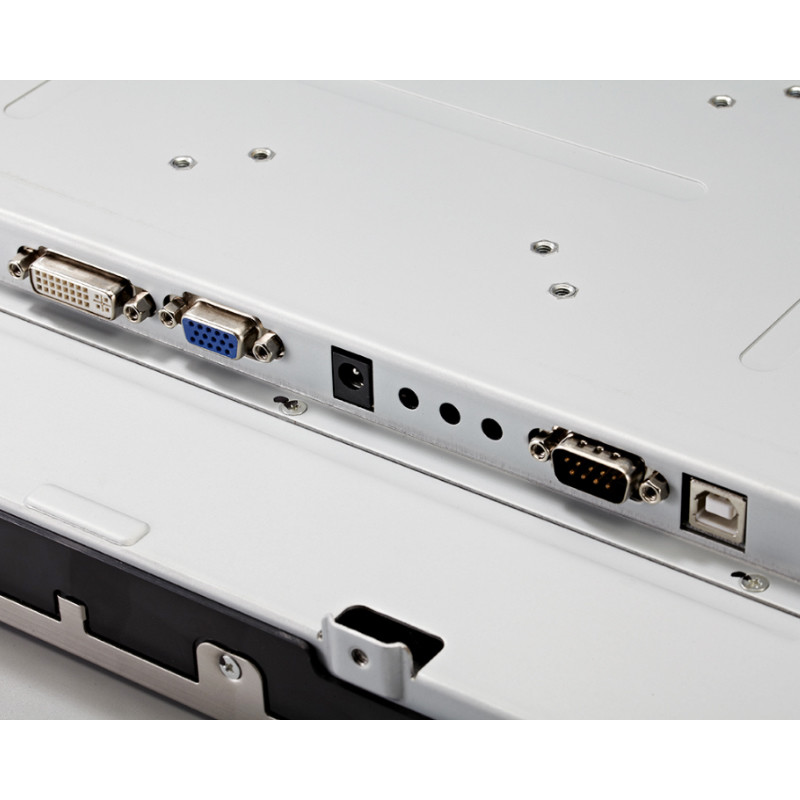

3. VGA & DVI interfaces and USB port are provided for use.
Specification of SAW Touch Monitor
Complete Machine | ||
Model No. | KOT-0190US-SA4BCW (P/N:KOT-190C-013) | |
Series | OT | |
Display Type | 5:4 Ratio 19" TFT-LCD | |
Active Area | 376.32*301.06 (mm) | |
Monitor Dimensions (W*H*D) | 416*344*54(mm) | |
Suggested Resolution | 1280x1024 @ 60Hz | |
Support Colors | 16.7M | |
Brightness (Typ.) | Pure LCD Panel | 250cd/㎡ |
With Touch Monitor | 225cd/㎡ | |
Response Time (Typ.) | 5ms | |
Viewing Angle(Typ.at CR＞10)） | Horizontal(left/right) | 85°/85° |
Vertical(up/down) | 80°/80° | |
Contrast Ratio (Typ.) | 1000:1 | |
Video Input | VGA/DVI | |
Frequency (H/V) | 37.9 -80KHz/ 60～75Hz | |
Power Supply | Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz | |
Environment | Operating Temp. | 0～50°C |
Operating RH | 20%～80% | |
Storage Temp. | -20～60°C | |
Storage RH | 10%～90% | |
MTBF | ≥50,000 Hours | |
LED Back Light Life (Typ.) | ≥50,000 Hours | |
Weight（N.W/G.W） | 5Kg(1pcs)/13.5Kg(2pcs in one package) | |
Package dimensions | 530*250*460(mm)(2pcs in one package) | |
Power Consumption | Standby Power: ≤1.5W / Operating Power: ≤20W | |
Mount Interface | 1. VESA 75mm and 100mm 2. Mount bracket, horizontal or vertical mount | |
OSD Control | Buttons | AUTO,+,POWER,-,MENU |
Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
CCC, ETL, FCC, CE, CB, RoHS | ||
Regular Warranty | 1 year | |
Touch Screen | |
Touch Type | 19" Surface acoustic wave touch screen |
Touch input | USB/RS232 |
Response Time | ≤8ms(USB) ; ≤12ms(RS232) |
Hardness | 7H |
Light Transmittance | ≥90% |
Support System | XP,WIN7,WIN8,WIN10,Linux,Android |
Active Area | 382*305(mm) |
Thickness | 4±0.1(mm) |
Touch Test | ≥50,000,000 times |
Input Voltage | DC 5V±5% |
NOTE :
① The display SPEC. are adjusted according to the selected LCD screen and touch screen
② The support system is adjusted according the specific system and version.
Applications
hdmi touchscreen monitor are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
Why choose us?
1. We are a leading provider of industrial grade touch products and touch solutions for over 17 years.
2. Our core competence is differentiated product customization. With over 40 professional R&D engineers, we can offer OEM and ODM services to meet customer’s individual requirements.
3. Our company has been approved by ISO9001 and ISO14001, and with the certifications CCC, UL, FCC, CE, CB, BIS, RoHS, etc. for the products.
4. Professional after-sales team at any time to provide services to customers.
Advantages of SAW Touch Monitor
1. Immunity to EMI/RFI interference: SAW touch technology is generally immune to electromagnetic interference (EMI) and radio frequency interference (RFI), ensuring reliable performance in environments with potential interference sources.
2. Low maintenance: wireless touch screen monitor do not have any coating or layers that can wear out over time, making them low maintenance and long-lasting.
3. Stylus compatibility: 24 lcd monitor can detect touch inputs from a variety of objects, including fingers, gloves, and styluses. This makes them versatile and suitable for a wide range of applications and user preferences.
FAQ
1. Can you produce the SAW Touch Monitor according to the customer's requirements?
Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.
2. What is your payment method?
We can accept T/T, Western Union, Paypal, Credit card and Alipay. ( L/C can be negotiable. )
3. What is your delivery time?
3-5 work days for inventory orders, 7-15 business days for bulk production.
