Dust Proof 10.4 Inch SAW DVI VGA Touch Monitor 4:3 Ratio For Kiosks
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Operating Temp | 0～50°C | Storage Temp. | -20～60°C |
|---|---|---|---|
| Operating RH | 20%～80% | Storage RH | 10%～90% |
| Regular Warranty | 1 Year | Support System | XP,WIN7,WIN8,WIN10 |
| Response Time | USB: 8.4ms | Video Input | VGA/DVI/HDMI |
| High Light | SAW VGA Touch Monitor,Dust Proof VGA Touch Monitor,10.4" SAW Touch Monitor | ||
Product Description

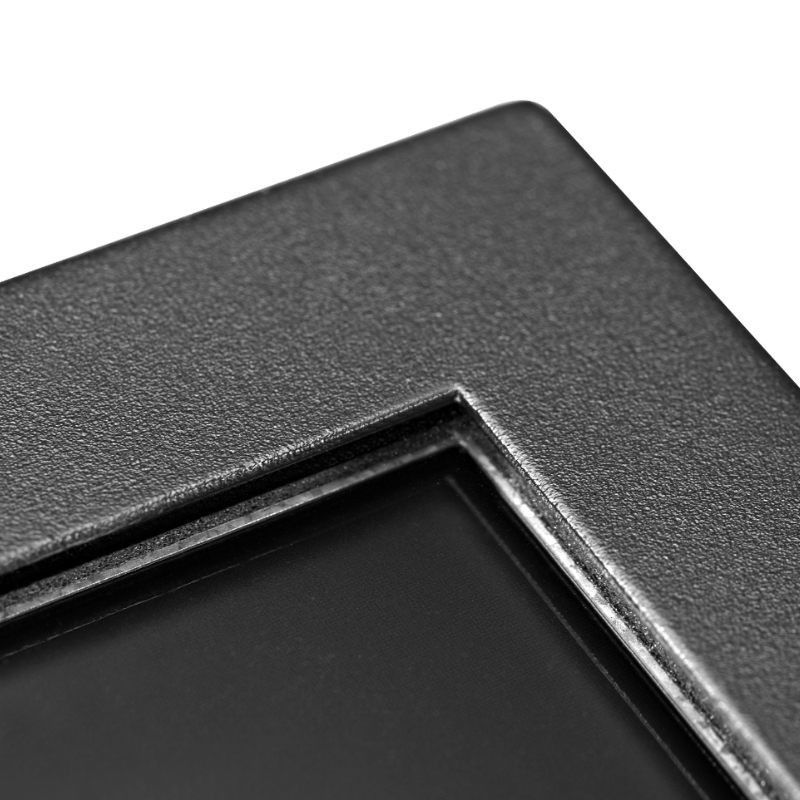

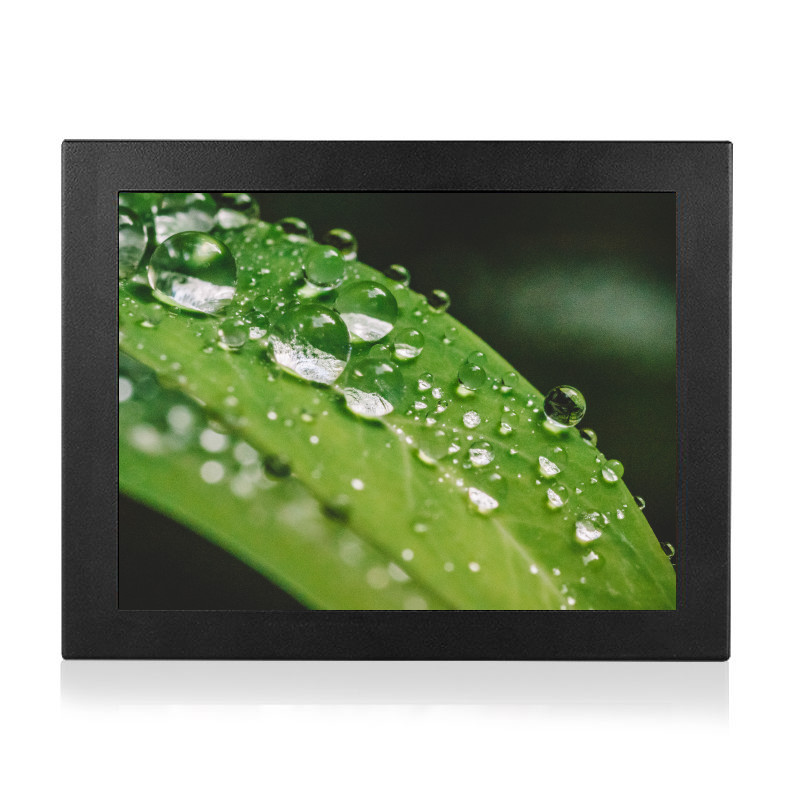

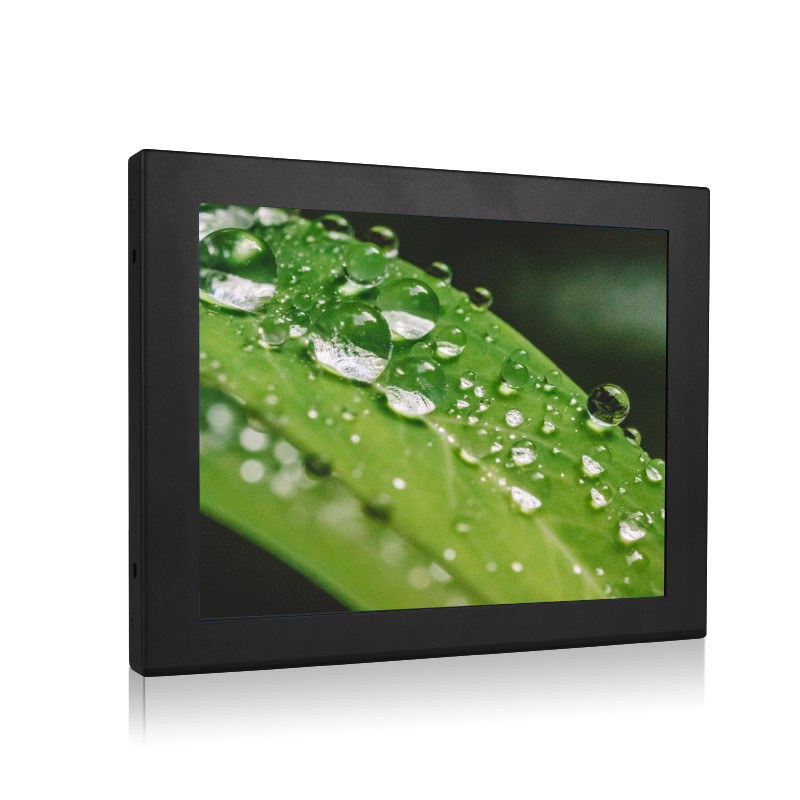

10.4 Inch SAW Touch Monitor 4:3 Ratio VGA DVI For Kiosks
Description of SAW Touch Monitor
SAW touch monitor uses ultrasonic waves to detect touch input. The product is highly durable and can withstand harsh environments. It also has good clarity and image quality, making them ideal for use in various applications. With our professional R&D team, customized services can be offered according to customer’s individual requirements.
SAW Touch Monitor Specifications
Complete Machine | ||
Model No. | KOT-0104U-SA4BP(P/N:KOT-104P-005) | |
Series | OT | |
Display Type | 4:3 Ratio 10.4＂Active matrix TFT-LCD | |
Active Area | 211.2×158.4(mm) | |
Monitor Dimensions (W*H*D) | 257*199*45.5(mm) | |
Suggested Resolution | ||
Support Colors | 16.2M | |
Brightness (Typ.) | Pure LCD Panel | 300cd/m² |
With Touch Monitor | 270cd/m² | |
Response Time (Typ.) | 30ms | |
Viewing Angle(Typ.at CR＞10)） | Horizontal(left/right):75°/75° | |
Vertical(up/down): 50°/60° | ||
Contrast Ratio (Typ.) | 500:1 | |
Video Input | VGA/DVI/HDMI | |
Frequency (H/V) | 30～80KHz / 60～75Hz | |
Power Supply | Type: External brick Display voltage: DC 12V±5% | |
Environment | Operating Temp. | 0～50°C |
Operating RH | 20%～80% | |
Storage Temp. | -20～60°C | |
Storage RH | 10%～90% | |
MTBF | ≥50,000 Hours | |
LED Back Light Life (Typ.) | ≥50,000 Hours | |
Weight（N.W/G.W） | 2.25Kg（1pcs）/6.55Kg（2pcs in one package）(Approx.) | |
Package dimensions | 330*220*280(mm)(2pcs in one package) | |
Power Consumption | Standby Power: ≤2W / Operating Power: ≤7W | |
Mount Interface | Mount bracket, horizontal or vertical mount | |
OSD Control | Buttons | AUTO,+,POWER,-,MENU |
Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
Touch Type | 10.4”SAW 4mm thickness of touch screen | |
Touch Input | USB | |
Response Time | 8.4ms | |
CCC, UL, FCC, CE, CB, RoHS | ||
Regular Warranty | 1 year | |
Applications
SAW Touch Monitor are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
Why Choose Us?
1. Quality products: All our products have passed strict quality inspection by the quality department before shipment.
2. Competitive pricing: With a strong supply chain, our products’ prices are very competitive.
3. Timely delivery: We have raw materials in stock all year round, the goods can be produced and sent out quickly.
4. Responsive Customer Service: Professional after-sales team at any time to provide services to customers.
FAQ
1. What package do you provide for the SAW Touch Monitor?
Our package usually is carton.
2. Do you have stock?
Yes, we have a large quantity of stock for our regular model products.
3. What are the shipping ways?
We will ship the goods according to customer's requirement. For sample, normally by FedEx, DHL, UPS, TNT. For bulk order, by air or by sea.
4. Do you give any discount for the SAW Touch Monitor?
We will do utmost to support you with the competitive price, also good service will be offered.
