10.4 Inch SAW Touch Monitor 500:1 Contrast Ratio For Smart Lockers

10.4 Inch SAW Touch Monitor 500:1 Contrast Ratio For Smart Lockers
10.4 Inch SAW Touch Monitor 500:1 Contrast Ratio For Smart Lockers 10.4 Inch SAW Touch Monitor 500:1 Contrast Ratio For Smart Lockers 10.4 Inch SAW Touch Monitor 500:1 Contrast Ratio For Smart Lockers 10.4 Inch SAW Touch Monitor 500:1 Contrast Ratio For Smart Lockers 10.4 Inch SAW Touch Monitor 500:1 Contrast Ratio For Smart Lockers 10.4 Inch SAW Touch Monitor 500:1 Contrast Ratio For Smart Lockers
Place of OriginShenzhen，China
Brand NameKeeTouch
CertificationCCC, UL, FCC, CE, CB, RoHS
Model NumberKOT-104P-005
Minimum Order Quantity1 piece
PriceNegotiable
Packaging Detailscarton box
Delivery Time7-15 work days
Payment TermsL/C, T/T, Western Union
Supply Ability1000 Pieces per Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Pure LCD Panel Brightness(Typ.)300cd/m²SAW Touch Panel Brightness270cd/m²
Horizontal Viewing Angle(left/right)75°/75°Vertical Viewing Angle(up/down)50°/60°
Operating Temp0～50°CStorage Temp.-20～60°C
Operating RH20%～80%Storage RH10%～90%
High Light

270cd/m² SAW Touch Monitor

,

SAW Touch Monitor 10.4"

,

VGA Touch Monitor For Smart Lockers

Leave a Message
Product Description

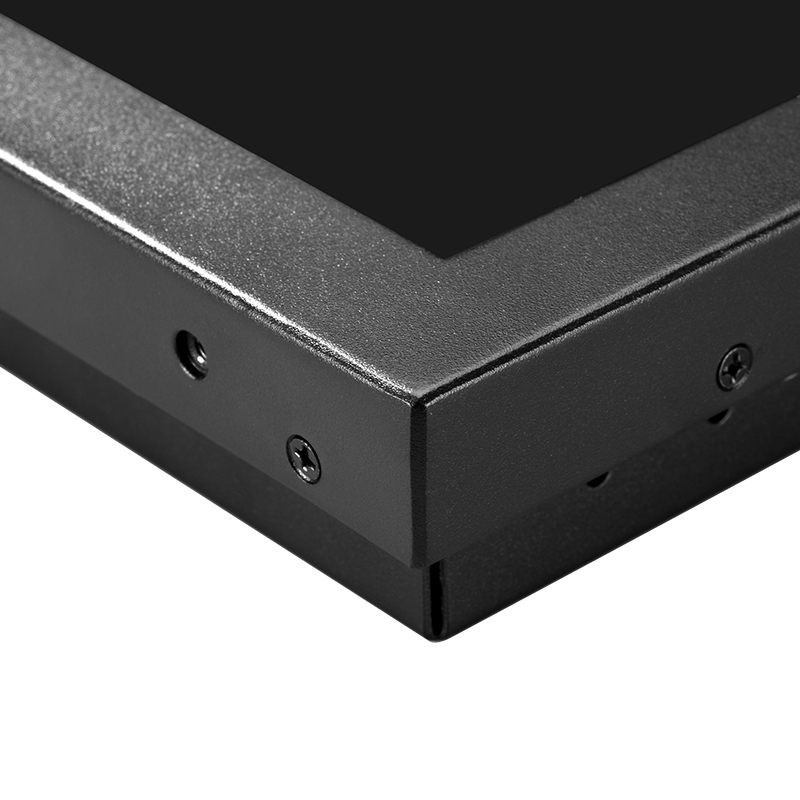

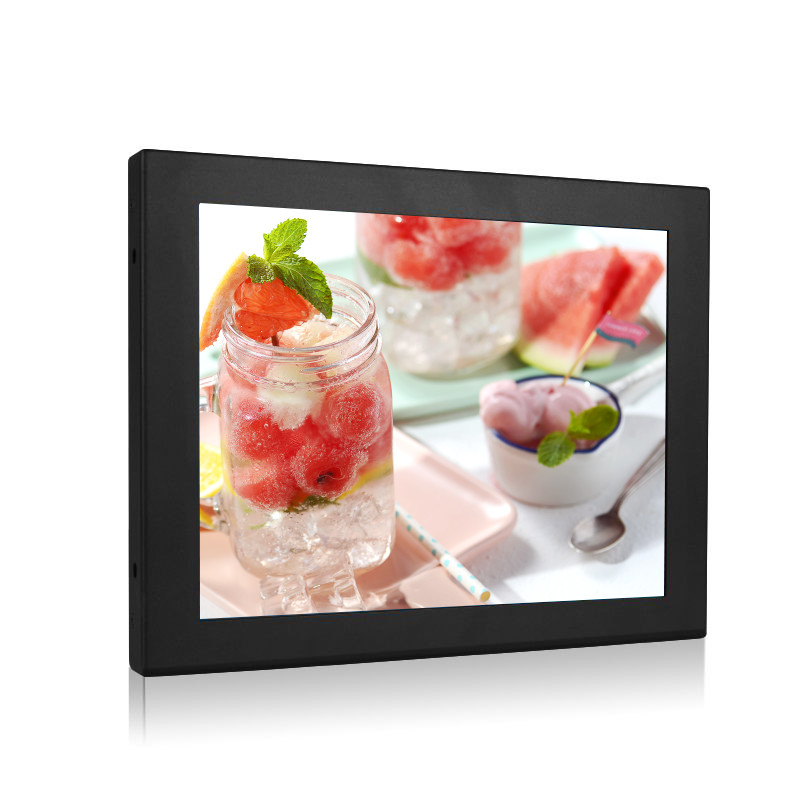

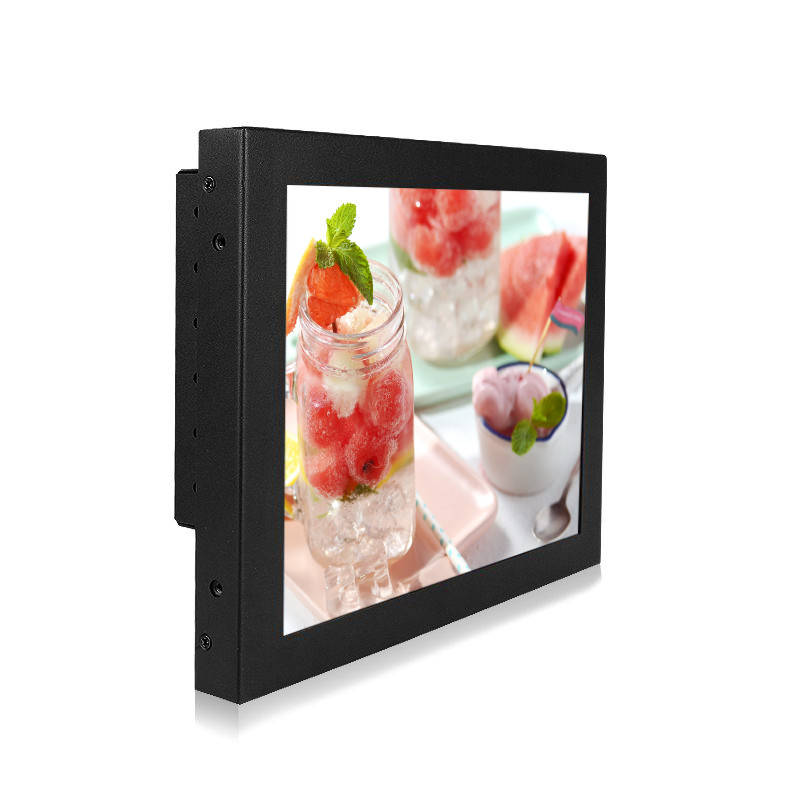

10.4 Inch SAW Touch Monitor 500:1 Contrast Ratio For Smart Lockers


Description of Industrial SAW Touch Screen Monitor

This product comes with SAW touchscreen technology, fast response, free of drift and accurate touch. It is industrial grade SAW touch Monitor with dust-proof function. VGA, DVI and HDMI interfaces and USB port are provided for use. Besides, OEM and ODM services are welcomed to meet your individual requirements. Support system: XP,WIN7,WIN8 and WIN10.





SAW Touch Monitor Specifications


 Complete Machine

 Model No.

KOT-0104U-SA4BP(P/N:KOT-104P-005)

 Series

OT

 Display Type

4:3 Ratio 10.4＂Active matrix TFT-LCD

 Active Area

211.2×158.4(mm)

 Monitor Dimensions (W*H*D)

257*199*45.5(mm)

 Suggested Resolution

800×600 (SVGA)

 Support Colors

16.2M

 Brightness (Typ.)

Pure LCD Panel

300cd/m²

With Touch Monitor

270cd/m²

 Response Time (Typ.)

30ms

 Viewing Angle(Typ.at CR＞10)）

Horizontal(left/right):75°/75°

Vertical(up/down): 50°/60°

 Contrast Ratio (Typ.)

500:1

 Video Input

VGADVIHDMI

 Frequency (H/V)

30～80KHz / 60～75Hz

 Power Supply

Type: External brick

Display voltage: DC 12V±5%
Input (line) voltage: 100-240 VAC, 50-60 Hz

 Environment

Operating Temp.

0～50°C

Operating RH

20%～80%

Storage Temp.

-20～60°C

Storage RH

10%～90%

 MTBF

≥50,000 Hours

 LED Back Light Life (Typ.)

≥50,000 Hours

 Weight（N.W/G.W）

2.25Kg（1pcs）/6.55Kg（2pcs in one package）(Approx.)

 Package dimensions

330*220*280(mm)(2pcs in one package)

 Power Consumption

Standby Power: ≤2W / Operating Power: ≤7W

 Mount Interface

Mount bracket, horizontal or vertical mount

 OSD Control

Buttons

 AUTO,+,POWER,-,MENU

Function

Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset

Touch Type

 10.4”SAW 4mm thickness of touch screen

Touch Input

 USB

Response Time

 8.4ms

 Agency approvals

 CCC, UL, FCC, CE, CB, RoHS

 Regular Warranty

1 year

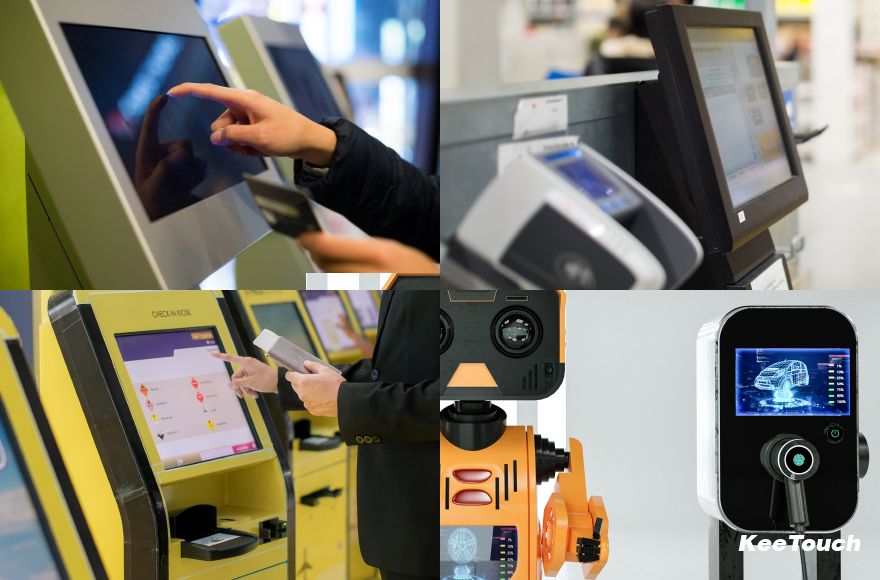

Touch Screen Monitor Applications



Waterproof SAW Touch Screen Monitor are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.


37






Why choose us?

1. We are a leading provider of industrial grade touch products and touch solutions since 2006.

2. Our core competence is differentiated product customization. With over 40 professional R&D engineers, we can offer OEM and ODM services to meet customer’s individual requirements.

3. Our company has been approved by ISO9001 and ISO14001, and with the certifications CCC, UL, FCC, CE, CB, BIS, RoHS, etc. for the products.

4. Professional after-sales team at any time to provide services to customers.




FAQ

1. Can you produce the SAW Touch Monitor according to the customer's requirements?

Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.



2. What is your payment method?

We can accept T/T, Western Union, Paypal, Credit card, and Alipay.(L/C can be negotiable.)



3. What is your delivery time?
3-5 work days for inventory orders, 7-15 business days for bulk production.
