SAW Dust Proof Outdoor And Indoor Kiosk Touch Monitor 10.4 Inch

SAW Dust Proof Outdoor And Indoor Kiosk Touch Monitor 10.4 Inch
SAW Dust Proof Outdoor And Indoor Kiosk Touch Monitor 10.4 Inch SAW Dust Proof Outdoor And Indoor Kiosk Touch Monitor 10.4 Inch SAW Dust Proof Outdoor And Indoor Kiosk Touch Monitor 10.4 Inch SAW Dust Proof Outdoor And Indoor Kiosk Touch Monitor 10.4 Inch
Place of OriginShenzhen，China
Brand NameKeeTouch
CertificationCCC, UL, FCC, CE, CB, RoHS
Model NumberKOT-104P-005
Minimum Order Quantity1 piece
PriceNegotiable
Packaging Detailscarton box
Delivery Time7-15 work days
Payment TermsL/C, T/T, Western Union
Supply Ability1000 Pieces per Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Type4:3Ratio 10.4＂Active Matrix TFT-LCDActive Area211.2×158.4(mm)
Contrast Ratio500:1Video InputVGA、DVI、HDMI
Support Colors16.2MSupport SystemXP,WIN7,WIN8,WIN10
Suggested Resolution800×600 (SVGA)Product NameSAW Touch Monitor
High Light

10.4" Kiosk Touch Monitor

,

Dust Proof Kiosk Touch Monitor

,

Indoor Kiosk SAW Touch Monitor

Leave a Message
Product Description

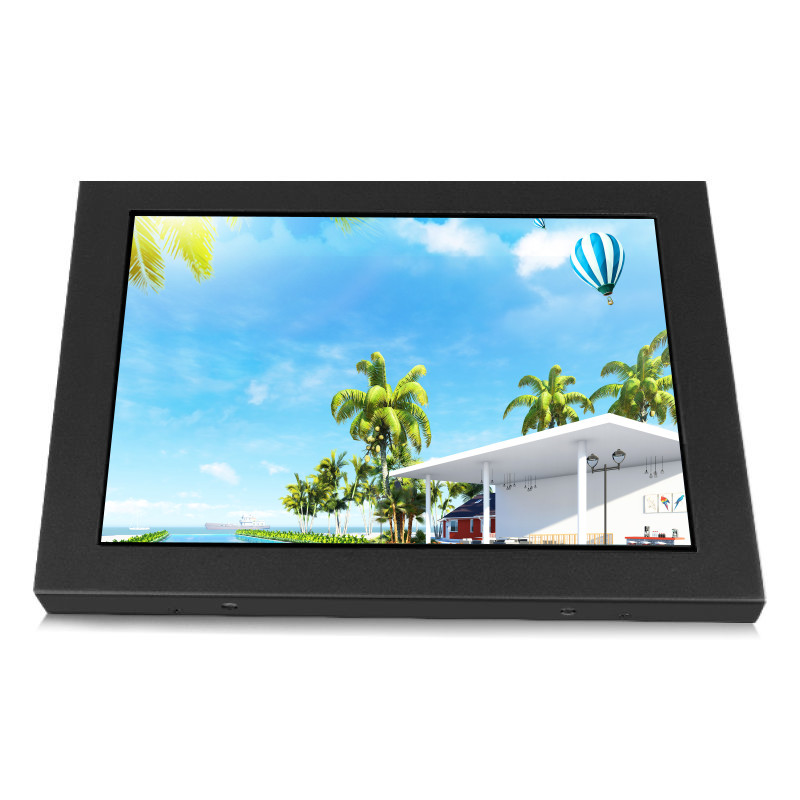

10.4 Inch SAW Monitor Touch Dust-Proof Outdoor And Indoor Kiosk


Description of SAW Touch Monitor


This 10.4 inch SAW touch Screen comes with main specifications as below: IP65 waterproof, dust-proof and vandal-proof, 4:3 ratio, 800*600 resolution, 500:1 contrast ratio. This industrial grade SAW touch monitor delivers super great interactive experience.What’s more, KeeTouch pays great importance to product quality, so all our products come with global certifications, such as FCC, CE, RoHS, UL, etc.





Surface Acoustic Wave Touch Screen Specifications


 Complete Machine

 Model No.

KOT-0104U-SA4BP(P/N:KOT-104P-005)

 Series

OT

 Display Type

4:3 Ratio 10.4＂Active matrix TFT-LCD

 Active Area

211.2×158.4(mm)

 Monitor Dimensions (W*H*D)

257*199*45.5(mm)

 Suggested Resolution

800×600 (SVGA)

 Support Colors

16.2M

 Brightness (Typ.)

Pure LCD Panel

300cd/m²

With Touch Monitor

270cd/m²

 Response Time (Typ.)

30ms

 Viewing Angle(Typ.at CR＞10)）

Horizontal(left/right):75°/75°

Vertical(up/down): 50°/60°

 Contrast Ratio (Typ.)

500:1

 Video Input

VGADVIHDMI

 Frequency (H/V)

30～80KHz / 60～75Hz

 Power Supply

Type: External brick

Display voltage: DC 12V±5%
Input (line) voltage: 100-240 VAC, 50-60 Hz

 Environment

Operating Temp.

0～50°C

Operating RH

20%～80%

Storage Temp.

-20～60°C

Storage RH

10%～90%

 MTBF

≥50,000 Hours

 LED Back Light Life (Typ.)

≥50,000 Hours

 Weight（N.W/G.W）

2.25Kg（1pcs）/6.55Kg（2pcs in one package）(Approx.)

 Package dimensions

330*220*280(mm)(2pcs in one package)

 Power Consumption

Standby Power: ≤2W / Operating Power: ≤7W

 Mount Interface

Mount bracket, horizontal or vertical mount

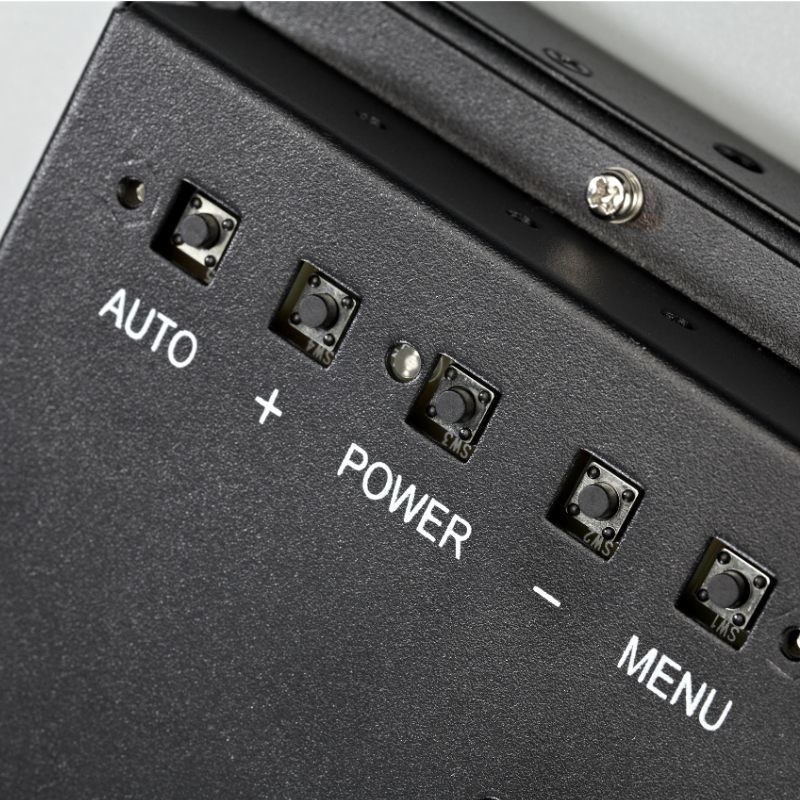

 OSD Control

Buttons

 AUTO,+,POWER,-,MENU

Function

Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset

Touch Type

 10.4”SAW 4mm thickness of touch screen

Touch Input

 USB

Response Time

 8.4ms

 Agency approvals

 CCC, UL, FCC, CE, CB, RoHS

 Regular Warranty

1 year






Best SAW Touch Screen Monitor Applications

  • Retail
  • Gaming
  • Kiosk
  • self-service
  • Finance
  • Transit
  • Conference
  • Education
  • Healthcare
  • public service
  • e-commerce
  • Hotels

  • restaurants





Advantages of SAW Touch Monitor

1. High Clarity: Surface Acoustic Wave Monitor maintain high clarity and contrast levels, even when viewed from different angles or under varying lighting conditions, providing a clear and vibrant display.


2. High Sensitivity: SAW Touch Panel are highly sensitive and can detect even the slightest touch or gesture, providing a responsive and accurate user experience.



3. Durability: SAW Touchscreen Monitor are highly durable and can withstand heavy usage, making them ideal for use in public places such as retail stores, museums, and airports.





Why choose us?

  • 5 production lines including 3 touch screen lines,1 touch monitor line and 1 hardware accessories line.
  • Comply with ISO9001 quality system,ISO14001 environment management system and OC080000 limit harmful material management system certifications.
  • Branch offices widely spreads all over the world,such as Russia,Brazil,Germany and India etc.
  • Developing a large number of agents and distributors,offering world-wide sales networks and comprehensive after-sale service system.




FAQ

1. Are you a manufacturer?

Yes, KeeTouch is a professional touch product manufacturer for over 16 years, located in Shenzhen, China.



2. What’s your MOQ for the SAW Touch Monitor?

Our minimum order quantity is 1pc only.



3. What is your warranty period for the SAW Touch Monitor?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
