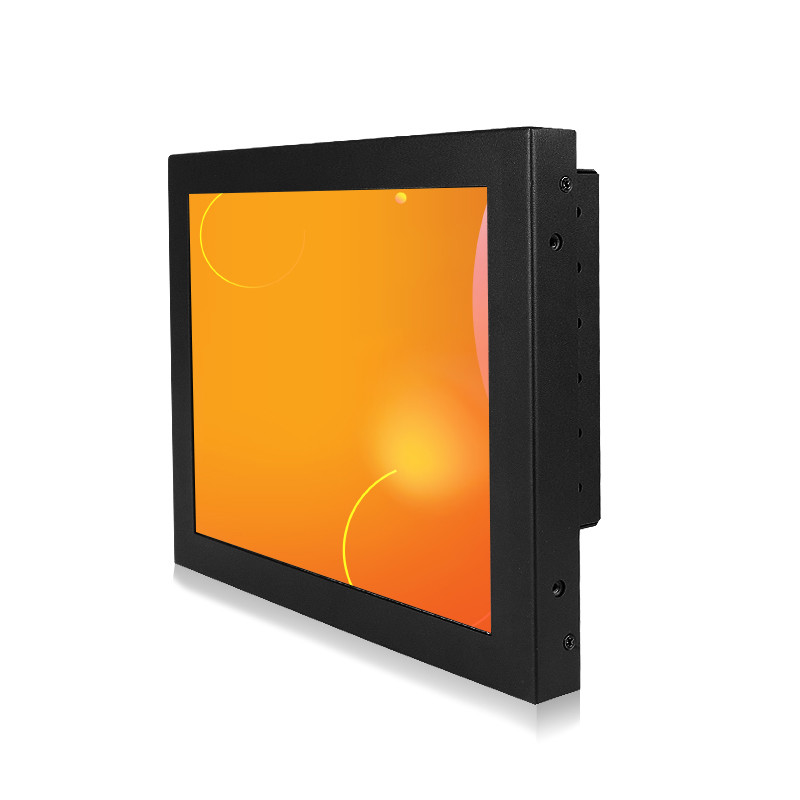

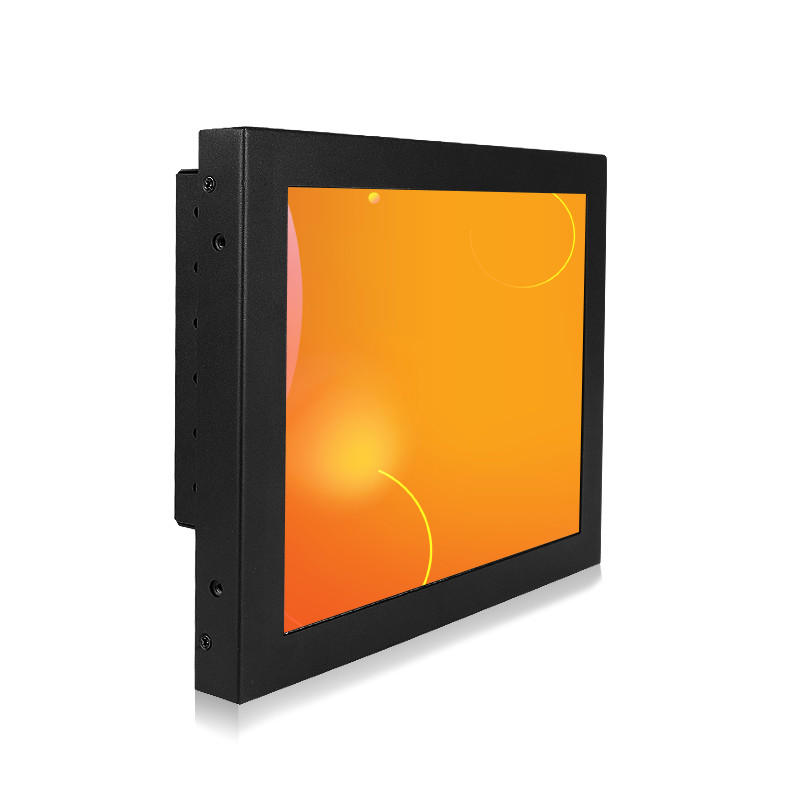

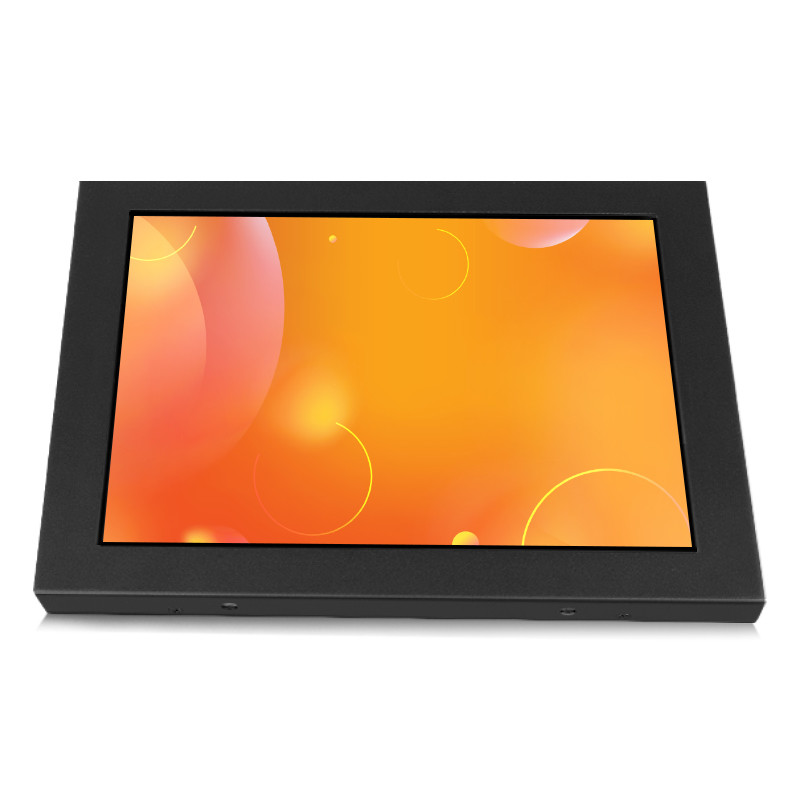

SAW 10.4 Inch VGA Touch Monitor For Smart Lockers

SAW 10.4 Inch VGA Touch Monitor For Smart Lockers
SAW 10.4 Inch VGA Touch Monitor For Smart Lockers SAW 10.4 Inch VGA Touch Monitor For Smart Lockers SAW 10.4 Inch VGA Touch Monitor For Smart Lockers SAW 10.4 Inch VGA Touch Monitor For Smart Lockers SAW 10.4 Inch VGA Touch Monitor For Smart Lockers SAW 10.4 Inch VGA Touch Monitor For Smart Lockers
Place of OriginShenzhen，China
Brand NameKeeTouch
CertificationCCC, UL, FCC, CE, CB, RoHS
Model NumberKOT-104P-002
Minimum Order Quantity1 piece
PriceNegotiable
Packaging Detailscarton box
Delivery Time7-15 work days
Payment TermsL/C, T/T, Western Union
Supply Ability1000 Pieces per Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Light Transmittance≥90%Support SystemXP,WIN7,WIN8,WIN10
Hardness7HViewing AngleVertical(up/down)：50°/60°
Contrast Ratio (Typ.)500:1Storage Temp.-20～60°C
Storage RH10%～90%
High Light

7H Hardness SAW Touch Monitor

,

Smart Lockers VGA Touch Monitor

,

VGA Interface SAW Touch Monitor

Leave a Message
Product Description




10.4 Inch SAW Touch Monitor VGA Interface For Smart Lockers


Description of SAW Touch Monitor


SAW touch monitor uses ultrasonic waves to detect touch input. The product is highly durable and can withstand harsh environments. It also has good clarity and image quality, making them ideal for use in various applications.






SAW Touch Monitor Specifications


 Complete Machine

 Model No.

 KOT-0104U-SA4BP (P/N:KOT-104P-002)

 Series

 OT

 Display Type

4:3 Ratio 10.4" TFT-LCD

 Active Area

211.2*158.4(mm)

 Monitor Dimensions (W*H*D)

 257*199*45.5(mm)

 Suggested Resolution

800*600 @ 60Hz

 Support Colors

16.7M

 Brightness (Typ.)

Pure LCD Panel

300cd/m2

With Touch Monitor

270cd/m2

 Response Time (Typ.)

20ms

 Viewing Angle(Typ.at CR＞10)）

 Horizontal(left/right)

 75°/75°

 Vertical(up/down)

 50°/60°

 Contrast Ratio (Typ.)

 500:1

 Video Input

 VGA

 Frequency (H/V)

 37.9～46.9KHz / 60～75Hz

 Power Supply

Type: External brick

Display voltage: DC 12V±5%

Input (line) voltage: 100-240 VAC, 50-60 Hz

 Environment

Operating Temp.

0～50°C

Operating RH

20%～80%

Storage Temp.

-20～60°C

Storage RH

10%～90%

 MTBF

50,000 Hours

 LED Back Light Life (Typ.)

50,000 Hours

 Weight（N.W/G.W）

 2.25Kg(1pcs) / 6.55Kg(2pcs in one package)

 Package dimensions

 330*220*280(mm)(2pcs in one package)

 Power Consumption

Standby Power: ≤1W / Operating Power: ≤8W

 Mount Interface

 1.VESA 75mm

 2.Mount bracket, horizontal or vertical mount



 OSD Control

Buttons

 AUTO,+,POWER,-,MENU

Function

Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset

 Agency approvals

 CCC, ETL, FCC, CE, CB, RoHS

 Regular Warranty

1 year





Touch Screen

Touch Type

10.4" Surface acoustic wave touch screen

Touch input

USB

Response Time

≤8ms

Hardness

7H

Light Transmittance

≥90%

Support System

XP,WIN7,WIN8,WIN10

Active Area

212*159(mm)

Thickness

4.0±0.1(mm)

Touch Test

50,000,000 times

Input Voltage

5V






Touch screen wall monitor Applications


SAW Touch Monitor are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.



50





Feature of PCAP Touch Monitor

High image clarity: big touch screen monitor can provide excellent image clarity because there is no touch overlay layer on the screen surface.


Resistance to external factors: lcd monitor touch screen are scratch-resistant and can function normally even when exposed to extreme temperatures or high humidity.





Why choose us?

1. Quality products: All our products have passed strict quality inspection by the quality department before shipment.



2. Competitive pricing: With a strong supply chain, our products’ prices are very competitive.



3. Timely delivery: We have raw materials in stock all year round, the goods can be produced and sent out quickly.



4. Responsive Customer Service: Professional after-sales team at any time to provide services to customers.






FAQ:

1. What package do you provide for the SAW Touch Monitor?

Our package usually is carton.



2. Do you have stock?

Yes, we have a large quantity of stock for our regular model products.



3. What are the shipping ways?

We will ship the goods according to customer’s requirement. For sample, normally by FedEx, DHL, UPS, TNT. For bulk order, by air or by sea.



4. Do you give any discount for the open frame display?

We will do utmost to support you with the competitive price, also good service will be offered.
