Pure LCD Panel 10.4 Inch SAW Touch Monitor Anti Vandal For Kiosks

Pure LCD Panel 10.4 Inch SAW Touch Monitor Anti Vandal For Kiosks
Pure LCD Panel 10.4 Inch SAW Touch Monitor Anti Vandal For Kiosks Pure LCD Panel 10.4 Inch SAW Touch Monitor Anti Vandal For Kiosks Pure LCD Panel 10.4 Inch SAW Touch Monitor Anti Vandal For Kiosks Pure LCD Panel 10.4 Inch SAW Touch Monitor Anti Vandal For Kiosks Pure LCD Panel 10.4 Inch SAW Touch Monitor Anti Vandal For Kiosks Pure LCD Panel 10.4 Inch SAW Touch Monitor Anti Vandal For Kiosks
Place of OriginShenzhen，China
Brand NameKeeTouch
CertificationCCC, UL, FCC, CE, CB, RoHS
Model NumberKOT-104P-002
Minimum Order Quantity1 piece
PriceNegotiable
Packaging Detailscarton box
Delivery Time7-15 work days
Payment TermsL/C, T/T, Western Union
Supply Ability1000 Pieces per Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Light Transmittance≥90%Brightness (Typ.)Pure LCD Panel：300cd/m²
Hardness7HViewing AngleVertical(up/down)：50°/60°
Frequency (H/V)37.9～46.9KHz / 60～75HzOperating Temp.0～50°C
Storage Temp.-20～60°C

High Light

10.4 Inch SAW Touch Monitor

,

300cd/m² SAW Touch Monitor

,

Kiosk Touch Monitor Anti Vandal

Leave a Message
Product Description

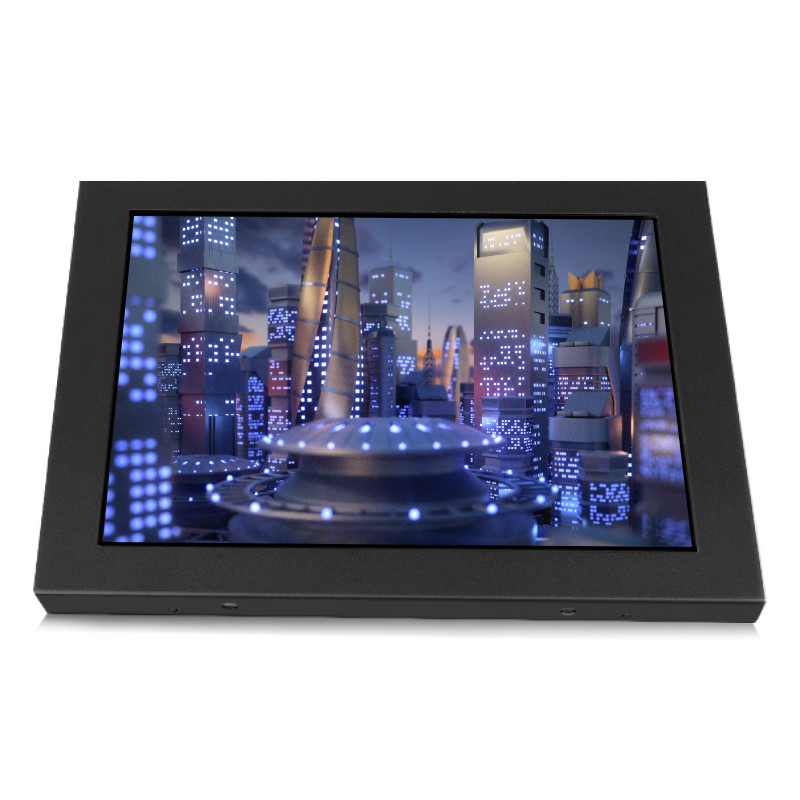

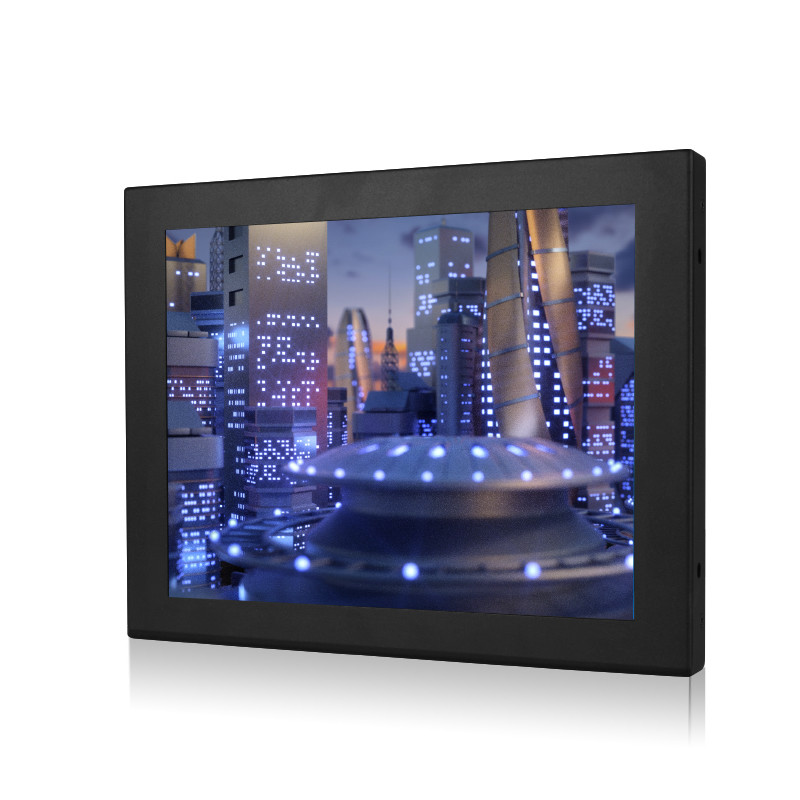

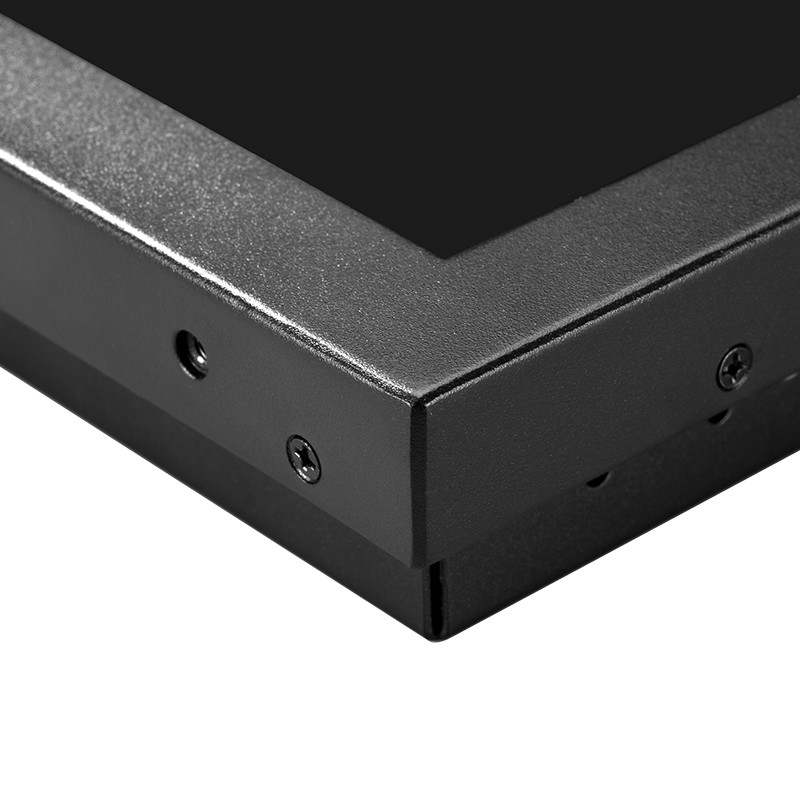

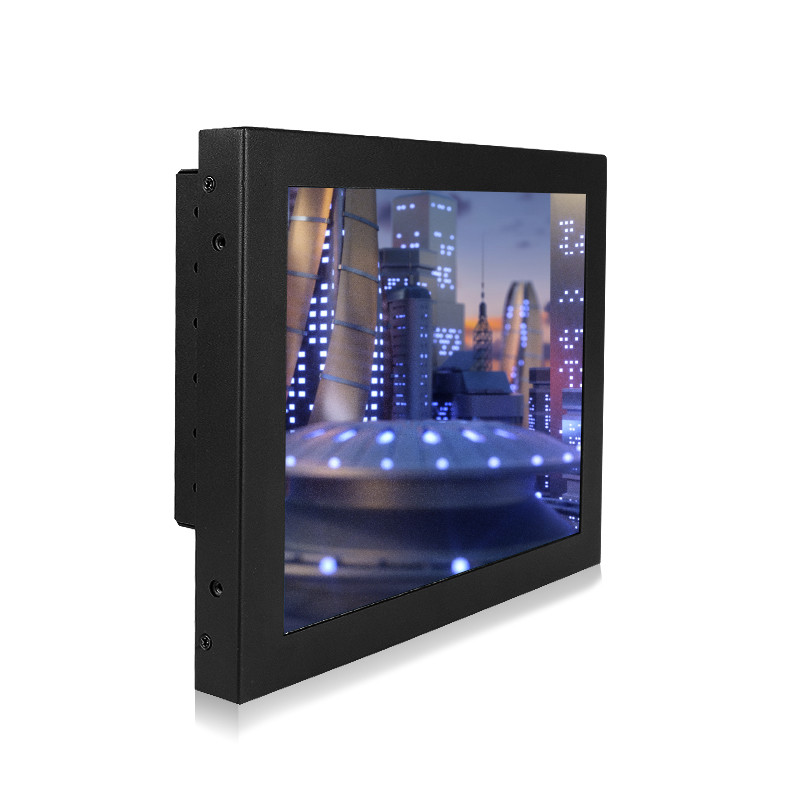

10.4 Inch SAW Touch Monitor Anti-Vandal For Kiosks


Description of SAW Touch Monitor


This product comes with SAW touchscreen technology, fast response and accurate touch. It is industrial grade SAW touch Monitor with anti-vandal function. VGA interface and USB port are provided for use. Moreover, OEM and ODM services are welcomed.





SAW Touch Monitor Specifications


 Complete Machine

 Model No.

 KOT-0104U-SA4BP (P/N:KOT-104P-002)

 Series

 OT

 Display Type

4:3 Ratio 10.4" TFT-LCD

 Active Area

211.2*158.4(mm)

 Monitor Dimensions (W*H*D)

 257*199*45.5(mm)

 Suggested Resolution

800*600 @ 60Hz

 Support Colors

16.7M

 Brightness (Typ.)

Pure LCD Panel

300cd/m2

With Touch Monitor

270cd/m2

 Response Time (Typ.)

20ms

 Viewing Angle(Typ.at CR＞10)）

 Horizontal(left/right)

 75°/75°

 Vertical(up/down)

 50°/60°

 Contrast Ratio (Typ.)

 500:1

 Video Input

 VGA

 Frequency (H/V)

 37.9～46.9KHz / 60～75Hz

 Power Supply

Type: External brick

Display voltage: DC 12V±5%

Input (line) voltage: 100-240 VAC, 50-60 Hz

 Environment

Operating Temp.

0～50°C

Operating RH

20%～80%

Storage Temp.

-20～60°C

Storage RH

10%～90%

 MTBF

50,000 Hours

 LED Back Light Life (Typ.)

50,000 Hours

 Weight（N.W/G.W）

 2.25Kg(1pcs) / 6.55Kg(2pcs in one package)

 Package dimensions

 330*220*280(mm)(2pcs in one package)

 Power Consumption

Standby Power: ≤1W / Operating Power: ≤8W

 Mount Interface

 1.VESA 75mm

 2.Mount bracket, horizontal or vertical mount



 OSD Control

Buttons

 AUTO,+,POWER,-,MENU

Function

Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset

 Agency approvals

 CCC, ETL, FCC, CE, CB, RoHS

 Regular Warranty

1 year


Touch Screen

Touch Type

10.4" Surface acoustic wave touch screen

Touch input

USB

Response Time

≤8ms

Hardness

7H

Light Transmittance

≥90%

Support System

XP,WIN7,WIN8,WIN10

Active Area

212*159(mm)

Thickness

4.0±0.1(mm)

Touch Test

50,000,000 times

Input Voltage

5V





Open frame monitor Applications


industrial display monitors are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.


52





Feature of PCAP Touch Monitor


High sensitivity and accuracy: touch display monitor have high sensitivity and accuracy due to the use of ultrasound for touch detection.


Multi-touch functionality: Some SAW touch screen monitors support multi-touch functionality.


Durability: 24 touch screen monitor have high durability because the touch screen components are sealed behind a glass protective layer.





Why choose us?


1. We are a leading provider of industrial grade full hd monitor and touch solutions for over 17 years.



2. Our core competence is differentiated product customization. With over 40 professional R&D engineers, we can offer OEM and ODM services to meet customer’s individual requirements.



3. Our company has been approved by ISO9001 and ISO14001, and with the certifications CCC, UL, FCC, CE, CB, BIS, RoHS, etc. for the products.



4. Professional after-sales team at any time to provide services to customers.





FAQ:


1. Can you produce the SAW Touch Monitor according to the customer's requirements?

Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.



2. What is your payment method?

We can accept T/T, Western Union, Paypal, Credit card, and Alipay.(L/C can be negotiable.)



3. What is your delivery time?

4. 3-5 work days for inventory orders, 7-15 business days for bulk production.
