10.4 Inch SAW TFT LCD Touch Monitor 4:3 Ratio For Smart Lockers

10.4 Inch SAW TFT LCD Touch Monitor 4:3 Ratio For Smart Lockers
10.4 Inch SAW TFT LCD Touch Monitor 4:3 Ratio For Smart Lockers 10.4 Inch SAW TFT LCD Touch Monitor 4:3 Ratio For Smart Lockers 10.4 Inch SAW TFT LCD Touch Monitor 4:3 Ratio For Smart Lockers 10.4 Inch SAW TFT LCD Touch Monitor 4:3 Ratio For Smart Lockers 10.4 Inch SAW TFT LCD Touch Monitor 4:3 Ratio For Smart Lockers 10.4 Inch SAW TFT LCD Touch Monitor 4:3 Ratio For Smart Lockers 10.4 Inch SAW TFT LCD Touch Monitor 4:3 Ratio For Smart Lockers
Place of OriginShenzhen，China
Brand NameKeeTouch
CertificationCCC, UL, FCC, CE, CB, RoHS
Model NumberKOT-104P-002
Minimum Order Quantity1 piece
PriceNegotiable
Packaging Detailscarton box
Delivery Time7-15 work days
Payment TermsL/C, T/T, Western Union
Supply Ability1000 Pieces per Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Type4:3Ratio 10.4＂Active Matrix TFT-LCDBrightness (Typ.)Pure LCD Panel：300cd/m²
Support Colors16.2MViewing AngleHorizontal(left/right)：75°/75°
Contrast Ratio500:1Frequency (H/V)37.9～46.9KHz / 60～75Hz
Regular Warranty1 YearMount InterfaceVESA 75mm
High Light

SAW TFT LCD Touch Monitor

,

Smart Lockers TFT LCD Touch Monitor

,

SAW Touch Monitor UL

Leave a Message
Product Description





10.4 Inch SAW Touch Monitor 4:3 Ratio For Smart Lockers



Description of SAW Touch Monitor


This industrial touch monitor has main features as below: 4:3 display type, 800*600 resolution, 500:1 contrast. Moreover, with our professional R&D team, customized services can be offered per customer’s individual requirements.






SAW Touch Monitor Specifications


 Complete Machine

 Model No.

 KOT-0104U-SA4BP (P/N:KOT-104P-002)

 Series

 OT

 Display Type

4:3 Ratio 10.4" TFT-LCD

 Active Area

211.2*158.4(mm)

 Monitor Dimensions (W*H*D)

 257*199*45.5(mm)

 Suggested Resolution

800*600 @ 60Hz

 Support Colors

16.7M

 Brightness (Typ.)

Pure LCD Panel

300cd/m2

With Touch Monitor

270cd/m2

 Response Time (Typ.)

20ms

 Viewing Angle(Typ.at CR＞10)）

 Horizontal(left/right)

 75°/75°

 Vertical(up/down)

 50°/60°

 Contrast Ratio (Typ.)

 500:1

 Video Input

 VGA

 Frequency (H/V)

 37.9～46.9KHz / 60～75Hz

 Power Supply

Type: External brick

Display voltage: DC 12V±5%

Input (line) voltage: 100-240 VAC, 50-60 Hz

 Environment

Operating Temp.

0～50°C

Operating RH

20%～80%

Storage Temp.

-20～60°C

Storage RH

10%～90%

 MTBF

50,000 Hours

 LED Back Light Life (Typ.)

50,000 Hours

 Weight（N.W/G.W）

 2.25Kg(1pcs) / 6.55Kg(2pcs in one package)

 Package dimensions

 330*220*280(mm)(2pcs in one package)

 Power Consumption

Standby Power: ≤1W / Operating Power: ≤8W

 Mount Interface

 1.VESA 75mm

 2.Mount bracket, horizontal or vertical mount

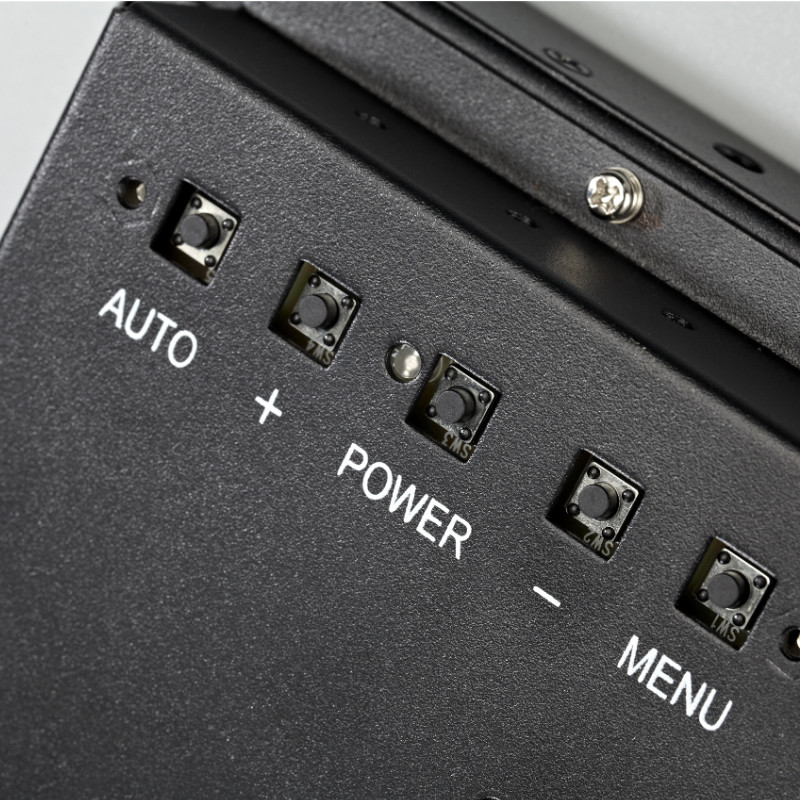

 OSD Control

Buttons

 AUTO,+,POWER,-,MENU

Function

Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset

 Agency approvals

 CCC, ETL, FCC, CE, CB, RoHS

 Regular Warranty

1 year



Touch Screen

Touch Type

10.4" Surface acoustic wave touch screen

Touch input

USB

Response Time

≤8ms

Hardness

7H

Light Transmittance

≥90%

Support System

XP,WIN7,WIN8,WIN10

Active Area

212*159(mm)

Thickness

4.0±0.1(mm)

Touch Test

50,000,000 times

Input Voltage

5V







Open frame lcd monitor Applications


  •  Retail
  •  Gaming
  •  Kiosk
  •  self-service
  •  Finance
  •  Transit
  •  Conference
  •  Education
  •  Healthcare
  •  public service
  •  e-commerce
  •  Hotels
  •  restaurants



147





Why choose us?

  • High-tech and innovative enterprise
  • More than 175+ design patents
  • Completely and strictly quality control system
  • 30,000+ manufacturing capacity per year
  • Efficient Warehousing and Logistics




Advantages of SAW Touch Monitor

1. High Clarity: large touch screen monitor maintain high clarity and contrast levels, even when viewed from different angles or under varying lighting conditions, providing a clear and vibrant display.



2. High Sensitivity: touch screen lcd monitor are highly sensitive and can detect even the slightest touch or gesture, providing a responsive and accurate user experience.



3. Durability: touch screen display are highly durable and can withstand heavy usage, making them ideal for use in public places such as retail stores, museums, and airports.





FAQ:

1. Are you a manufacturer?

Yes, KeeTouch is a professional touch screen monitor manufacturer since 2006, located in Shenzhen, China.



2. What’s your MOQ for the SAW Touch Monitor?

Our minimum order quantity is 1pc only.



3. What is your warranty period for the SAW Touch Monitor?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
