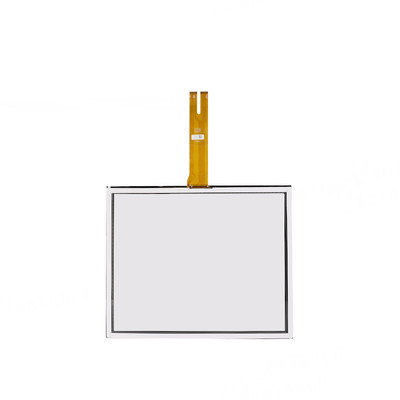

19 Inch PCAP Touch Screen Projected Capacitive 10 Points For Self Service Kiosk

19 Inch PCAP Touch Screen Projected Capacitive 10 Points For Self Service Kiosk
19 Inch PCAP Touch Screen Projected Capacitive 10 Points For Self Service Kiosk 19 Inch PCAP Touch Screen Projected Capacitive 10 Points For Self Service Kiosk
Place of OriginShenzhen，China
Brand NameKeeTouch
CertificationCCC, UL, FCC, CE, CB, RoHS
Model NumberZE220-070
Minimum Order Quantity1 piece
PriceNegotiale
Packaging Detailscarton box
Delivery Time7-15 work days
Payment TermsL/C, T/T, Western Union
Supply Ability10000 pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product NamePCAP Touch ScreenInput Voltage5V
Response Time10sTouch ICILI2510
Interface TypeUSBNumber Of Touch Point1 Point Touch in XP, 10 Points Touch in Win7, Win8 OS
Active Area(L*W)411.50*259.90Thickness4.3±0.3mm
High Light

19 Inch PCAP Touch Screen

,

PCAP Touch Screen Projected Capacitive

,

Kiosk  projected capacitive touch screen

Leave a Message
Product Description


19 Inch Projected Capacitive Touch Screen 10 Points For Kiosk Self-Service



Projected Capacitive Touch Screen Main Features

Projected capacitive technologies detect touch by measuring the capacitance at each addressable electrode.

When a finger or a conductive stylus approaches an electrode, it disturbs the electromagnetic field and alters the capacitance. This change in capacitance can be measured by the electronics and then converted into X,Y locations that the system can use to detect touch

1) Extremely durable

2) Very accurate

3) Good optical clarity

4) Good resolution





Projected Capacitive Touch Screen Specifications

Item

Contents

Type

Projected capacitive touch   panel

Size

19 inch

Thickness

3.85±0.3

Outline Dimension

421x346±0.2mm

Active Area (L*W)

378.32x303.06mm

View Area

377.32x302.06±0.3mm

ITO Glass thickness

0.7mm±0.1mm

Cover lens thickness

3.00mm±0.2mm

Touch IC

ILI2510

Interface Type

USB

Number of touch point

1point touch in XP

10 points touch in   win7,win8,linux

Input voltage

5V

Response time

10 ms

Pressure endurance value

<10g

Input

Hand writing or capacitive   pen

Transmittance

>85%

Surface Hardness

≥6H

Resolution

16384 x 9600 points





Applications

KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.






FAQ

1. Are you a manufacturer of Projected Capacitive Touch Screen?

Yes, KeeTouch is the direct factory, can provide one full set service: design-produce-installation-test-package and so on


2. Why we can trust you as our Projected Capacitive Touch Screen suppplier?

Our company has been in this line for 16 years.We've got quite a lot authority certificates,for example, ISO9001, ISO14000,CE,CC,RoHS,FCC,you can got browse Alibaba onsite check certificate.


3.What about the pakage of Projected Capacitive Touch Screen?

Package usually is carton/ wooden/ flight case for choice. we also can provide custom service according to requirment.


 4. Do you have stock for Projected Capacitive Touch Screen?

Yes, we have 1000 unites of various size and model for normal model per month.


5. What is your delivery time for the Projected Capacitive Touch Screen?

3-5 work days for inventory orders, 7-15 business days for bulk production.


6. What’s your MOQ for the Projected Capacitive Touch Screen?

Our minimum order quantity is 1pc only.
