xProduct Details
Product Description

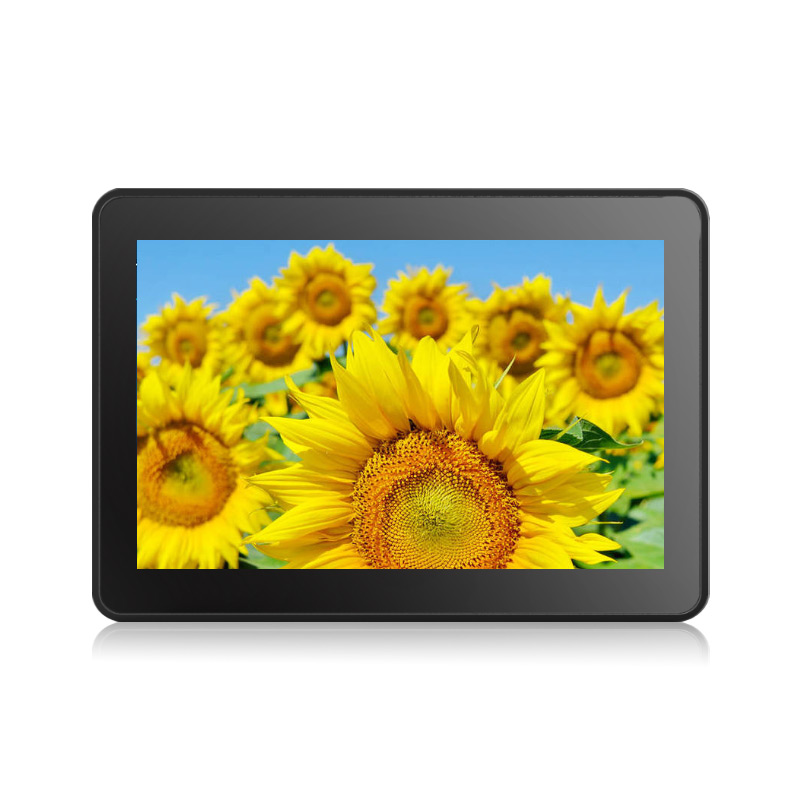

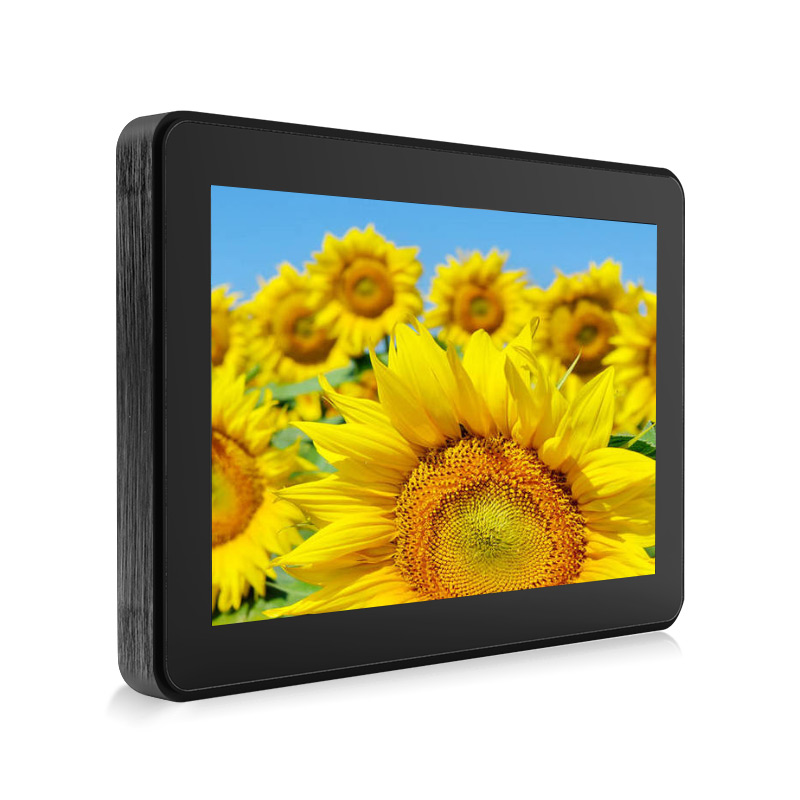

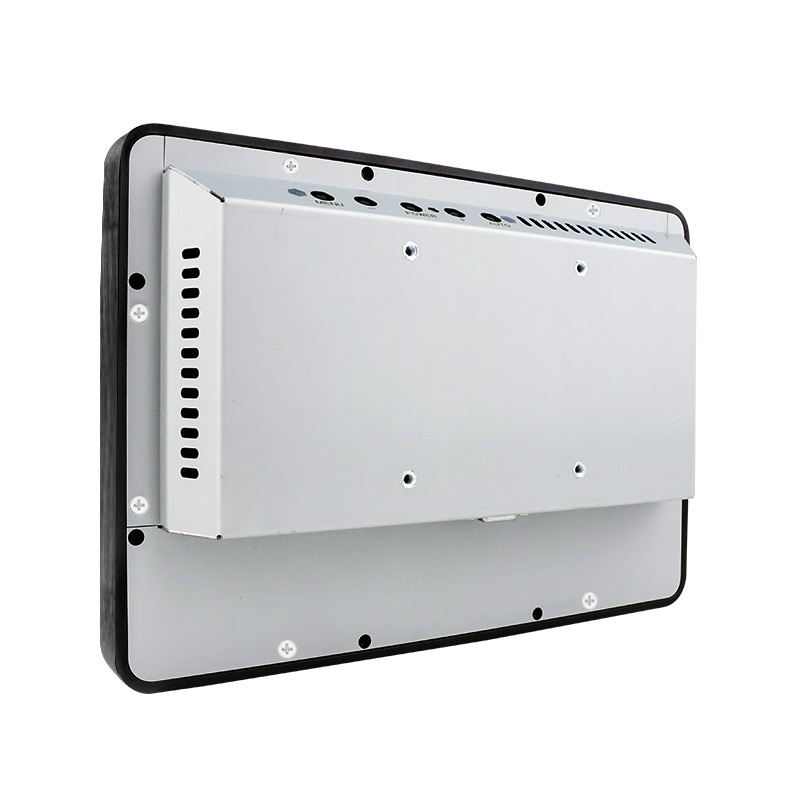

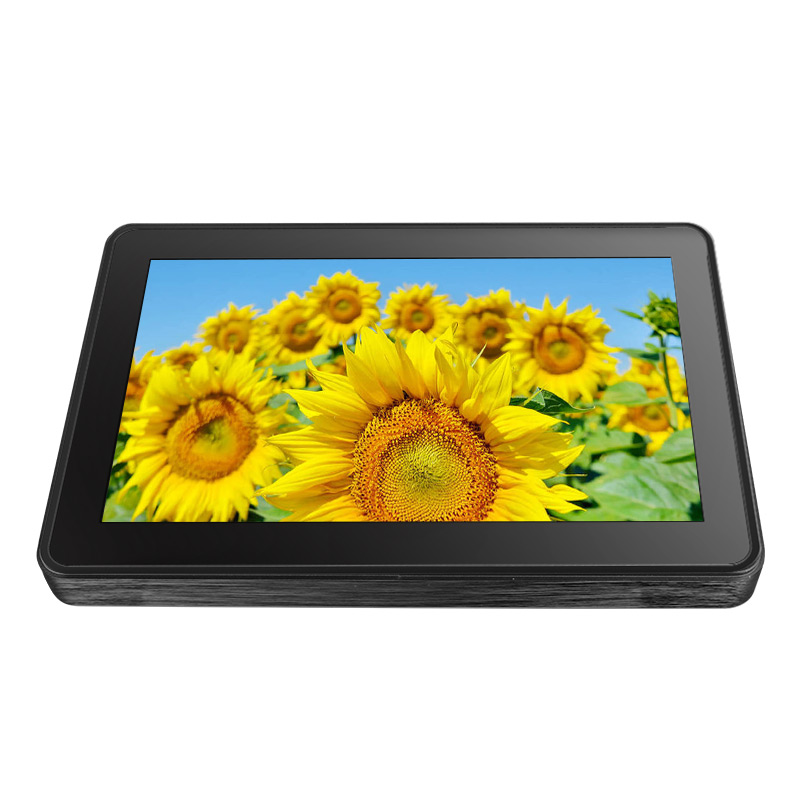

10.1 Inch PCAP Touch Monitor Open frame Touch Display for Kiosks
Description of PCAP Touch Monitor
This PCAP touch monitor comes with main features as below: 1280*800 high resolution, 800:1 contrast ratio, vandal proof and dust-proof with wide viewing angle. The PCAP touch monitor provides VGA and HDMI interfaces for use, USB port for touch. It is industrial grade PCAP touch monitor, high-quality and durable, which can be normally used in harsh environment. Also, customized services can be offered.
Specification of PCAP Touch Monitor
Complete Machine | ||||
Model No. | KOT-0101U-CA4P（KOT-101P-002） | |||
Type | OT | |||
Display Type | 16:10 Ratio 10.1＂TFT-LCD, LED backlight | |||
Active Area | 216.96*135.6(mm) | |||
Monitor Dimensions (W*H*D) | 259.5*182.5*50(mm) | |||
Suggested Resolution | 1280*800 WXGA | |||
Support Colors | 16.2M | |||
Brightness (Typ.) | Pure LCD Panel | 300cd/m2 | ||
With Touch Monitor | 255cd/m2 | |||
Response Time (Typ.) | 16ms | |||
Viewing Angle(Typ.at CR＞10)） | Horizontal(left/right) | 85°/85° | ||
Vertical(up/down) | 85°/85° | |||
Contrast Ratio (Typ.) | 800:1 | |||

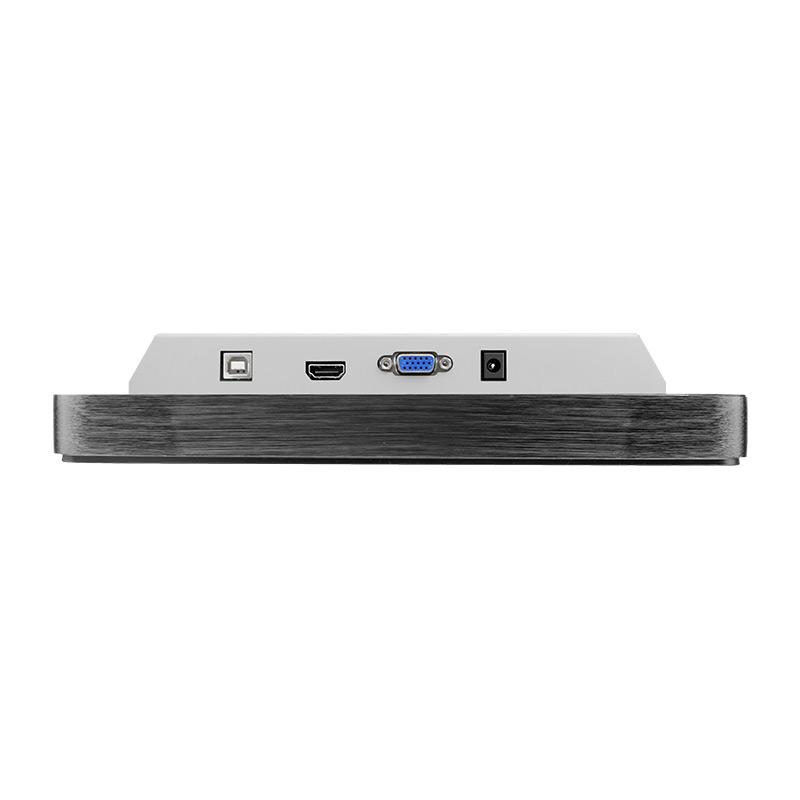

Video Input | VGA/HDMI | |||
Frequency (H/V) | 30～80KHz / 60～75Hz | |||
Power Supply | Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz | |||
Environment | Operating Temp. | 0～50°C | ||
Operating RH | 20%～80% | |||
Storage Temp. | -20～60°C | |||
Storage RH | 10%～90% | |||
MTBF | ≥ 50,000 hours | |||
LED Back Light Life (Typ.) | ≥ 50,000 hours | |||
Weight（N.W/G.W） | 1.85Kg(1 pcs)4.5Kg(2pcs in one package) | |||
Package dimensions | 332*220*285mm(2pcs in one package) | |||
Power Consumption | Standby Power: ≤1W Operating Power: ≤13W | |||
Mount Interface | 1. VESA 75mm 2. Mount bracket, horizontal or vertical mount | |||
OSD Control | Buttons | AUTO,+,POWER,-,MENU | ||
Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |||
CCC, UL, FCC, CE, CB, RoHS | ||||
Regular Warranty | 1 year | |||
Touch Screen | |
Touch Type | 10.1" capacitive touch screens |
Touch input | USB |
Response Time | ≤10ms |
Hardness | 6H |
Light Transmittance | >85% |
Support System | WIN7、WIN8、WIN10support 10points, XP support single point |
Active Area | 216.96*135.6(mm) |
Thickness | 3.75±0.2(mm) |
Touch Test | ≥ 50,000,000 times |
Input Voltage | DC 5V±5% |

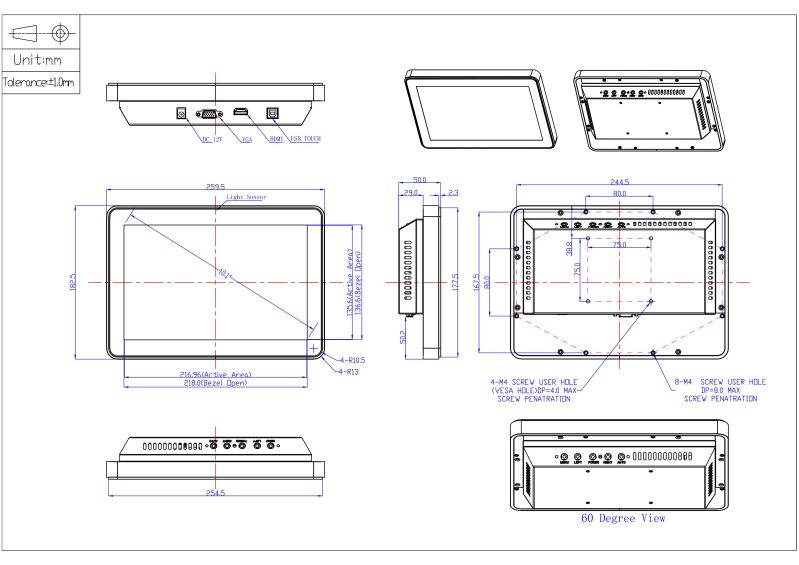

Mechanical Dimensions
