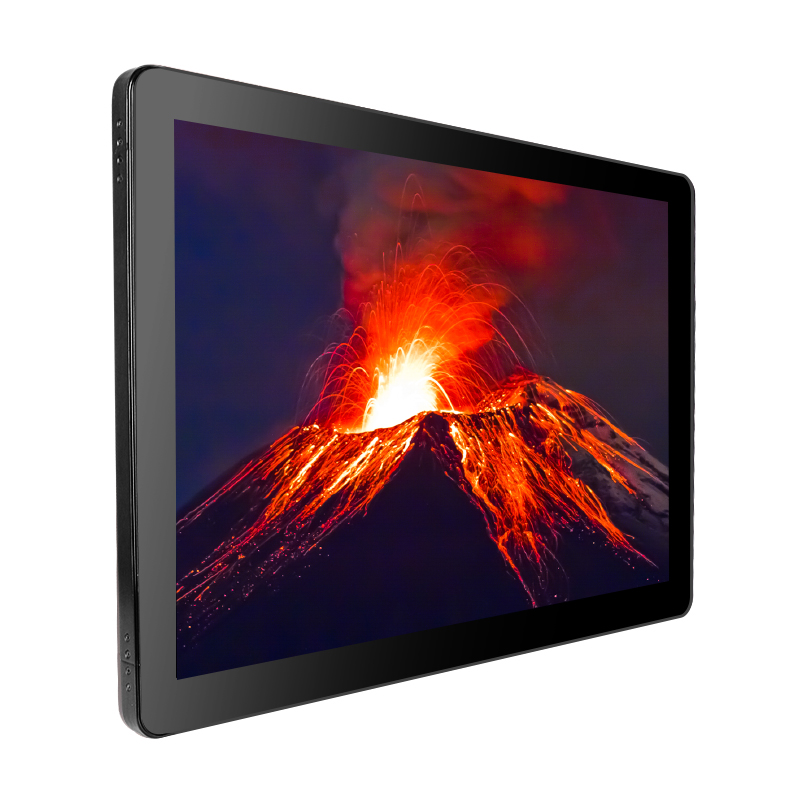

32 Inch PCAP Touch Monitor Open frame Vandal-proof for Kiosks
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Contrast Ratio (Typ.) | 1000:1 | Suggested Resolution | 1920x1080 @ 60Hz |
|---|---|---|---|
| Brightness | 280 cd/㎡ | Video Input | VGADVIHDMI |
| Support Colors | 16.7M | Response Time | 14s |
| Thickness | 3.9±0.3(mm) | Touch Test | ≥50,000,000 Times |
| Product Name | PCAP Touch Monitor | Warranty | One Year |
| High Light | 32 Inch PCAP Touch Monitor, TFT PCAP Touch Monitor 1920X1080, PCAP TFT Panel Monitor | ||
Product Description
Description of PCAP Touch Monitor
32 Inch PCAP Touch Monitor 1920x1080 Resolution IP65 Waterproof
This 32 inch PCAP touch monitor comes with Projected Capacitive touch technology with high resolution and wide viewing angle. It is industrial grade PCAP touch monitor, durable and fashionable. Per customer’s individual requirements, with over 40 professional engineers, OEM and ODM services are welcomed. Also, other sizes (7’’-43’’) can be offered or customized.
Specification of PCAP Touch Monitor
Complete Machine | ||
Model No. | KOT-0320U-CA4P (P/N:KOT-320P-011) | |
Series | OT | |
Display Type | 16:9 Ratio 31.5" TFT-LCD | |
Active Area | 698.4*392.85(mm) | |
Monitor Dimensions (W*H*D) | 783.6*473.5*55.5(mm) | |
Suggested Resolution | 1920x1080 @ 60Hz | |
Support Colors | 16.7M | |
Brightness (Typ.) | Pure LCD Panel | 280cd/m² |
With Touch Monitor | 238cd/m² | |
Response Time (Typ.) | 8ms | |
Viewing Angle(Typ.at CR＞10)） | Horizontal(left/right) | 85°/85° |
Vertical(up/down) | 80°/80° | |
Contrast Ratio (Typ.) | 1000:1 | |
Video Input | VGADVIHDMI | |
Frequency (H/V) | 37.9～80KHz / 60～75Hz | |
Power Supply | Type: External brick Display voltage: DC 12V±5% | |
Environment | Operating Temp. | 0～50°C |
Operating RH | 20%～80% | |
Storage Temp. | -20～60°C | |
Storage RH | 10%～90% | |
MTBF | ≥30,000 Hours | |
LED Back Light Life (Typ.) | ≥30,000 Hours | |
Weight（N.W/G.W） | 10.2Kg(1pcs) | |
Package dimensions | 851*153*553(mm)(1pcs in one package) | |
Power Consumption | Standby Power: ≤2W / Operating Power: ≤40W | |
Mount Interface | 1.VESA 75mm and 100mm 2.Mount bracket, horizontal or vertical mount | |
OSD Control | Buttons | AUTO,+,POWER,-,MENU |
Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
CCC, UL, FCC, CE, CB, RoHS | ||
Regular Warranty | 1 year | |
Touch Screen | |
Touch Type | 32" Capacitive touch screens |
Touch input | USB |
Response Time | ≤14ms |
Hardness | 6H |
Light Transmittance | ≥85% |
Support System | XP,WIN7,WIN8,WIN10,Linux,Android |
Active Area | 705.00*397.85(mm) |
Thickness | 4.3±0.2(mm) |
Touch Test | ≥50,000,000 times |
Input Voltage | DC 5V±5% |
