Light Bar PCAP 23 Inch Touch Screen Monitor For Slot Machines ODM
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Series | OT , With LED Flexible Stripes | Display Type | 16:9 Ratio 23” Active Matrix TFT-LCD |
|---|---|---|---|
| Support Colors | 16.7M | Video Input | VGA\DVI\HDMI |
| Horizontal(left/right) | 89°/89° | Vertical(up/down) | 89°/89° |
| Storage Temp. | -20～60°C | MTBF | 30,000 Hours |
| Product Name | PCAP Touch Monitor | Warranty | One Year |
| High Light | ODM 23 Inch Touch Screen Monitor,PCAP 23 Inch Touch Screen Monitor,Light Bar 23 inch touch monitor | ||
Product Description

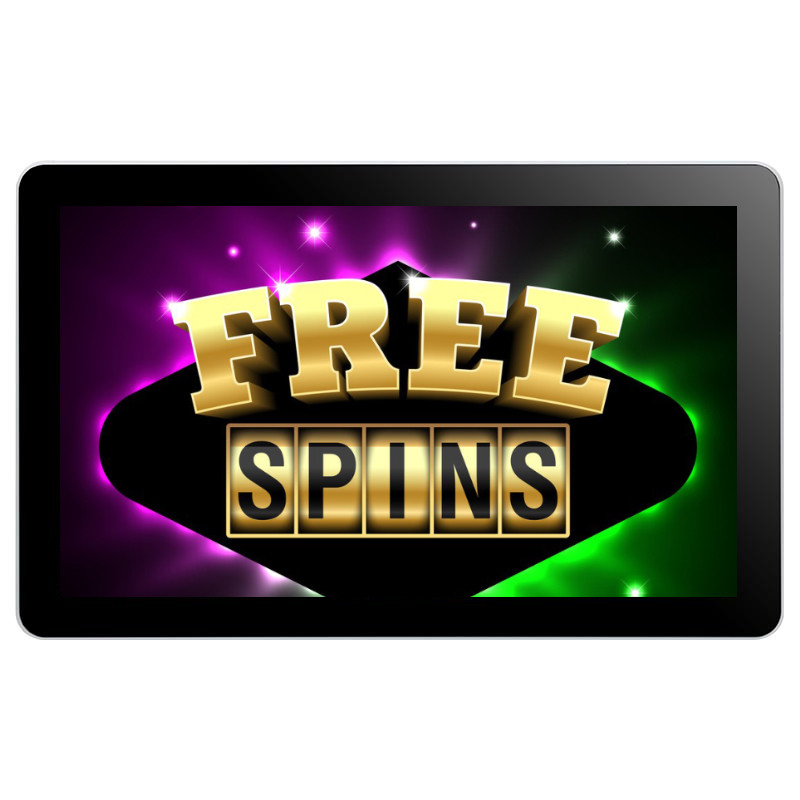

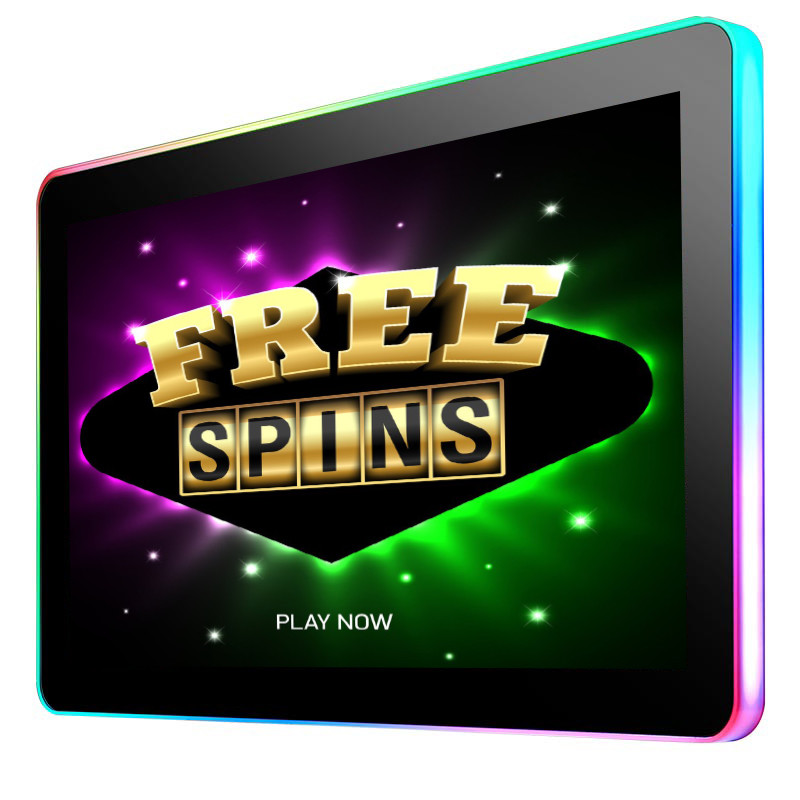

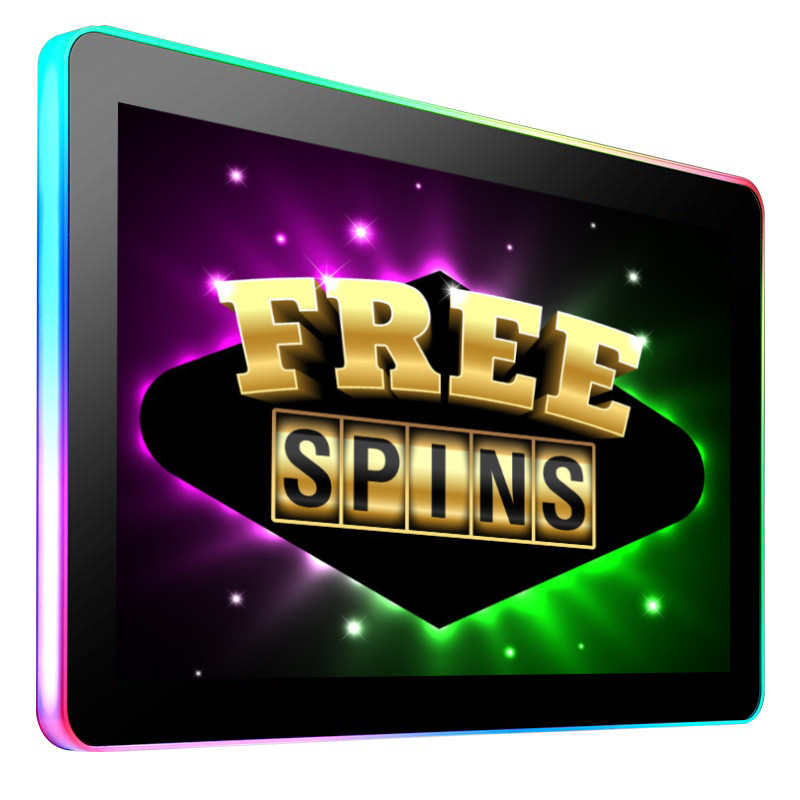

Light Bar 23 Inch PCAP Touch Screen Gaming Monitors For Slot Machines
PCAP Touch Monitor Description
Designed with LED light strips, this PCAP touch monitor is very eye-catching and fashionable for the gaming, casino and amusement industry. They use capacitive touch screen with 10 poitns touch, high transmission, drift-free operation, more than 50,000,000 times touch test, which offers smooth and accurate touch experience.
PCAP Touch Monitor Specifications
Model No. | KOT-0230U-CA5P | |||
Series | OT , With LED Flexible Stripes | |||
Display Type | 16:9 Ratio 23” Active matrix TFT-LCD | |||
Display Active Area | 511.8mm×289mm | |||
Monitor Dimensions | Width: 588.2mm Height : 365.4mm Depth: 45mm | |||
Suggested Resolution | 1920×1080 @ 60Hz | |||
Support Colors | 16.7M | |||
Brightness(Typ.) | Pure LCD Panel (Brightness from 300~1000cd/m² can be customized) | 250cd/m² | ||
With Projected Capacitive Touchscreen | 212cd/m² | |||
Display Response Time(Typ.) | 14ms | |||
Viewing Angle (Typ.at CR>10) | Horizontal(left/right) | 89°/89° | ||
Vertical(up/down) | 89°/89° | |||
Contrast Ratio(Typ.) | 1000:1 | |||
Video Input | VGA and DVI and HDMI | |||
Frequency(H/V) | 30～80KHz / 60～75Hz | |||
Power Supply | Type: External brick Input (line) voltage: 100-240 VAC, 50-60 Hz | |||
Environment | Operating Temp. | 0～50°C | ||
Storage Temp. | -20～60°C | |||
Operating RH | 20%～80% | |||
Storage RH | 10%～90% | |||
MTBF | 30,000 Hours | |||
Back Light Life(Typ.) | 30,000 Hours | |||
Weight(N.W/G.W) | N.W:7.5Kg(single) /G.W:17.3Kg (2pcs in one package) | |||
Package Dimensions | 703×181×485(mm) (2pcs in one package) | |||
Power Consumption | 37W(approximately, Includes touch display and LED lamp) | |||
Standby Power Consumption | 0.6W (approximately, Touch display only) | |||
Mount Interface | VESA 100*300mm and 100*400mm | |||
OSD Control | Buttons | AUTO,+,POWER,-,MENU | ||
Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |||
Agency Approval | CCC, UL, FCC, UL, CE, CB, RoHs | |||
Regular Warranty | 1 Year | |||
Touch Screen Type | 23” Projected Capacitive Touchscreen 10 Points Touch |
Touch System Interface | USB |
Surface Hardness | 7H |
Touch Response Time(Typ.) | ≤10ms |
Light Transmission | ≥85% |
Touch Active Area | 511.8mm×289mm |
Thickness | 4.3±0.2mm |
Durability | More than 50,000,000 touches in one location without failure |
NOTE :
① The display SPEC. are adjusted according to the selected LCD screen and touch screen
② The support system is adjusted according the specific system and version.
PCAP Touch Monitor Mechanical Dimensions
Applications
Applications
KeeTouch PCAP touch monitors are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
FAQ
1. Do you give any discount?
We will do utmost to support you with the competitive price, also good service will be offered.
2. What’s your MOQ for the PCAP touch monitor?
Our minimum order quantity is 1pc only.
3. What is your warranty period for the PCAP touch monitor?
Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
4. What is your delivery time?
3-5 work days for inventory orders, 7-15 business days for bulk production.
5. What package do you provide?
Our package usually is carton.
