PCAP 15 Inch Touch Screen Monitor Peep Proof 1024×768 Resolution For Kiosks

Place of Origin	Shenzhen, China
Brand Name	KeeTouch
Certification	FCC, CE, CB, RoHS,UL,BIS
Model Number	KOT-150P-015-01
Minimum Order Quantity	1piece
Price	Negotiable
Packaging Details	Carton
Delivery Time	7-15 work days
Payment Terms	T/T, L/C, Western Union
Supply Ability	10000 Pieces per Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Contrast Ratio (Typ.)	1000:1(Typ.)/700:1(Min.)	Suggested Resolution	1024*768 @ 60Hz
Video Input	VGA/DVI	Support Colors	16.7M
Response Time	30s	Thickness	3.9±0.2(mm)
Touch Test	≥50,000,000 Times	Product Name	PCAP Touch Monitor
Brightness	350cd/m2
High Light	Kiosks 15 inch touch screen monitor , Peep Proof monitor touchscreen 15 inch , Peep Proof monitor touchscreen 15 inch

Leave a Message

Product Description

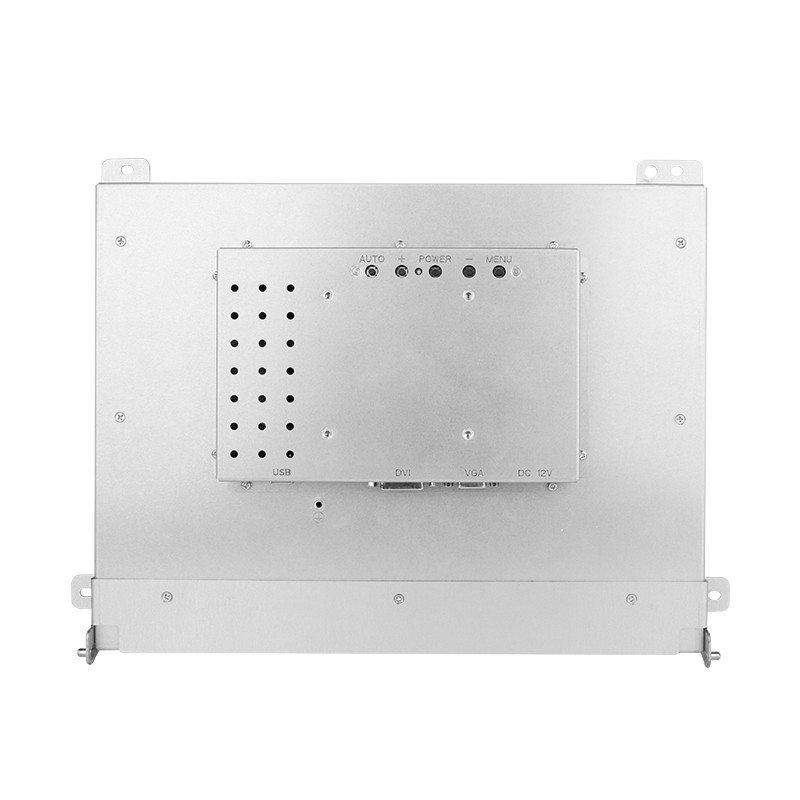

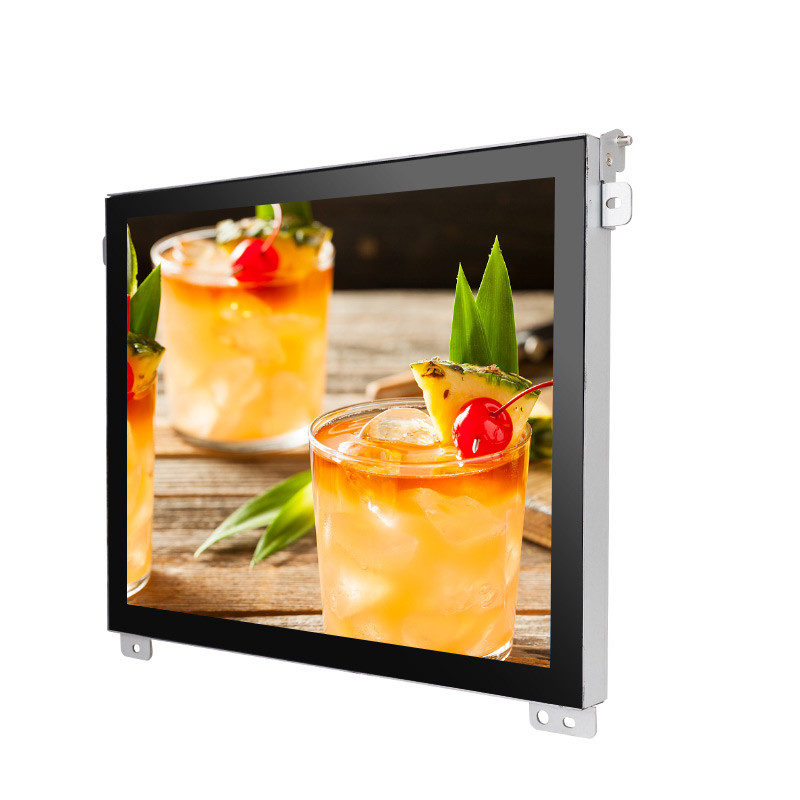

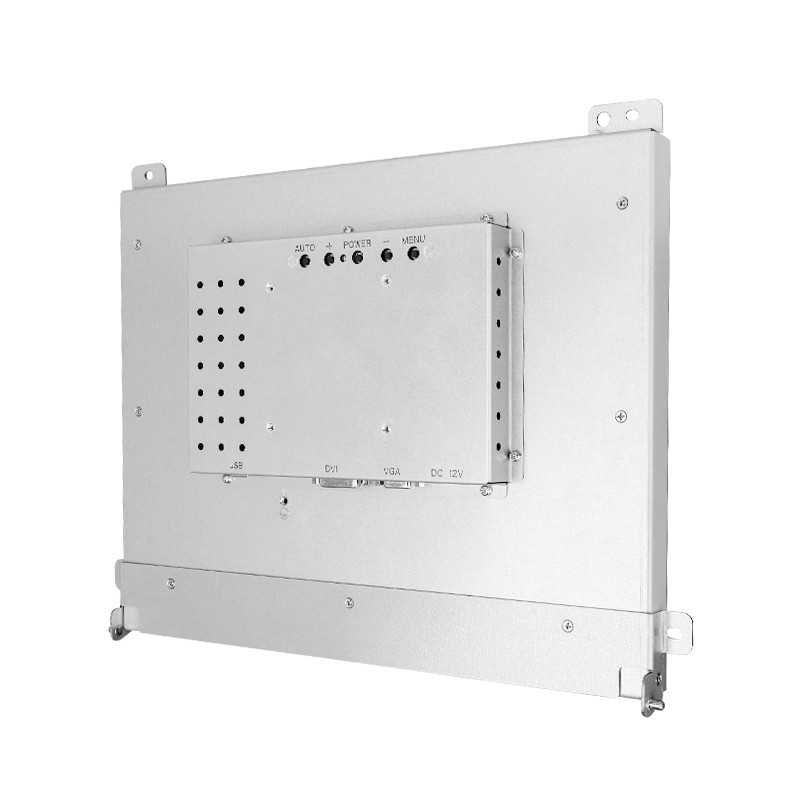

**15 Inch PCAP Touch Monitor Peep-proof 1024*768 Resolution for Kiosks**

PCAP Touch Monitor Description

Our PCAP touch monitors is built-to-last, using industrial grade LCD panels with high resolution, full viewing angle, square aspect ratio and long-lasting LED back light ≥50,000 hours, which ensure it to works even in harsh environment. The device offers flexible mounting options including panel mounted, VESA mounted and brackets mount. With privacy film and 3.9mm thickness glass, it is peep-proof and anti-vandal.

PCAP Touch Monitor Specifications

Complete Machine
Model No.	KOT-0150UA-CA6PHA（P/N：KOT-150P-015-01）
Series	OT
Display Type	4:3 Ratio 15" TFT-LCD
Active Area	304.128×228.096(mm)
Monitor Dimensions (WHD)	369.7292.548.1(mm)
Suggested Resolution	1024*768 @ 60Hz
Support Colors	16.7M
Brightness (Typ.)	Pure LCD Panel	350cd/㎡(Typ.)/315cd/㎡(Min.)
	With Touch Monitor and peep-proof protection film	178.5cd/㎡(Typ.)/161cd/㎡(Min.)
Response Time (Typ.)	30ms
Viewing Angle(Typ.at CR＞10)）	Horizontal(left/right)	89°/89°(Typ.)/85°/85°(Min.)
	Vertical(up/down)	89°/89°(Typ.)/85°/85°(Min.)
Contrast Ratio (Typ.)	1000:1(Typ.)/700:1(Min.)
Video Input	VGA/DVI
Frequency (H/V)	37.9～80KHz / 60～75Hz
Power Supply	Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240V AC, 50-60 Hz The DC inner diameter of power adapter:2.1mm
Environment	Operating Temp.	-10～50°C
	Operating RH	10%～90%
	Storage Temp.	-20～70°C
	Storage RH	10%～90%
MTBF	≥50,000 Hours
LED Back Light Life (Typ.)	≥50,000 Hours
Weight（N.W/G.W）	3.0Kg(1pcs)/7.2Kg(2pcs in one package)
Package dimensions	445200395(mm)(2pcs in one package)
Power Consumption	Standby Power: ≤1.5W / Operating Power: ≤15W
Mount Interface	Mount bracket, horizontal or vertical mount
OSD Control	Buttons	AUTO,+,POWER,-,MENU
	Function	Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Agency approvals	CCC, CE, CB, RoHS
Regular Warranty	1 year

Touch Screen
Touch Type	15" Capacitive touch screens
Touch input	USB
Response Time	≤10ms
Resolution ratio	16384*9600
Hardness	7H
Light Transmittance	≥85%
Anti-vandal test	500g steel ball drop from 1.3m high test
Support System	XP,WIN7,WIN8,WIN10,Linux,Android
Active Area	304*228(mm)
Thickness	3.9±0.2(mm)
Touch Test	50,000,000 times
Input Voltage	5V

Peep-proof protection film
Type	peep-proof protection film
The angle range of Anti-peep	Horizontal(left/right): 35°±5°
Thickness	0.58±0.05(mm)
Light Transmittance	≥60%±5%

PCAP Touch Monitor Mechanical Dimensions

KOM-150P-015-dimensions01_1

Applications

Our PCAP touch monitors are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
