PCAP 21.5 Inch Touch Screen Monitor 16 : 9 Ratio TFT LCD 10 Points Touch

PCAP 21.5 Inch Touch Screen Monitor 16 : 9 Ratio TFT LCD 10 Points Touch
PCAP 21.5 Inch Touch Screen Monitor 16 : 9 Ratio TFT LCD 10 Points Touch PCAP 21.5 Inch Touch Screen Monitor 16 : 9 Ratio TFT LCD 10 Points Touch PCAP 21.5 Inch Touch Screen Monitor 16 : 9 Ratio TFT LCD 10 Points Touch PCAP 21.5 Inch Touch Screen Monitor 16 : 9 Ratio TFT LCD 10 Points Touch
Place of OriginShenzhen, China
Brand NameKeeTouch
CertificationFCC, CE, CB, RoHS,UL,BIS
Model NumberKOT-215P-011(KOT-0215U-CA4P)
Minimum Order Quantity1piece
PriceNegotiable
Packaging DetailsCarton
Delivery Time7-15 work days
Payment TermsT/T, L/C, Western Union
Supply Ability10000 Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
SeriesOTDisplay Type16:9 Ratio 21.5" TFT-LCD
Active Area478*270(mm)Video InputVGA\DVI\HDMI
Support SystemXP,WIN7,WIN8,WIN10,Linux,AndroidResponse Time5ms
Thickness4.3±0.2(mm)Input VoltageDC 5V±5%
Product NamePCAP Touch MonitorWarrantyOne Year
High Light

PCAP 21.5 Inch Touch Screen Monitor

,

TFT 21.5 Inch Touch Screen Monitor

,

10 Points TFT LCD Touch Monitor

Leave a Message
Product Description

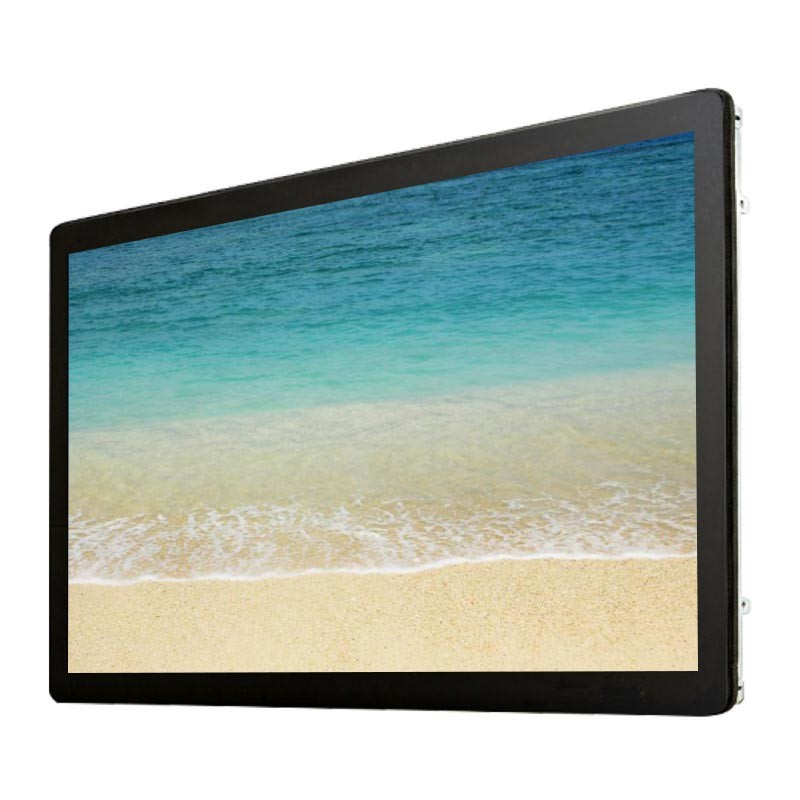

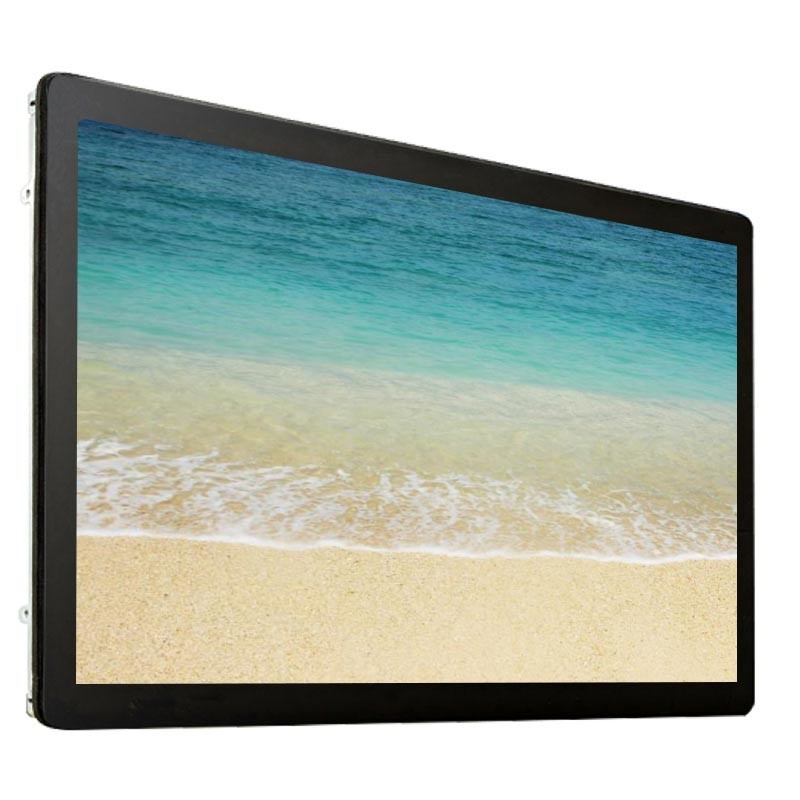

21.5 Inch PCAP Touch Monitor 16:9 Ratio TFT LCD 10 Points Touch


  • PCAP multi-point touch, great interactive experience

  • Anti-vandal and dust-proof, industrial grade PCAP touch monitor

  • Pure flat designed PCAP touch monitor, IP65 waterproof (front frame)

  • 1920x1080 high resolution PCAP touch monitor, high-quality image

  • VGA+DVI+HDMI interfaces,USB for touch input

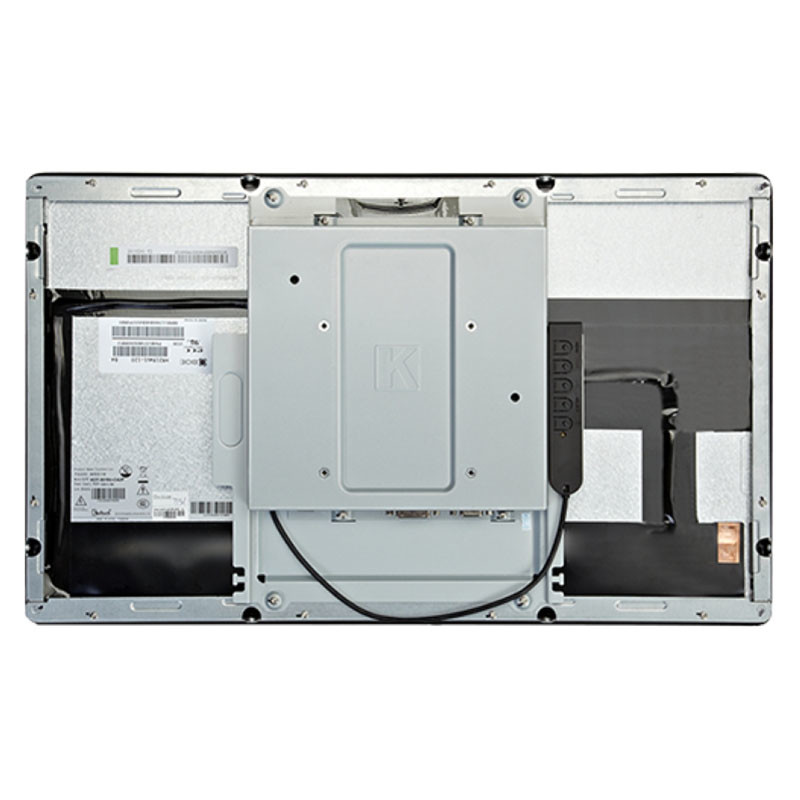

  • Multiple mounting options include VESA mount, horizontal or vertical brackets mount

  • Support system: XP,WIN7,WIN8,WIN10, Linux, Android

  • Other sizes are available (7''- 43'')




PCAP Touch Monitor Specifications


 Complete Machine

 Model No.

 KOT-0215U-CA4P (P/N:KOT-215P-011)

 Series

 OT

 Display Type

16:9 Ratio 21.5" TFT-LCD

 Active Area

478*270(mm)

 Monitor Dimensions (W*H*D)

516*311*40(mm)

 Suggested Resolution

1920x1080 @ 60Hz

 Support Colors

16.7M

 Brightness (Typ.)

Pure LCD Panel

250cd/m²

With Touch Monitor

212cd/m²

 Response Time (Typ.)

5ms

 Viewing Angle(Typ.at CR＞10)）

 Horizontal(left/right)

 85°/85°

 Vertical(up/down)

 80°/80°

 Contrast Ratio (Typ.)

1000:1

 Video Input

VGADVIHDMI

 Frequency (H/V)

30～80KHz / 60～75Hz

 Power Supply

Type: External brick

Display voltage: DC 12V±5%
Input (line) voltage: 100-240 VAC, 50-60 Hz

 Environment

Operating Temp.

0～50°C

Operating RH

20%～80%

Storage Temp.

-20～60°C

Storage RH

10%～90%

 MTBF

≥30,000 Hours

 Weight（N.W/G.W）

5.6Kg(1pcs)/7.7Kg(1pcs in one package)

 Package dimensions

610*410*145(mm)(1pcs in one package)

 Power Consumption

Standby Power: ≤1.5W / Operating Power: ≤30W

 Mount Interface

 1.VESA 75mm and 100mm

 2.Mount bracket, horizontal or vertical mount

 OSD Control

Buttons

 AUTO,+,POWER,-,MENU

Function

Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset

 Agency approvals

 CCC, UL, FCC, CE, CB, RoHS

 Regular Warranty

1 year



Touch Screen

Touch Type

21.5" Capacitive touch screens

Touch input

USB

Response Time

≤10ms

Hardness

6H

Light Transmittance

≥85%

Support System

XP,WIN7,WIN8,WIN10,Linux,Android

Active Area

477.6*269(mm)

Thickness

4.3±0.2(mm)

Touch Test

≥50,000,000 times

Input Voltage

DC 5V±5%





Applications

KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.





FAQ

1. Are you a manufacturer?

Yes, KeeTouch is a professional touch product manufacturer founded in 2006, located in Shenzhen, China.


2. What’s your MOQ for the PCAP touch monitor?

Our minimum order quantity is 1pc only.


3. What is your warranty period for the PCAP touch monitor?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).


4. Can you produce the PCAP touch monitor according to the customer's requirements?

Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.


5. What is your payment method?

We can accept T/T, Western Union, Paypal, Credit card and Alipay. ( L/C can be negotiable. )


6. What is your delivery time?

3-5 work days for inventory orders, 7-15 business days for bulk production.
