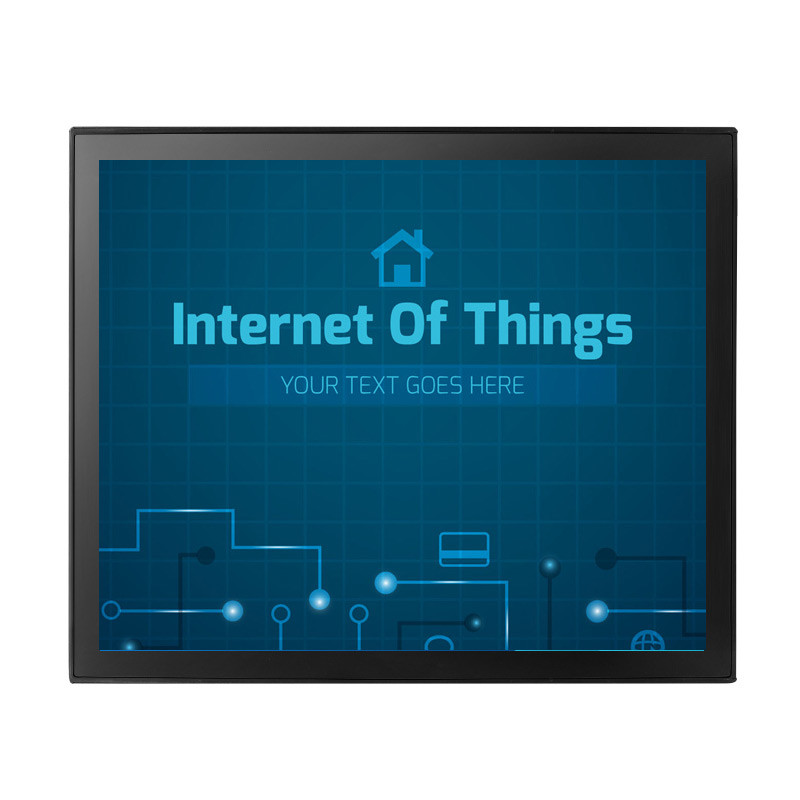

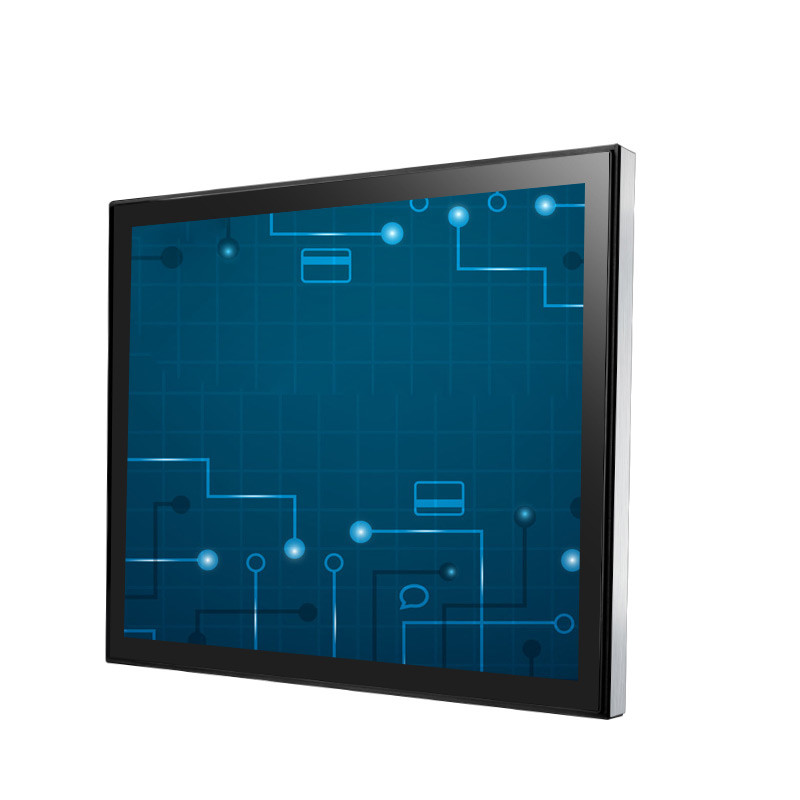

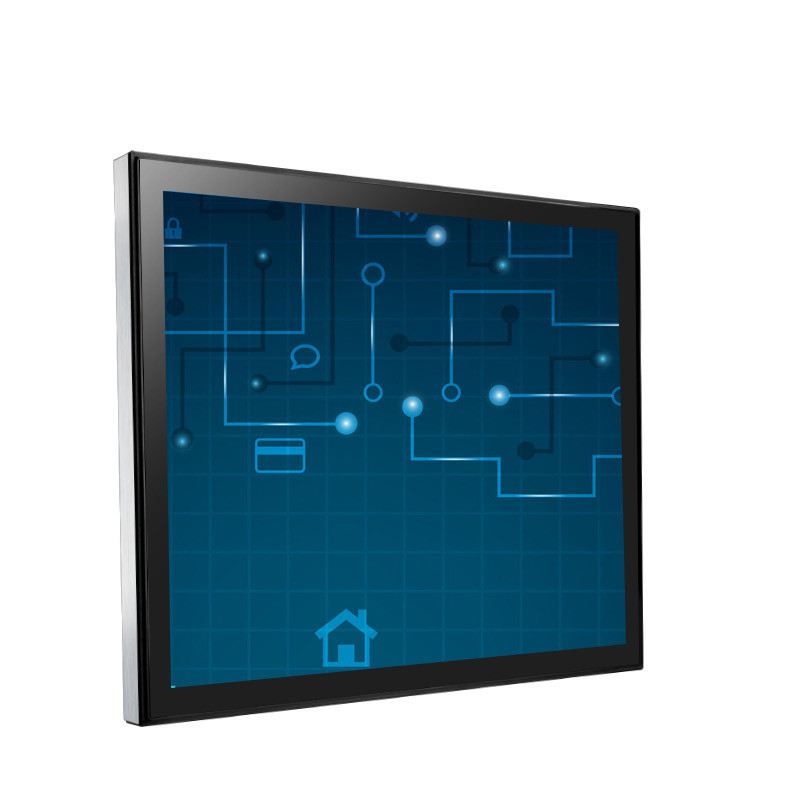

Anti Glare 17 Inch Open Frame Monitor , Capacitive Industrial Touch Screen Monitor
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Contrast Ratio (Typ.) | 1000:1 | Suggested Resolution | 1280*1024 @ 60Hz PCAP Touch Monitor |
|---|---|---|---|
| Video Input | VGA/DVI PCAP Touch Monitor | Support Colors | 16.7M |
| Response Time | 5s | Thickness | 3.9±0.3(mm) |
| Touch Test | ≥50,000,000 Times | Product Name | PCAP Touch Monitor |
| Brightness | 250cd/m² | Regular Warranty | One Year |
| High Light | Industrial 17 Inch Open Frame Monitor,Capacitive 17 Inch Open Frame Monitor,Anti Glare Industrial Touch Screen Monitor | ||
Product Description
Industrial 17 Inch Open Frame PCAP Touch Monitor Anti-Glare Capacitive Screen
PCAP Touch Monitor Description
The device can use capacitive touch screen with toughened glass and anti-glare coating, to meet the specific needs for self-service terminals. Designed with pure flat, IP65 rating structure, modern stylish look, this PCAP Touch Monitor is very easy to install. With A+ LCD panel, it delivers outstanding image clarity and light transimission with stable, drift-free operation for accurate touch response.
PCAP Touch Monitor Specifications
Complete Machine | ||
Model No. | KOT-0170U-CA4P | |
Series | OT | |
Display Type | 5:4 Ratio 17" TFT-LCD | |
Active Area | 337.9*270.3(mm) | |
Monitor Dimensions (W*H*D) | 378.9*313.3*47.3(mm) | |
Suggested Resolution | 1280*1024 @ 60Hz | |
Support Colors | 16.7M | |
Brightness (Typ.) | Pure LCD Panel | 250cd/m² |
With Touch Monitor | 212cd/m² | |
Response Time (Typ.) | 5ms | |
Viewing Angle(Typ.at CR＞10)） | Horizontal(left/right) | 85°/85° |
Vertical(up/down) | 80°/80° | |
Contrast Ratio (Typ.) | 1000:1 | |

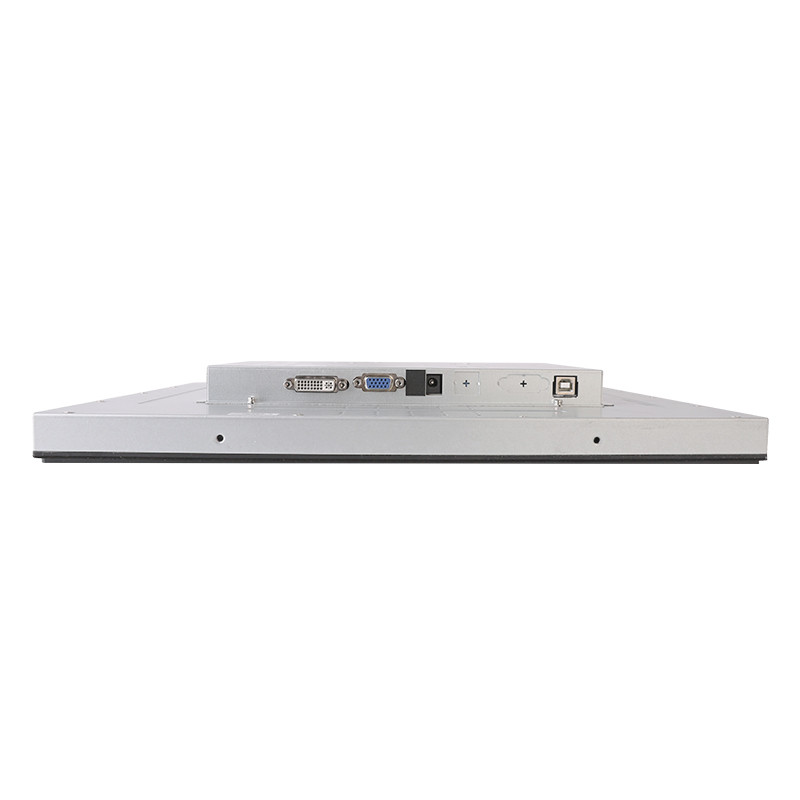

Video Input | VGA/DVI | |
Frequency (H/V) | 37.9～80KHz / 60～75Hz | |
Power Supply | Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz | |
Environment | Operating Temp. | 0～50°C |
Operating RH | 20%～80% | |
Storage Temp. | -20～60°C | |
Storage RH | 10%～90% | |
MTBF | ≥30,000 Hours | |
LED Back Light Life (Typ.) | ≥30,000 Hours | |
Weight（ N.W/G.W ） | 4.1Kg(1pcs)/9.85Kg(2pcs in one package) | |
Package dimensions | 466*185*403(mm)(2pcs in one package) | |
Power Consumption | Standby Power: ≤1.5W / Operating Power: ≤20W | |
Mount Interface | 1.VESA 75mm and 100mm 2.Mount bracket, horizontal or vertical mount | |
OSD Control | Buttons | AUTO, +,POWER,-,MENU |
Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
CCC, UL, FCC, CE, CB, RoHS | ||
Regular Warranty | 1 year | |
Touch Screen | |
Touch Type | 17" Riot capacitive touch screens |
Touch input | USB |
Response Time | ≤10ms |
Hardness | 6H |
Light Transmittance | ≥85% |
Support System | XP,WIN7,WIN8,WIN10,Linux,Android |
Active Area | 340.92*273.34(mm) |
Thickness | 3.9±0.3(mm) |
Touch Test | ≥50,000,000 times |
Input Voltage | DC 5V±5% |
Applications
PCAP Touch Monitors are Widely installed in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
FAQ
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer for over 18 years, located in Shenzhen, China.
2. What’s your MOQ for the PCAP Touch Monitor?
Our minimum order quantity is 1pc only.
3. What is your delivery time?
3-5 work days for inventory orders, 7-15 business days for bulk production.
