1920x1080 18.5" Touch Screen Monitor Pure Flat For Kiosks ATM

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Active Area	409.8*230.4(mm)	Contrast Ratio (Typ.)	1000:1
Video Input	VGADVI	Support Colors	16.7M
Response Time	8s	Power Consumption	Standby Power: ≤1.5W / Operating Power: ≤15W
Touch Type	18.5" Riot Capacitive Touch Screens	Product Name	PCAP Touch Monitor
Warranty	1 Year	Brightness	400cd/m²
High Light	LCD 18.5" Touch Screen Monitor , 18.5" Touch Screen Monitor Waterproof , Waterproof Capacitive Touch Screen OEM

Leave a Message

Product Description

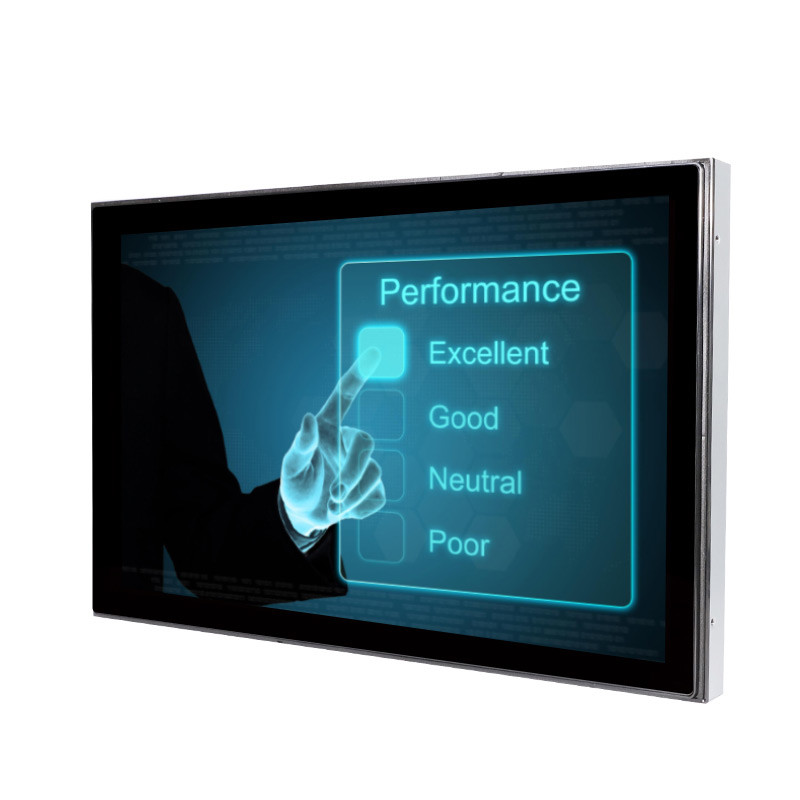

18.5 Inch PCAP Touch Monitor Pure Flat 1920x1080 Kiosks ATM

PCAP Touch Monitor Main Features:

With PCAP touch technology, high sensitive and fast response
Dust-proof, vandal-proof PCAP touch monitor, durable even in harsh environment
Professional pure flat design, IP65 surface water-proof
High resolution, high contrast PCAP touch monitor with high clarity image
VGA + DVI interfaces,USB for touch
Multiple mounting options include VESA mount, horizontal vertical brackets mount
Support system: XP,WIN7,WIN8,WIN10, Linux, Android
Other sizes can be offered (7''- 43'')

PCAP Touch Monitor Specifications

Complete Machine
Model No.	KOT-0185U-CA4P(P/N:KOT-185P-001)
Series	OT
Display Type	16:9 Ratio 18.5" TFT-LCD
Active Area	409.8*230.4(mm)
Monitor Dimensions (WHD)	449.427046(mm)
Suggested Resolution	1920*1080@ 60Hz
Support Colors	16.7M
Brightness (Typ.)	Pure LCD Panel	250cd/m²
	With Touch Monitor	212cd/m²
Response Time (Typ.)	5ms
Viewing Angle(Typ.at CR＞10)）	Horizontal(left/right)	85°/85°
	Vertical(up/down)	80°/80°
Contrast Ratio (Typ.)	1000:1
Video Input	VGA/DVI
Frequency (H/V)	37.8～68.4KHz / 50～76Hz
Power Supply	Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz
Environment	Operating Temp.	0～50°C
	Operating RH	20%～80%
	Storage Temp.	-20～60°C
	Storage RH	10%～90%
MTBF	≥30,000 Hours
LED Back Light Life (Typ.)	≥30,000 Hours
Weight（N.W/G.W）	3.64Kg(1pcs)/8.93Kg(2pcs in one package)
Package dimensions	525190385(mm)(2pcs in one package)
Power Consumption	Standby Power: ≤1.5W / Operating Power: ≤25W
Mount Interface	1. VESA 75mm and 100mm 2. Mount bracket, horizontal or vertical mount
OSD Control	Buttons	AUTO,+,POWER,-,MENU
	Function	Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Agency approvals	CCC, UL, FCC, CE, CB, RoHS
Regular Warranty	1 year

Touch Screen
Touch Type	18.5" Riot capacitive touch screens
Touch input	USB
Response Time	≤10ms
Hardness	6H
Light Transmittance	≥85%
Support System	XP,WIN7,WIN8,WIN10,Linux,Android
Active Area	410.8*231.4(mm)
Thickness	4.3±0.2(mm)
Touch Test	≥50,000,000 times
Input Voltage	DC 5V±5%
