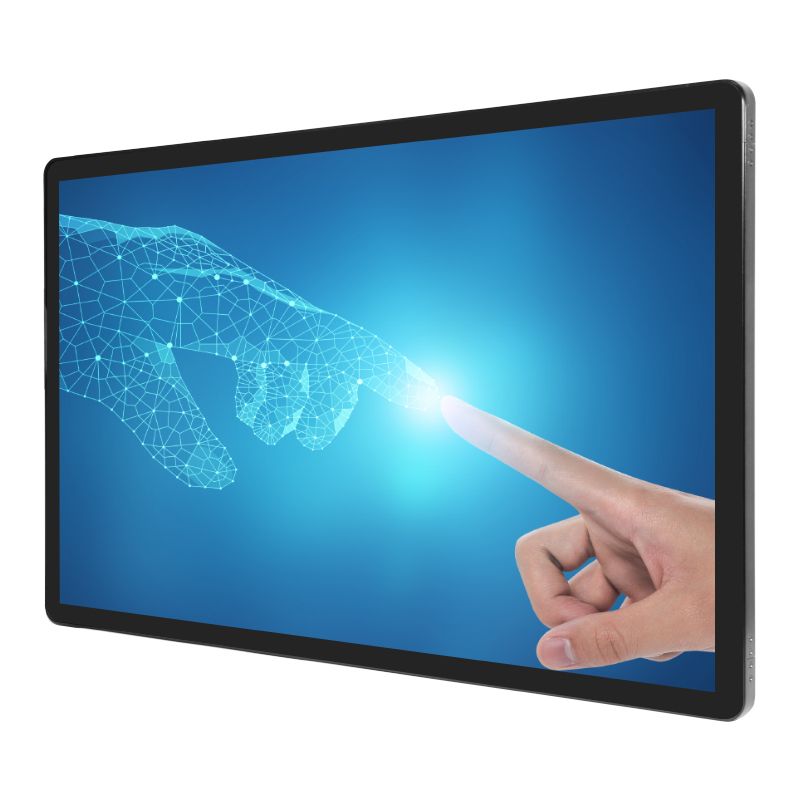

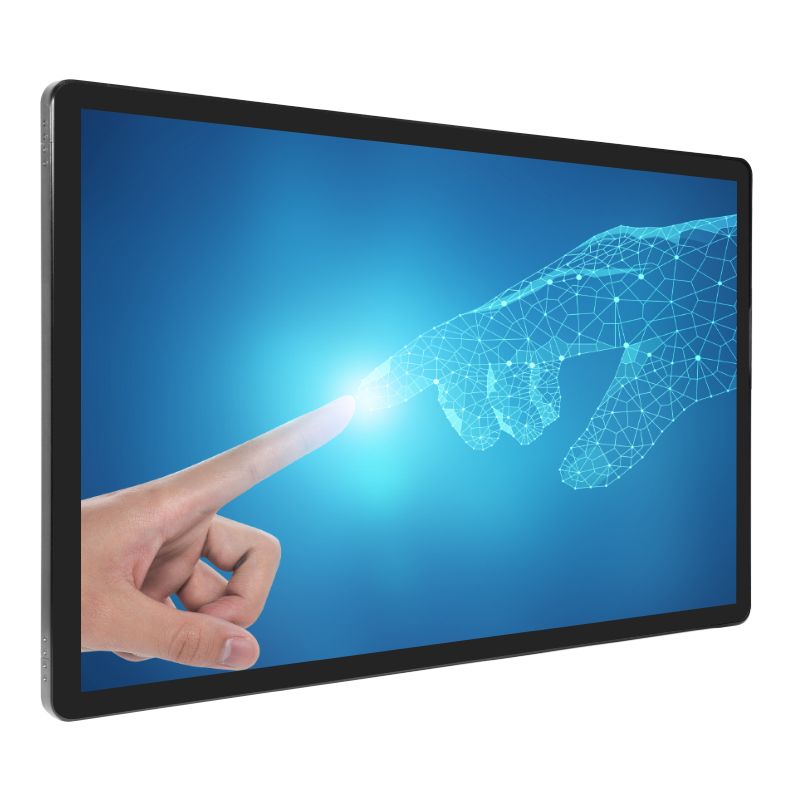

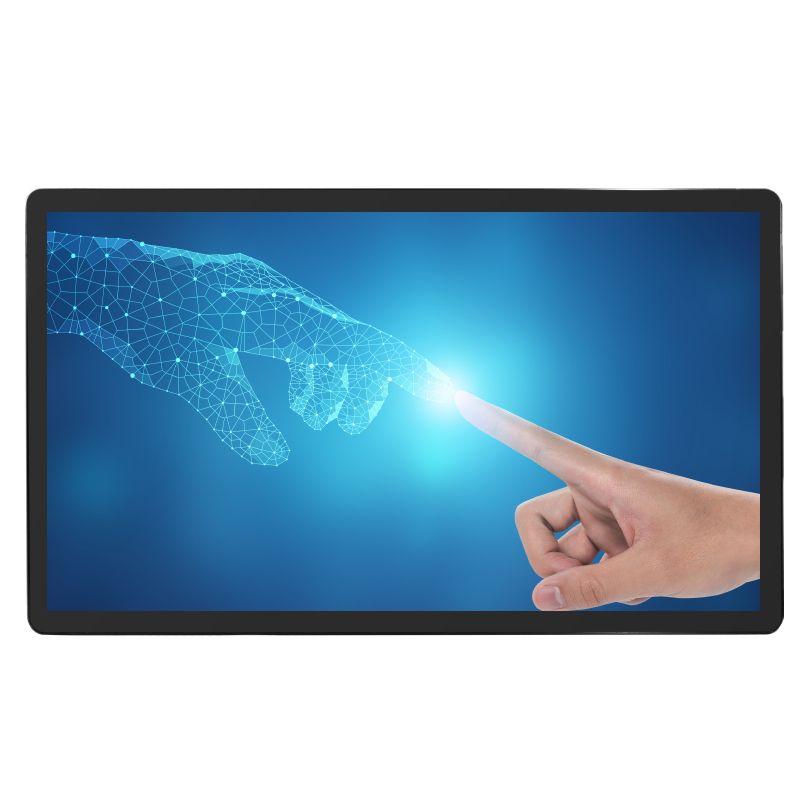

43 Inch PCAP Touch Monitor Multi Touch With Full Viewing Angle

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xResponse Time (Typ.) | 6.5ms | Display Type | 16:9 Ratio 43" TFT-LCD |
---|---|---|---|
Support Colors | 16.7M | Video Input | VGA\DVI\HDMI |
Contrast Ratio (Typ.) | 3000:1 | Active Area | 942.9*531.25 (mm) |
Storage Temp. | -20~60°C | Frequency (H/V) | 30~80KHz / 60~75Hz |
Product Name | PCAP Touch Monitor | Warranty | One Year |
High Light | 43 Inch PCAP Touch Monitor,PCAP Touch Monitor Multi Touch,PCAP 43 inch touch monitor |
43 Inch PCAP Touch Monitor 16:9 Ratio With Full Viewing Angle
PCAP Touch Monitor Main Features
PCAP multi-touch panel, great touch experience
High-quality industrial touch panel with high resolution, full viewing angle
Vandal-proof and IP65 front surface water-proof PCAP touch monitor
Pure flat designed, durable and fashionable PCAP touch monitor
VGA+DVI+HDMI interfaces,USB for touch input
Multiple mounting options include VESA mount, horizontal or vertical brackets mount
Support system: XP, WIN7, WIN8, WIN10, Linux, Android
Other sizes are optional (7''- 43'')
PCAP Touch Monitor Specifications
Complete Machine | ||
Model No. | KOT-0430U-CA4P(P/N:KOT-430P-004) | |
Series | OT | |
Display Type | 16:9 Ratio 43" TFT-LCD | |
Active Area | 942.9*531.25 (mm) | |
Monitor Dimensions (W*H*D) | 1004*592*64.6 (mm) | |
Suggested Resolution | 1920x1080 @ 60Hz | |
Support Colors | 16.7M | |
Brightness (Typ.) | Pure LCD Panel | 380cd/m² |
With Touch Monitor | 320cd/m² | |
Response Time (Typ.) | 6.5 ms | |
Viewing Angle(Typ.at CR>10)) | 89°/89° | |
89°/89° | ||
Contrast Ratio (Typ.) | 3000:1 | |
Video Input | VGADVIHDMI | |
Frequency (H/V) | 30~80KHz / 60~75Hz | |
Power Supply | Type: External brick Display voltage: DC 24V±5% | |
Environment | Operating Temp. | -10~50°C |
Operating RH | 20%~80% | |
Storage Temp. | -20~60°C | |
Storage RH | 10%~90% | |
MTBF | 50,000 Hours | |
LED Back Light Life (Typ.) | 50,000 Hours | |
OSD Control | Buttons | AUTO,+,POWER,-,MENU |
Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
CCC, UL, FCC, CE, CB, RoHS | ||
Touch Type | 43" Capacitive touch screens, antiglare and tempered type | |
Touch input | USB | |
Support System | XP,WIN7,WIN8,WIN10,Linux,Android | |
Regular Warranty | 1 year |
Applications
KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
FAQ
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer founded in 2006, located in Shenzhen, China.
2. What’s your MOQ for the PCAP touch monitor?
Our minimum order quantity is 1pc only.
3. What is your warranty period for the PCAP touch monitor?
Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
4. Can you produce the PCAP touch monitor according to the customer's requirements?
Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.
5. What is your payment method?
We can accept T/T, Western Union, Paypal, Credit card and Alipay. ( L/C can be negotiable. )
6. What is your delivery time?
3-5 work days for inventory orders, 7-15 business days for bulk production.
