PCAP 23 Inch Touch Screen Monitor With LED Flexible Strips For Gaming

PCAP 23 Inch Touch Screen Monitor With LED Flexible Strips For Gaming
PCAP 23 Inch Touch Screen Monitor With LED Flexible Strips For Gaming PCAP 23 Inch Touch Screen Monitor With LED Flexible Strips For Gaming PCAP 23 Inch Touch Screen Monitor With LED Flexible Strips For Gaming PCAP 23 Inch Touch Screen Monitor With LED Flexible Strips For Gaming PCAP 23 Inch Touch Screen Monitor With LED Flexible Strips For Gaming
Place of OriginShenzhen, China
Brand NameKeeTouch
CertificationFCC, CE, CB, RoHS,UL,BIS
Model NumberKOT-0230U-CA5P(KOT-230P-003)
Minimum Order Quantity1piece
PriceNegotiable
Packaging DetailsCarton
Delivery Time7-15 work days
Payment TermsT/T, L/C, Western Union
Supply Ability10000 Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
SeriesOT , With LED Flexible StripesDisplay Type16:9 Ratio 23” Active Matrix TFT-LCD
Support Colors16.7MVideo InputVGA\DVI\HDMI
Horizontal(left/right)89°/89°Vertical(up/down)89°/89°
Storage Temp.-20～60°CMTBF30,000 Hours
Product NamePCAP Touch MonitorWarrantyOne Year
High Light

23 Inch Touch Screen Monitor IP65

,

23 Inch Touch Screen Monitor Waterproof

,

MultiPoint 23 inch touch monitor

Leave a Message
Product Description

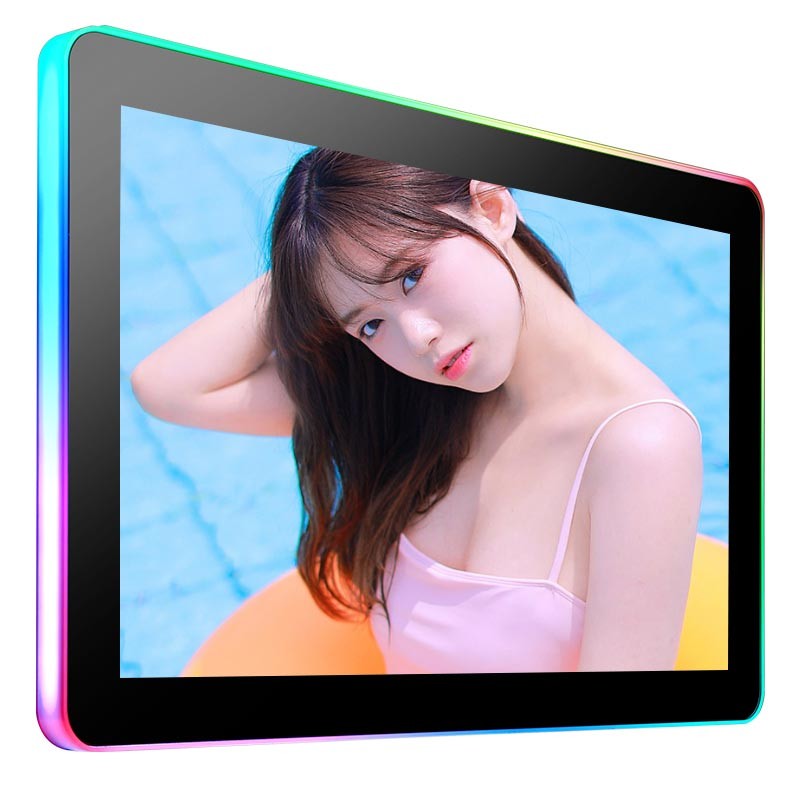

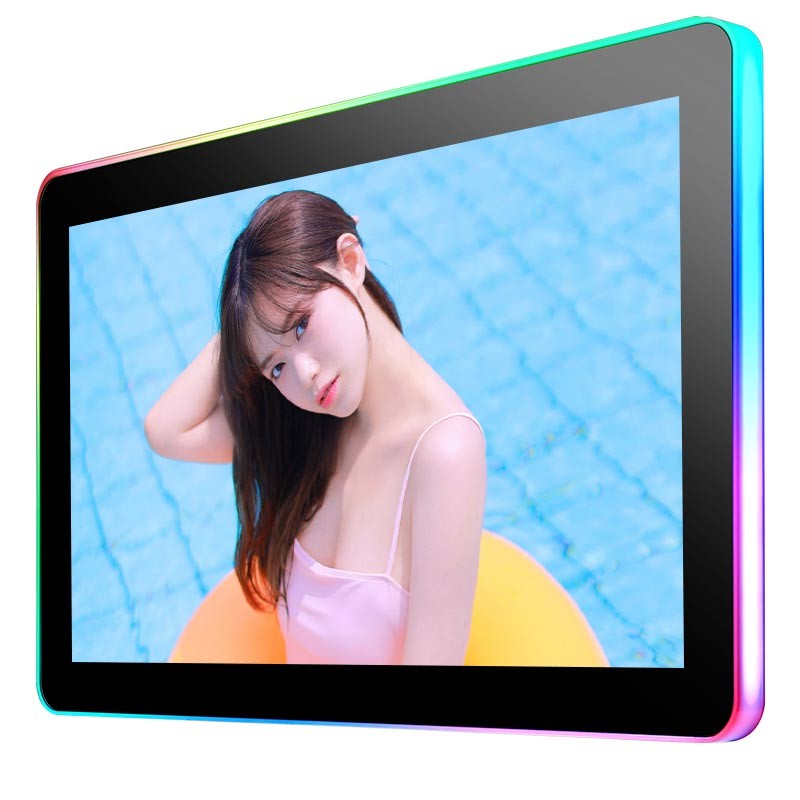

23 Inch PCAP Touch Monitor With LED Flexible Strips For Gaming


PCAP Touch Monitor Main Features


  • PCAP multi-point touch, high-sensitivity and great touch experience

  • Anti-vandal and IP65 front surface waterproof PCAP touch monitor

  • Pure flat design with LED flexible strips, attractive and fashionable

  • High resolution PCAP touch monitor with full viewing angle

  • VGA+DVI+HDMI input video format,USB for touch

  • Multiple mounting options include VESA mount, horizontal or vertical brackets mount

  • Support system: XP,WIN7,WIN8,WIN10, Linux, Android

  • Other sizes are optional (7''- 43'')





PCAP Touch Monitor Specifications


 Complete Machine

 Model No.

KOT-0230U-CA5P

 Series

OT , With LED Flexible Stripes

 Display Type

16:9 Ratio 23” Active matrix TFT-LCD

 Active Area

511.8mm×289mm

 Monitor Dimensions (W*H*D)

588.2*365.4*45(mm)

 Suggested Resolution

1920x1080 @ 60Hz

 Support Colors

16.7M

 Brightness (Typ.)

Pure LCD Panel

(Brightness from 300~1000cd/m² can be customized)

250 cd/m²

With Projected Capacitive Touchscreen

212 cd/m²

 Response Time (Typ.)

14ms

 Viewing Angle(Typ.at CR＞10)）

Horizontal(left/right):89°/89°

Vertical(up/down): 89°/89°

 Contrast Ratio (Typ.)

1000:1

 Video Input

VGA/HDMI/DVI

 Frequency (H/V)

30～80KHz / 60～75Hz

 Power Supply

Type: External brick

Input (line) voltage: 100-240 VAC, 50-60 Hz

 Environment

Operating Temp.

0～50°C

Operating RH

20%～80%

Storage Temp.

-20～60°C

Storage RH

10%～90%

 MTBF

≥30,000 Hours

 LED Back Light Life (Typ.)

≥30,000 Hours

 Weight（N.W/G.W）

7.5kg/17.3kg(2 pcs)

 Package dimensions

703×181×485(mm) (2pcs in one package)

 Power Consumption

37W(approximately, Includes touch display and LED lamp)

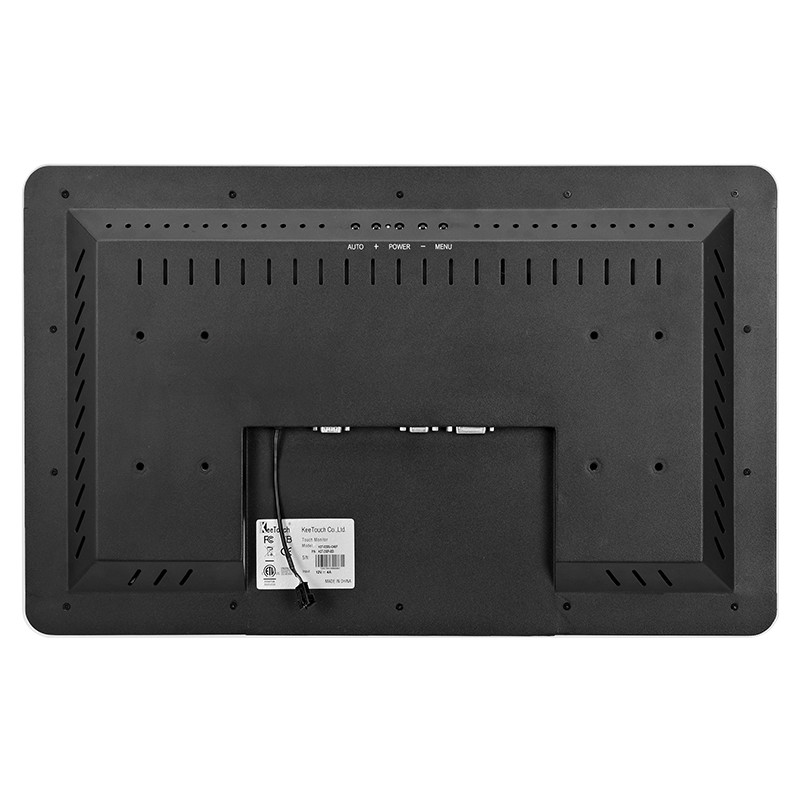

 Mount Interface

VESA 100*300mm and 100*400mm

 OSD Control

Buttons

 AUTO,+,POWER,-,MENU

Function

Brightness, Contrast Ratio, Auto-adjust, Phase, Clock,

H/V Location, Languages, Function, Reset

 Agency approvals

 CCC, UL, FCC, CE, CB, RoHS

 Regular Warranty

1 year


Touch Screen

Touch Type

23” Projected Capacitive Touchscreen 10 Points Touch

Touch Input

USB

Response Time

≤10ms

Hardness

7H

Light Transmittance

≥85%

Active Area

511.8mm×289mm

Thickness

4.3±0.2(mm)

Touch Test

More than 50,000,000 touches in one location without failure

Input Voltage

DC 5V±5%






Applications

KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.





FAQ

1. Are you a manufacturer?

Yes, KeeTouch is a professional touch product manufacturer founded in 2006, located in Shenzhen, China.


2. What’s your MOQ for the PCAP touch monitor?

Our minimum order quantity is 1pc only.


3. What is your warranty period for the PCAP touch monitor?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).


4. Can you produce the PCAP touch monitor according to the customer's requirements?

Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.


5. What is your payment method?

We can accept T/T, Western Union, Paypal, Credit card and Alipay. ( L/C can be negotiable. )


6. What is your delivery time?

3-5 work days for inventory orders, 7-15 business days for bulk production.
